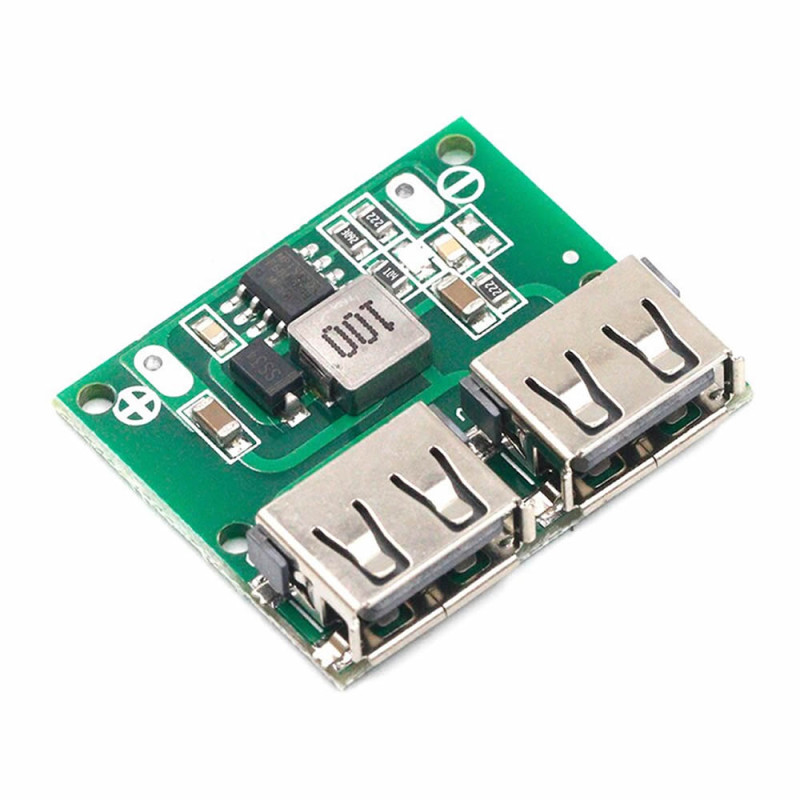

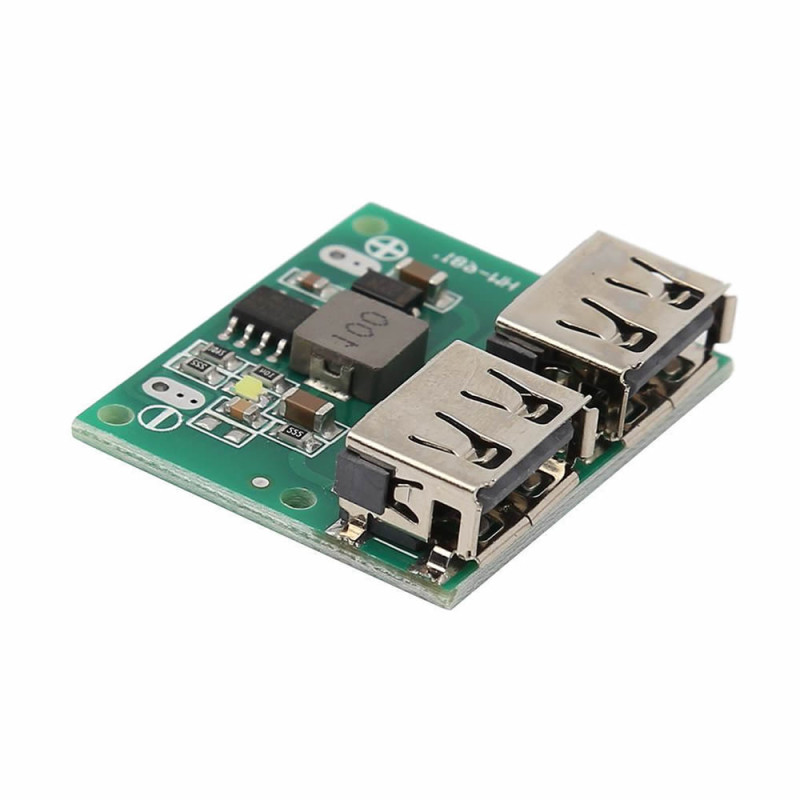

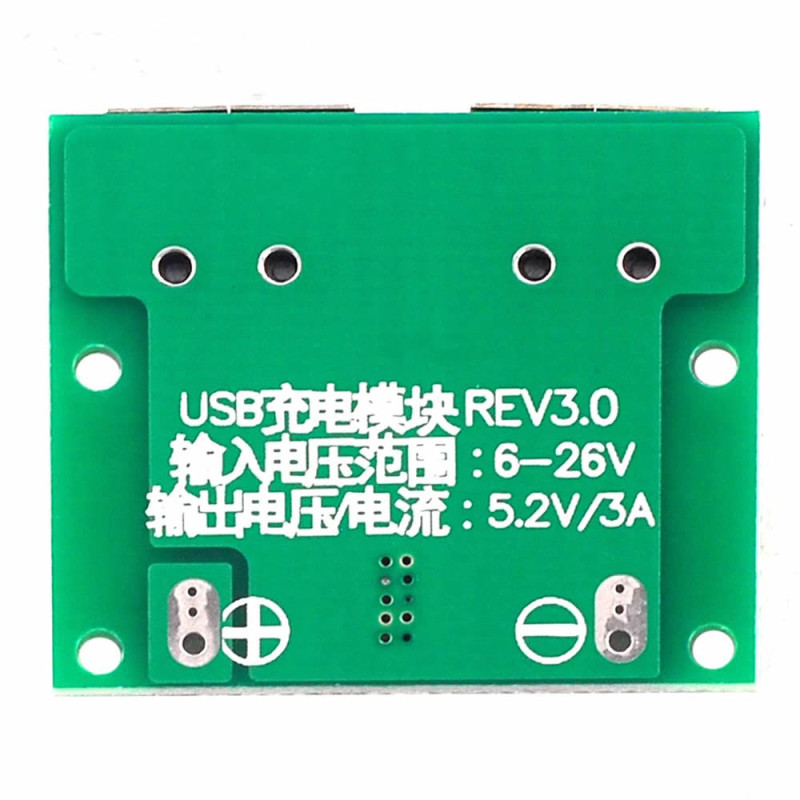

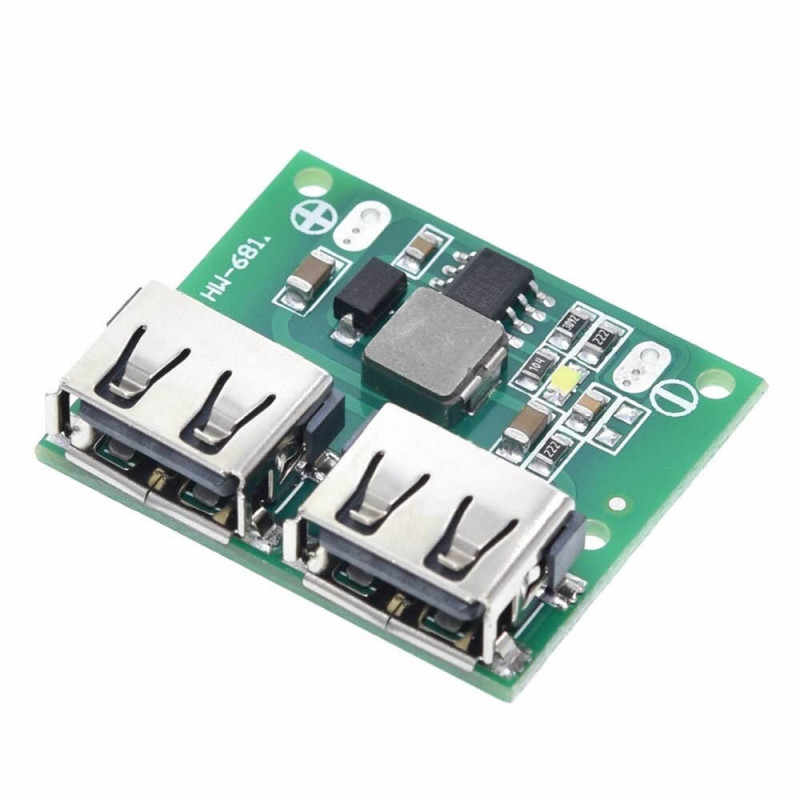

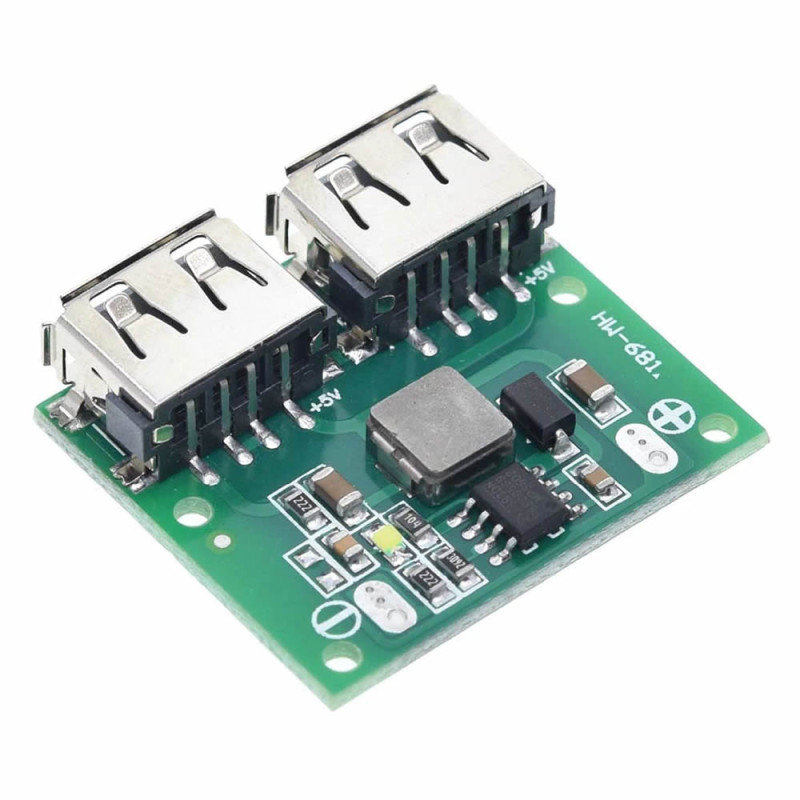

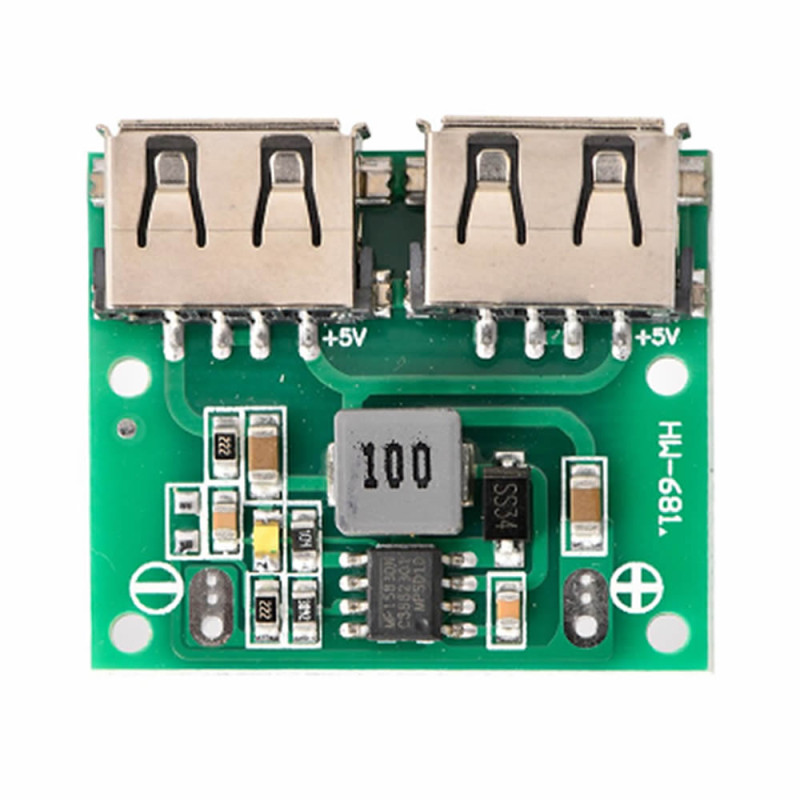

Dual USB Output Step Down Voltage Converter HW-681

6-24V to 5V 3A Dual USB Output Step Down Voltage Converter HW-681

2x Usb Output Charger Portable Power Supply Car Mobile DC DC Converter Step Down Power Module

There is no reverse connection protection. The product is damaged in case of reverse connection.

Touching the sampling resistor while the product is running causes damage to the product!!! Do not touch the IC and the surrounding circuits while the circuit is running.

     It converts a supply input between 6V and 24V into 2 usb DC 5V outputs. The output current is 3A. It can be used to power your usb operated products. It can be used as a usb power supply in portable devices. It can be used in applications such as phone charging etc.

Features:

•    Input voltage: DC 6V / 26V
•    Output voltage: DC 5V 2 USB
•    Output current: 3A  ( it heats up when used above 2A and needs cooling )
•    Indicator led.
•    Short circuit protection available. ( Do not leave it short circuited for a long time!! )
•    There is no reverse connection protection. The product is damaged in case of reverse connection.
•    Compatible with iPhone Androd iPad.
•    Operating temperature: -40C /  85C

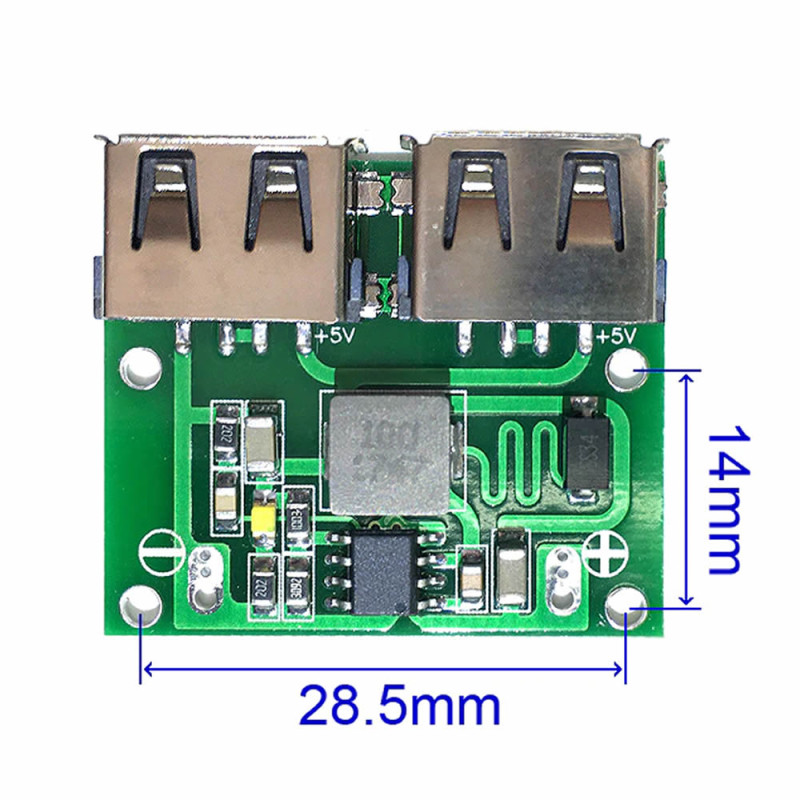

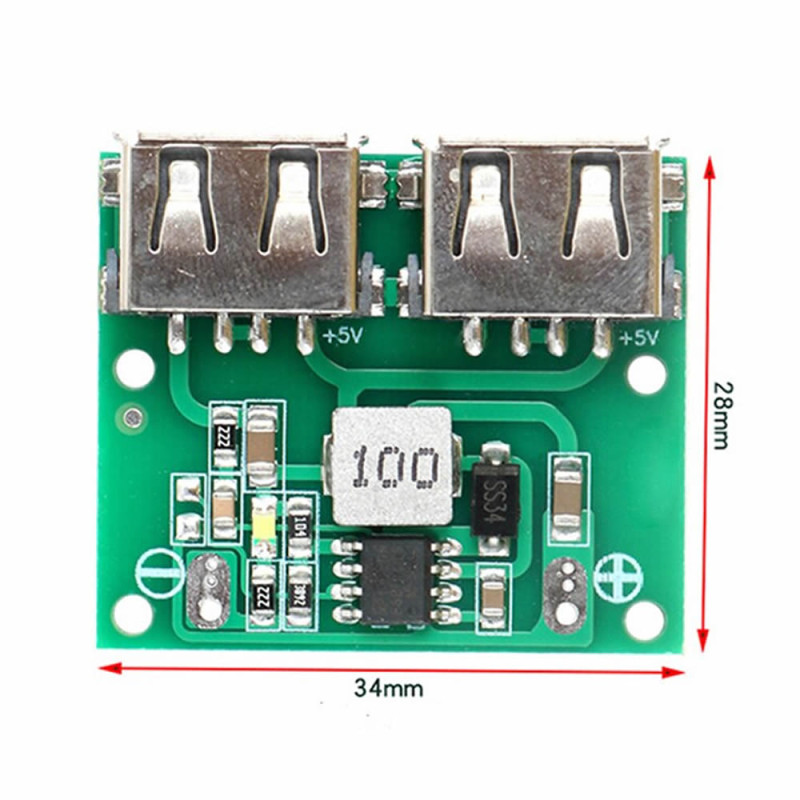

•    Dimensions: 34mm x 28mm
•    Weight: 6gr

Package Contents :

•     1 x 5V 3A 2x USB Output Step Down Voltage Converter HW-681
