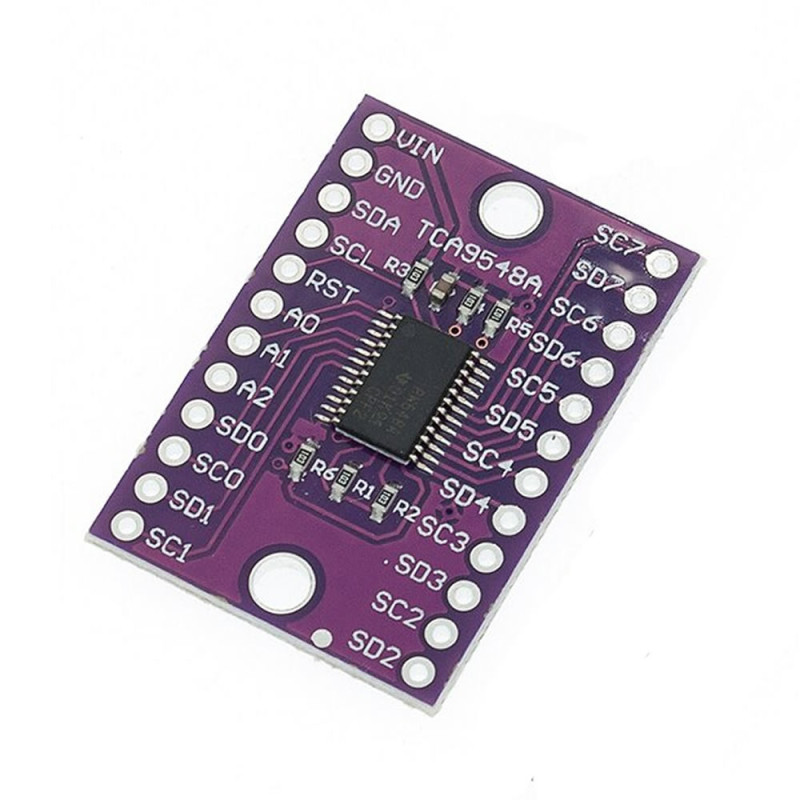

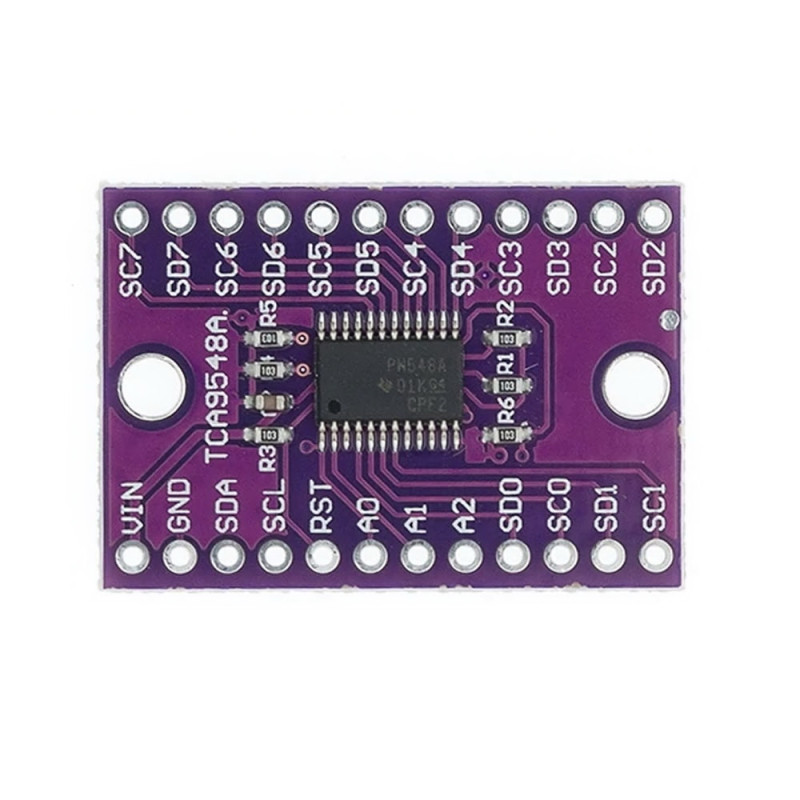

TCA9548A 8 Channel IIC I2C Multiplexer Module

TCA9548A 8 Channel IIC I2C Multiplexer Module

I2C Communication Port Expander Module 3.3V 5V

     TCA9548A is used for the function of expanding the I2C communication port to 8 channels. In your application you need to use too many ICs/sensors that communicate over IIC with the same address. Normally it is not possible for you to use 2 devices with the same I2C address together on the same I2C line. This module allows the use of up to 8 devices at the same time that use the same address. And easy communication with all of them is obtained.

     The IIC address is 0x70 But there is the possibility of changing it between 0x70 - 0x77.  It can work with supplies between DC 3V - 5V.

Features:

• Operating Voltage: 2.3VDC – 5.5VDC
• Operating Temperature:  -10C – 80C
• Clock Frequency: 0 kHz – 400 kHz
• I2C address:  0x70   (  can vary between 0x70-0x77 )
• Color: Purple
• 2 Mounting holes

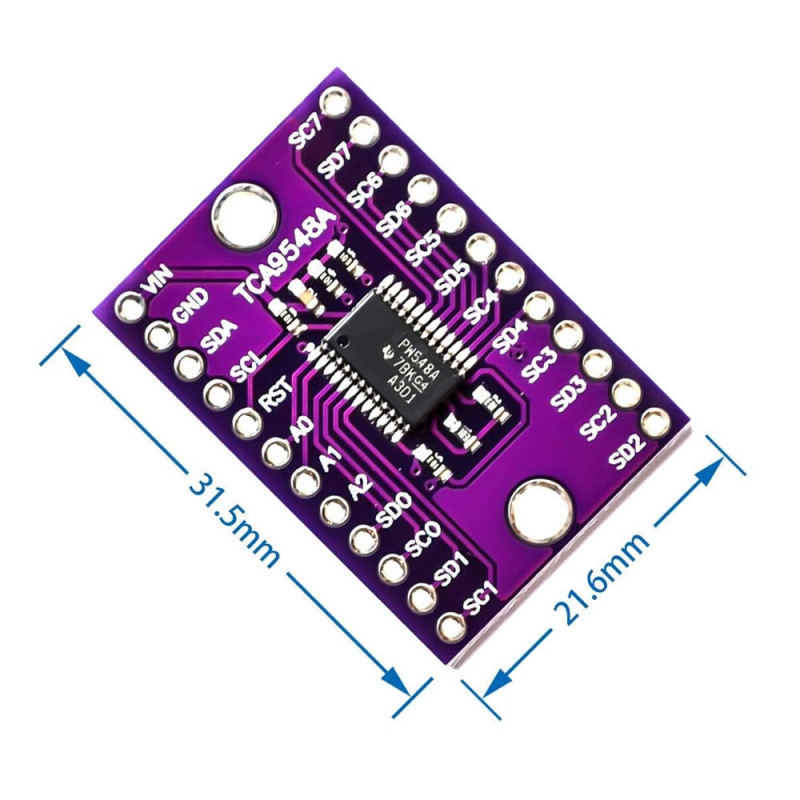

• Dimensions: 31mm x 22mm
• Weight: 1.8gr

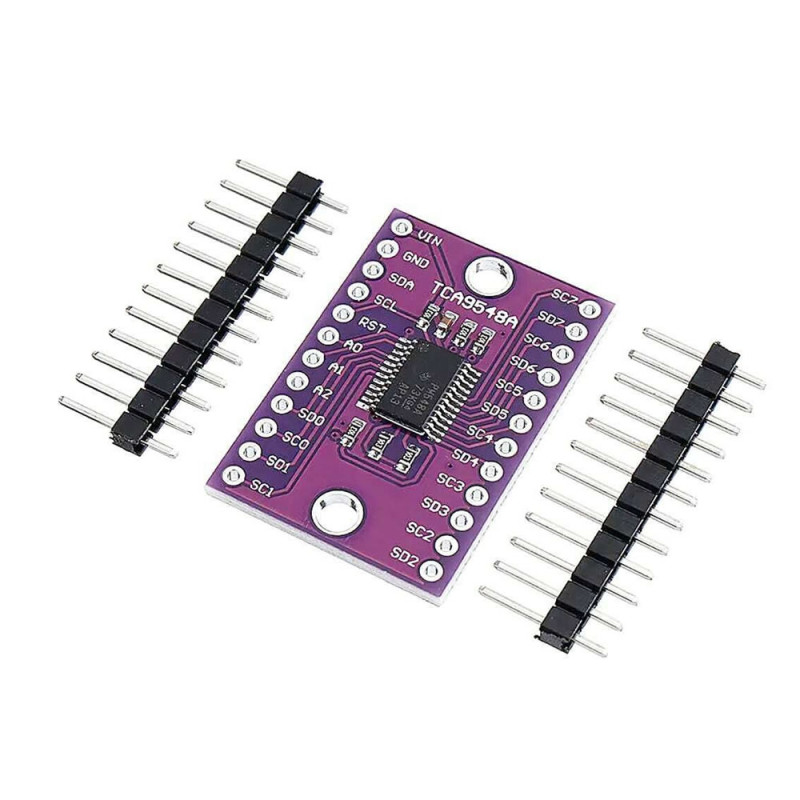

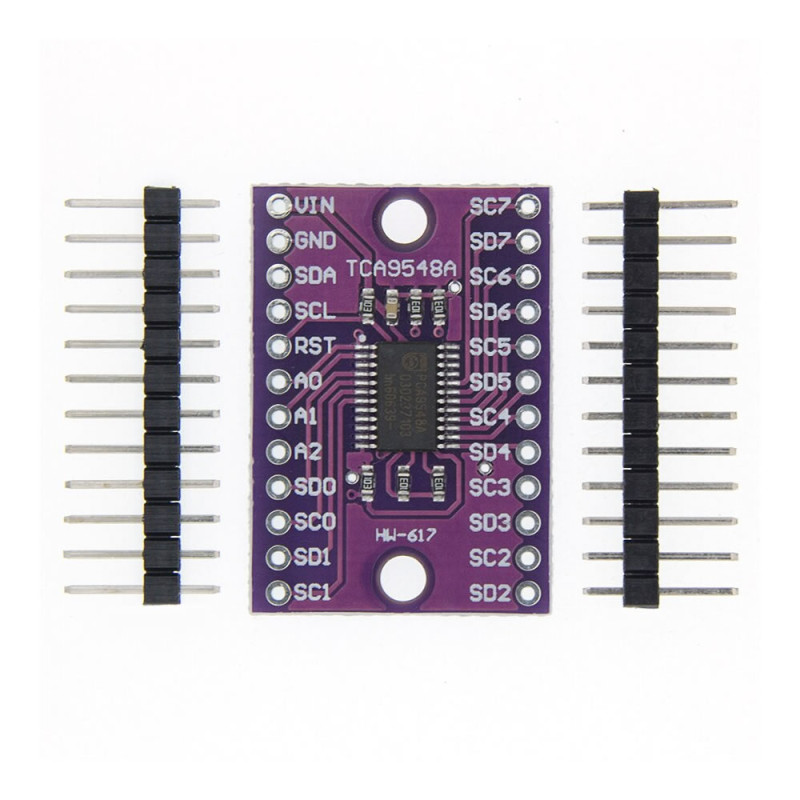

Package Contents:

• 1 Piece TCA9548A 8 Channel IIC I2C Multiplexer Module
• 2 Pieces 12 Pin Male Header
