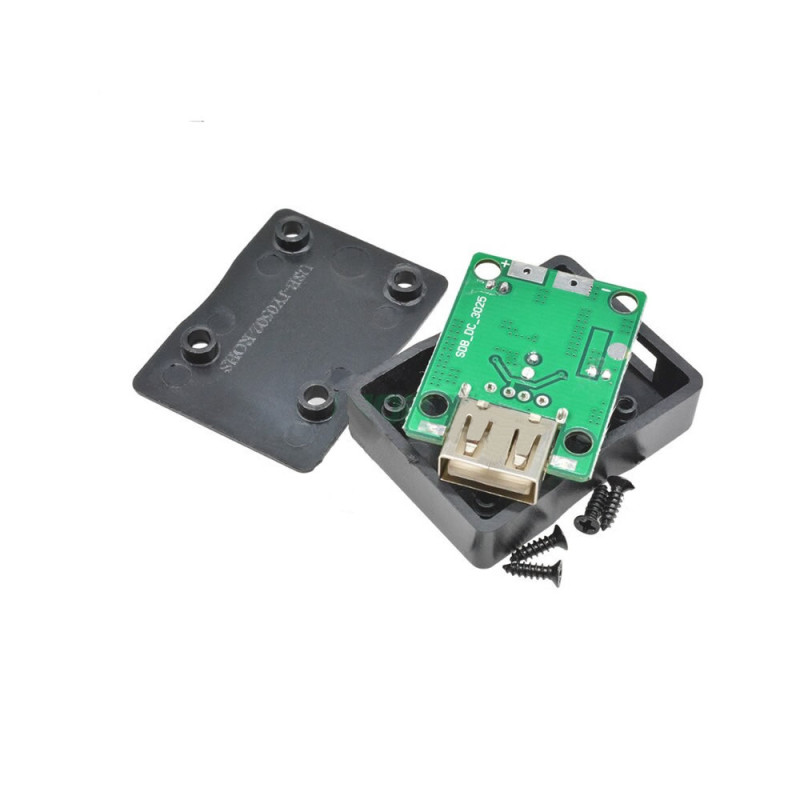

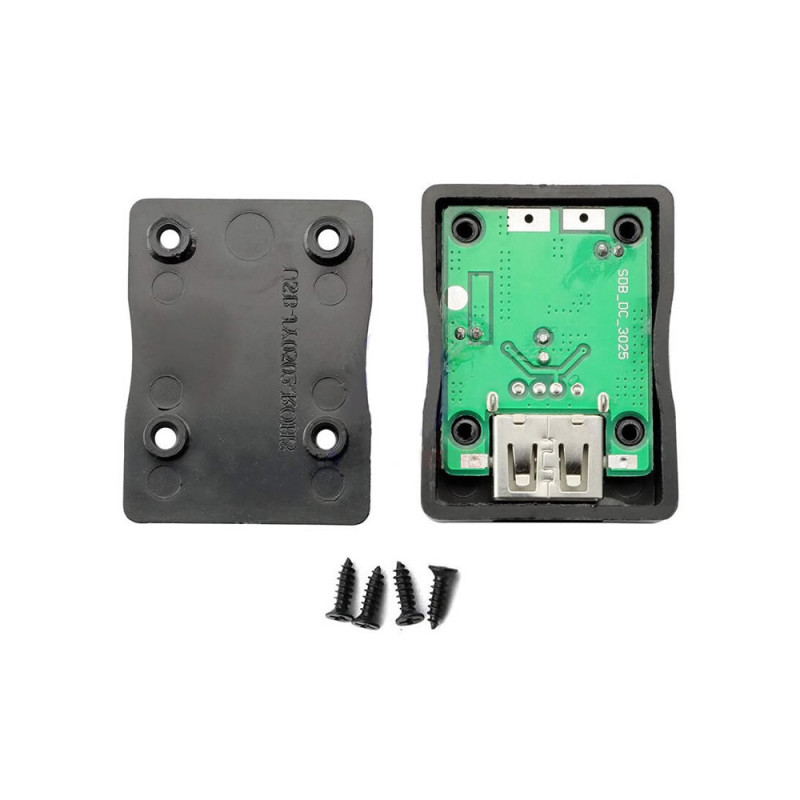

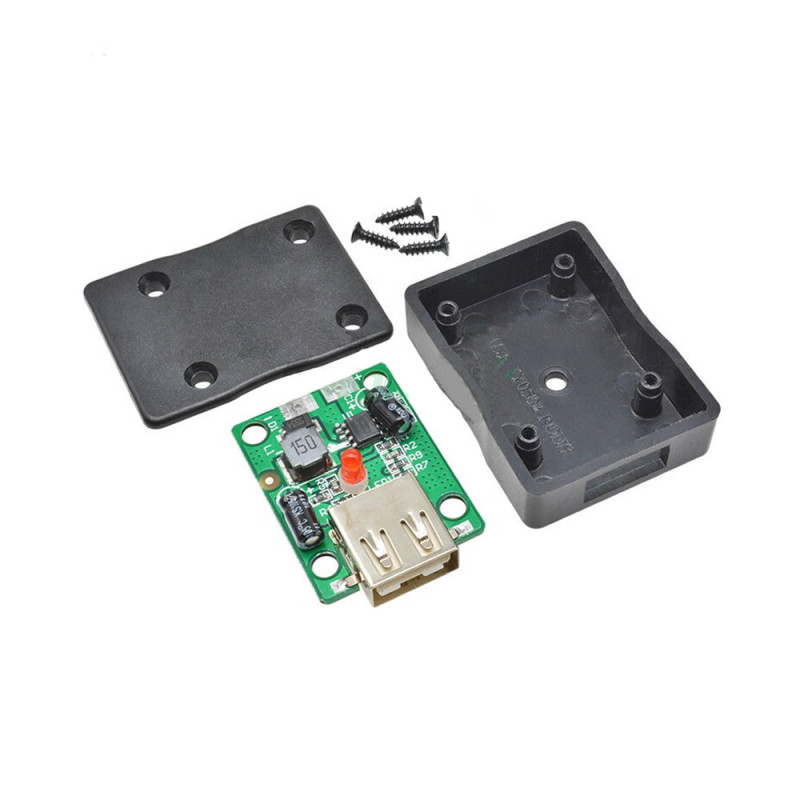

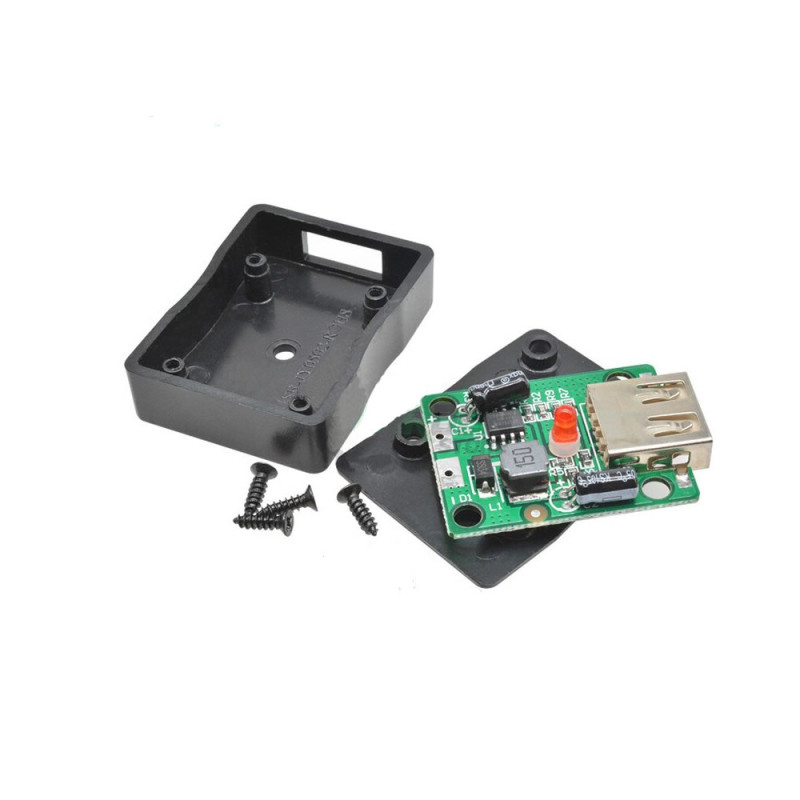

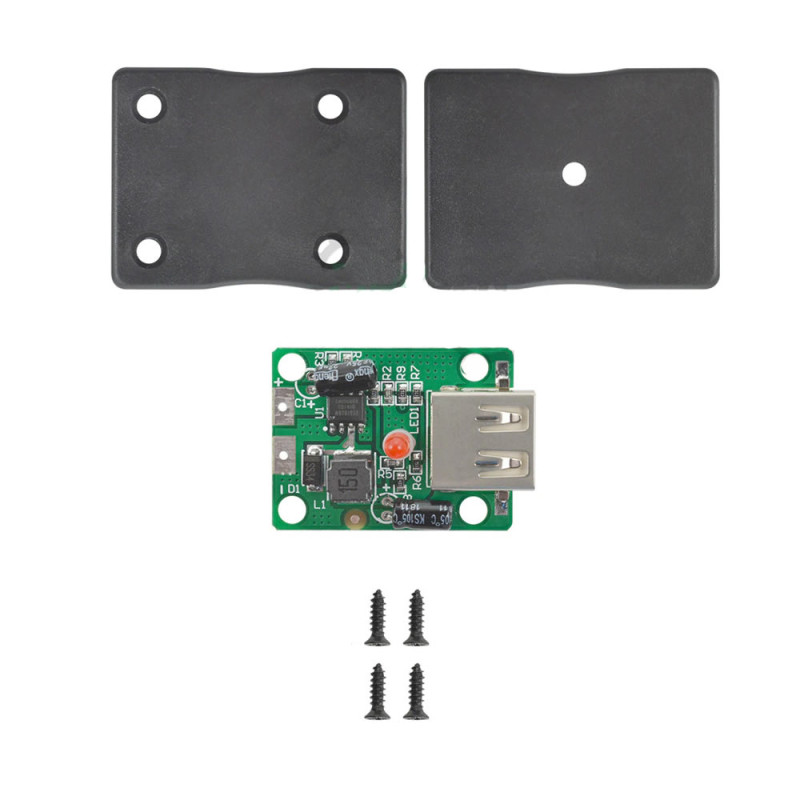

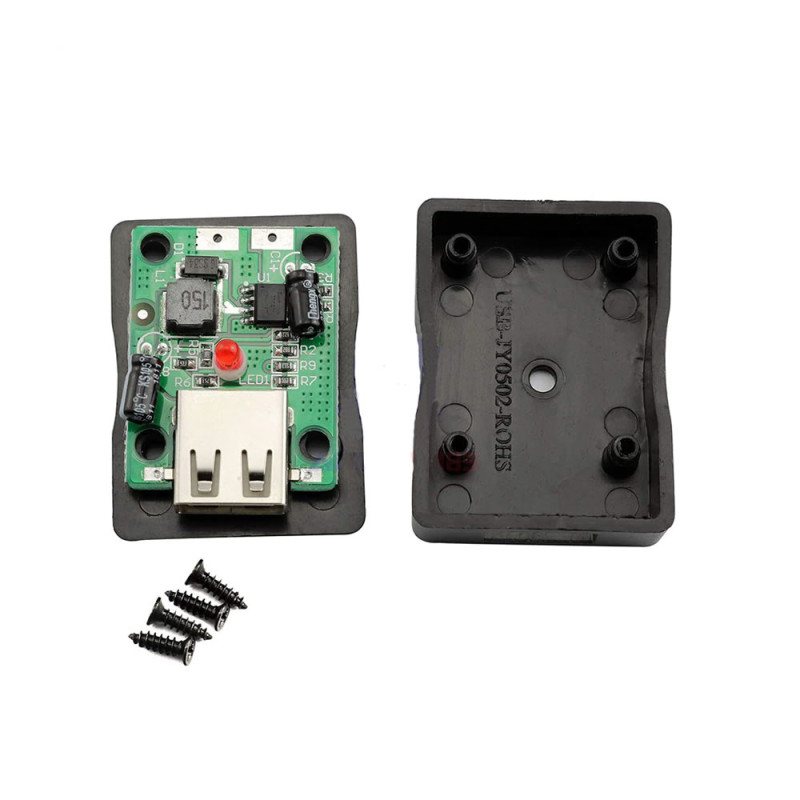

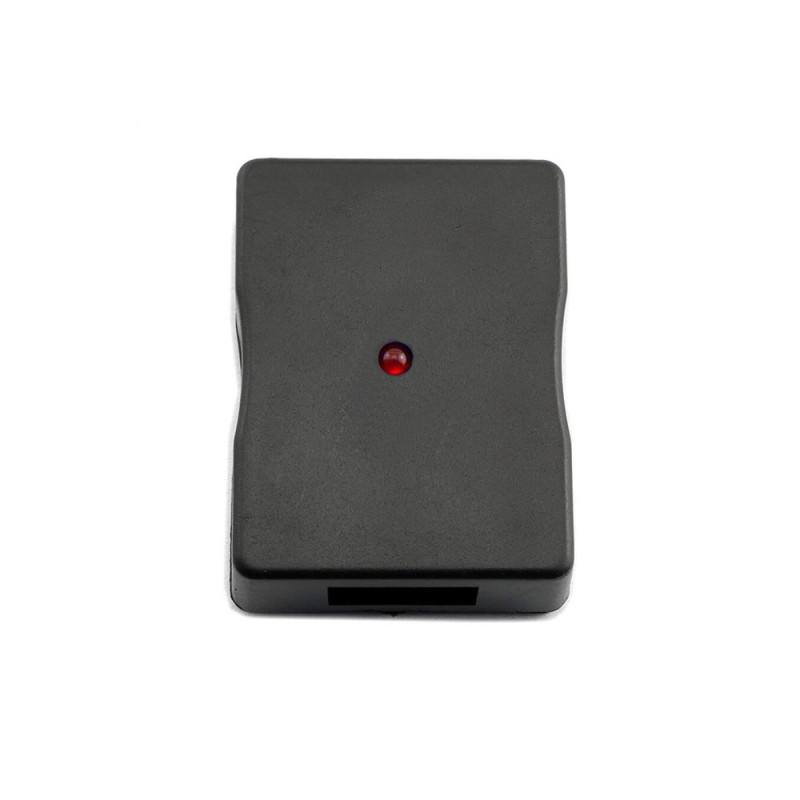

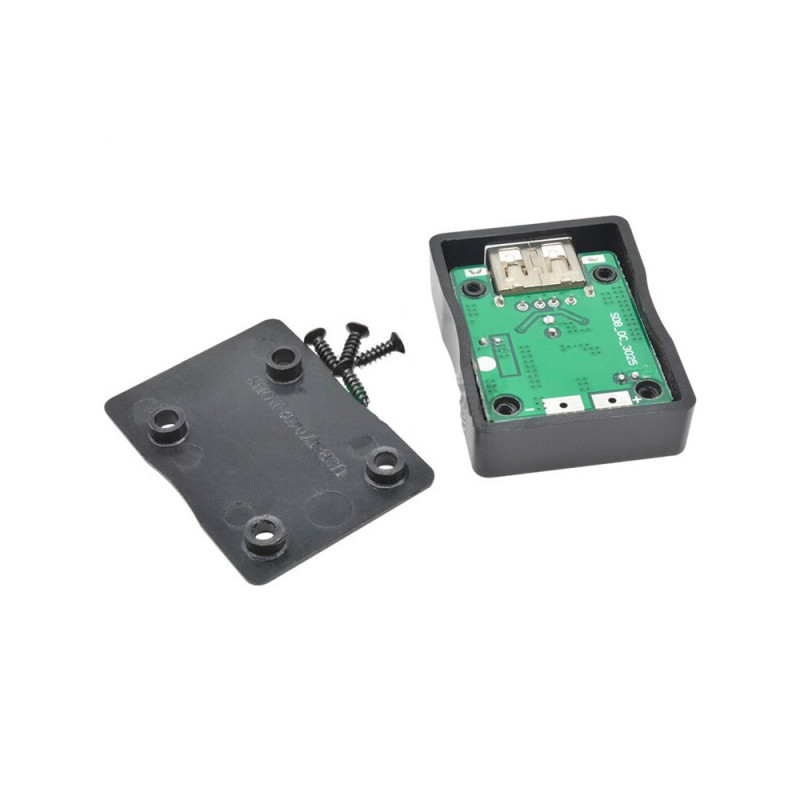

Solar Panel Control Board

Solar Panel Control Board USB 5V 2A + Case

DC 6-20V to 5V 2A Step Down Voltage Regulator Usb Output Solar Panel Charging Powerbank

     It is used in electricity generation from solar energy. It converts the DC voltage coming from the solar panel to the 5V 2A level. You can power and use various devices through the usb socket.

Features:

• It is for electricity generation from solar energy.
• High efficiency energy conversion rate.
• 5V female usb output socket
• Good performance
• Easy use.
• It is suitable for use with foldable or small solar panels.

Technical parameters:

• Input voltage: DC 6-20V
• Output voltage: DC 5V Fixed
• Output Current: 2A ( Maximum - If there is not enough sun, the current value drops.)
• It turns off the output when solar energy is low. Automatic restart when energy increases.
• Efficiency:  95%
• Operating temperature: -20C -   70C
• Board dimensions. 30mm x 25mm
• Case dimensions: 40mm x 30mm x 12mm

Package Contents:

• 1 Piece  Solar Control Board USB 5V 2A
• 1 Piece Case
• 4 Pieces screws
