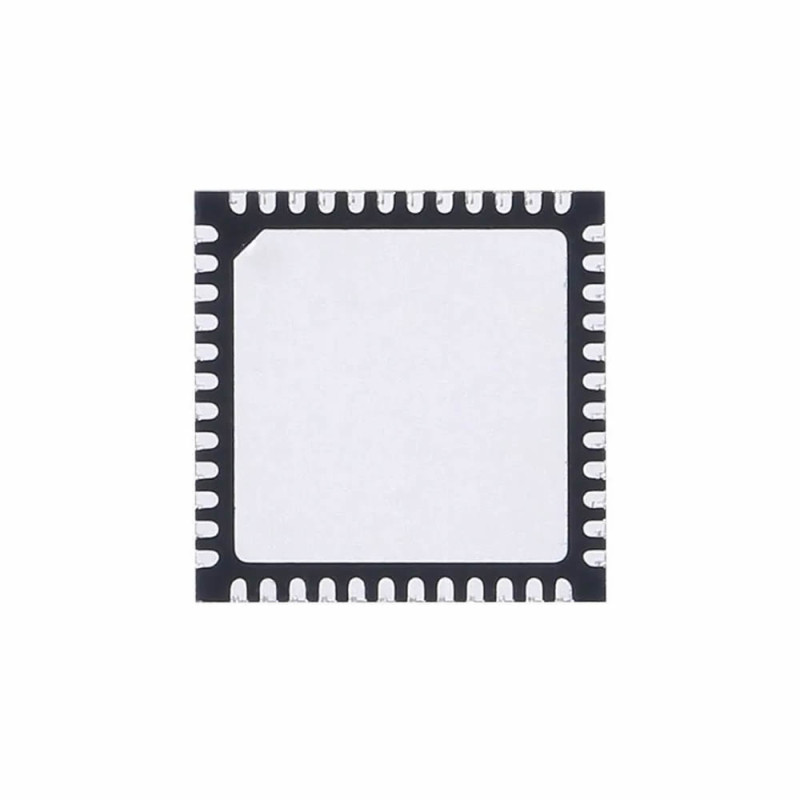

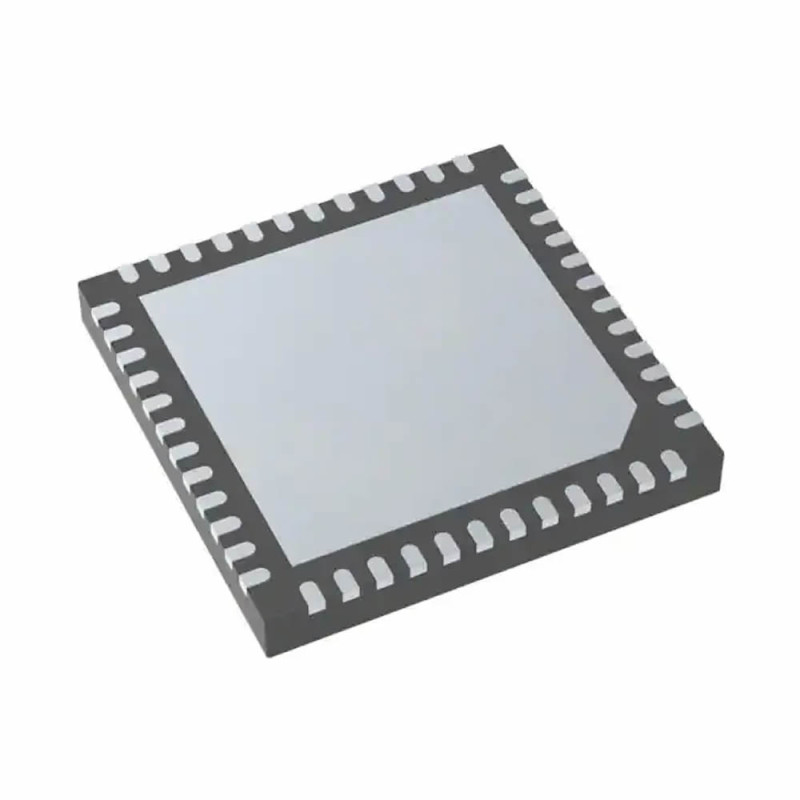

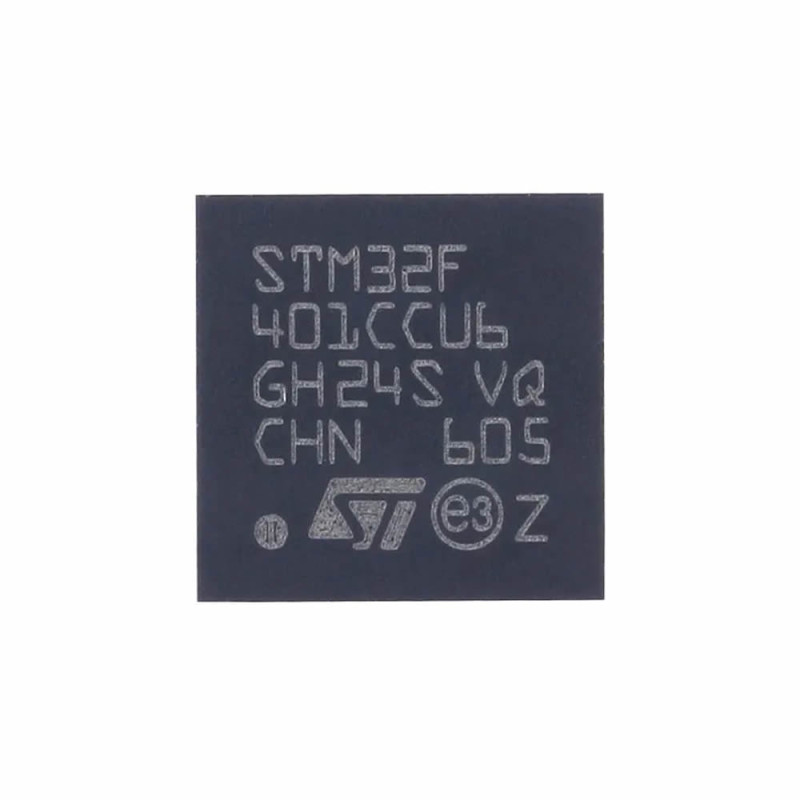

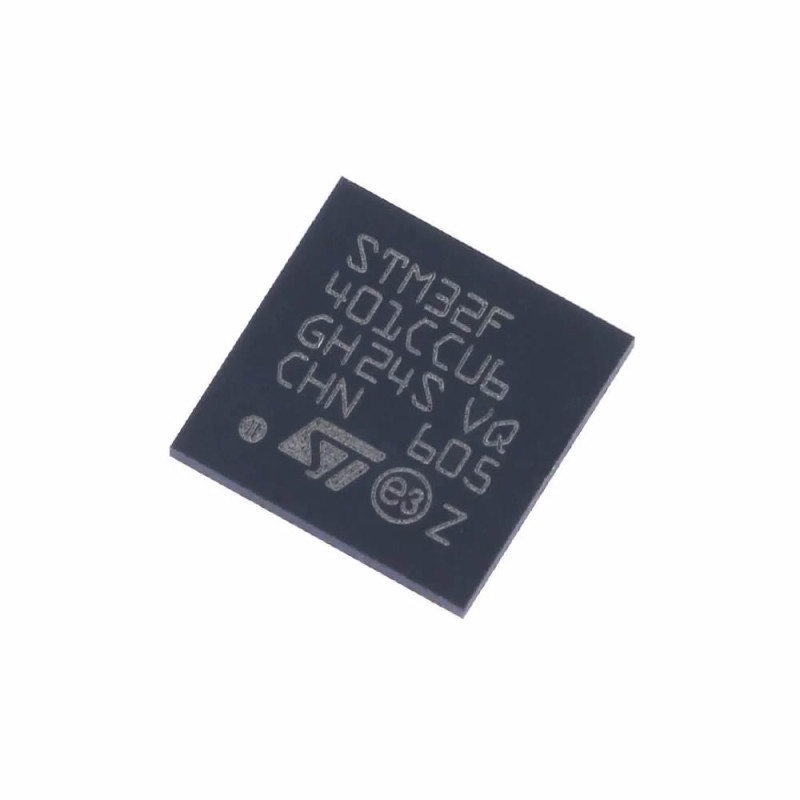

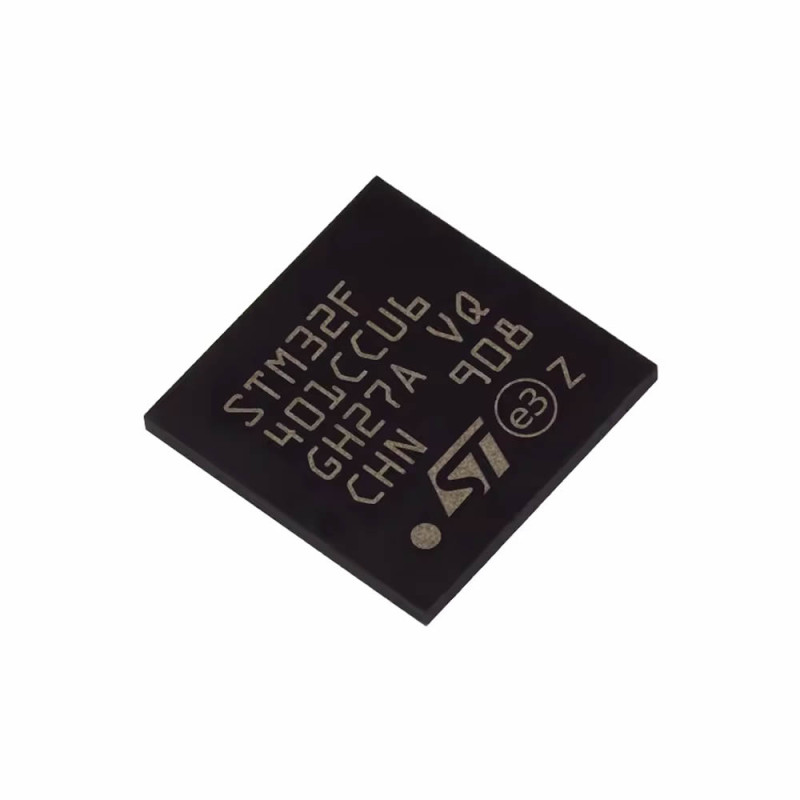

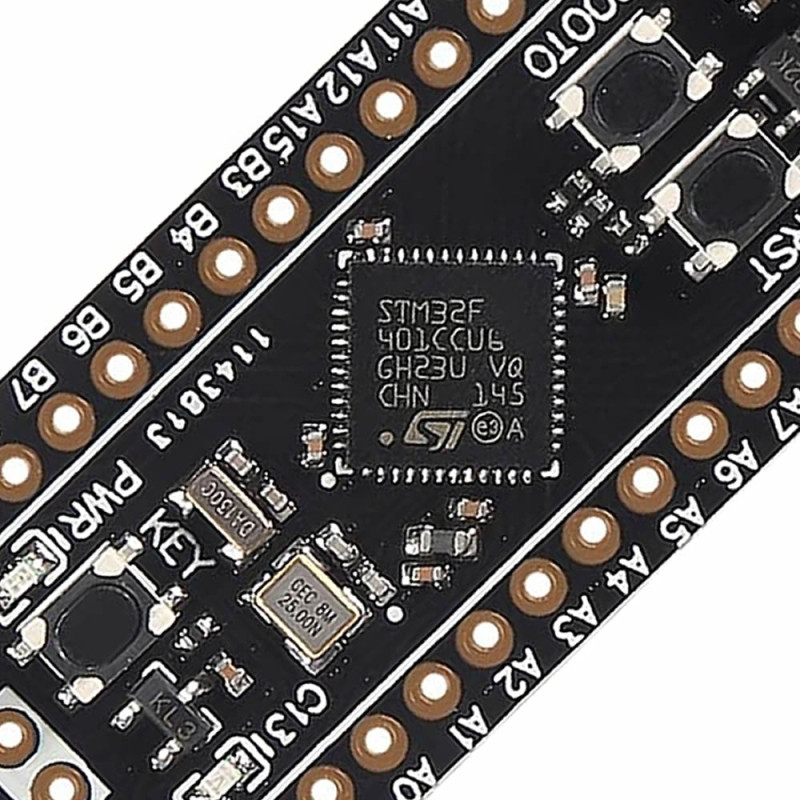

STM32F401CCU6 48QFN Entegre

STM32F401CCU6 48qfn Entegre

32 Bit Arm Cortex-M4 Risc Mcu Dsp Fpu 256 Kbytes Flash Memory 84 MHz Cpu Art Accelerator I2C Irda LINbus Sdio Spi Uart Usb Adc Rtc

      The STM32F401CCU6 devices are based on the high-performance Arm Cortex-M4 32-bit RISC core operating at a frequency of up to 84 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

     The STM32F401xB/STM32F401xC incorporate high-speed embedded memories (up to 256 Kbytes of Flash memory, up to 64 Kbytes of SRAM), and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

     All devices offer one 12-bit Adc, a low-power Rtc, six general-purpose 16-bit timers including one PWM timer for motor control, two general-purpose 32-bit timers. They also feature standard and advanced communication interfaces.

     The STM32F401xB/STM32F401xC operate in the -40C to 125C temperature range from a 1.7 (PDR OFF) to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.

Features:

• Core processor:   ARM Cortex-M4
• Core size:   32-Bit
• Speed:  84MHz
• Connectivity:  I2C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG
• Peripherals:  Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
• Number of I/O:   36
• Program memory size      256KB (256K x 8)
• Program memory type     Flash
• Ram size      64K x 8
• Voltage supply (Vcc/Vdd)     1.7V / 3.6V
• Data Converters     A/D 10x12b
• Oscillator type:   Internal
• Operating temperature     -40C / 85C (TA)
• Mounting type:   Surface Mount

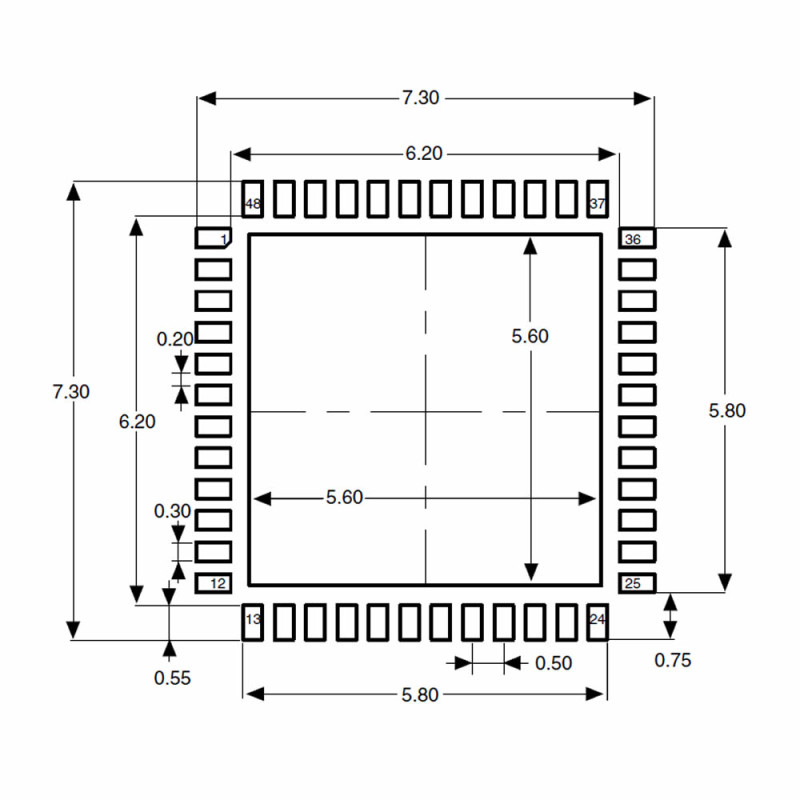

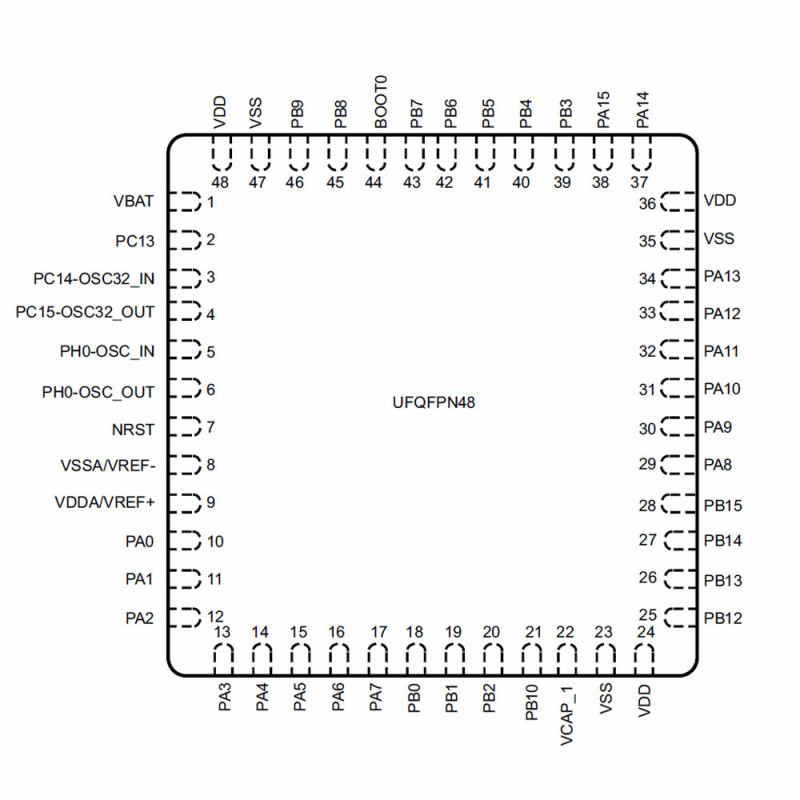

• Package:   48-UFQFN Exposed Pad

Features:

•     Dynamic efficiency line with BAM (batch acquisition mode)
•         1.7 V to 3.6 V power supply
•         -40C to 85/105/125C temperature range
•     Core: Arm 32-bit Cortex-M4 CPU with FPU, Adaptive real-time accelerator ( ART Accelerator ) allowing 0-wait state execution from Flash memory, frequency up to 84 MHz, memory protection unit, 105 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
•     Memories
•         Up to 256 Kbytes of Flash memory
•         512 bytes of OTP memory
•         Up to 64 Kbytes of SRAM
•     Clock, reset and supply management
•         1.7 V to 3.6 V application supply and I/Os
•         POR, PDR, PVD and BOR
•         4-to-26 MHz crystal oscillator
•         Internal 16 MHz factory-trimmed RC
•         32 kHz oscillator for RTC with calibration
•         Internal 32 kHz RC with calibration
•     Power consumption
•         Run: 128 μA/MHz (peripheral off)
•         Stop (Flash in Stop mode, fast wakeup time): 42 μA typ 25C;65 μA max 25C
•         Stop (Flash in Deep power down mode, slow wakeup time): down to 10 μA typ 25C; 28 μA max 25C
•         Standby: 2.4 μA 25C / 1.7 V without RTC; 12 μA  85C 1.7 V
•         VBAT supply for RTC: 1 uA 25C
•     1×12-bit, 2.4 MSPS A/D converter: up to 16 channels
•     General-purpose DMA: 16-stream DMA controllers with FIFOs and burst support
•     Up to 11 timers: up to six 16-bit, two 32-bit timers up to 84 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input, two watchdog timers (independent and window) and a SysTick timer
•     Debug mode
•         Serial wire debug (SWD) & JTAG interfaces
•         Cortex®-M4 Embedded Trace Macrocell
•     Up to 81 I/O ports with interrupt capability
•         All IO ports 5 V tolerant
•         Up to 78 fast I/Os up to 42 MHz
•     Up to 11 communication interfaces
•         Up to 3 × I2C interfaces (1Mbit/s, SMBus/PMBus)
•         Up to 3 USARTs (2 x 10.5 Mbit/s, 1 x 5.25 Mbit/s), ISO 7816 interface, LIN, IrDA, modem control)
•         Up to 4 SPIs (up to 42 Mbits/s at fCPU= 84 MHz), SPI2 and SPI3 with muxed full-duplex I2S to achieve audio class accuracy via internal audio PLL or external clock
•         SDIO interface
•     Advanced connectivity
•         USB 2.0 full-speed device/host/OTG controller with on-chip PHY
•     CRC calculation unit
•     96-bit unique ID
•     RTC: subsecond accuracy, hardware calendar
•     All packages are ECOPACK2

Paket içeriği :

•     1 Adet STM32F401CCU6 48QFN  Entegre
