STM32F746G-DISCO

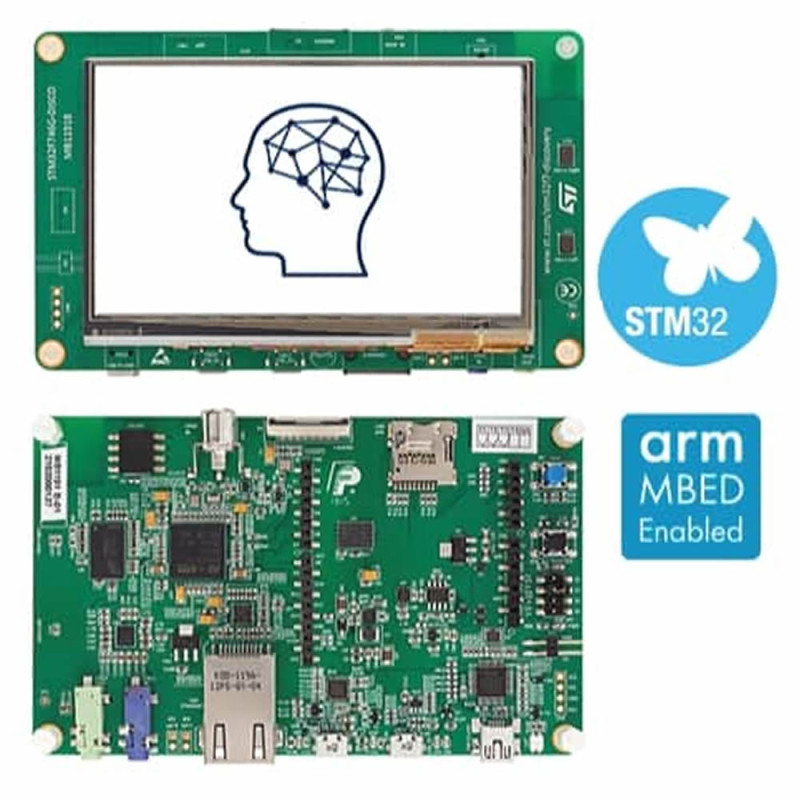

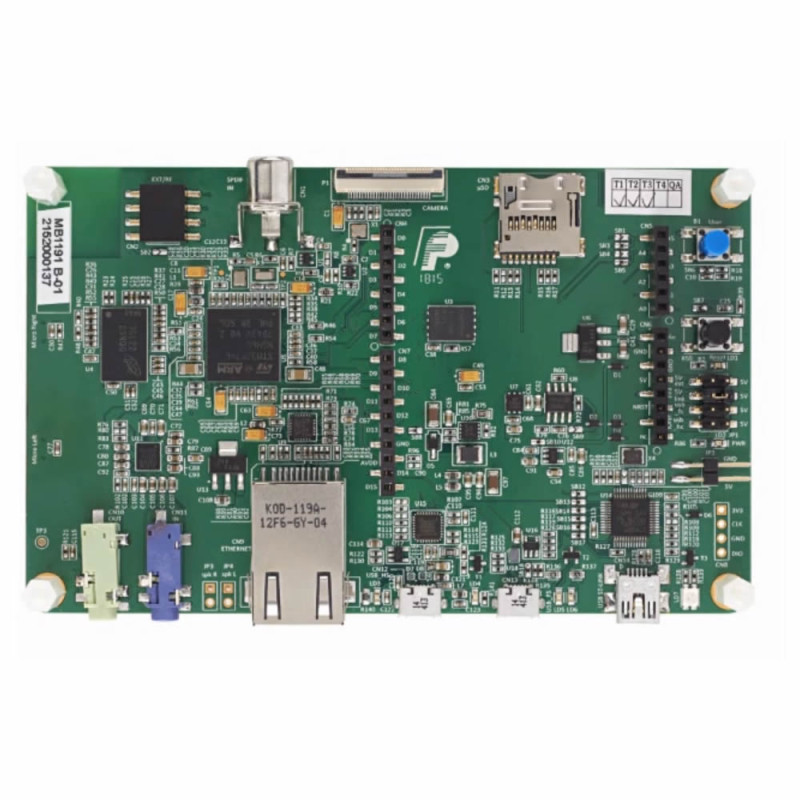

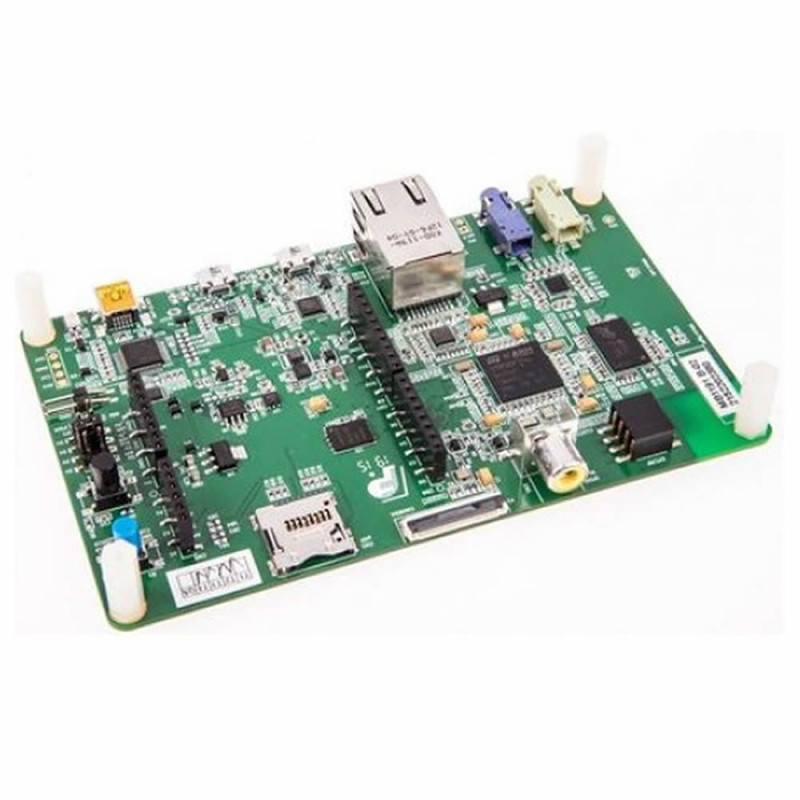

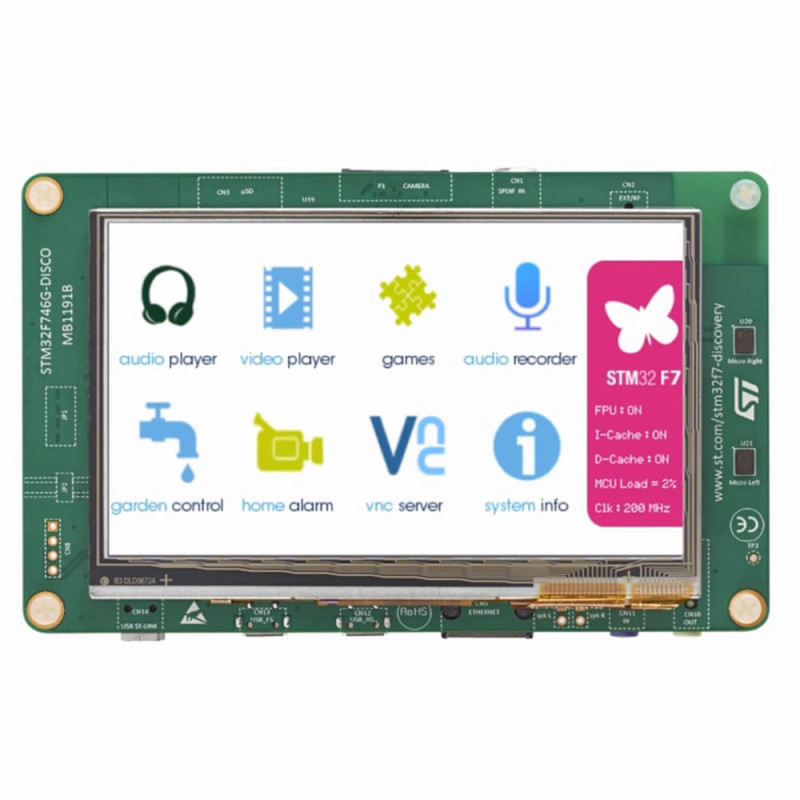

ST STM32F746G-DISCO Discovery Kit

STM32F746NG Arm Cortex-M7 Mcu 4.3 TFT LCD STM32 Development Board ST-LINK V2 216 MHz 1 Mbytes Flash ART Accelerator

     The 32F746GDISCOVERY Discovery kit is a complete demonstration and development platform for STMicroelectronics Arm® Cortex®-M7-core-based STM32F746NG (STM32F746NGH6 order code) microcontroller.

     The 32F746GDISCOVERY Discovery kit is used as reference design for user application development before porting to the final product, thus simplifying the application development.

     The Discovery kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features.

     The ARDUINO connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards

     The 32F746GDISCOVERY board is provided with the STM32CubeF7 MCU package, which offers an STM32 comprehensive software HAL library as well as various software examples.

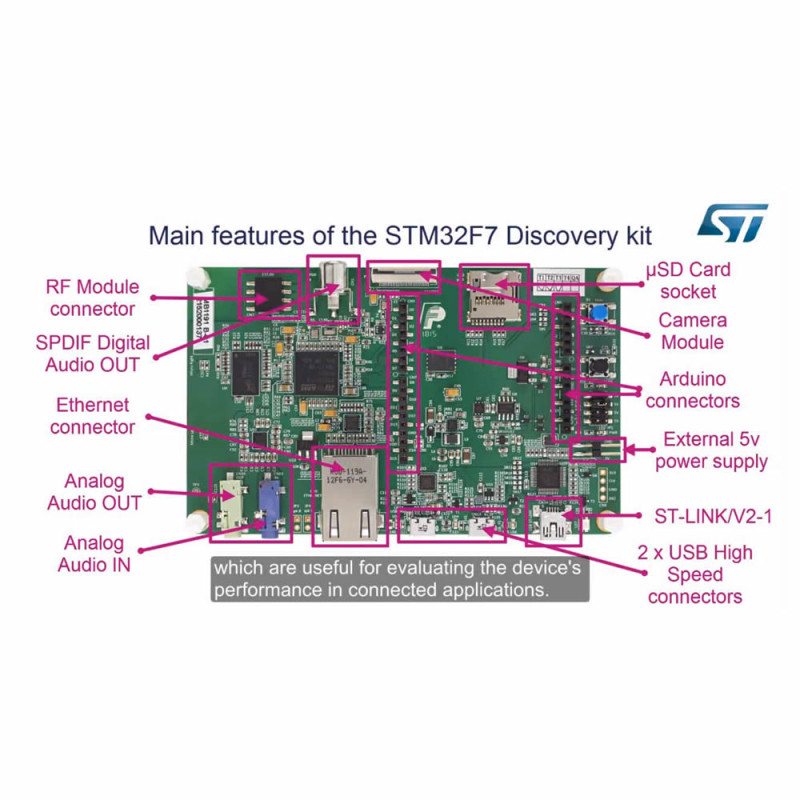

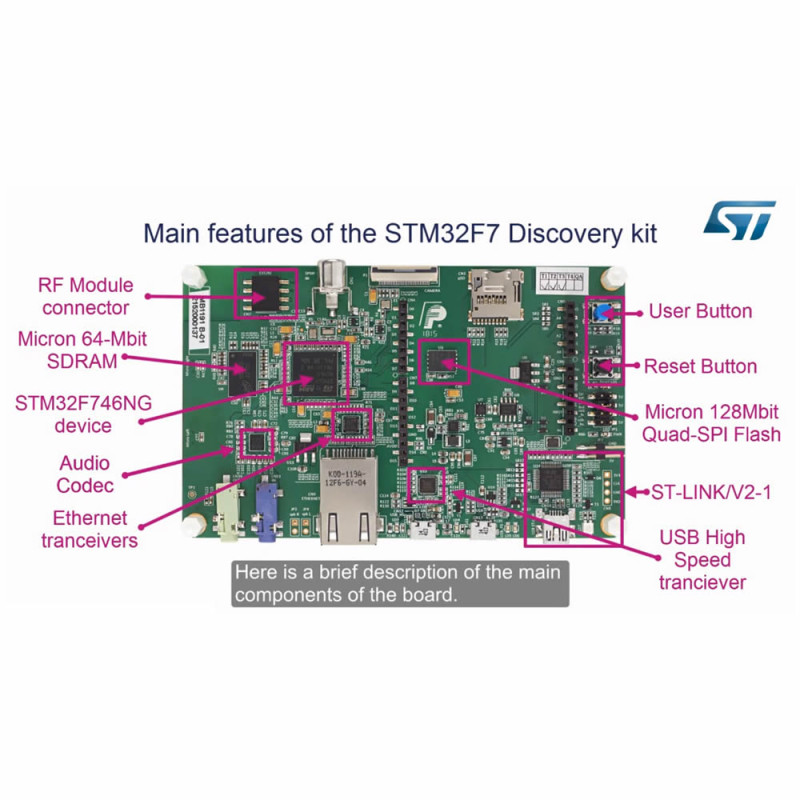

Key Features

•     STM32F746NGH6 microcontroller featuring 1 Mbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package
•     On-board ST-LINK/V2-1 supporting USB re-enumeration capability
•     Mbed-enabled (mbed.org)
•     USB functions: virtual COM port, mass storage, debug port

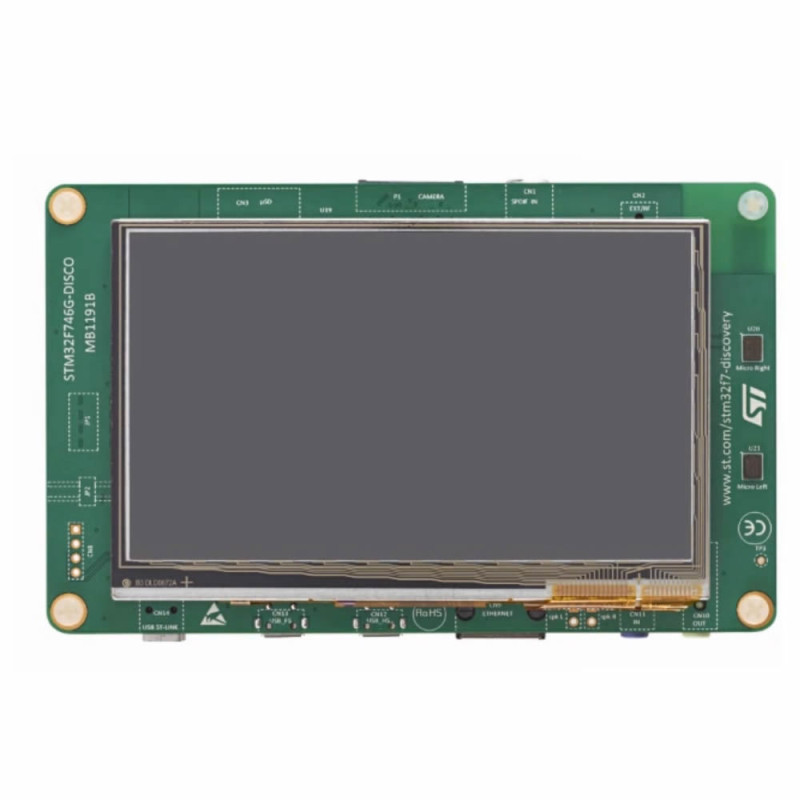

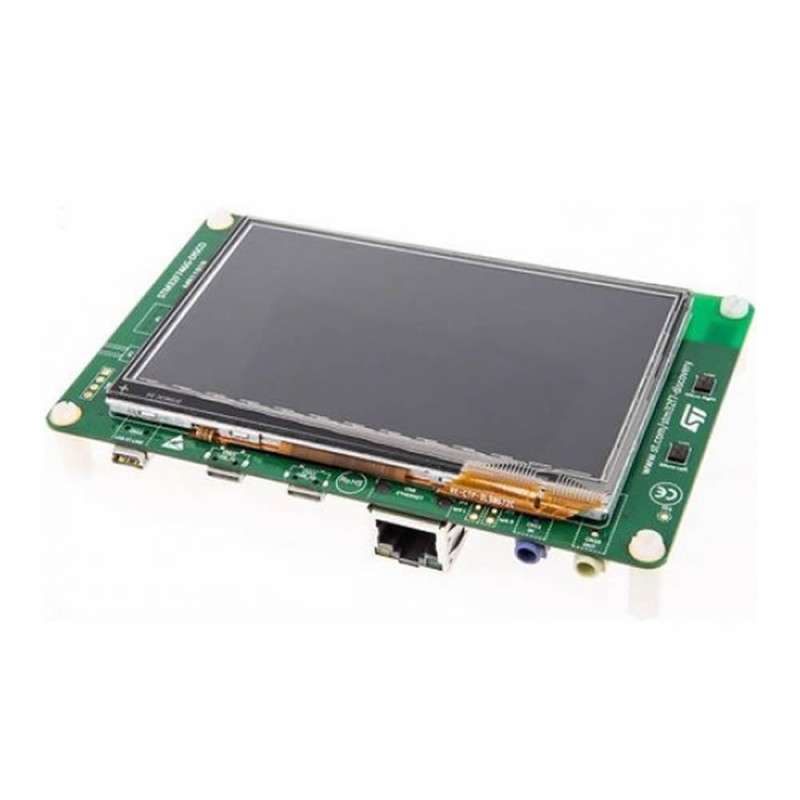

•     4.3-inch 480x272 color LCD-TFT with capacitive touch screen
•     Camera connector
•     SAI audio codec
•     Audio line in and line out jack
•     Stereo speaker outputs
•     Two ST MEMS microphones
•     SPDIF RCA input connector
•     Two pushbuttons (user and reset)
•     128-Mbit Quad-SPI Flash memory
•     128-Mbit SDRAM (64 Mbits accessible)
•     Connector for microSD card
•     RF-EEPROM daughterboard connector
•     USB OTG HS with Micro-AB connectors
•     USB OTG FS with Micro-AB connectors
•     Ethernet connector compliant with IEEE-802.3-2002
•     Five power supply options:
  1.      ST LINK/V2-1
  2.     USB FS connector
  3.     USB HS connector
  4.     VIN from Arduino connector
  5.     External 5V from connector
•     Power supply output for external applications: 3.3V or 5V
•     Arduino Uno V3 connectors
•     Comprehensive free software including a variety of examples, part of STM32Cube package
•     Supported by a wide choice of integrated development environments

Attention = A mini usb cable is not included in the package.
