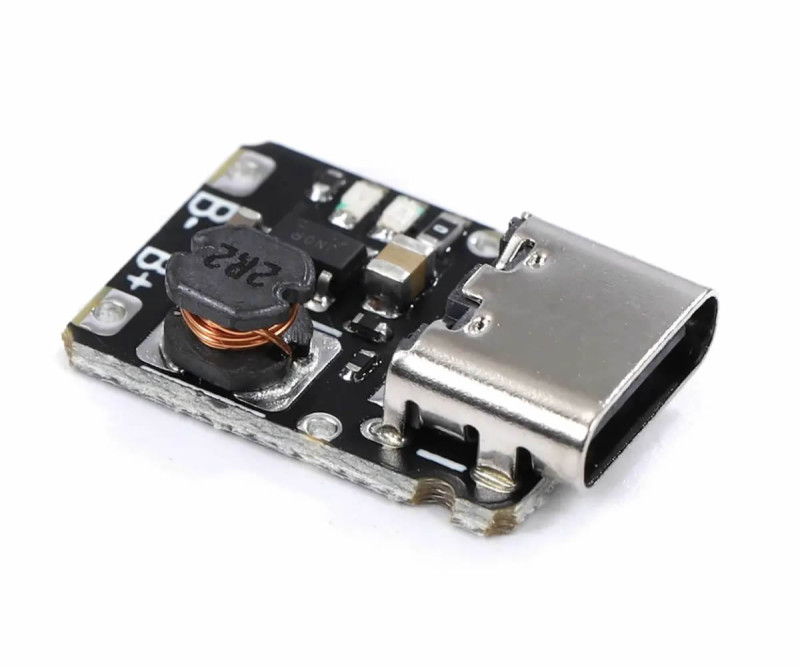

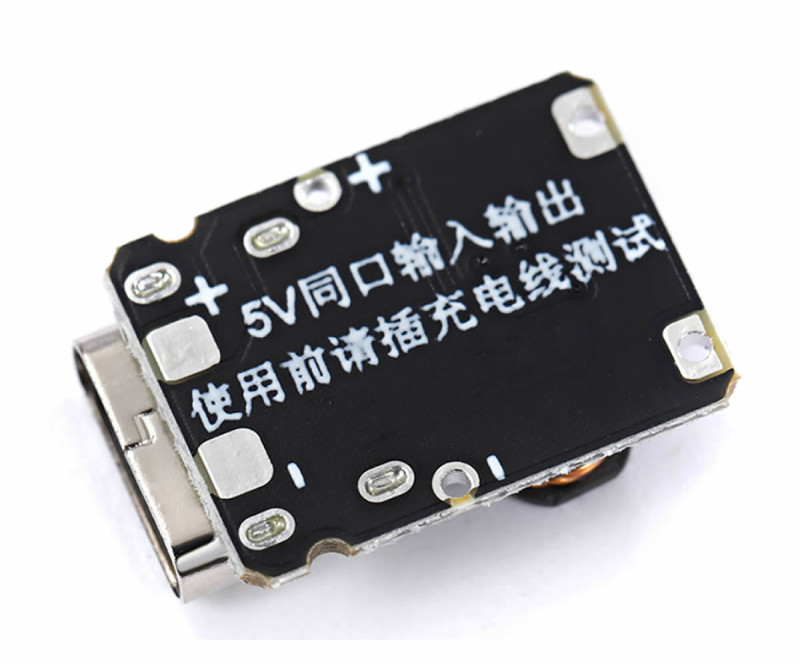

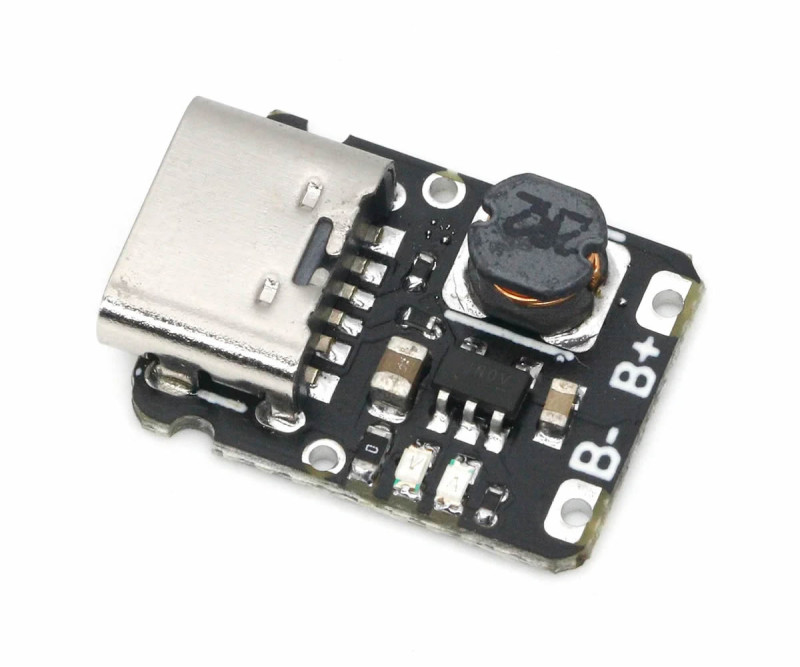

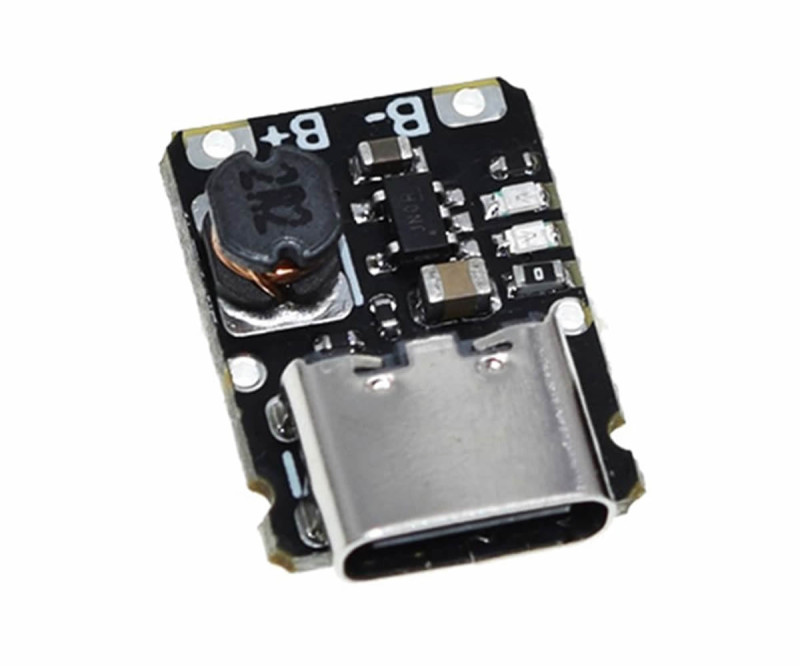

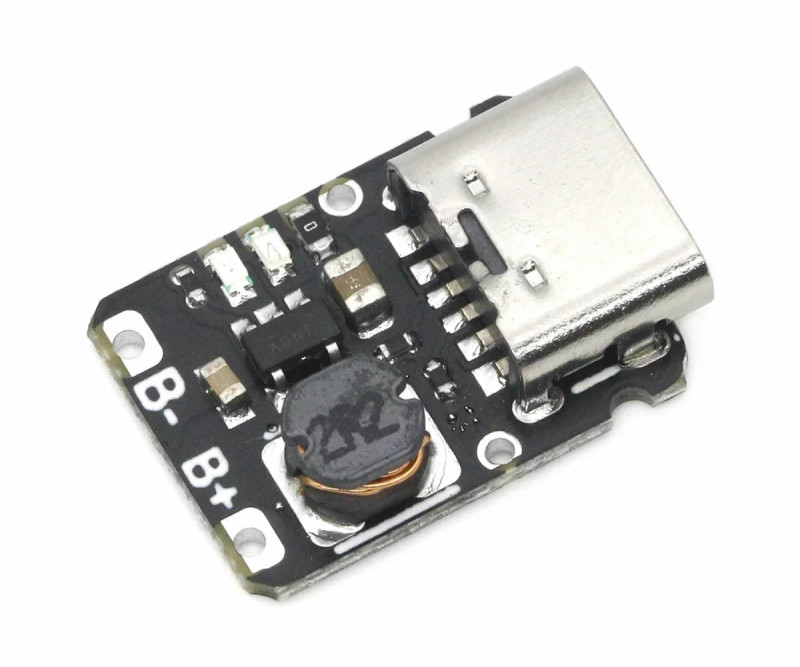

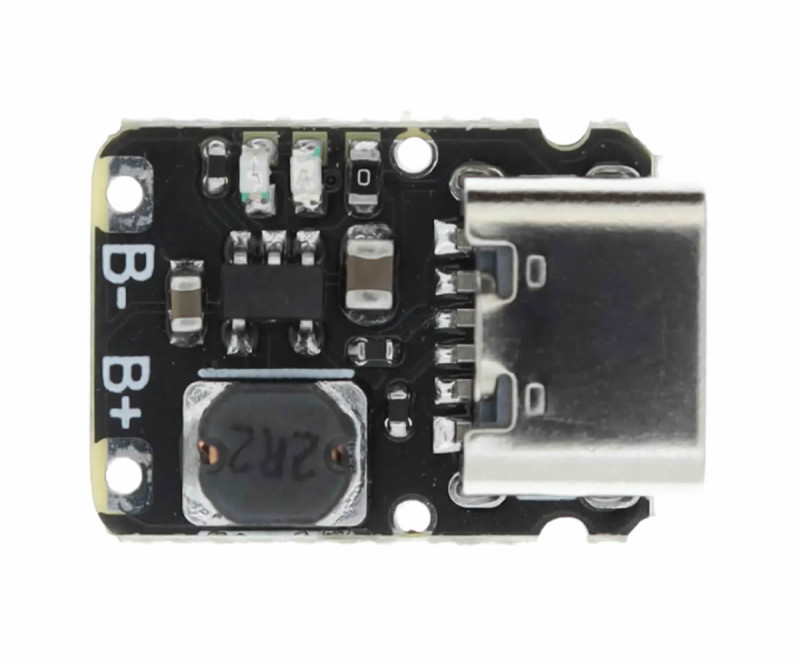

TP4057 Type C Module

TP4057 Type C Battery Charge Discharge Module

Mini Powerbank Circuit 3.7V Lithium Lion 18650 Battery Accumulator 5V Voltage Booster Phone Tablet Toy

The charge current is 0.5A. When there is an output load at 1A levels, drops may appear in the output voltage. This is normal depending on the power of the coil used in this module. It is more appropriate not to use it at output currents above 0.5A or to use it for a short time.

     It is a TP4057 Battery charge discharge module. Voltage input and output is made through the Type C socket. It can be used with 3.7V lithium batteries. The device raises the 3.7V voltage it takes from the battery to 5V and allows external devices to use it from the type c socket ( charging etc. operations ).

     It has many protection features such as short circuit protection, high voltage protection. It can supply 0,5A current from the output. The battery charge current is 1.2A. In this state you can use it as a powerbank circuit.

Features:

• Integrated: TP4057
• Connection socket: Type C
• Input voltage: DC 5V  /  5.5V
• Output voltage: 5V
• It can be used with 3.7V lithium batteries
• Battery charge voltage: 4.2V
• Charge current: 1.2A

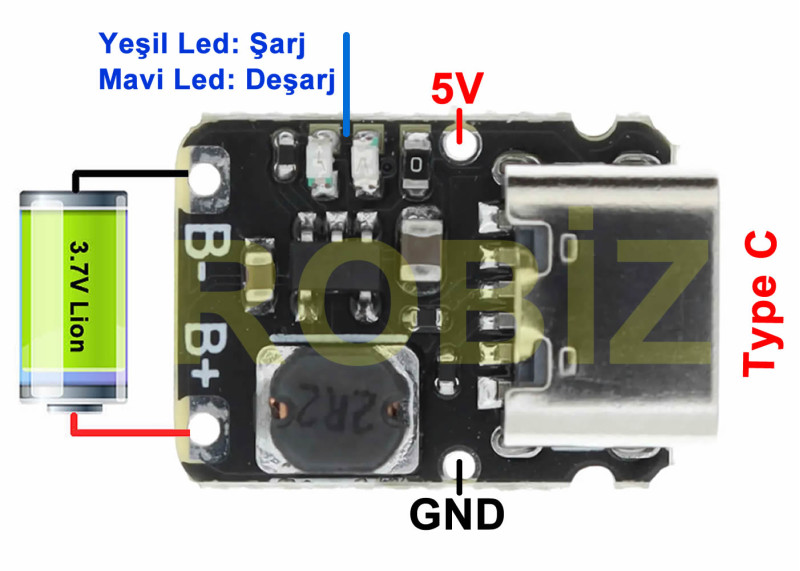

• Green led: Charge indicator
• Blue led: Discharge indicator
• Output voltage: 5V
• Discharge efficiency: < %95
• Output current: 0.5A ( It is appropriate not to go up to 1A load currents. )
• Overcurrent protection OCR
• Overvoltage protection OVP
• Short circuit protection SCP
• Smart temperature protection OTP
• Pre charge support for low voltage ( below 2.9V ) batteries
• Operating temperature:  -20C  /  80C

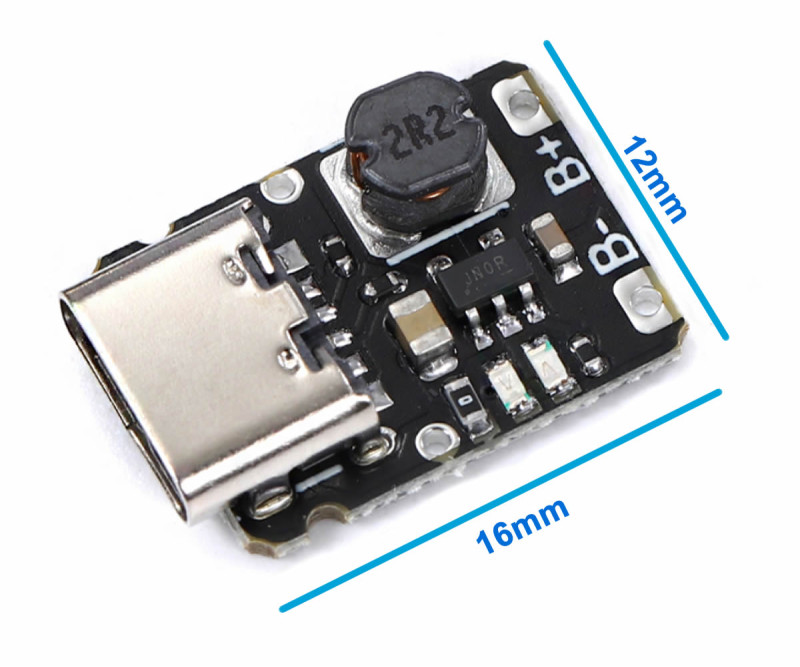

• Dimensions:  12mm x 16mm x 4.4mm
• Weight: 1gr

Package contents

•      1 Piece TP4057 Type C Module

.
