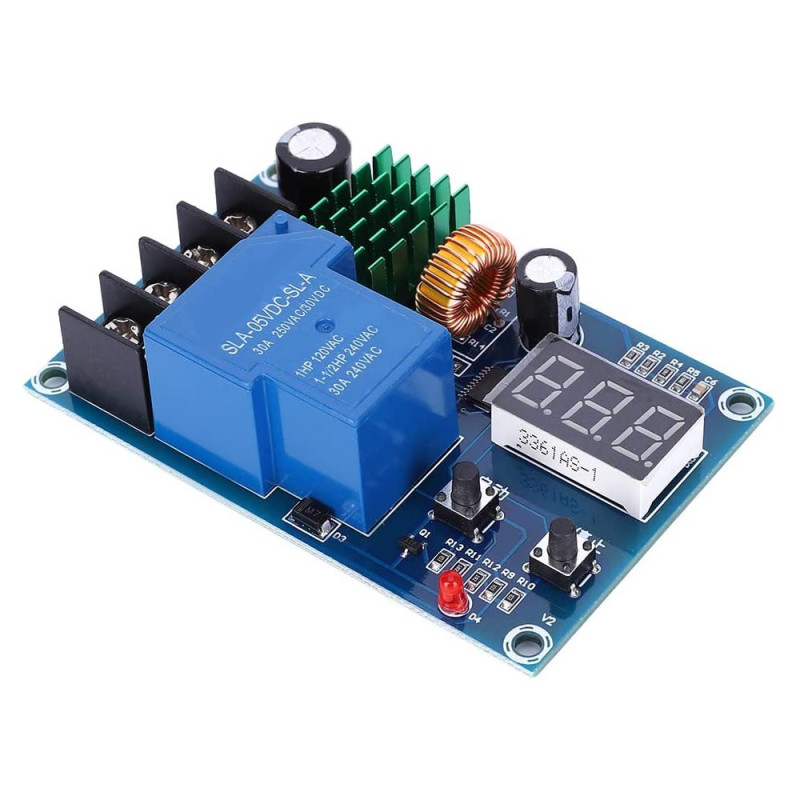

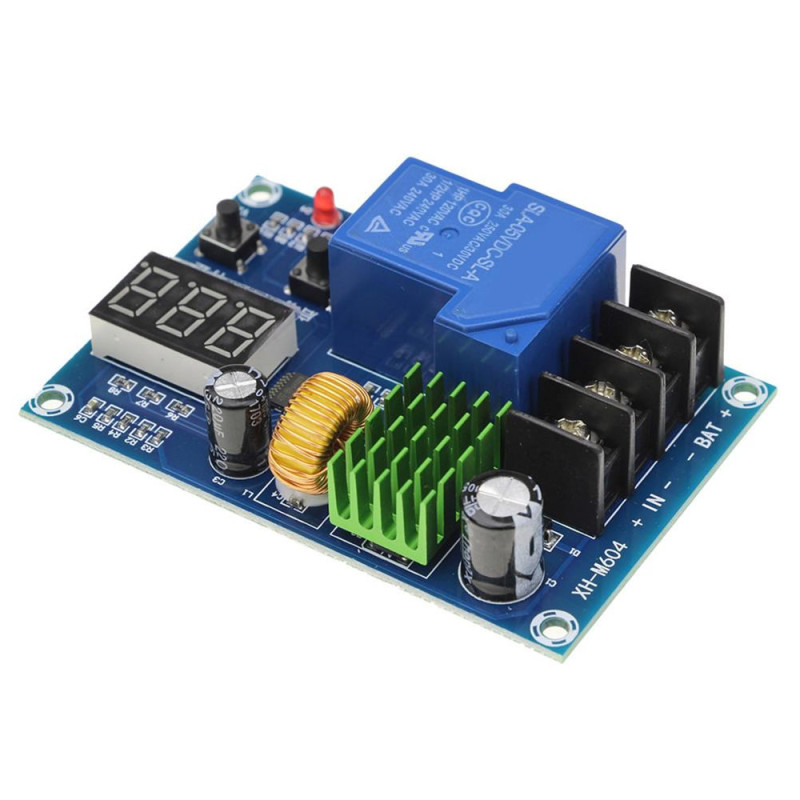

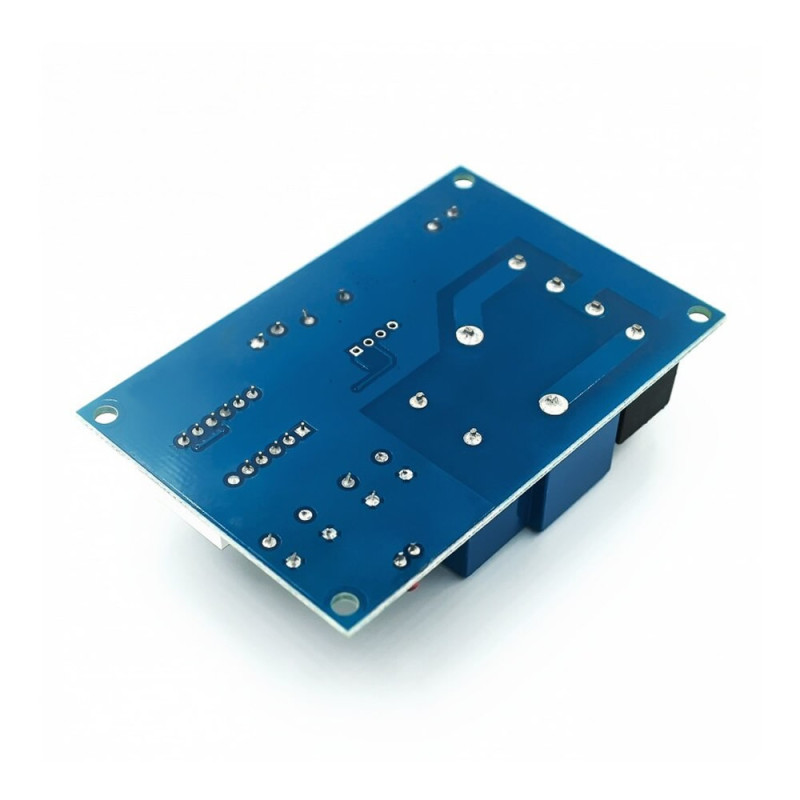

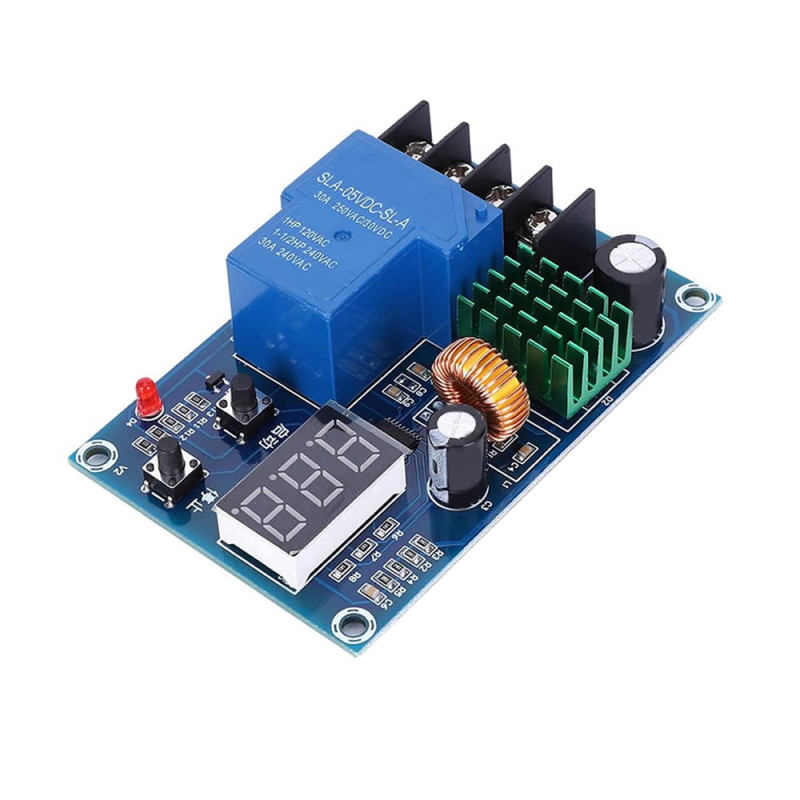

XH-M604 Battery Charge Control Module

XH-M604 30A Battery Charge Control Protection Module

12V 24V Battery Lead Acid Gel Battery Lithium Li-lon Cell Digital Led Display

This product does not step down voltage. Connecting a charge adapter suitable for your battery is the user's responsibility.

     It is a functional product with which you can safely charge your batteries and accumulators thanks to its current cut-off feature. The product operates with DC voltage in the DC 6-60V range. It is not used directly with 220V.

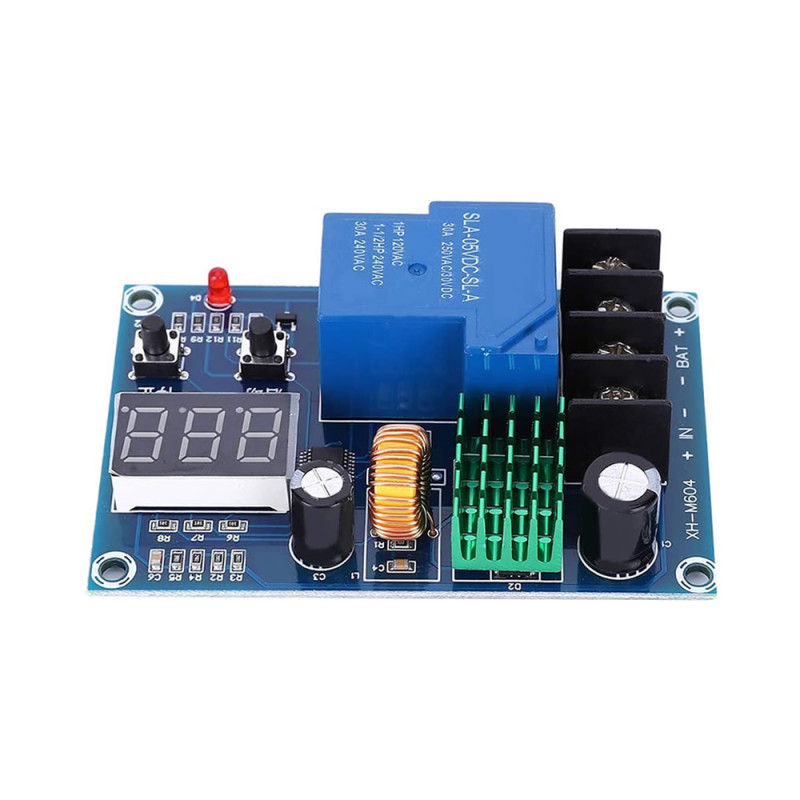

     If you long press the left button, you set the start voltage. If you long press the right button, you set the end voltage. There is no extra key for voltage adjustment. It automatically adjusts the output according to the voltage you supply at the input. For 12V and 24V batteries, it works by automatically detecting according to the voltage you supply.

     The product has the feature of starting and ending the charging process by taking into account the voltage difference that occurs in full and empty batteries.
For example, when a 12V battery reaches full charge, it can produce a voltage of up to 13.8V. When empty, this voltage value can drop to 11V.

Usage:

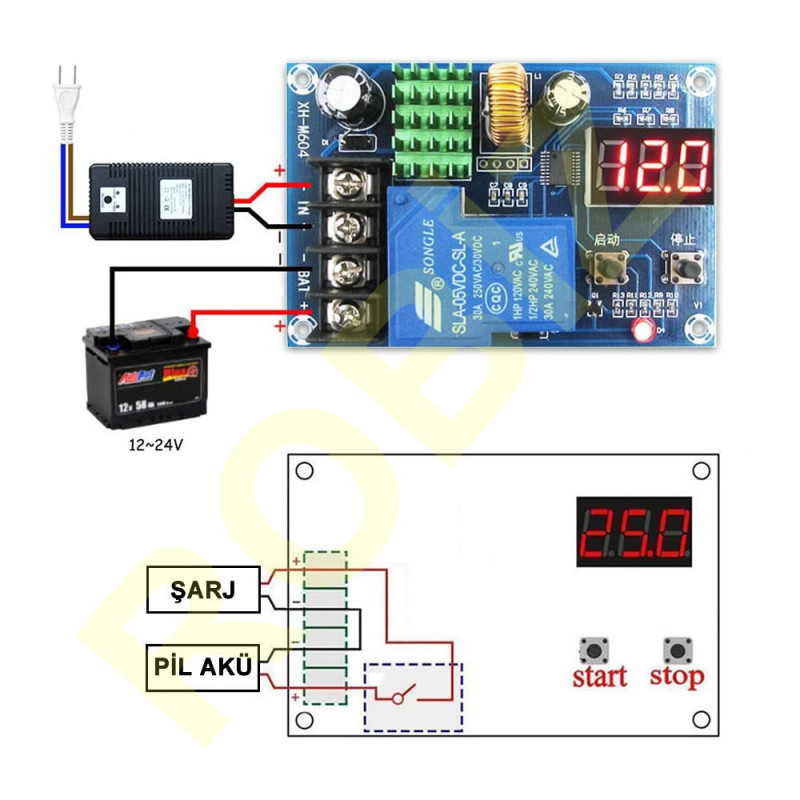

     While charging a 12V battery, a power supply connection in the range of 12V to 14.8V is made from the input. The charge start voltage is set to 11V and the end voltage to 13.8V. In this case, the charging process will continue while your battery voltage is in the range of 11V to 13.8V. For a higher charge level, you can also set the end voltage to 14.4V, but in this case you need to monitor the temperature of the battery and the circuit. Your battery may be damaged by high temperature.

     Batteries must be charged with a current at the level of 1/10 or 2/10 of their capacity. It is appropriate to connect a current controlled power supply or charger to the product. You should not charge with a power supply that can deliver very high current. You may cause the relay on the device to break down.

Features:

• Model: XH-M604
• Input voltage: DC 6-60V
• Maximum current: 25A ( Using with 30A for a long time may damage the relay. )
• LCD display accuracy: 0.1V
• Voltage control accuracy: 0.1V
• Output voltage: Direct Output
• Tolerance: +/-0.1V
• Application areas:6-60V battery

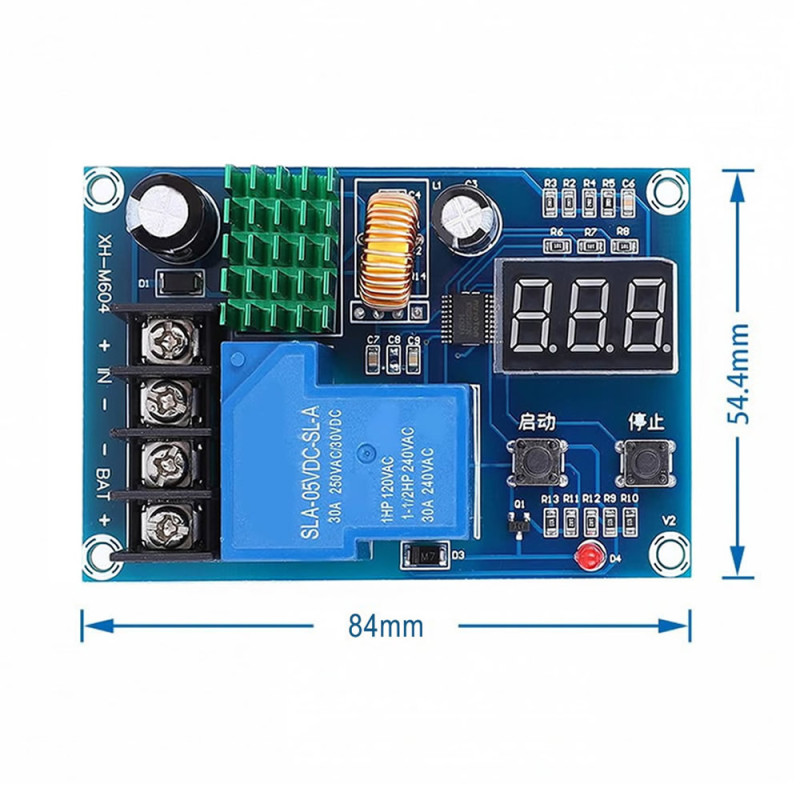

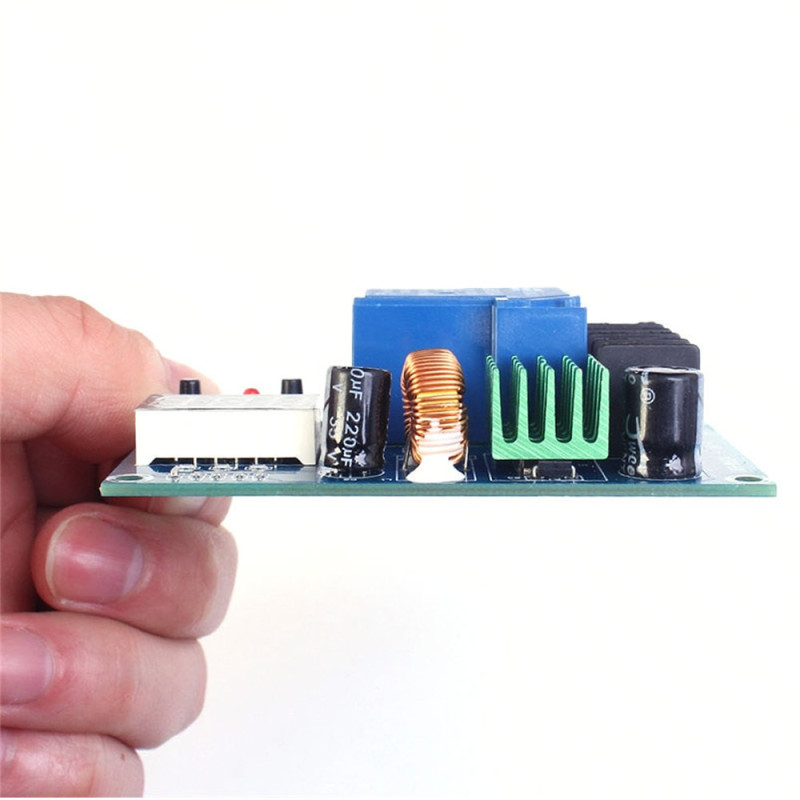

• Dimensions: 54mm x 84mm x 24mm
• Weight: 60gr

Package contents:

•   1 pcs XH-M604 Battery Charge Control Module
