XY-BT-Mini Module Type C

XY-BT-Mini Bluetooth Wireless Audio Mp3 Module Type C

Bluetooth 4.1 DC 3.7V 5V Usb Lithium Battery Battery Stereo Player Speaker 3W Amplifier Amp Music Player Board

     Test the product before soldering. Then move on to the mounting stage. Checking it before soldering does not take 1 min. Power is supplied over micro usb. Listen to the audio output from the 3.5mm socket with a headphone. If there is no problem, you can move on to the permanent soldering stages. Soldering causes physical change on the product.

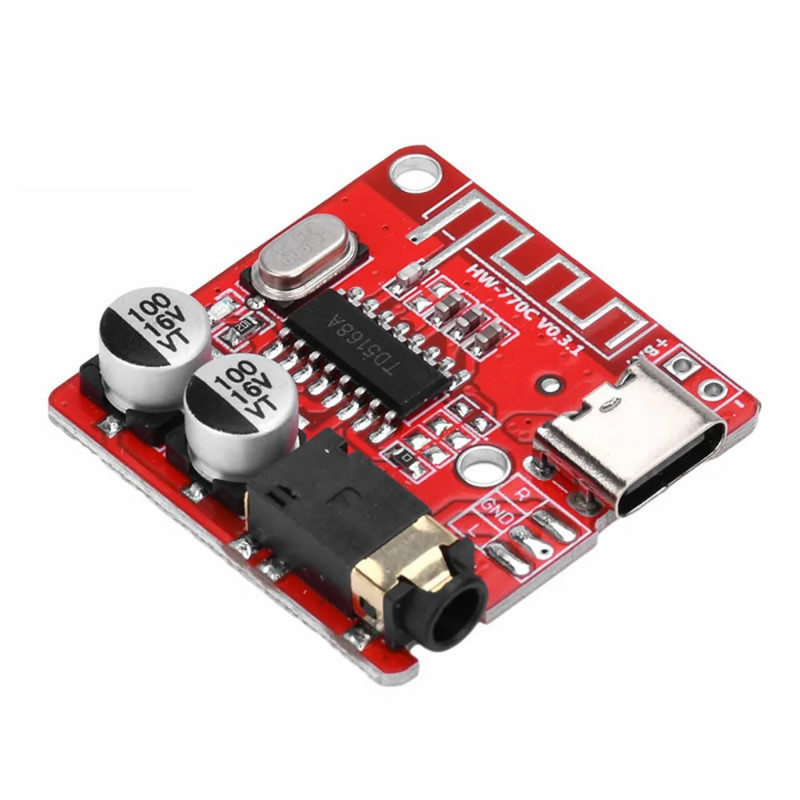

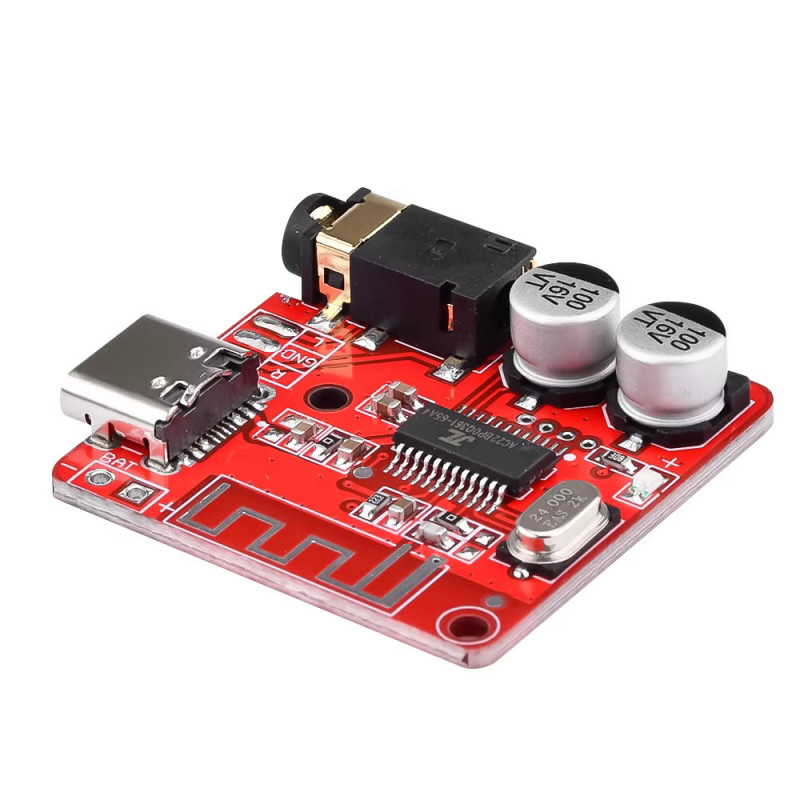

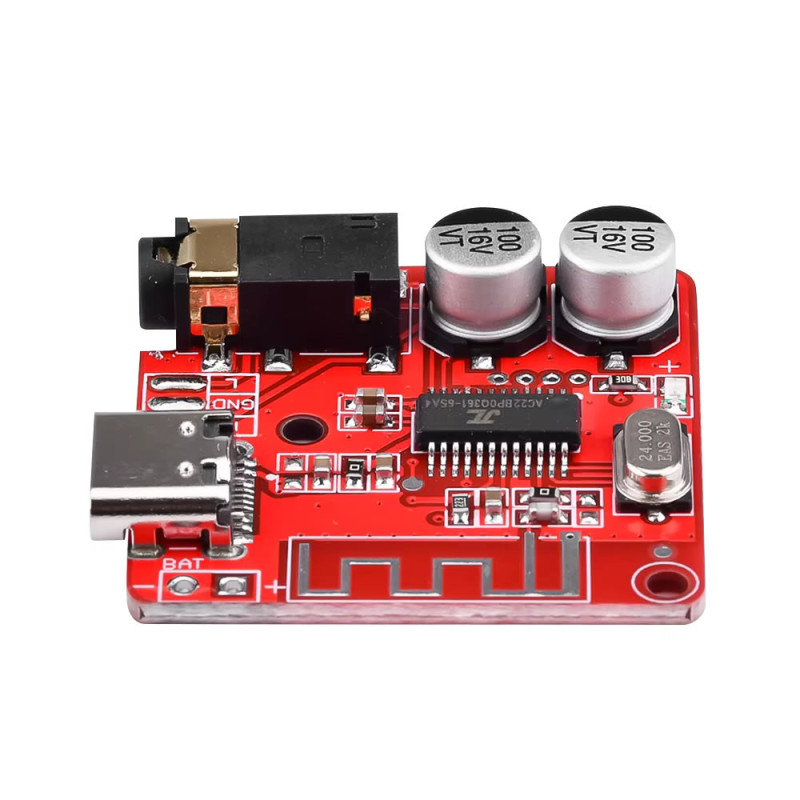

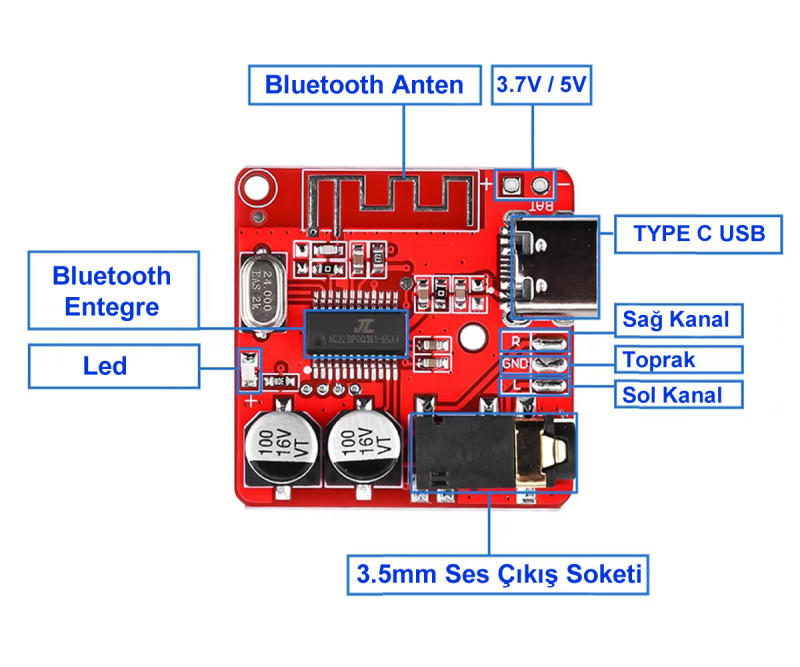

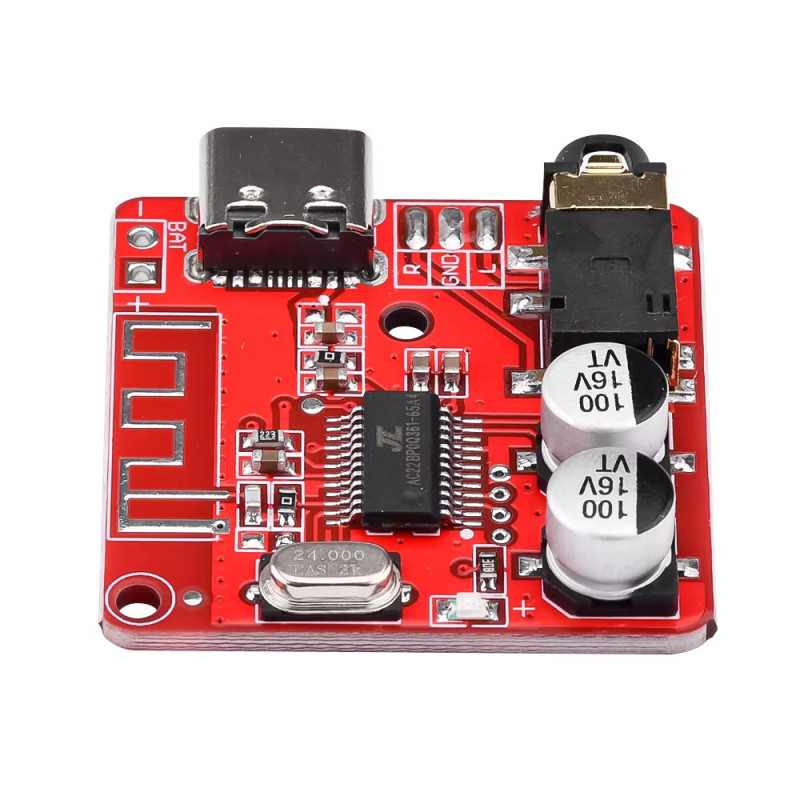

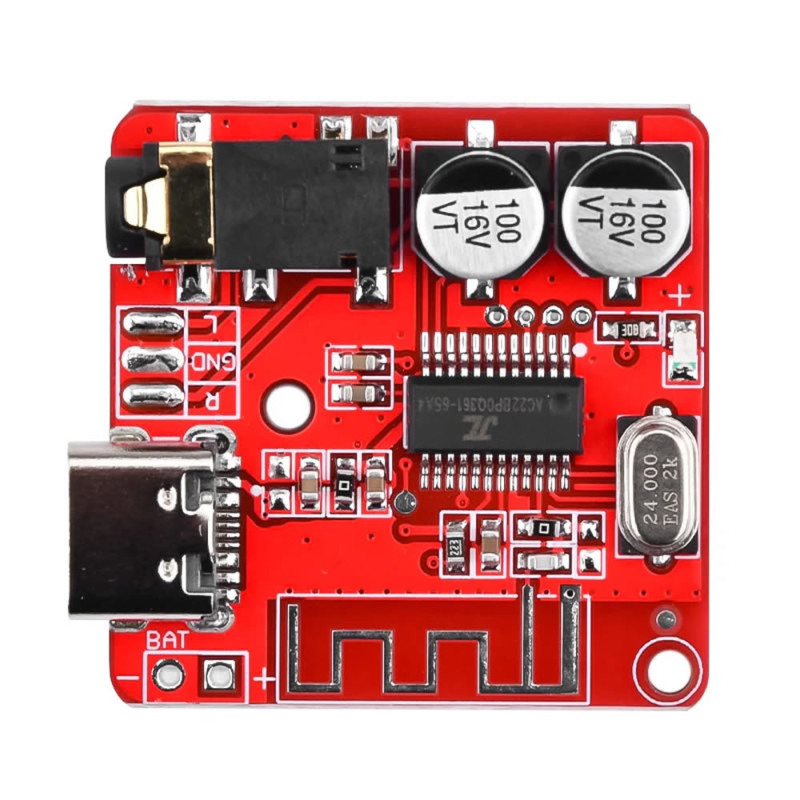

        XY-BT-Mini is a wireless audio transfer and playback board using bluetooth technology. It can work with usb input supply and with a 3.7v lithium battery. There is 1 indicator led. There is a 3.5 mm audio output socket. In addition, there is also a 3 pin soldering pad for audio output.

Usage:  After the power is connected to the product, the blue indicator light turns on and it enters Bluetooth mode; a connection signal sound  is heard (no human speech sound is heard), a search is made over bluetooth on the mobile phone and pairing is done with the bluetooth device named XFW-BT. Click on the connection, the signal sound indicates that the mobile phone has connected successfully and that you can play music. You can open any audio playback application on your device and start audio transfer.

Features:

• Supply voltage: DC 3.7 / 5V
• Type C usb 5V supply input
• Vbat external supply input: DC 3.7V
• Audio output power: 3W
• Bluetooth status led indicator
• Communication range: 10 meters
• A2DP/AVCTP/AVDTP/AVRCP/HFP
• Bluetooth connection led. Steady blue indicates the bluetooth connection status.
• 3.5mm Stereo audio socket
• 3 Pin solderable external audio output socket.
• Operating temperature: -10C  /  85C
• Color:  Red

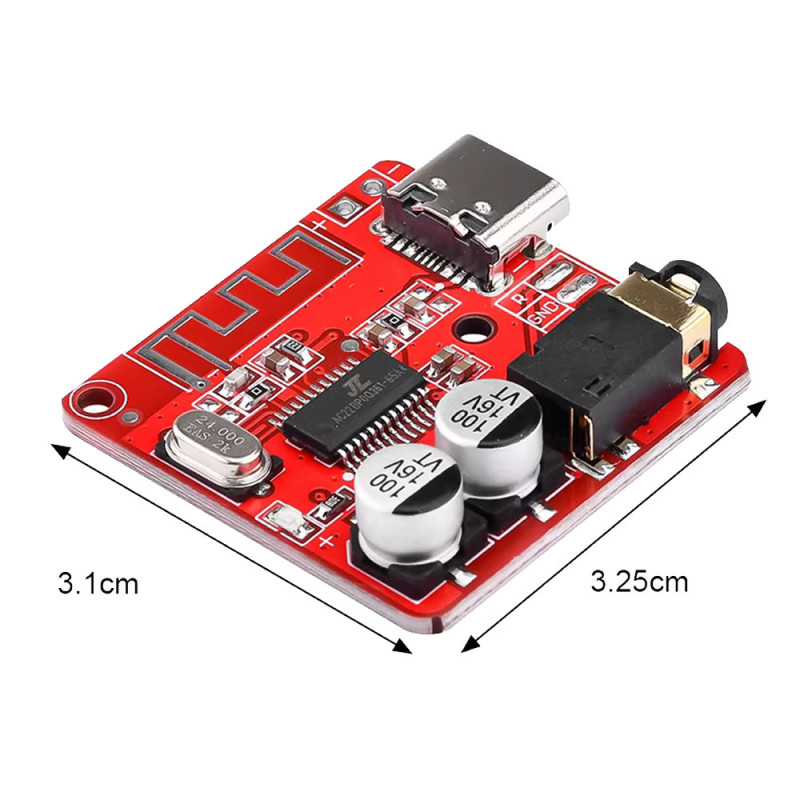

• Dimensions: 30mm x 30mm
• Weight: 6gr

Package contents:

•      1 Pcs XY-BT-Mini Module Type C
