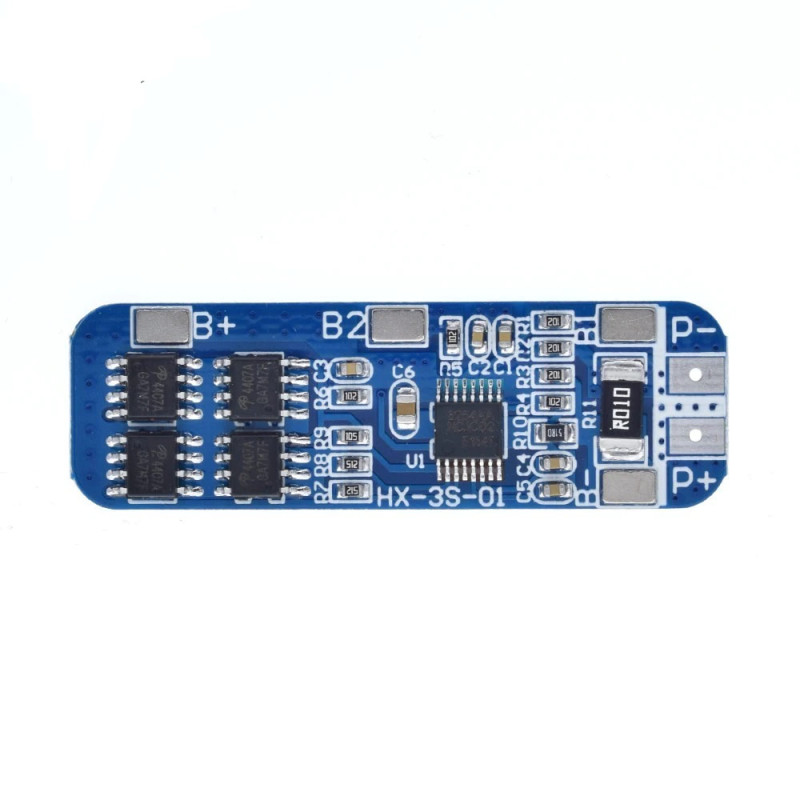

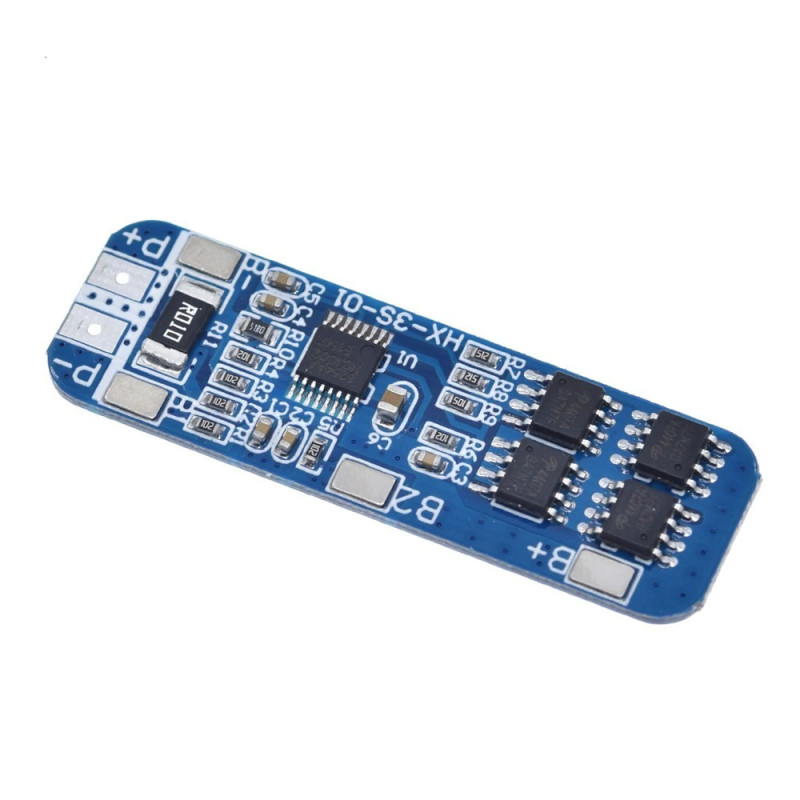

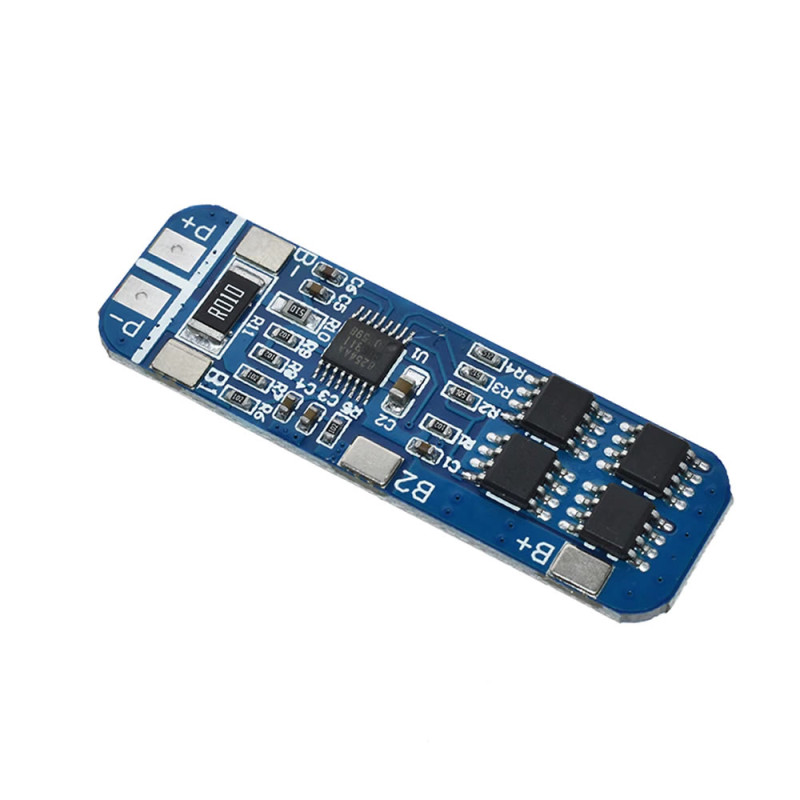

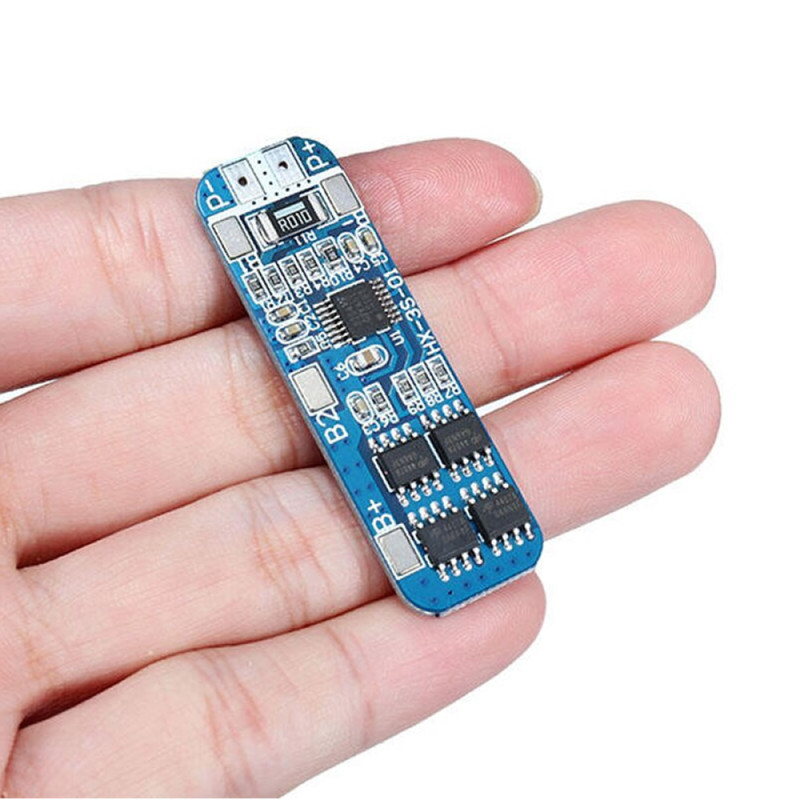

BMS 3S 10A Protection Board
72.00TL
Ex Tax: 60.00TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: 3S 10A BMS
- SKU: RBZ.100.472
3S 10A BMS Protection Board
18650 Battery Battery Pack Lithium Li-Ion Lipo Protection 11.1V 12.6V Overcharge Discharge Protection Protection

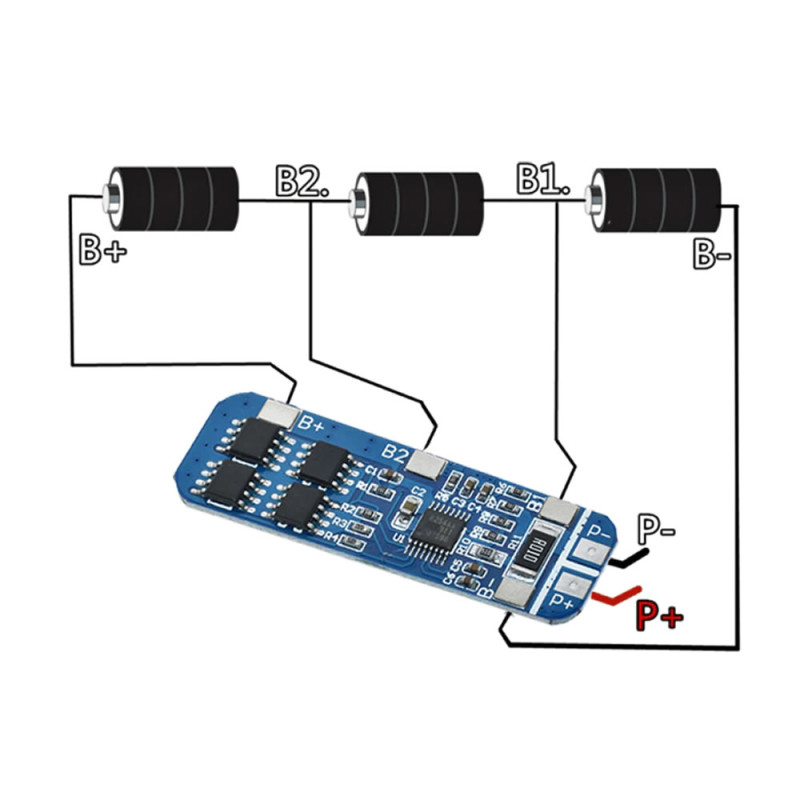

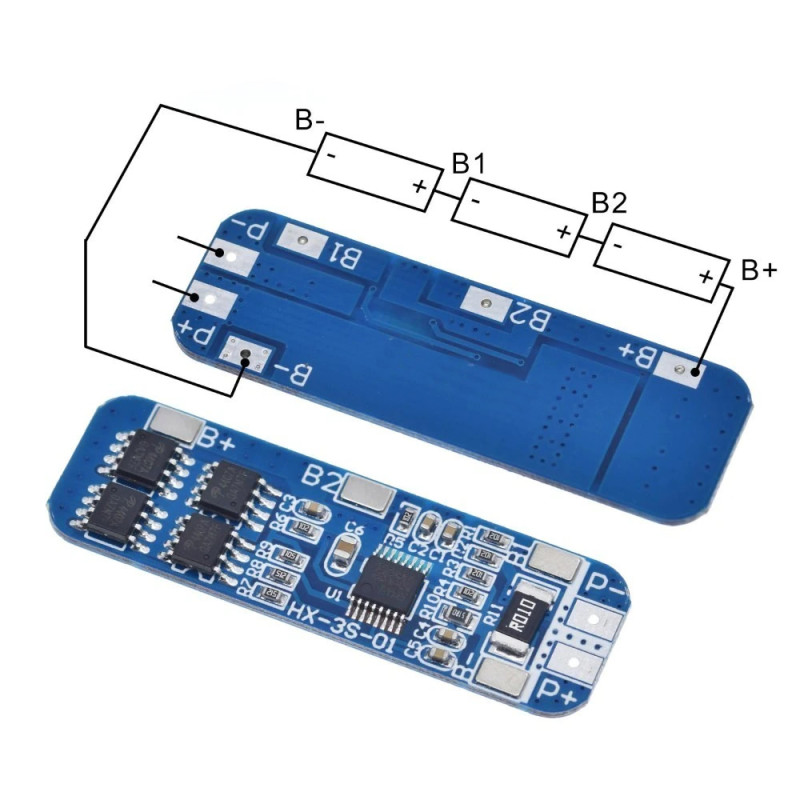

Suitable for 3 series 3.7V 18650 batteries. It is for battery protection. It takes on the balancing task.
Features:
- Protection circuit for 3 series lithium batteries.
- Charging input voltage: DC 12.6V / 13V
- Maximum working current: 6-8A
- Maximum instantaneous current: 10A / 13A
- Life: 30000 Hours
- High voltage charging range: DC 4.25-4.35V
- Low voltage discharge range: DC 2.3-3.0V ±0.05V
- Overcharge protection.
- Over-discharge protection.
- Short circuit protection.
- Overcurrent flow protection.
- Automatic release of the protection when the protection conditions pass.
- Suitable for 11.1V, 12V, 12.6V lithium battery packs.
- Quality and durable board design.
- Leakage current less than 30uA
- Operating temperature: -40 / +65C

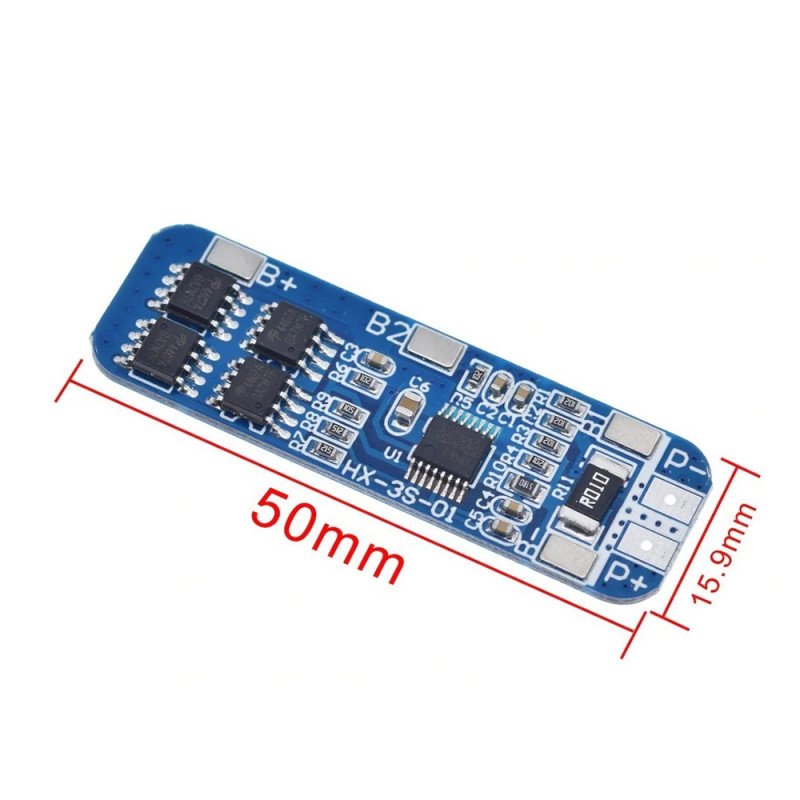

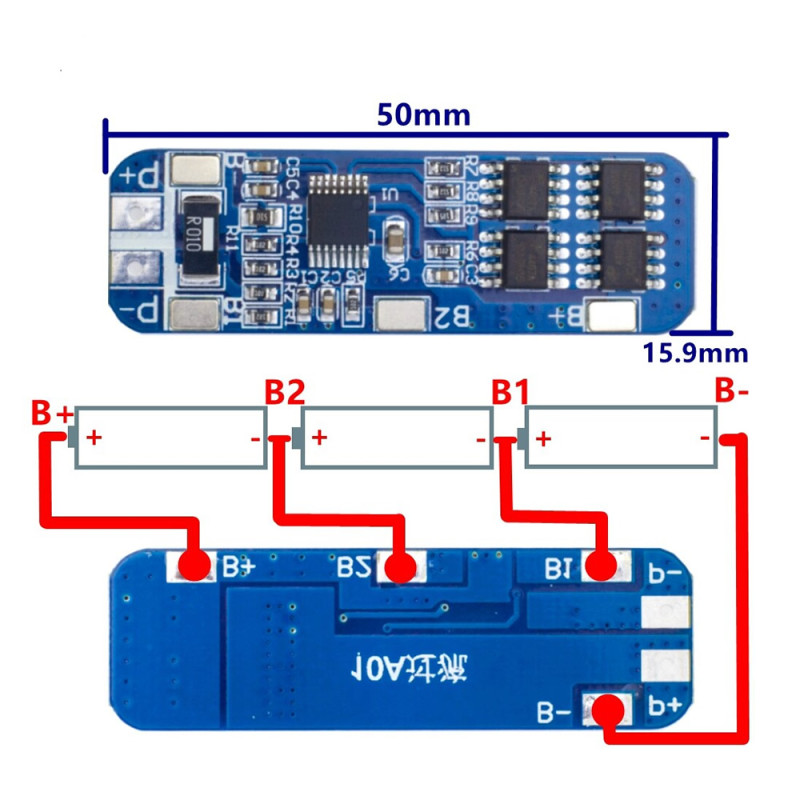

- Dimensions: 17mm x 53mm
- Weight: 3.5gr
Package contents:
- 1 Piece 3S 10A Lithium Battery BMS Protection Board
