4 Usb Port 5V 5A Step Down Converter

4 Usb Port 5V 5A Step Down Converter

Mobile Power Supply Mobile Phone Tablet Powerbank 36V Step Down Usb Converter Circuit

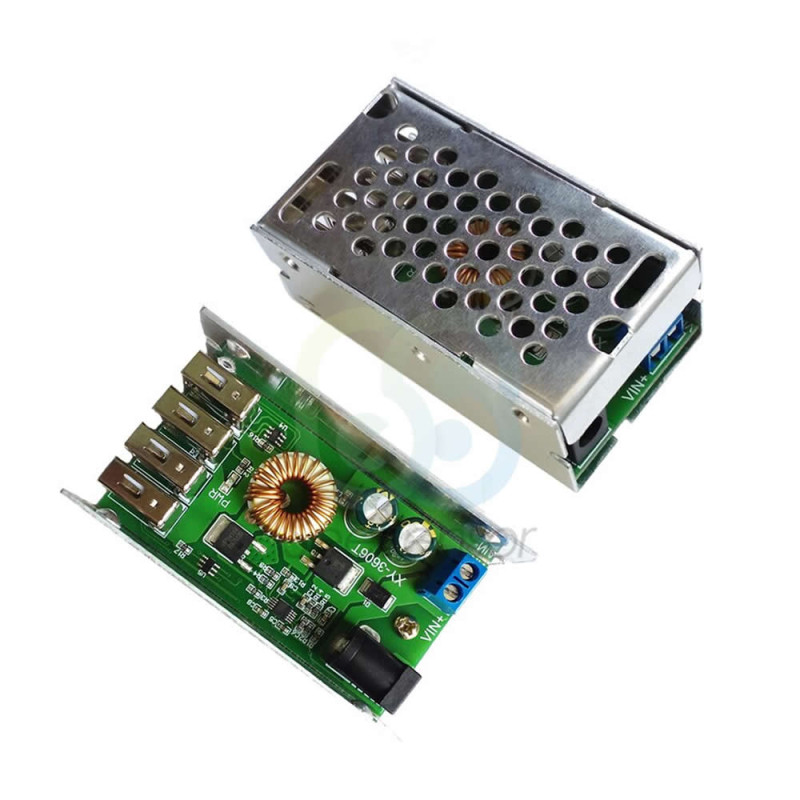

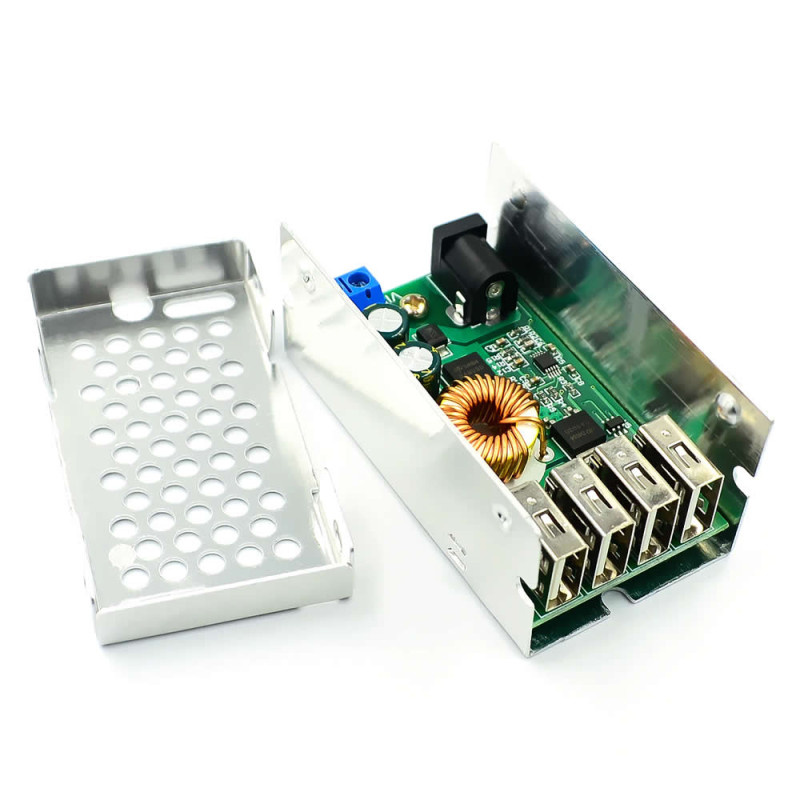

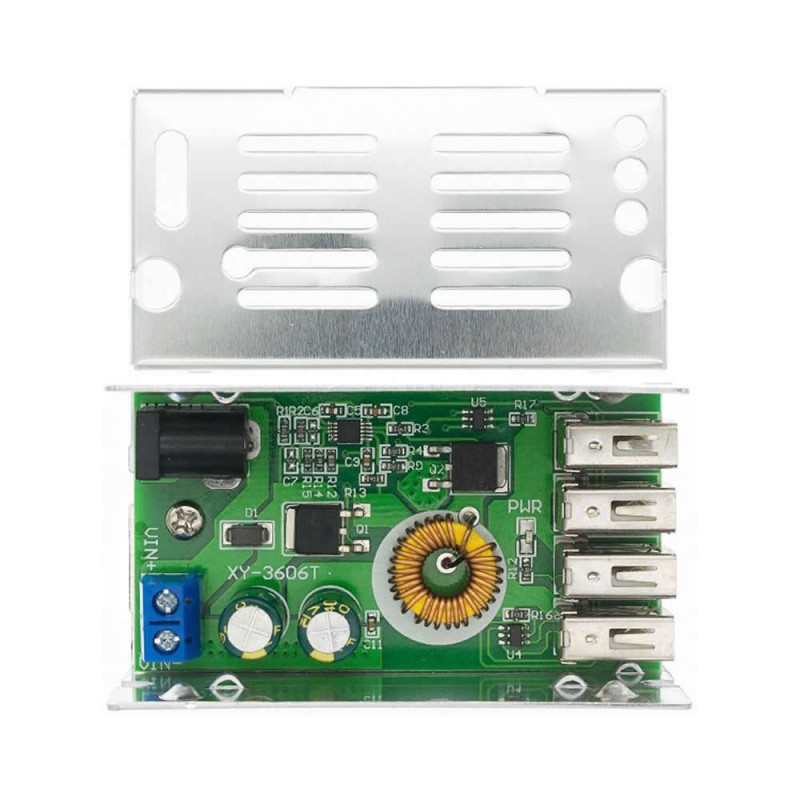

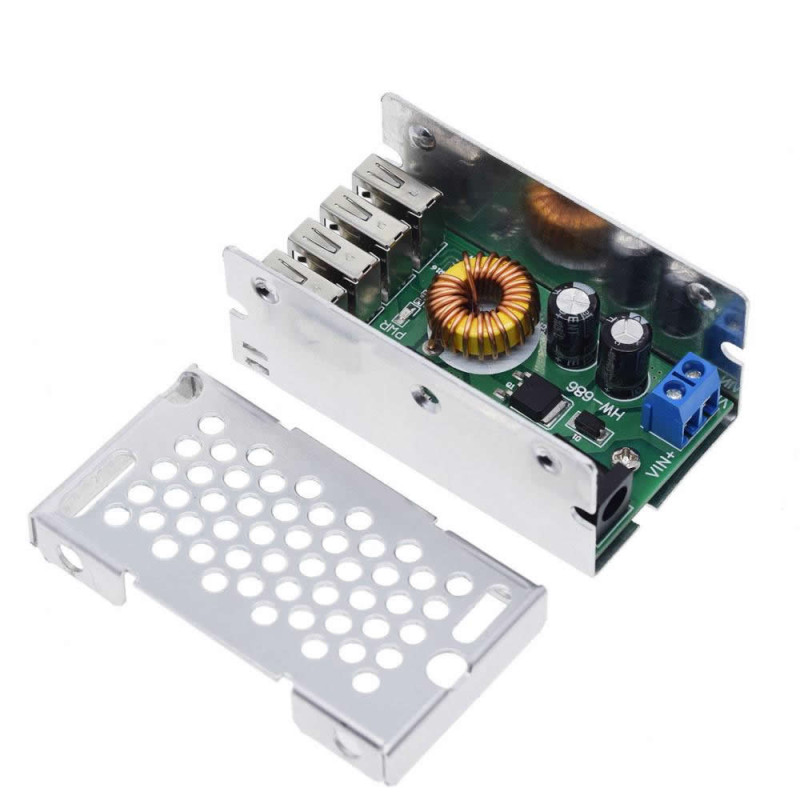

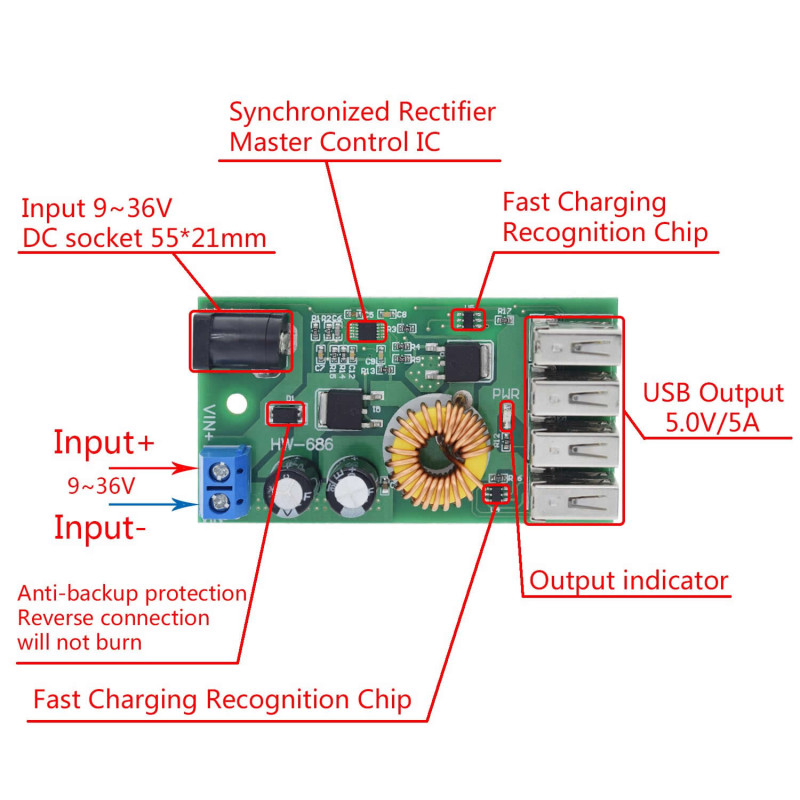

     This 5V step down buck converter power module steps the input voltage in the 6V to 36V dc range down to a stable 5V output and distributes power over 4 usb ports at the same time. Thanks to its total 5A current capacity, it is suitable for operating or charging phones, tablets and similar usb-powered devices at the same time. Its screw terminal input structure provides direct and safe connection to vehicle electrics, adapters or industrial dc sources.

     Its aluminum housing contributes to passive cooling, supporting long-term and stable operation, and also provides mechanical durability. It can be used as a central usb power point in industrial panels, in-vehicle applications, embedded system projects and test setups. Since all usb ports share a total of 5A current, this limit must be taken into account in applications requiring high current; the product is intended for power supply only and does not support data transfer.

Features:

• Input voltage: 9-36V
• Output voltage: 5V / 5A

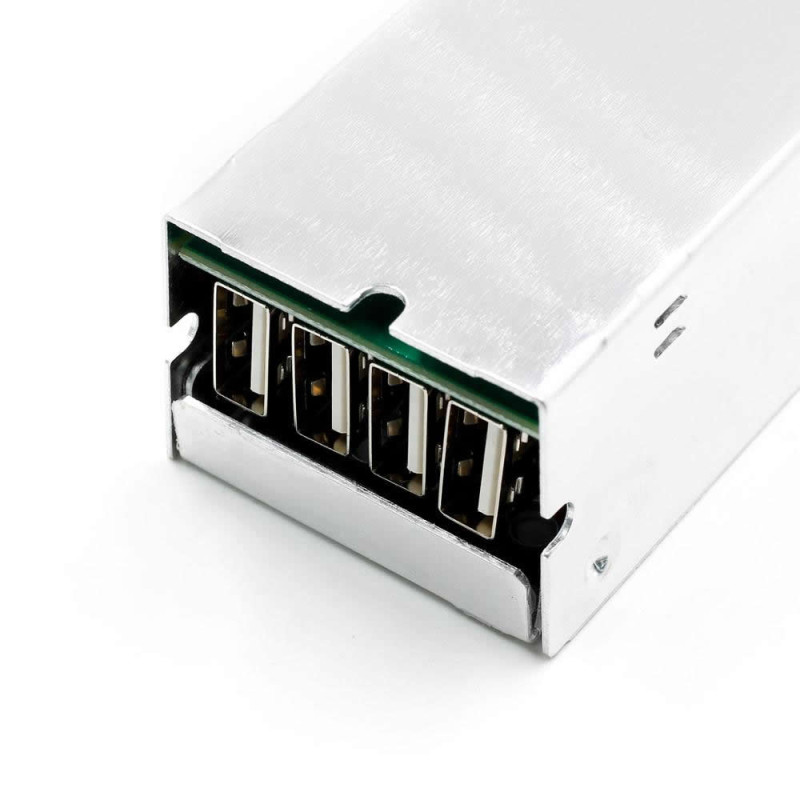

• 4 Port usb output
• Fast charging
• Protection: Reverse connection protection
• Applications: Mobile power supply, mobile phones, tablets and other devices using usb 5V.
• Output capacity:
  • Input 9-24V, Output 5V 6A 30W
  • Input 24-32V, Output 5V 5A 25W
  • Input 32-36V, Output 5V 3.5A 18W
• 2.1mm standard adapter power input socket
• Terminal block power input socket.
• Output indicator led.
• Operating temperature:   -20C  /  65C
• Color: Metallic gray

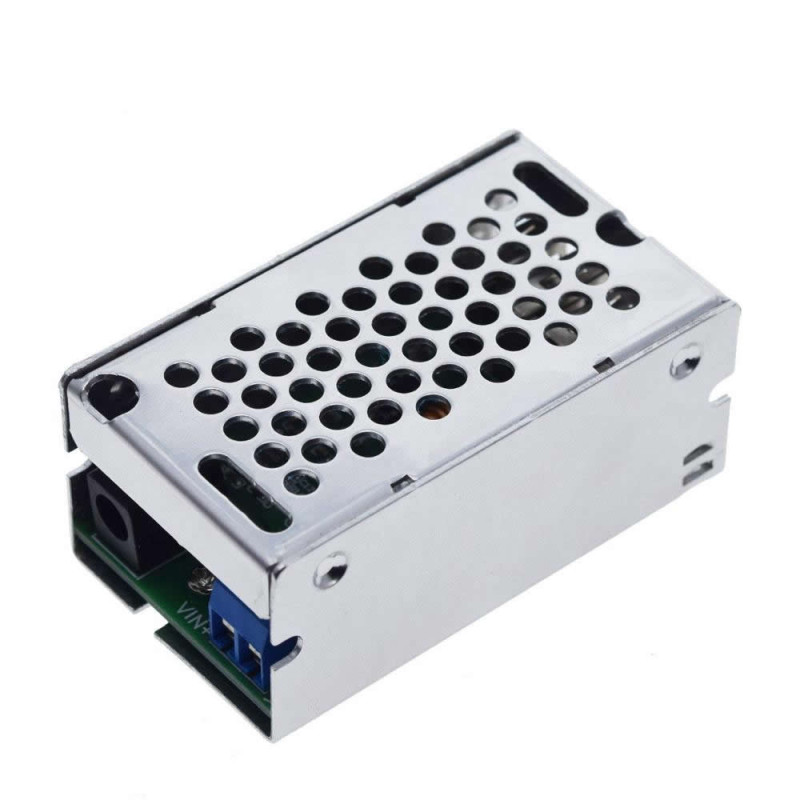

• Aluminum case

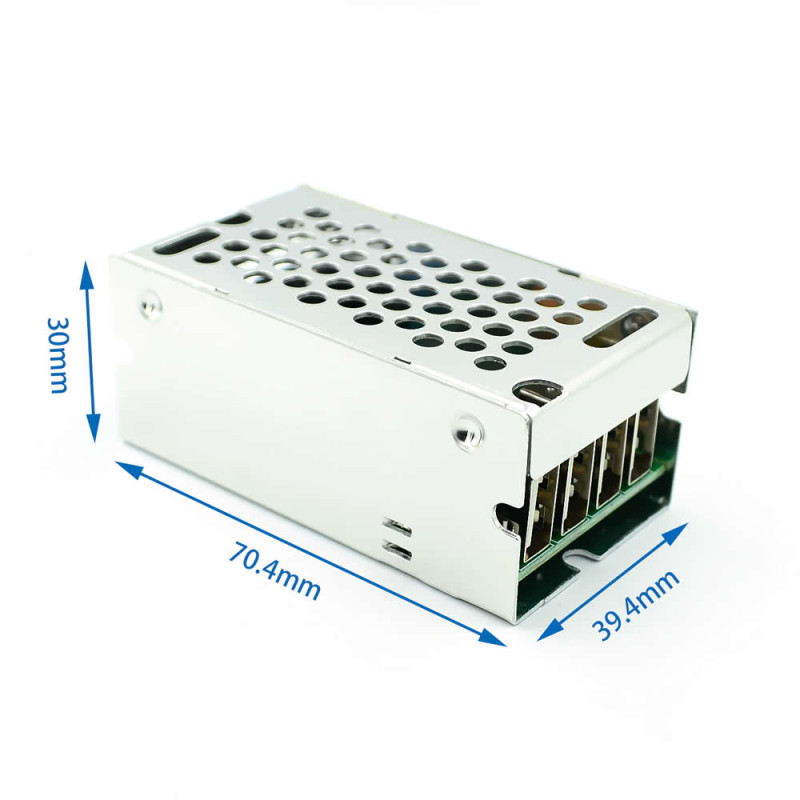

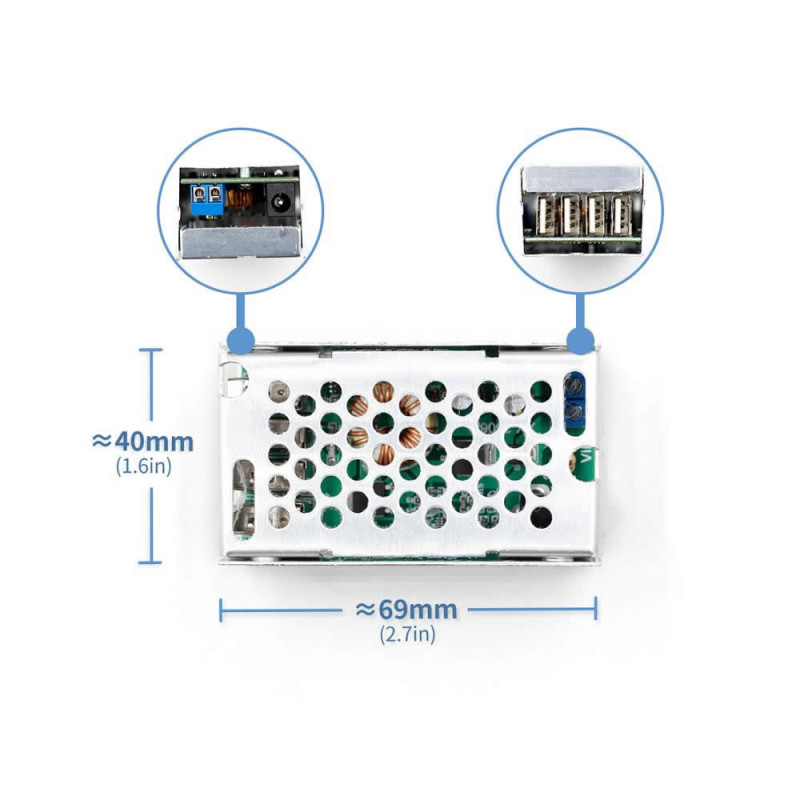

• Dimensions: 70mm x 40mm x 30mm
• Weight: 50gr

Package contents :

•     1 pcs 4 Usb Port 5V 5A Step Down Converter Module
