Dimmer AC 220V 5000W

AC 220V 5000W Dimmer

SCR AC Motor Speed Revolution Control Electric Oven Heating Element Water Heater Lamp Light Brightness Fan Voltage Regulator

     It is a control circuit that you can use for power control of your devices operating with AC voltage. Using this circuit you can control the brightness of your normal incandescent and halogen bulbs, adjust the power of your heaters and control the speed of your single phase AC motors (it may not work smoothly with all motors). It can be used with a maximum 5000W resistive load.

Features:

• Input voltage: AC 180 / 220V
• Power: 5000W ( 4000w should not be exceeded in long term use )
• Voltage adjustment range: AC 50V / 220V

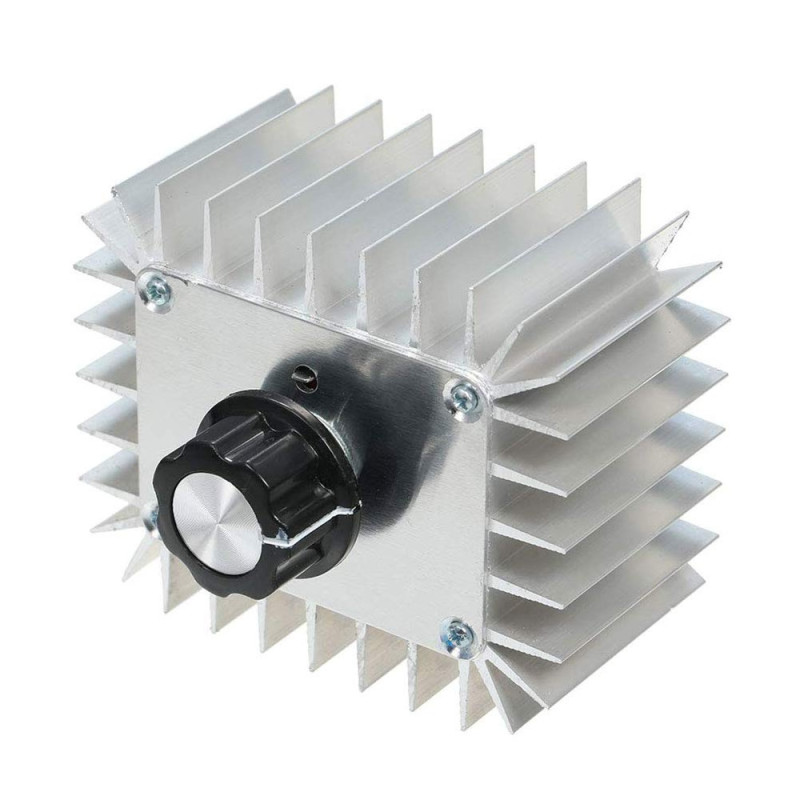

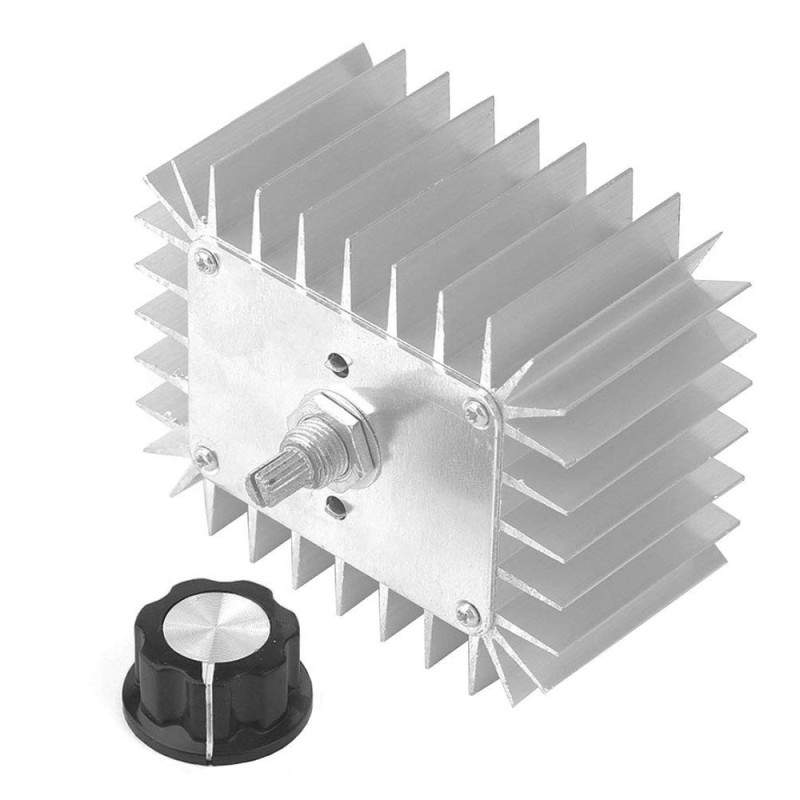

• Voltage adjustment potentiometer
• Efficiency: 90%
• Quality material
• Color: Silver
• Operating temperature: -10C  /  80C

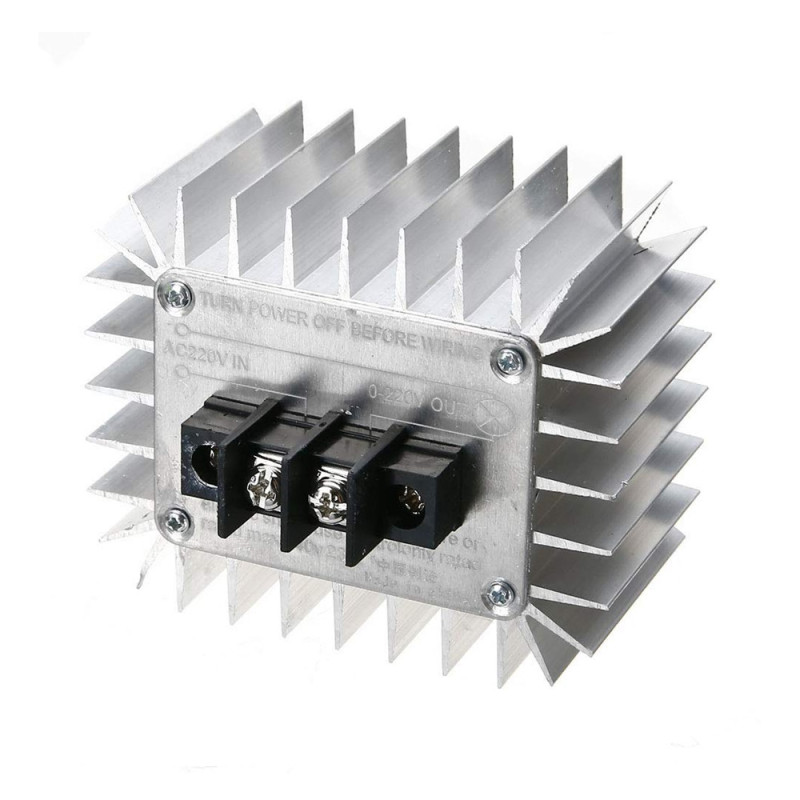

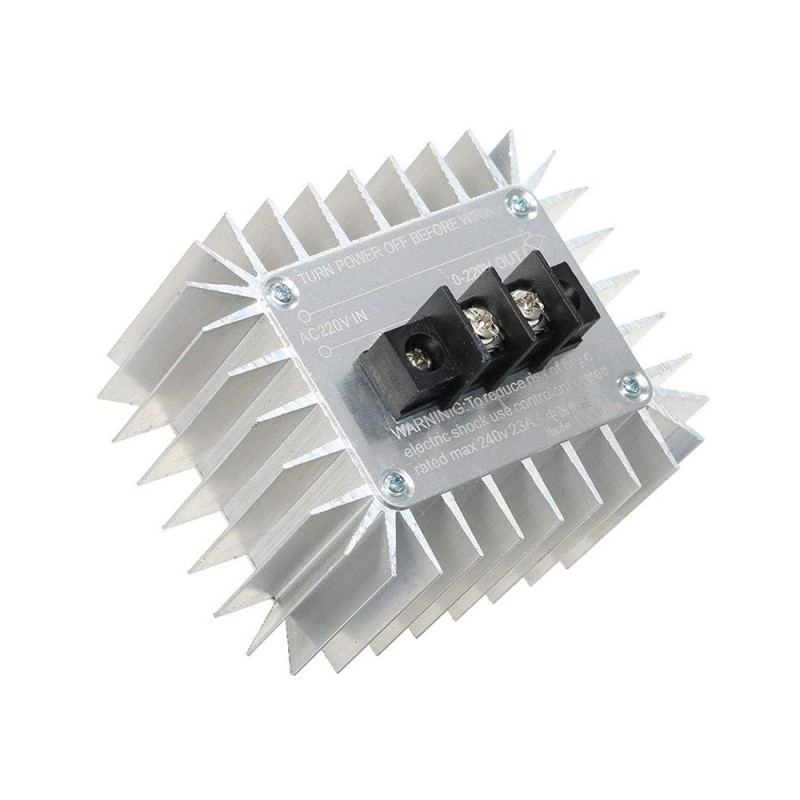

• Easy connection terminals
• Metal protection box

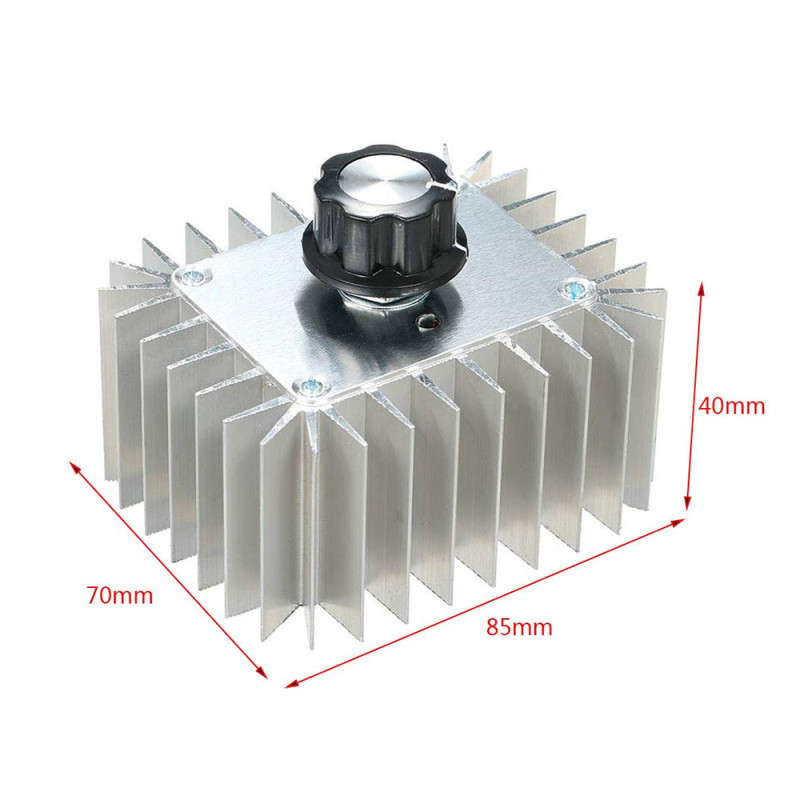

• Dimensions: 4cm x 7cm x 8.5cm
• Weight: 160gr

Note:

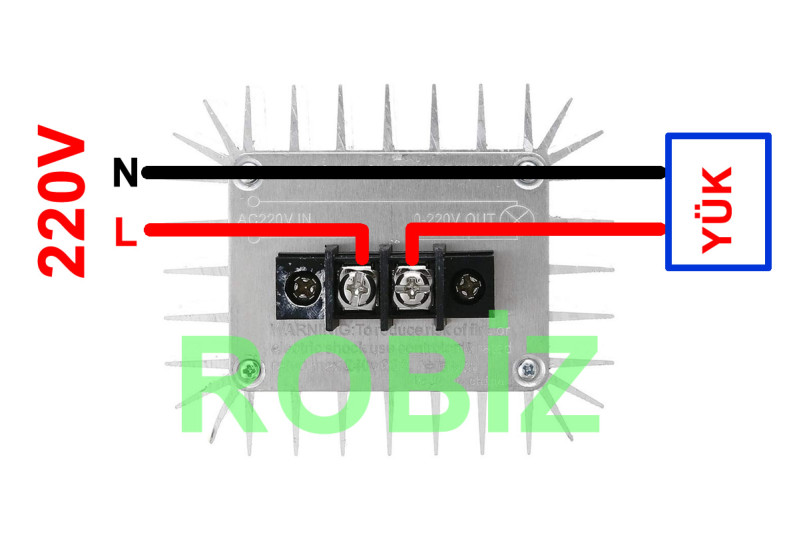

•     The load must be connected after the dimmer. ( Figure 1 )
•     The main use of dimmers is resistive loads. ( Electric heaters, Lamps, Fans...)
•     Use only on electronic devices that require 220V.
•     It cannot be used on battery chargers, TV etc, smps units, refrigerators, air conditioners, computers.

Package Contents:

• 1 pcs 5000W Dimmer
