Arduino ATMEGA32U4 Kit

Arduino ATMEGA32U4 Development Kit Makey

Button Keyboard Direction Detector Mini Usb Crocodile Dupont Cable Atmel Arduino Kids Music Stem Education Touch

     It is made with the Arduino ATmega32U4 integrated circuit. It comes with a mini usb socket. It is detected as HID by the pc, there is no driver requirement.  It can be programmed with the Arduino ide. It functions as a keyboard and mouse for the computer. You can also perform the 4 direction, space and mouse key operations with this board. It allows any object you can think of in the real world to be detected as an input signal for the computer.

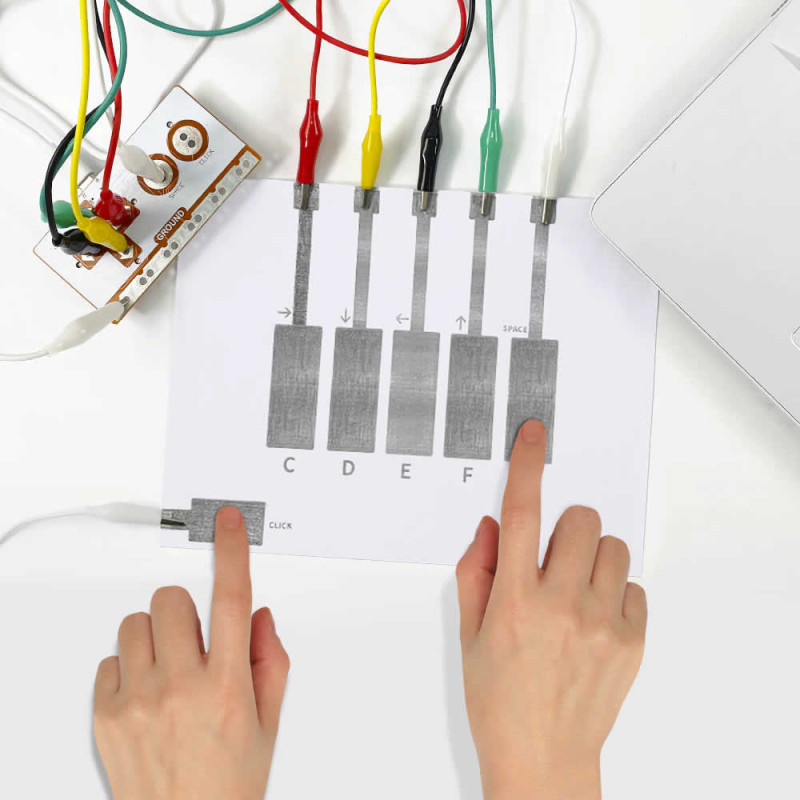

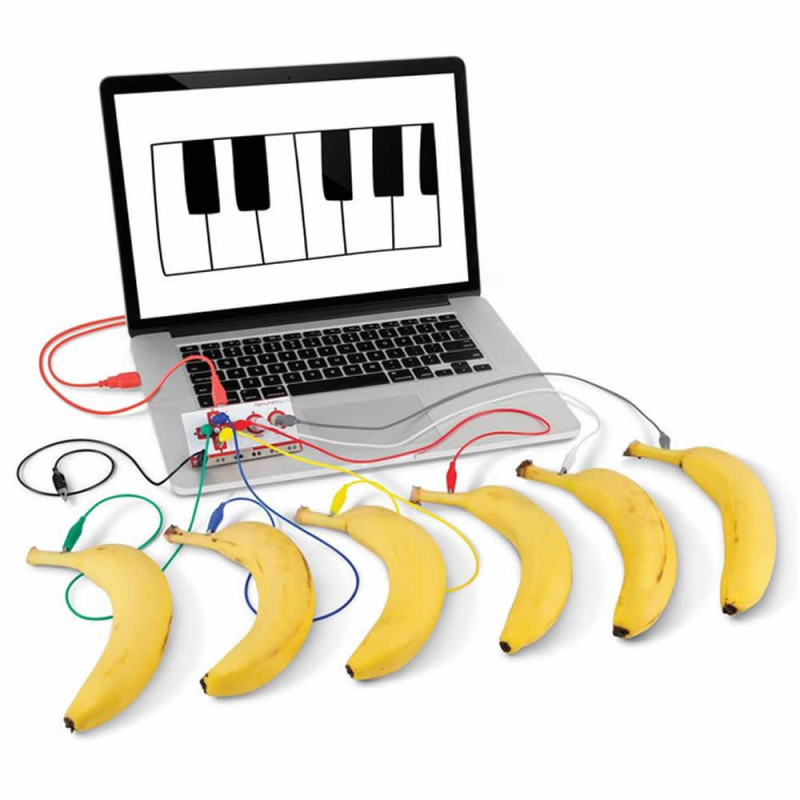

     You can use it by touching the pads on the board Or you can use it by connecting the pads to various objects with crocodile cables / dupont cables. For example it is connected to a banana. The kit detects that the object is touched and transfers it to the pc. And it functions as an input signal / keyboard key for various software on the pc. As an example, as the banana is touched you perform the function of pressing a piano key in a music software on the pc. For example, you can play a computer game with a play dough or play the piano with a fruit. You can have buttons drawn on a paper detected.

     You can use pencils, play dough, fruits, coins, paper and all kinds of similar low conductivity materials. This set, which is especially suitable for the development of children, will help the inventors of the future to emerge while at the same time allowing them to spend time in an enjoyable way. Perceiving how the computer and electronic circuits work causes their perspectives to change accordingly.

Features:

• Integrated circuit: ATmega32U4
• Programmable over Arduino IDE.
• Micro usb connection socket.
• It takes its power from the usb port.
• Operating voltage: 5V Usb
• Communication: Usb

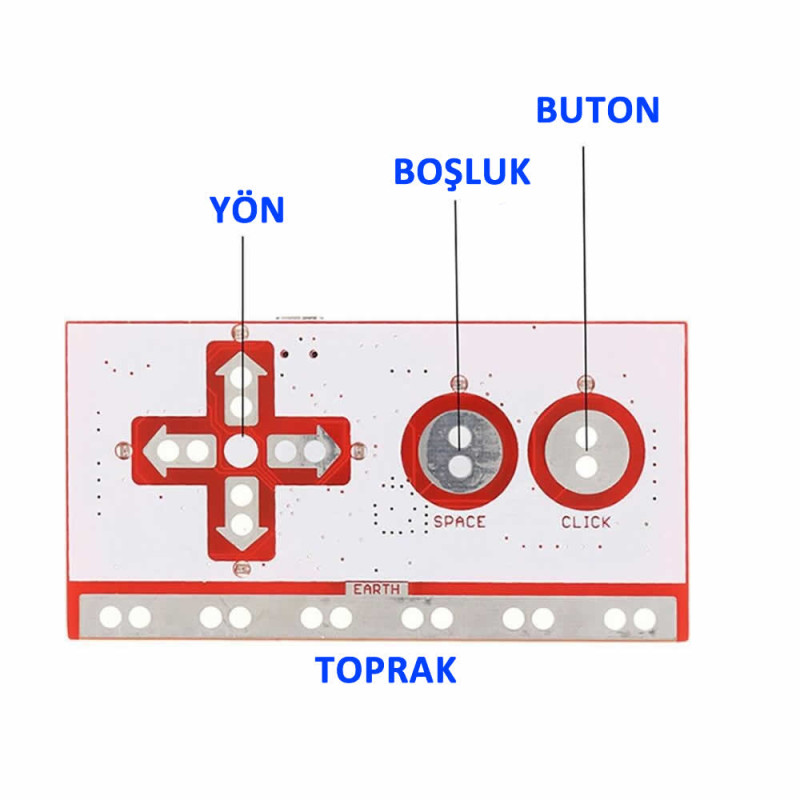

• 6 Pieces sensor connection pad. 4 Direction, Space, Button
• 6 Pieces indicator led
• 4 Pieces 6 pin female headr
• Mini usb socket

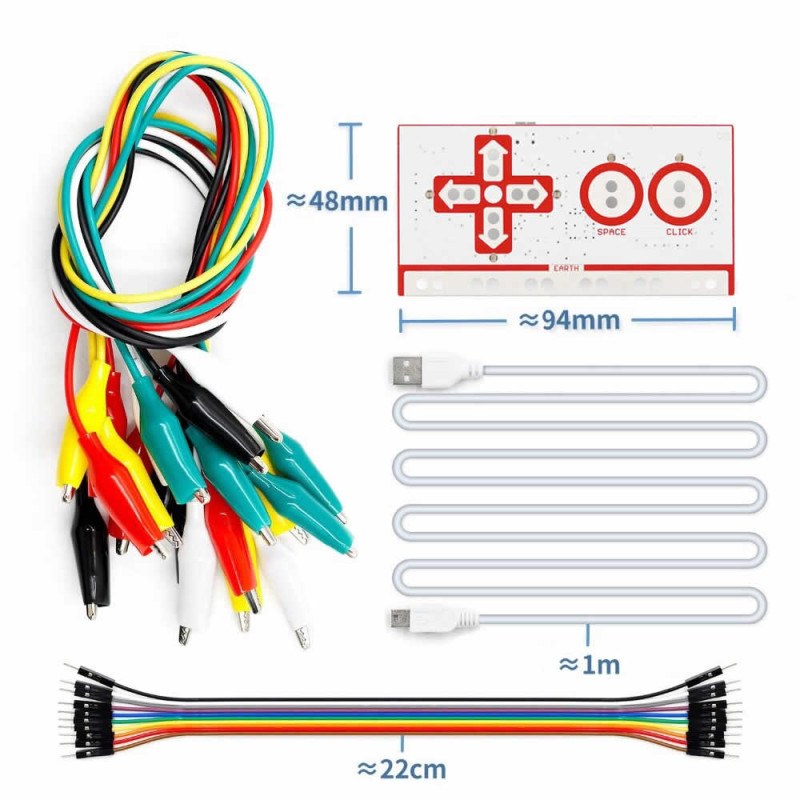

• Dimensions: 48mm x 94mm
• Weight: 115gr

Use:

• Connect the product to the computer with a usb cable. The computer will automatically detect the board. You do not need to install any software.
• Touch the earth ( ground ) part at the bottom section or connect a crocodile cable. Hold one end of the crocodile cable. Holding the ground is necessary for the touch to be detected.
• As you press the direction keys and the space and mouse key you will see the led next to the key light up. At that moment the key is active. You will see that the operations that should occur according to the pressed key take place in the active program open on the computer.
• As an example open the piano application over google. And press the keys You will see that a different piano key makes a sound with each key. Or you can play a game by opening a game.
• In addition, you can use those objects as buttons by making connections to various objects with the crocodile cables that come with the kit.

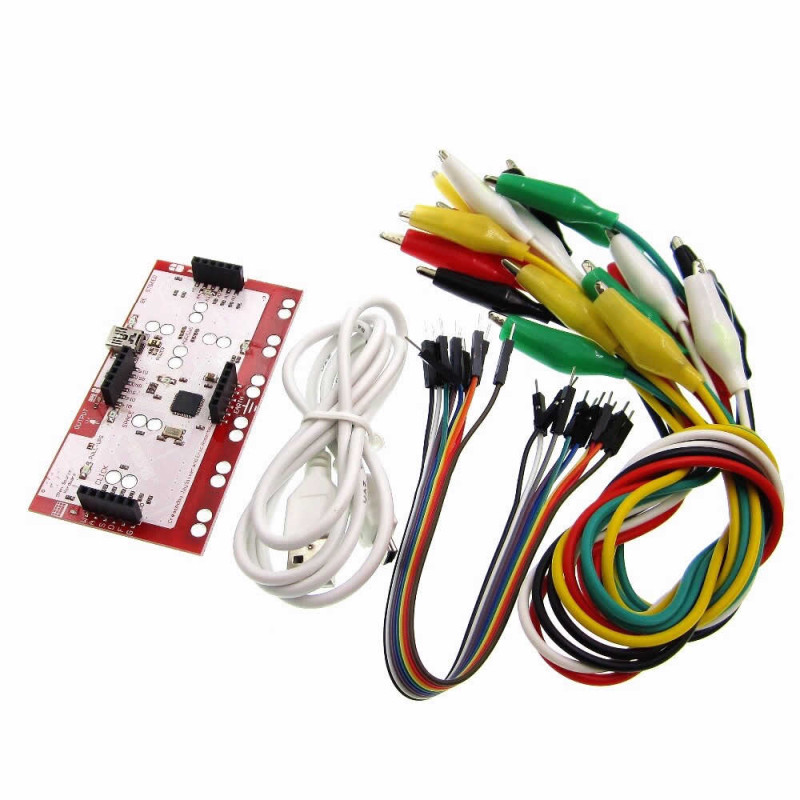

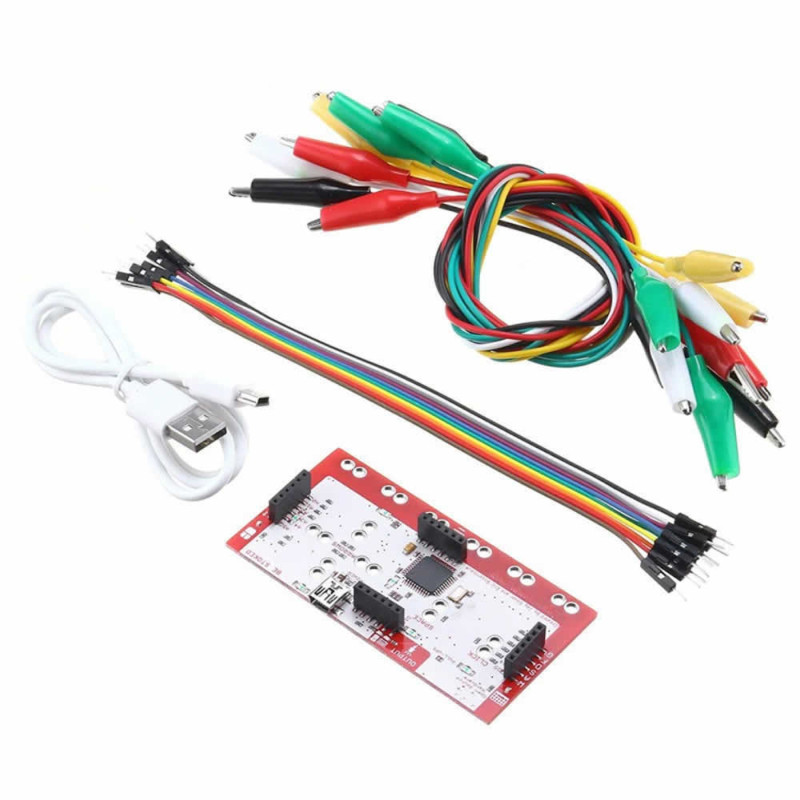

Package Contents:

• 1 Piece Atmega32u4 Makey Module
• 1 Piece Mini usb cable
• 10 Pieces crocodile cable
• 10 Pin male male dupont cable
