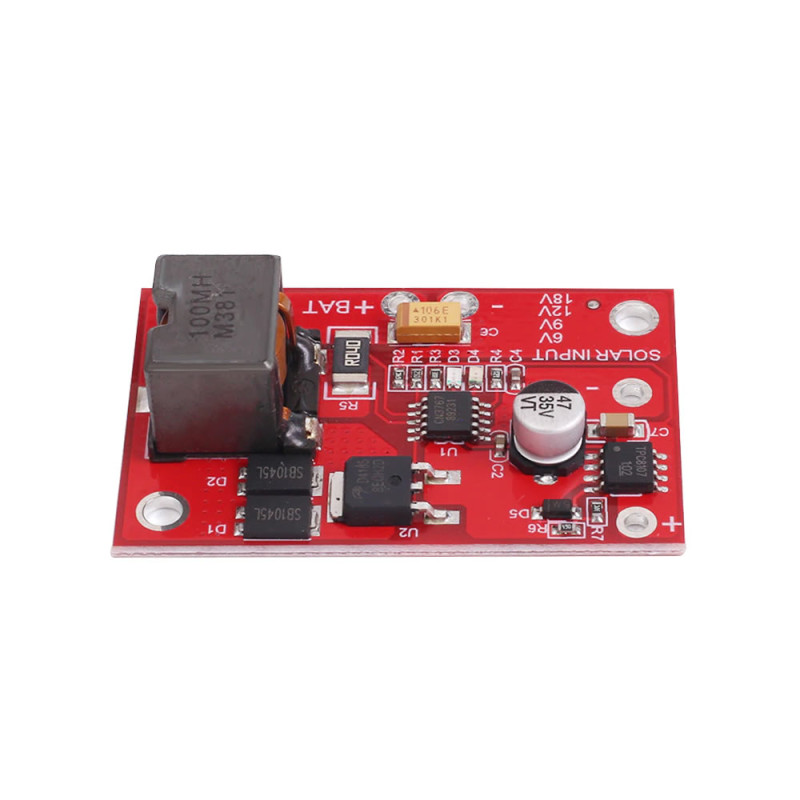

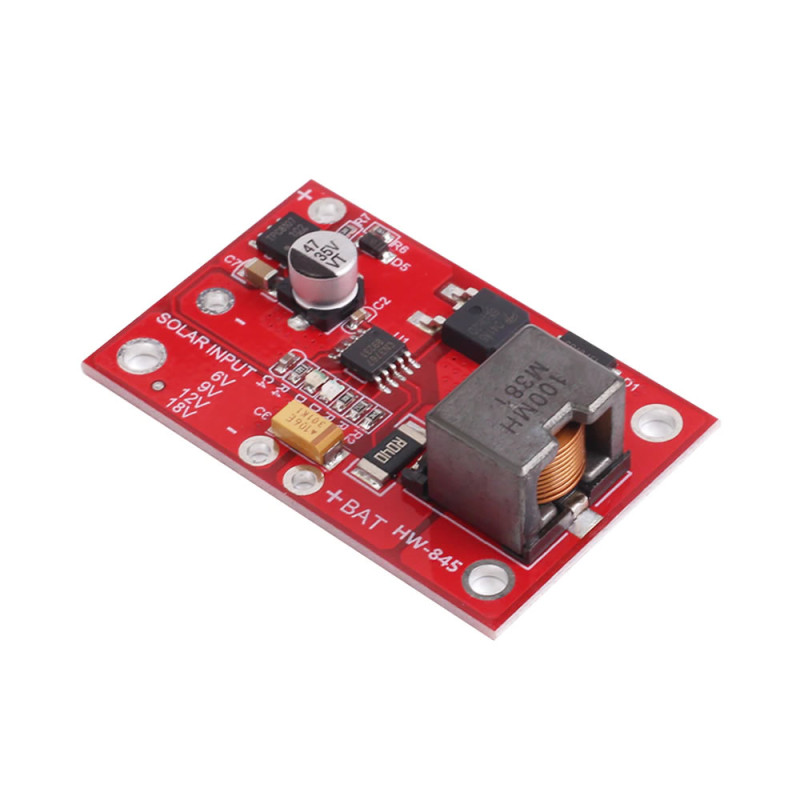

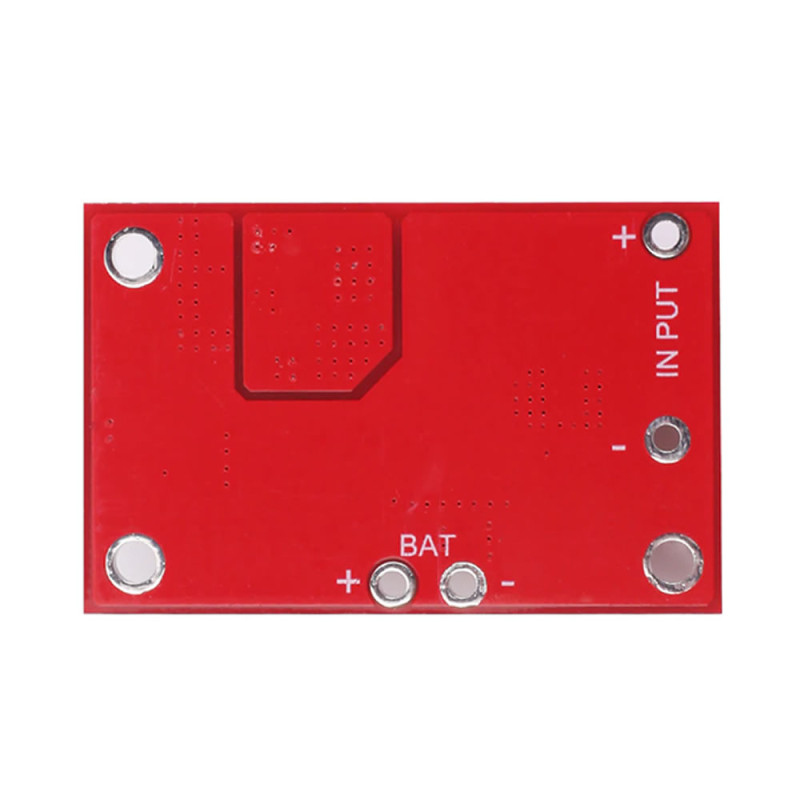

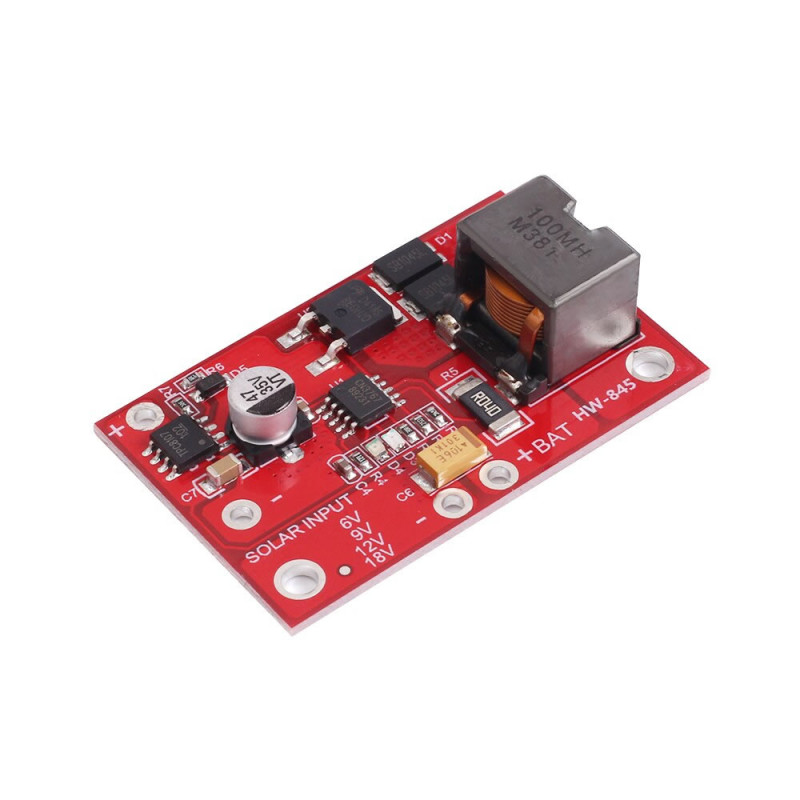

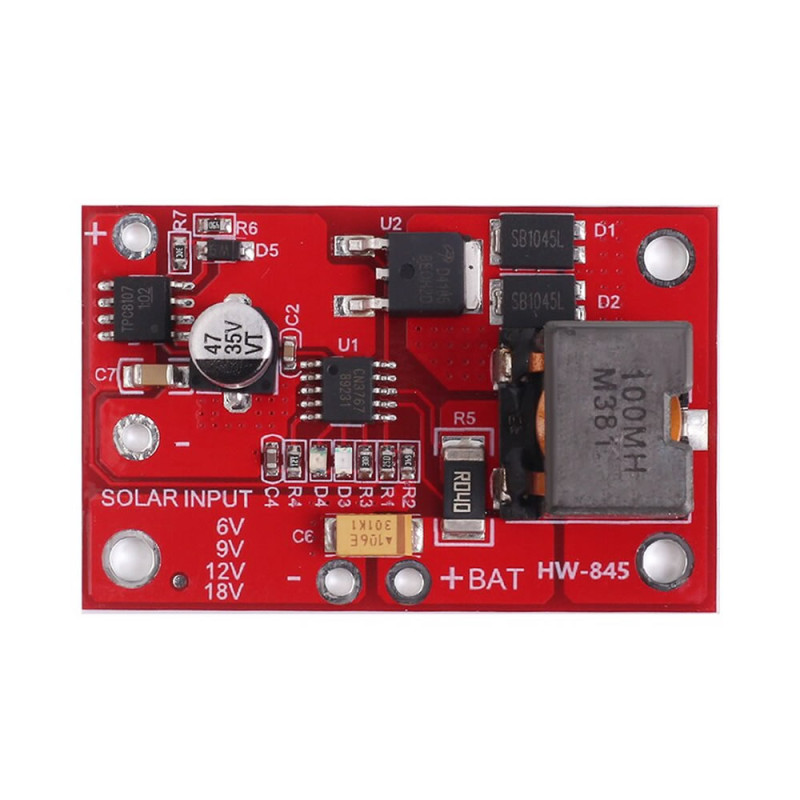

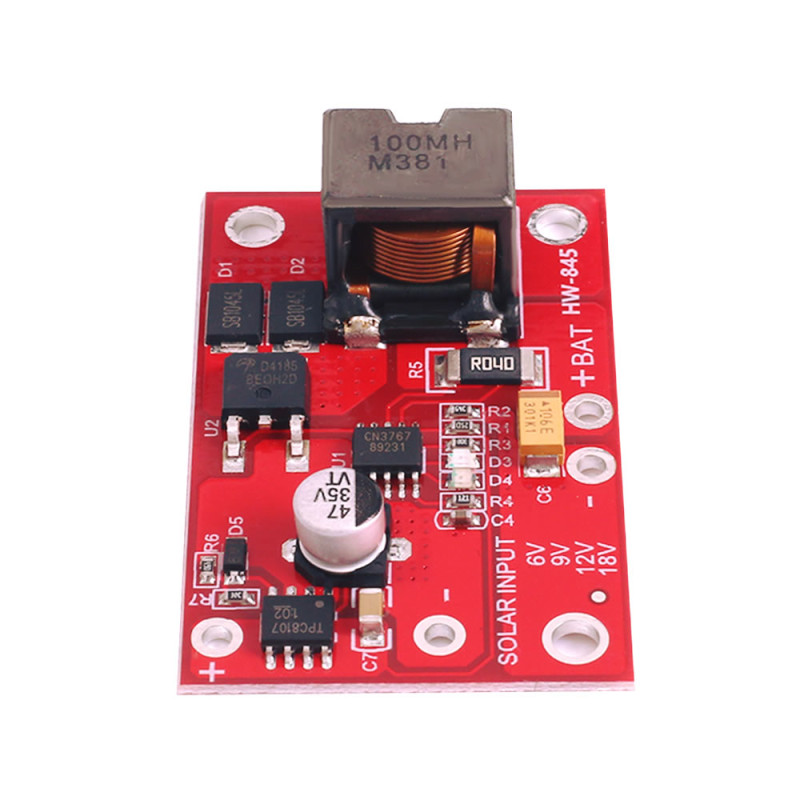

MPPT Solar Panel 12V Battery Charge Board

MPPT Solar Panel 12V Battery Charge Board CN3767

13,5V 3A Battery Lead Acid Accumulator Charge Solar Cell Deep Charge

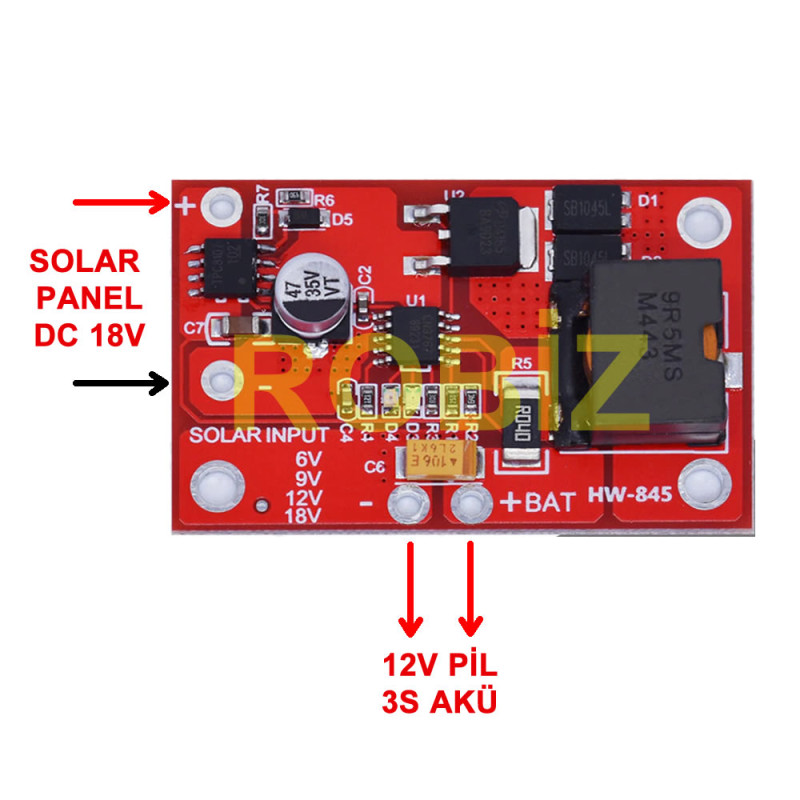

     Mmpt control board that charges 12V batteries with solar panel energy. There must be a minimum voltage of 158V at its input.  When energy comes from the solar panel, the red led becomes active. When the solar panel voltage exceeds 15V, the green led becomes active. And you can measure that there is 13.5V charge voltage at the output. This shows that the charging process has started.

     You can also run products operating with 12V actively and instantly. We tested it by running a 12V motor. It drove the motor quite powerfully. Of course, the current coming from the solar panel is important here. It can achieve this with the arrival of high current on a sunny day. Its main purpose is to charge 12v batteries. We tested it to see its performance for an emergency situation.

     You can use it with maximum 30V solar panels. If there is enough sun, it can charge the battery with 3A current.

     CN3767 is specially designed to charge 12V batteries. It has deep charge, automatic charge and constant current charge features. It has overcharge voltage protection. It is designed to work with solar panels. It has an mppt function. It has features that can charge deeply discharged batteries.

Features:

• Maximum energy efficiency with Mppt Maximum power tracking support
• Supply voltage ( Solar ) : 18-30V
• Output voltage: DC 13.5V
• Output current: 3A ( 4A ) ( Using a heatsink is mandatory at charge currents above 2A. Place an aluminum plate under the product paying attention to insulation.)
• 12V Lead acid battery charge
• Frequency: 300khz
• Charge management
• Soft start ( Soft start )
• Trickle and constant current charge support
• Automatic recharge function
• Automatic conditioning and deep charge function
• Battery overcharge protection
• 2 Pieces charge indicator led
• Operating temperature: -10C  /  85C
• Color: Red

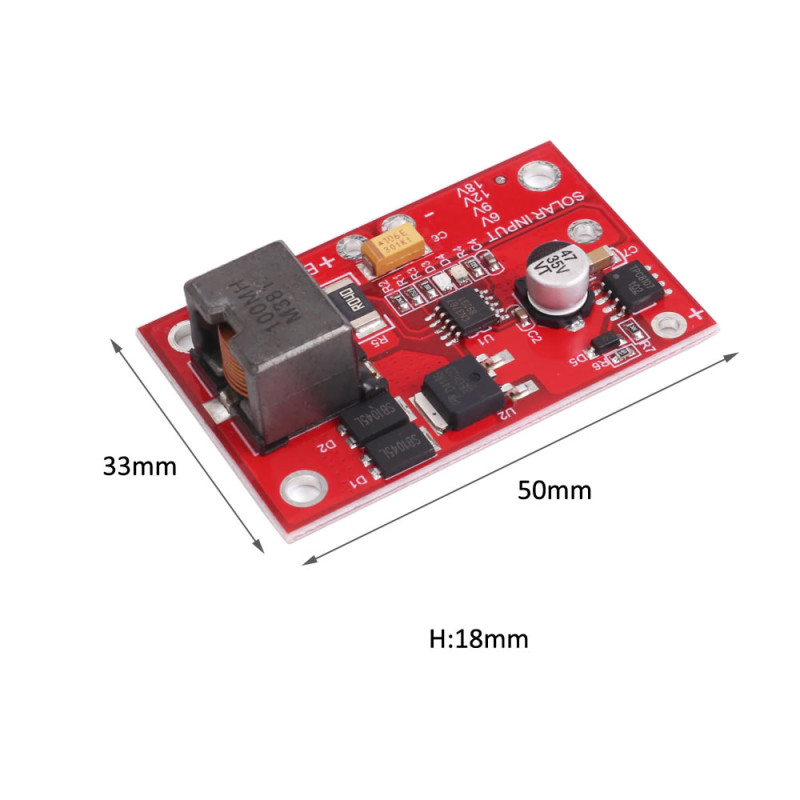

• Size:   33mm x 50mm
• Weight:  13gr

Package Contents:

•  1 Piece MPPT Solar Panel 12V Battery  Charge Board
