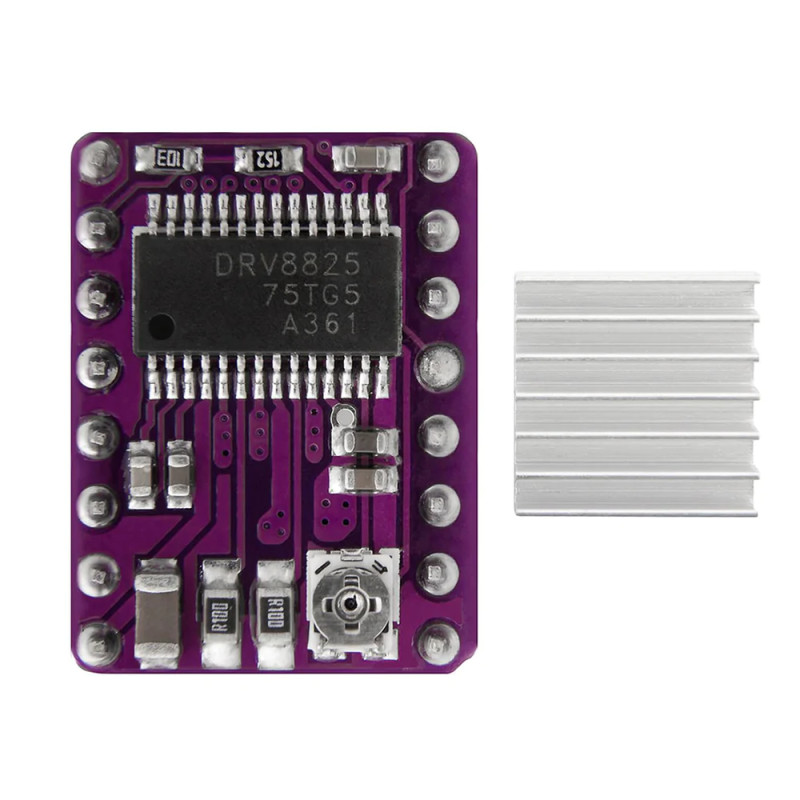

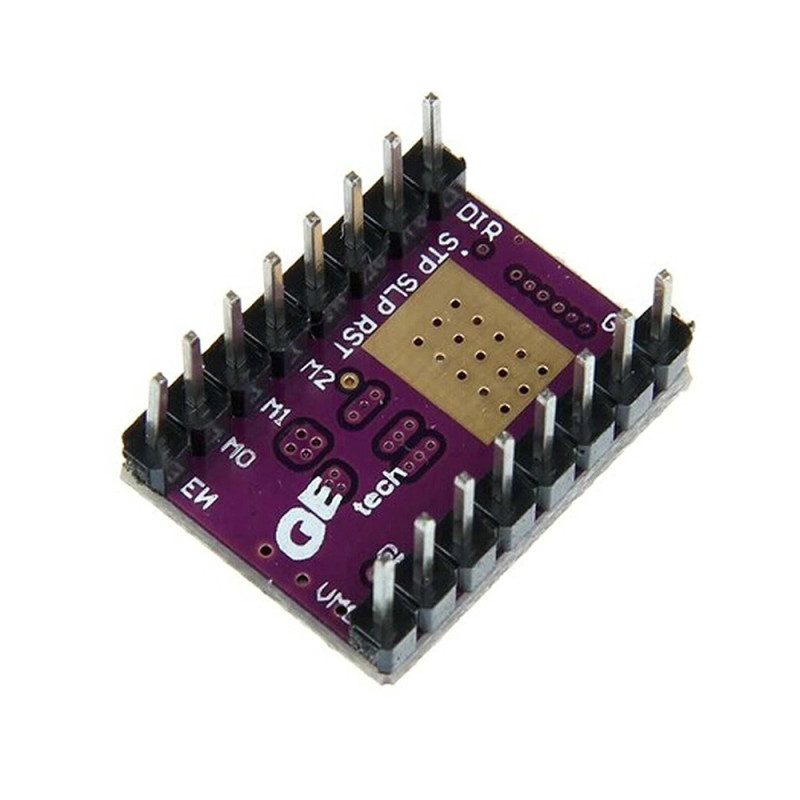

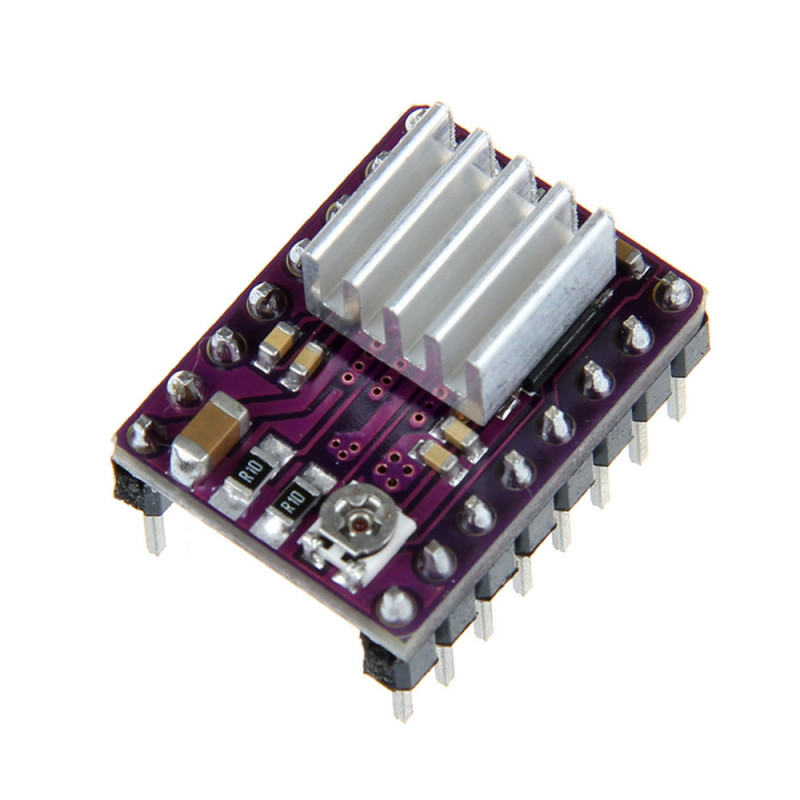

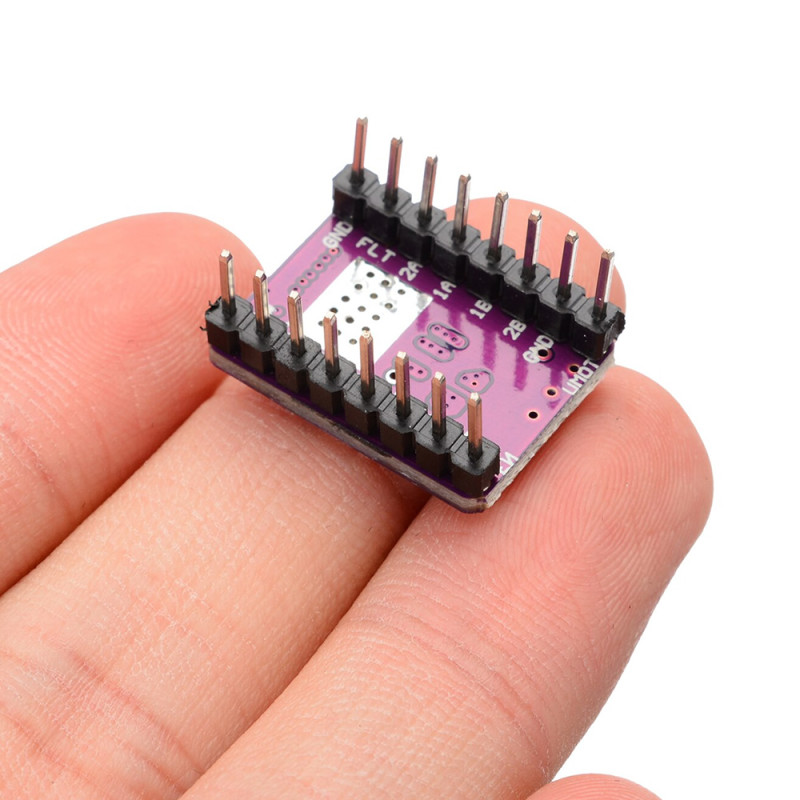

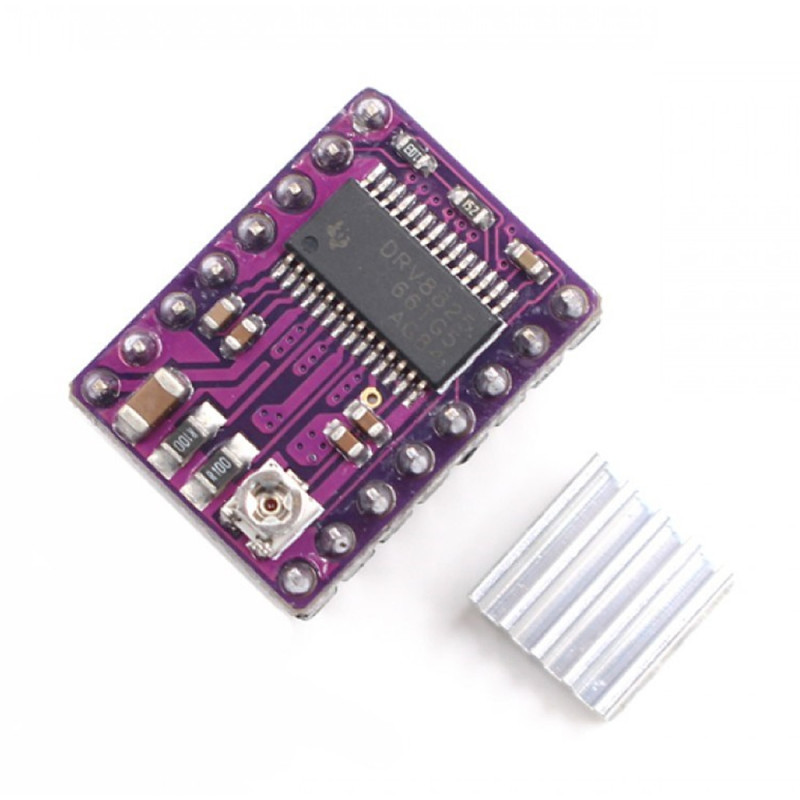

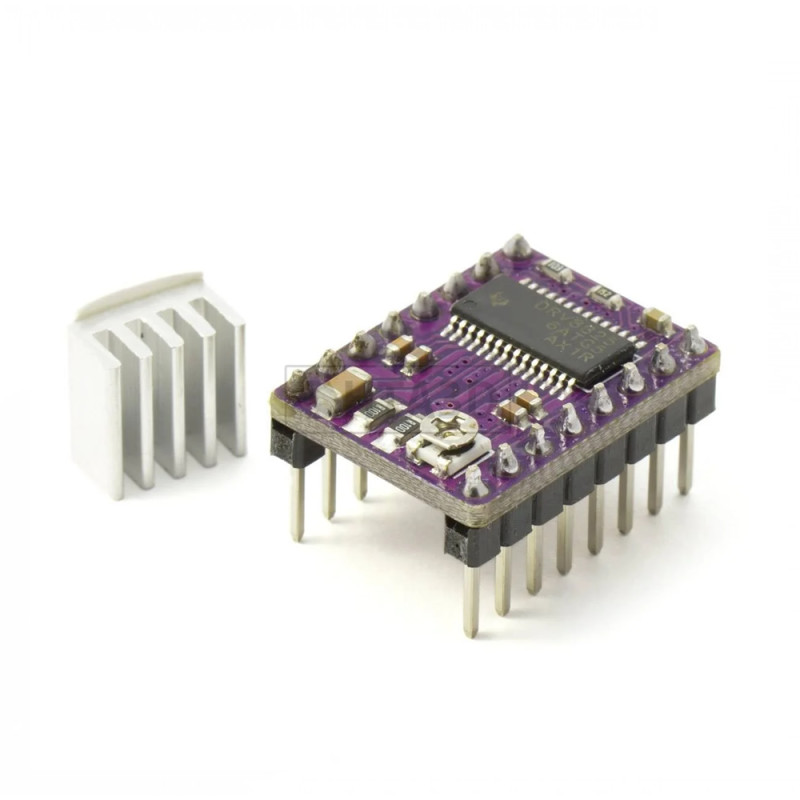

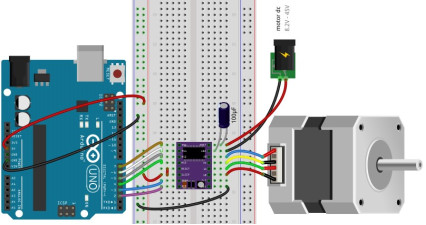

DRV8825 Stepper Motor Driver Module

DRV8825 Stepper Motor Driver Module + Heatsink

32 Step 1.5A 3D Printer Robot CNC Reprap MKS GEN Ramps Prusa Mendel Ultimaker

     It is a stepper motor driver board using the DRV8825 integrated circuit. It can supply 1.5A current per channel. Under strain and sudden conditions this value can rise up to 2.2A.

Features

•     Operating voltage: DC  3.3V / 5V
•     Motor voltage: DC  8V / 45V  Maximum
•     Adjustable current control
•     Continuous current for each phase: 1.5A ( 2.2A with heatsink )
•     Step control
•     Direction control
•     Microstep resolution: 1, 1/2, 1/4, 1/8, 1/16, 1/32

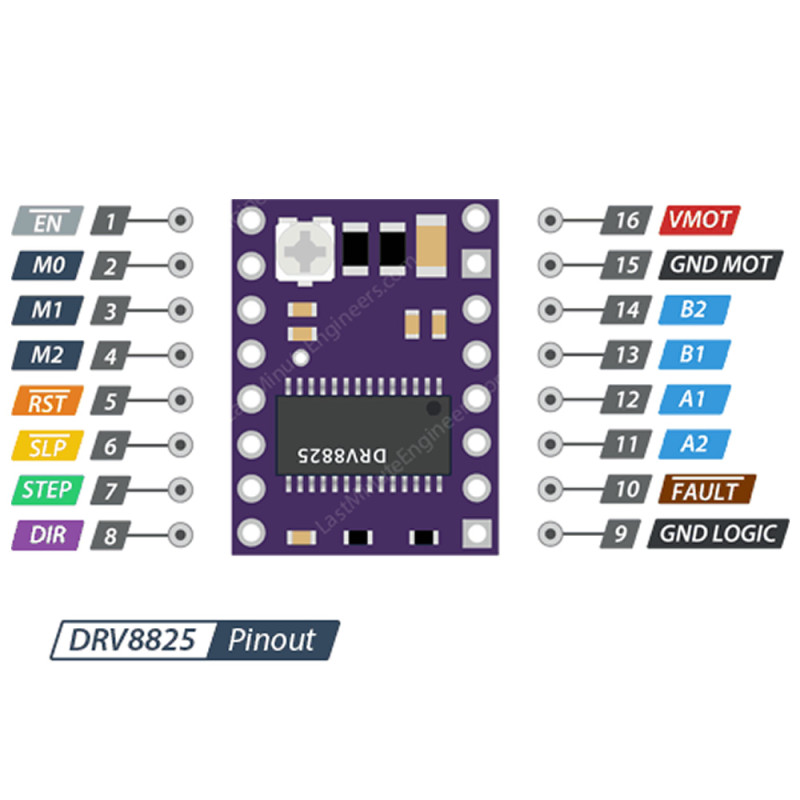

•     It is pin compatible with A4988. You can use it on boards where A4988 is used.
•     Short circuit protection
•     Low voltage protection
•     High temperature protection
•     Low voltage protection
•     High current protection
•     Cross current protection
•     Color: Purple
•     Dimensions: 15mm x 2mm

Application Areas

•     Stepper motor applications
•     3d printers
•     Speed controlled robots
•     Control systems
•     Printer - scanner
•     Robot arm

MODE0      MODE1    MODE2     Microstep Resolution
 Low        Low       Low        Full step
 High       Low       Low        Half step
 Low        High      Low        1/4 step
 High       High      Low        1/8 step
 Low        Low       High       1/16 step
 High       Low       High       1/32 step
 Low        High      High       1/32 step
 High       High      High       1/32 step

Package Contents :

•    1 Piece DRV8825 Stepper Motor Driver Module
•    1 Piece Aluminum Heatsink
