Wireless Charging Module Dual Coil 15W

Wireless Charging Module Dual Coil Type C 15W

Qi WPC V1.2.3 12V 1.5A Mobile Smart Phone Toy Battery Horizontal Vertical Transmitter Samsung Apple Iphone

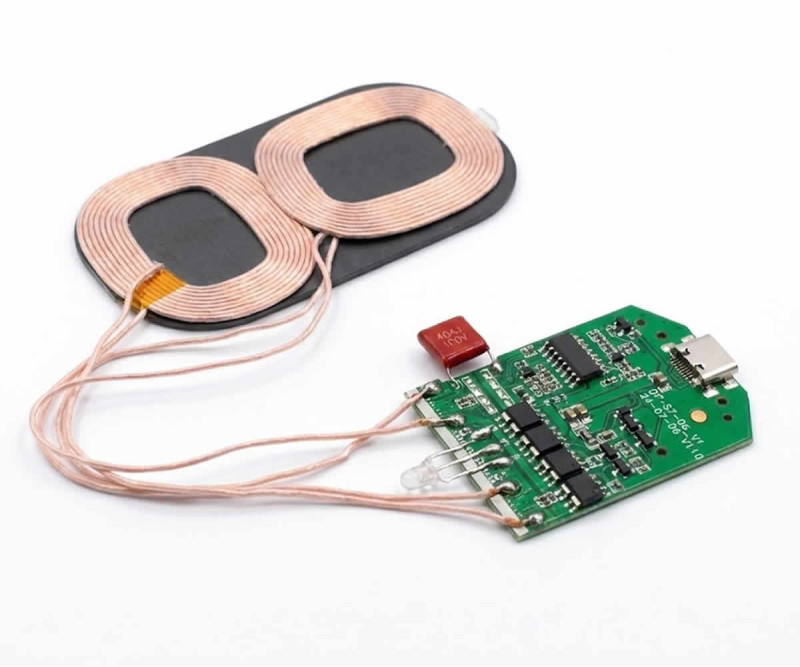

     It is a wireless charging transmitter module for small electronic devices operating on the Qi standard. It is used to transfer energy wirelessly with its charging board and coil for devices that can be charged wirelessly such as phones. The module obtains its supply through the type c usb 5V supply socket. It has supply and charging status indicator leds.

     With the very thin structure of the coil, it is suitable for use in many applications. It is suitable for contactless charging from a distance of at most 8mm. It can be used under or inside non metal materials such as furniture, glass, plexiglass. It can transfer energy at 75% efficiency. It can provide fast charging support with 1A/2A charging current. The ferrite plate under the coils serves the function of directing the energy only to the phone. In this way energy loss is reduced.

• Advanced safety features: It provides safe use thanks to overcurrent, overvoltage and short circuit protection.
• Multiple protocol compatibility: It supports iPhone, Samsung and Qi protocols, allowing different devices to be charged smoothly.
• Multiple charging mode support: It automatically adapts between 5W, 7.5W, 10W or 15W charging modes according to the power requirement of the device.

Warning: For 12V high speed charging, the adapter you will connect must have this support.

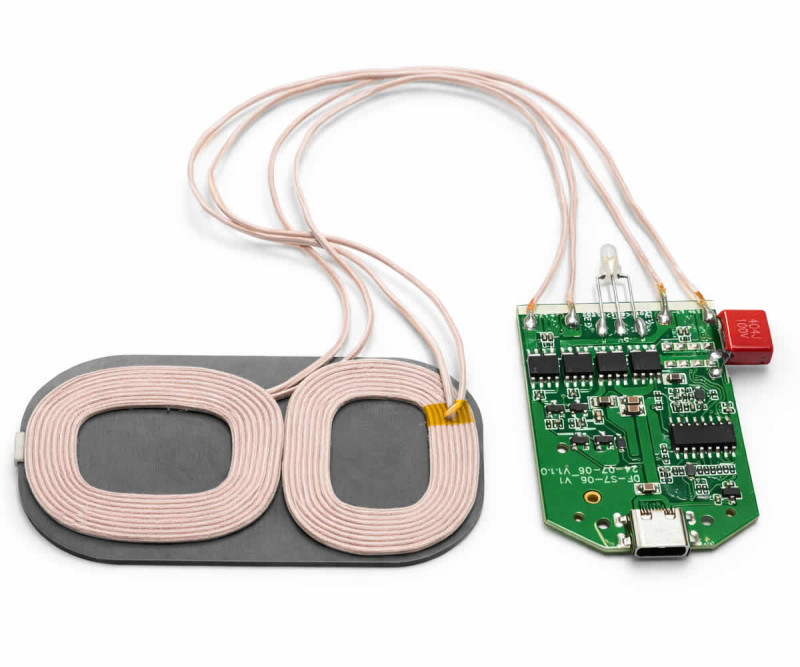

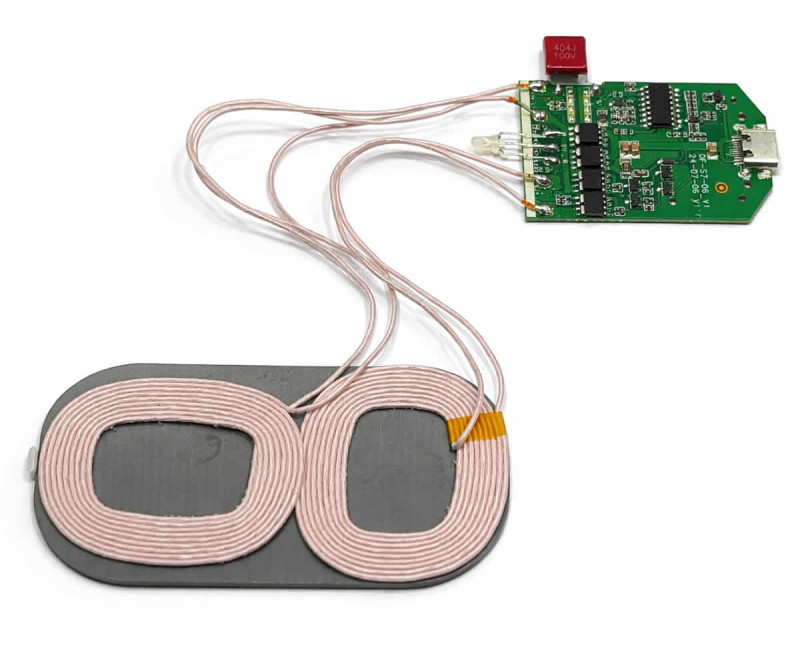

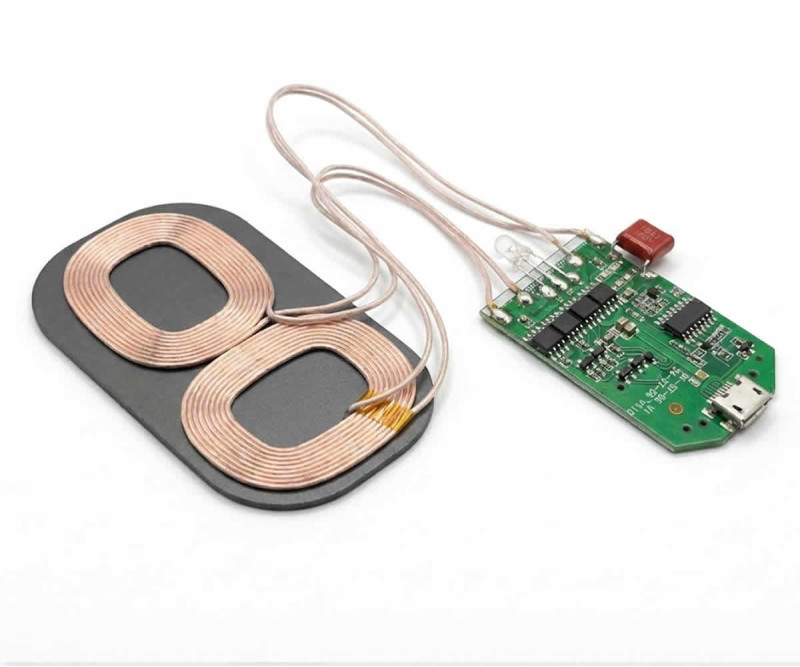

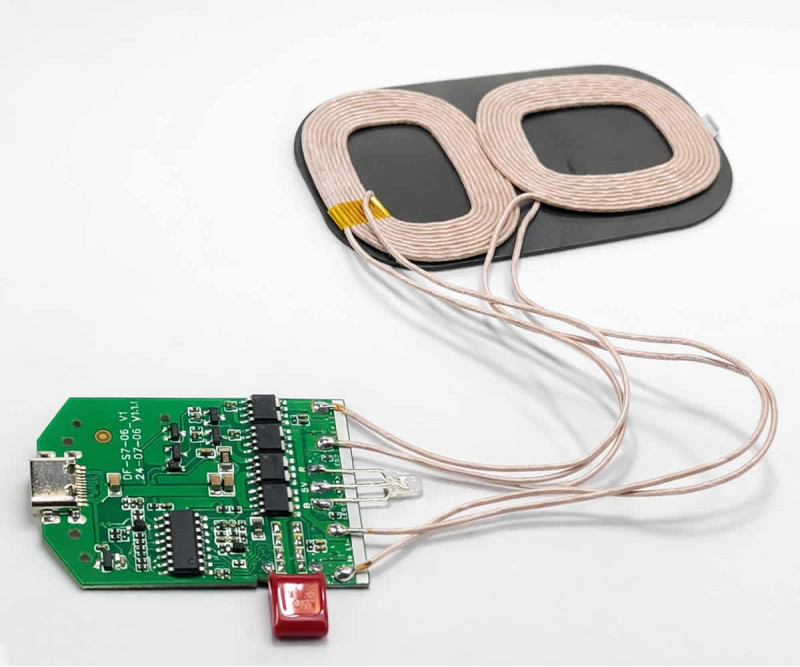

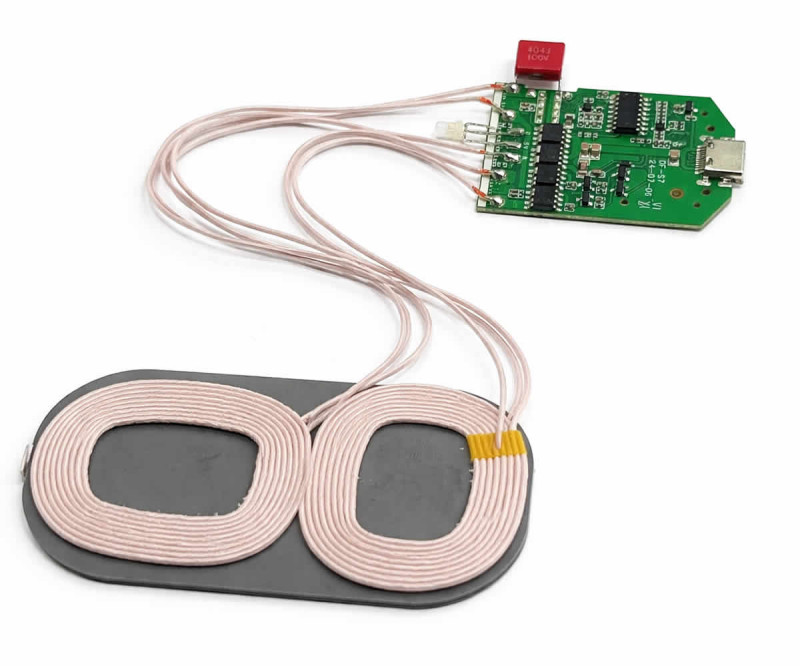

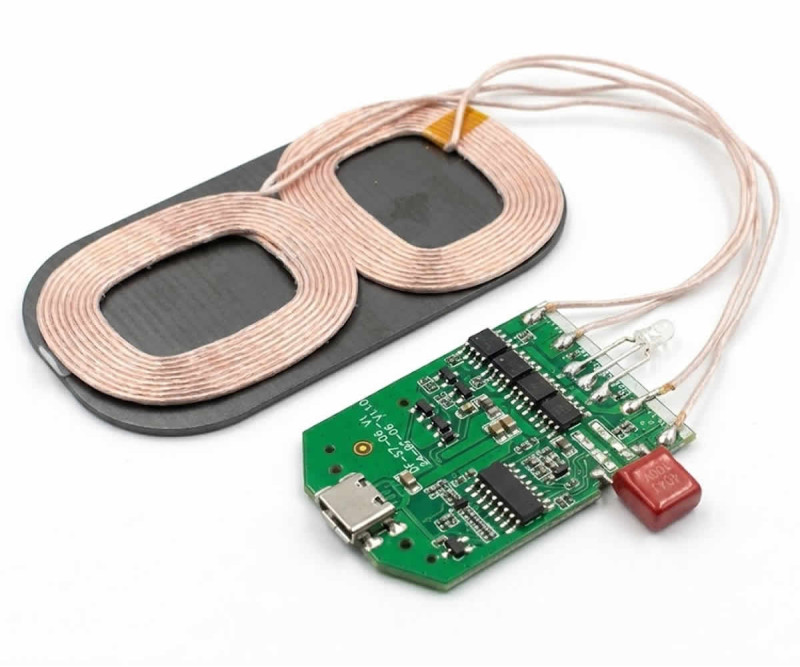

Dual charging coil design: There are 2 independent charging coils in this wireless charging module.

• The charging area is wider compared to single coil systems
• The device's sensitivity to coil alignment is reduced
• More stable charging is provided in horizontal and vertical positioning
• Uninterrupted energy transfer is obtained in in car use and desktop stands
• Charging interruptions caused by alignment experienced in single coil wireless charging modules have been reduced to a minimum level with the dual coil structure.

Specifications:

• Supply voltage: Type c usb Dc 5V
• Dual charging coil
• Vertical and horizontal charging support
• Automatically selects the active coil
• Input voltage current: 5V-2A, 9V-1.67A, 12V-1.5A
• Maximum 15W wireless charging output power
• Smart charging recognition: 5W 7.5W 10W 15W
• Charging distance: 5mm / 8mm
• Efficiency: 75% and above
• Two color status indicator led Blue, Green
• Foreign metal detection FOD supported
• Qi standard, WPC V1.2.3 compatible
• Compatible with iPhone X, 8, 8 Plus, 12, 13 charging protocols
• Samsung fast charging protocol supported
• Built in mcu dynamic energy balancing support
• 12 bit high precision adc
• Overcurrent, overvoltage, overtemperature and short circuit protection
• Operating temperature:  -20C  /  65C
• Coil dimensions: 45mm x 82mm
• Coil cable: 10cm

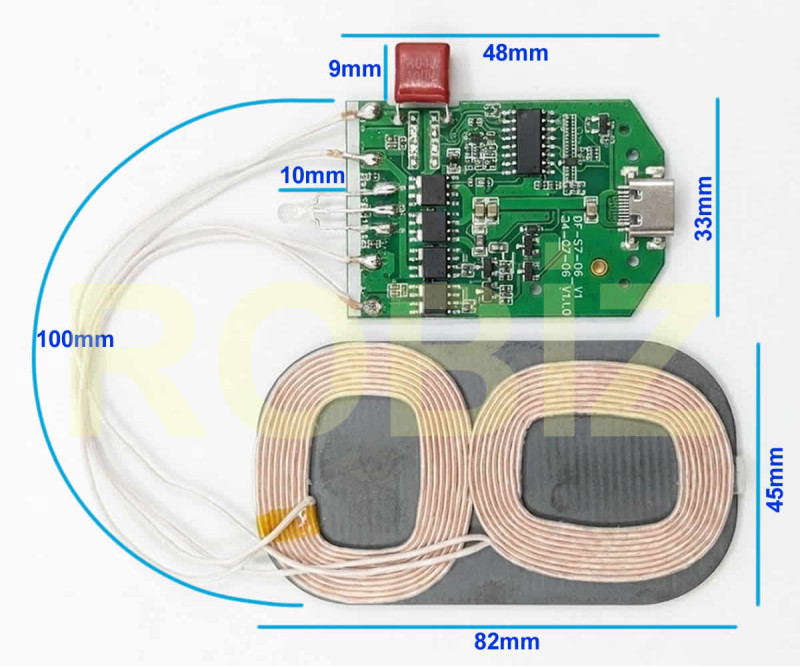

• Dimensions:  33mm x 48mm
• Height 2.7mm
• Weight: 22gr

Areas of use

• Home type wireless charging stand and desktop charging units
• In car wireless charging systems
• Smart home and embedded system projects
• Custom design wireless charging enclosures
• Industrial wireless charging solutions
• Thanks to the dual coil structure, the device's sensitivity to coil alignment is reduced, and this provides more stable charging in horizontal and vertical placements.

Advantages:

• Wider active charging area with dual coil design
• High device compatibility with the Qi standard
• Easy integration into tight spaces thanks to the compact pcba structure
• Stable and controlled charging with dynamic power balancing
• Safe operation against metal objects with FOD foreign object detection
• Coil and circuit design optimized for long term use

Package contents:

• 1 Piece Wireless Charging Module Dual Coil 15W
