E3F-R2N2 Reflector Sensor

E3F-R2N2 Reflector Ir Infrared Distance Sensor

NPN NC Infrared Optical 2 Meter Obstacle Object Detector Switch DC 6V/36V Automation Control

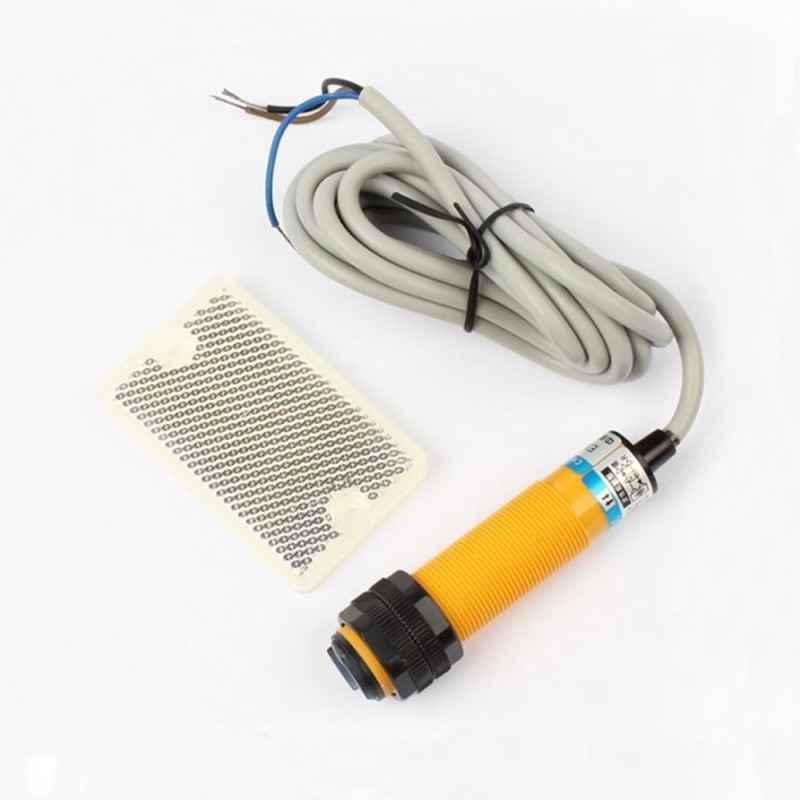

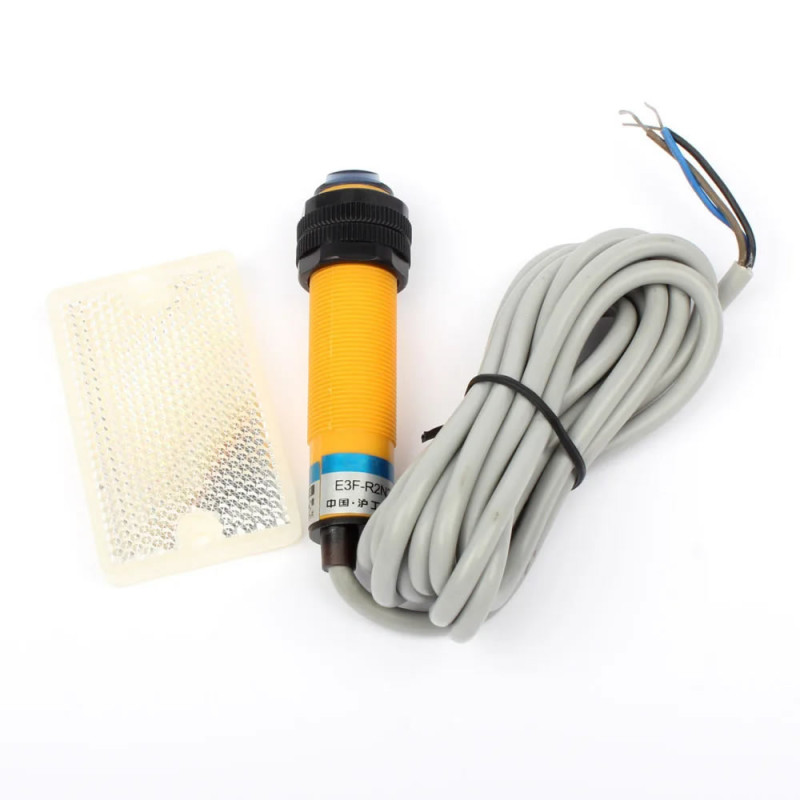

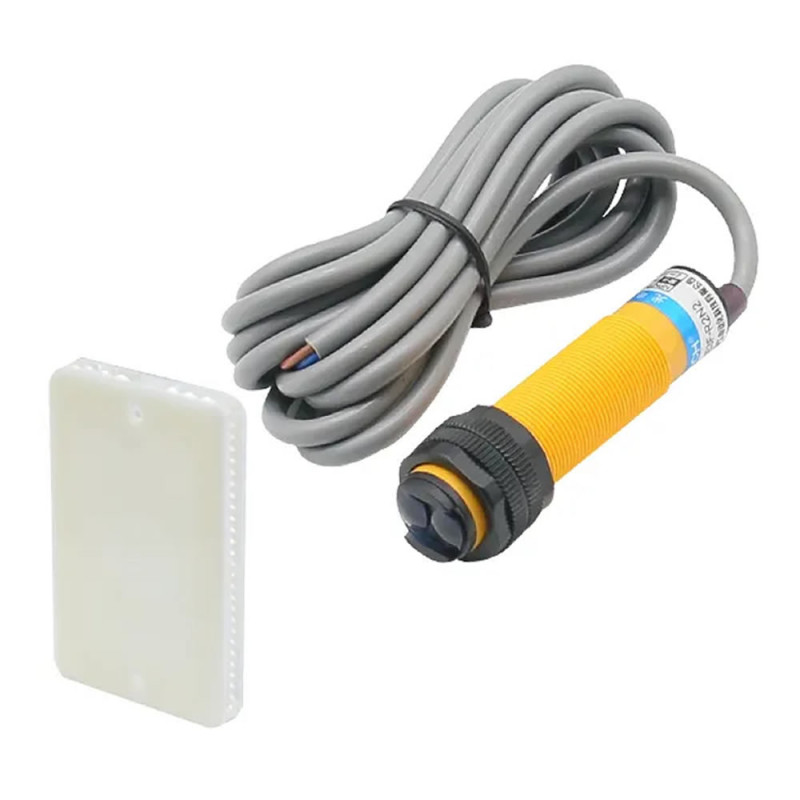

      Infrared distance measuring sensor with 2 Meter range. It comes together with its reflective reflector. It has NPN NC type output. It is suitable for many projects such as industrial automation, robot and similar. It is a digital output, high quality, industrial infrared sensor.

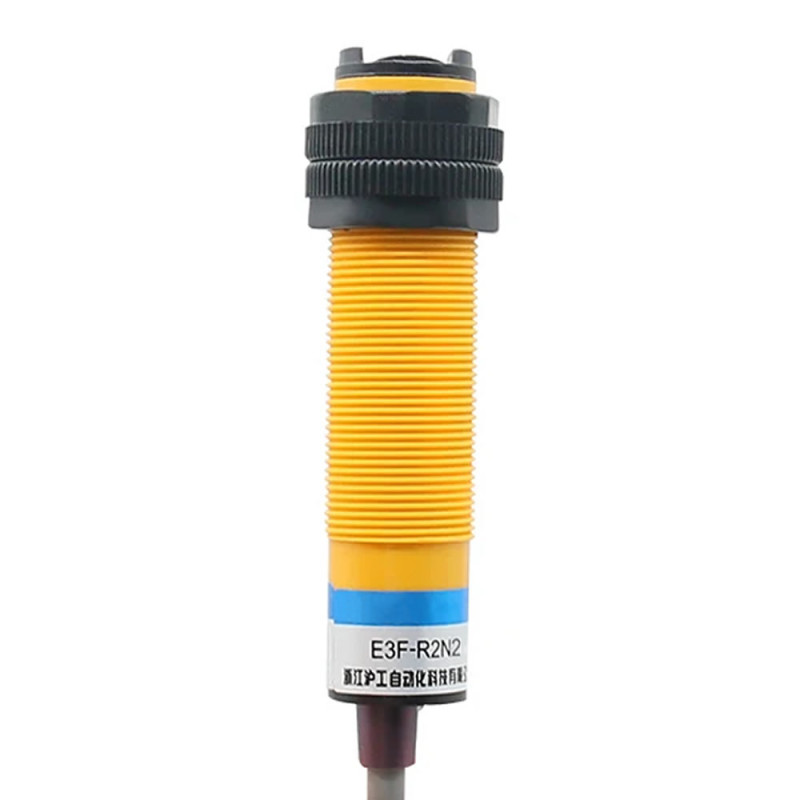

     It has an M18 type plastic case. If 2 sensors are used facing each other, it can be used at a distance reaching up to 5meters ( we did not test it ). It can be used with loads of maximum 300ma. For loads that will draw higher current, materials such as relay, contactor and similar must be used in between.

Features:

•     Model: E3F-R2N2
•     Operating voltage: DC 6V / 36V
•     Operating current: 300mA
•     Output type: NPN NC
•     Sensor range: 2 Meter
•     It is a digital output, high quality industrial sensor.

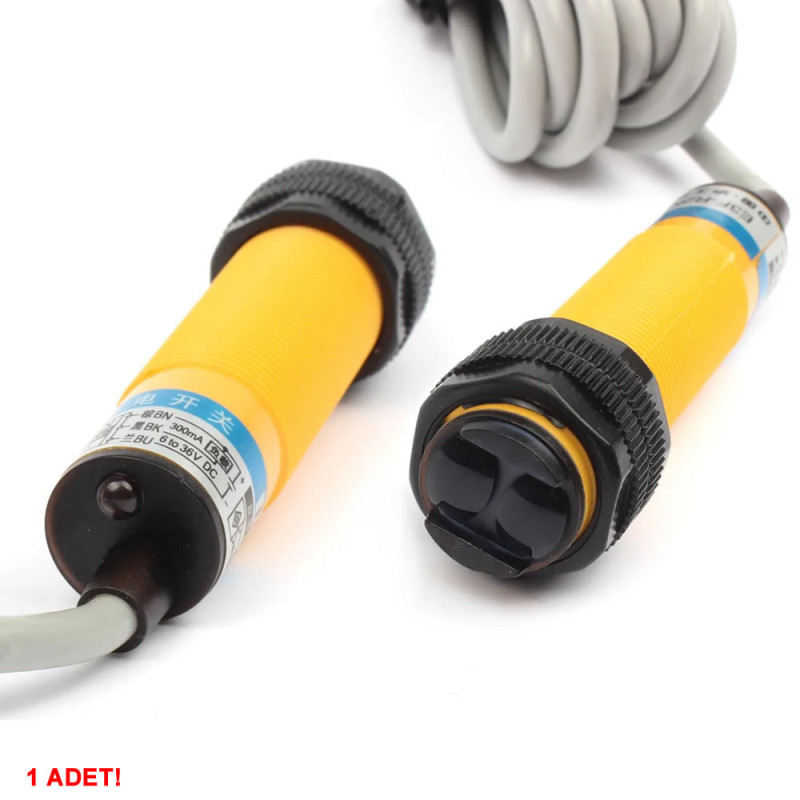

•     It shows the detection status with the led at its back
•     Protection class:  IP67
•     Material: Plastic / Metal
•     Operating temperature:  -20C  /  70C
•     Color: Yellow / Black

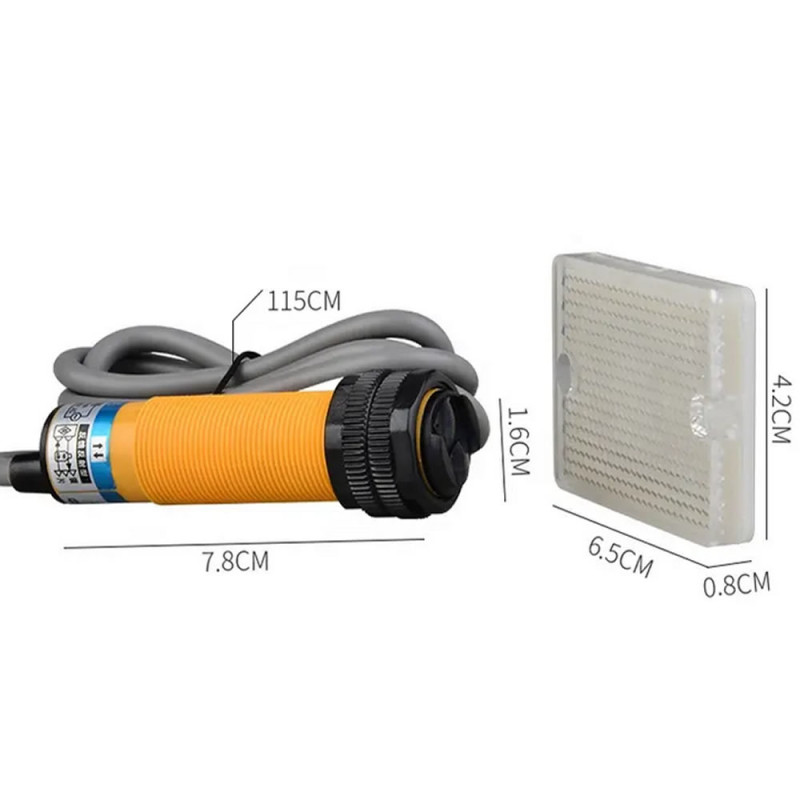

•     Head diameter: 16.5mm
•     Mounting hole: 18mm

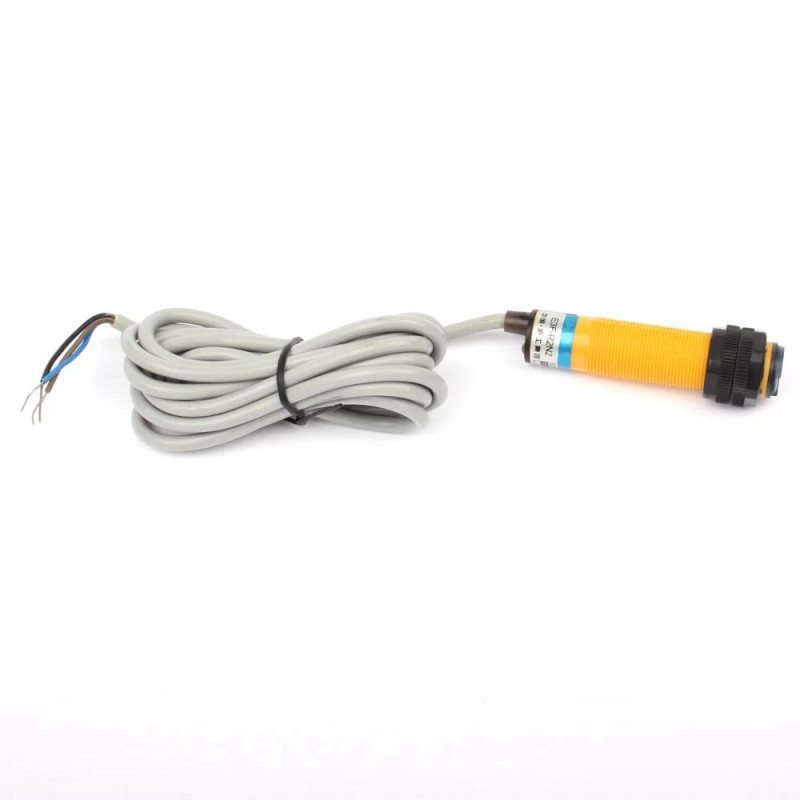

•     Cable length: 116 cm
•     Dimensions:  23mm x 70mm
•     Weight:  77gr

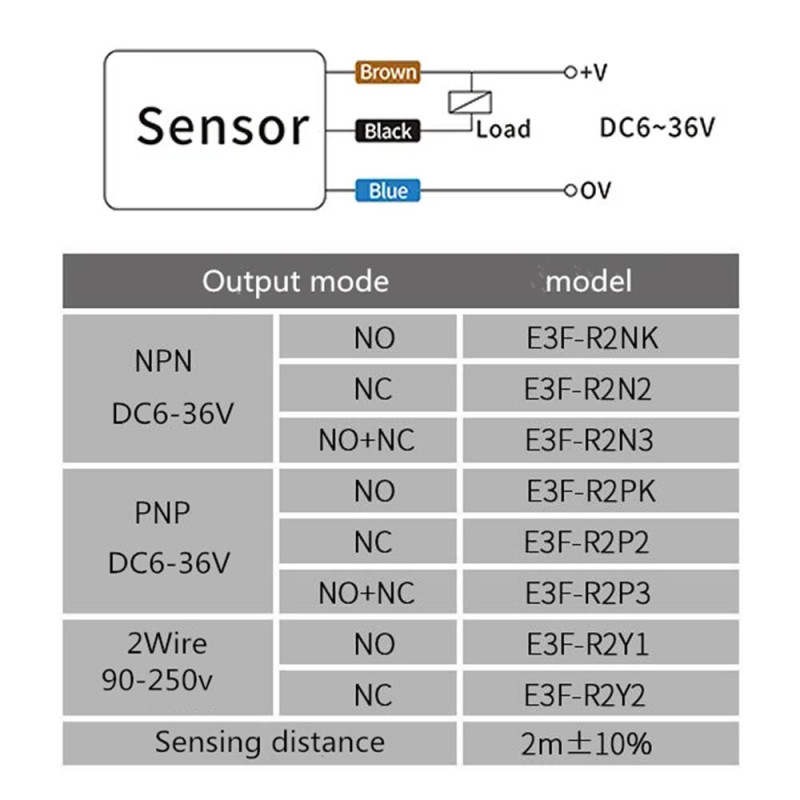

Cable description:

•     Brown: DC 6V /36V
•     Blue: GND
•     Black: Data Output

Package contents:

•  1 Piece E3F-R2N2 Reflective Sensor
