15A 250V 2 Pin Slim Switch KCD3-101

15A 250V On / Off 2 Pin Switch

Slim Latch Type Button High Current Kcd3-101 Switch Panel Mount Box Power Control Machine Motor Car Breaker

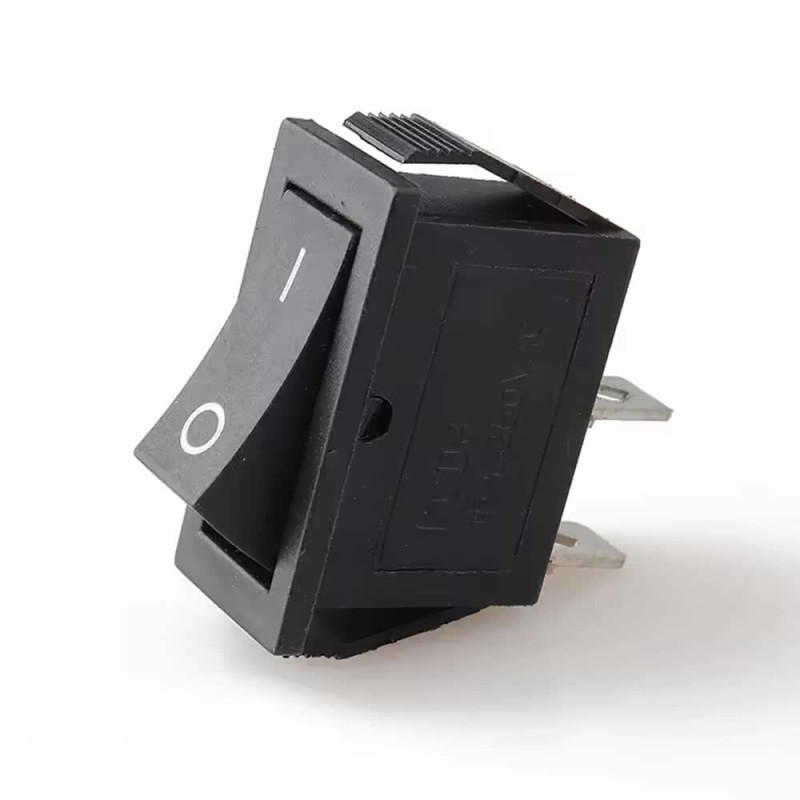

     It has a high switching capacity of 15A 250V. There are I O markings on the button. “I” means the switch is short circuit and electricity is going to the relevant device. “O” means the switch is open circuit and electricity is not going to the relevant device.

     It has a panel type mountable plastic box. It does not require screws or similar parts, it is easily mounted. It is widely used in many applications such as motors, machines, robots and cars.

Features:

• 15A/250V kdc3-101 switch

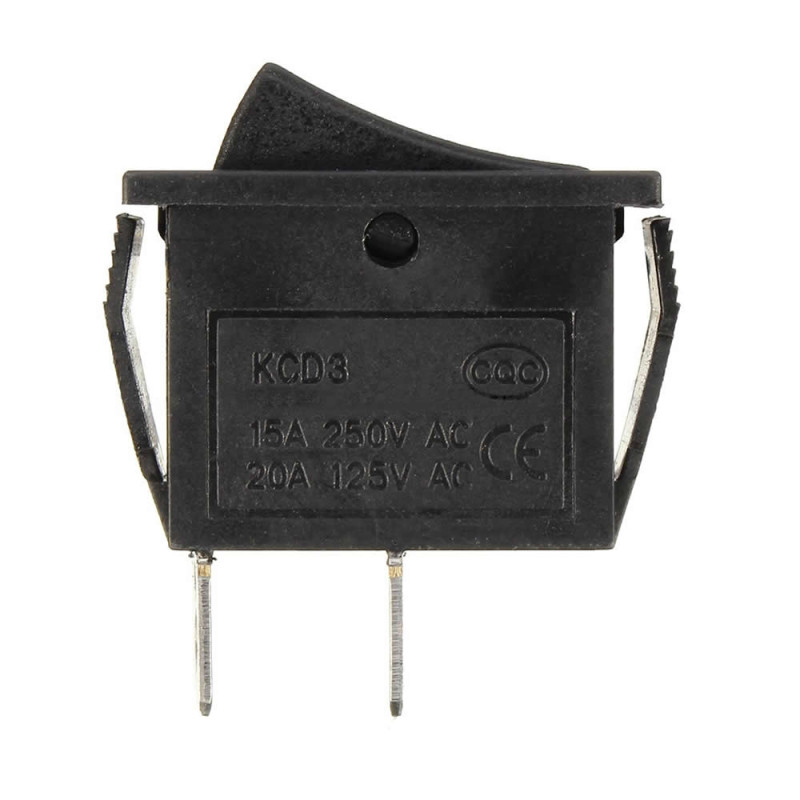

• Maximum current: 15A ( 250V )   /   20A ( 125V )    /   35A DC 12V
• Maximum voltage: 250V
• Number of switches: 1
• Function: On / Off ( On / Off )
• Label:    I= On  /  O= Off
• Movement Type: Latch / Latching ( Stays continuously in the I or O state )
• Material: Plastic /  Metal
• Contact resistance: 50mohm and below
• Operating temperature:  -25C  /   +75C
• Color: Black
• Lifetime: More than 20000
• Mountable plastic box

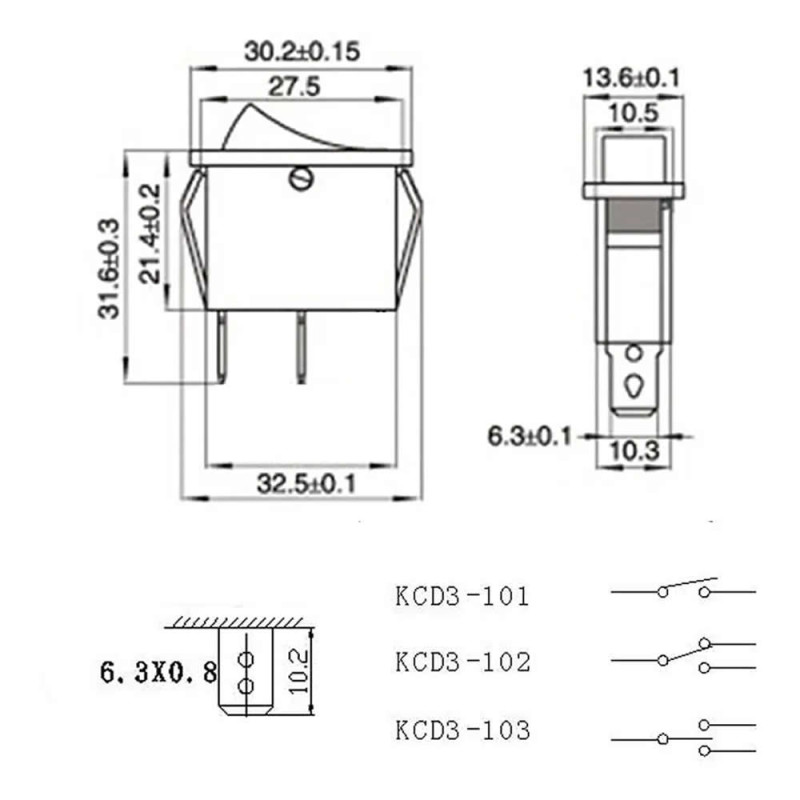

• Dimensions: 13mm x 32mm x 31mm
• Weight: 8gr

Package contents:

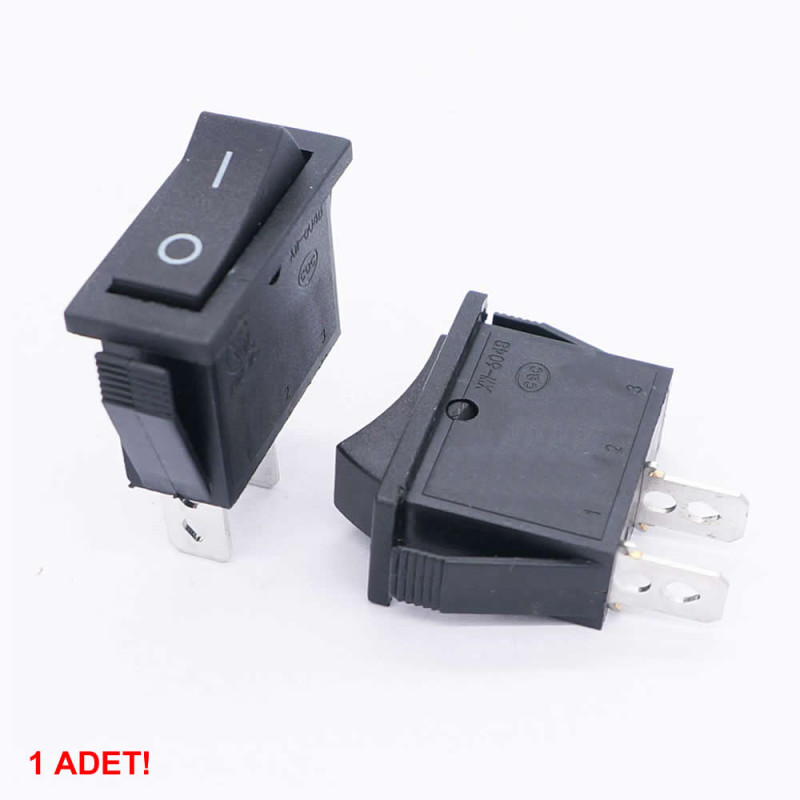

• 1 Piece 15A 250V 2 Pin Slim Switch KCD3-101

.
