Forward Reverse Gear Lever 16A 250V Battery Powered Ride On Car Electric Vehicle Toy Switch Machine Motor Elevator Crane Atv Gokart

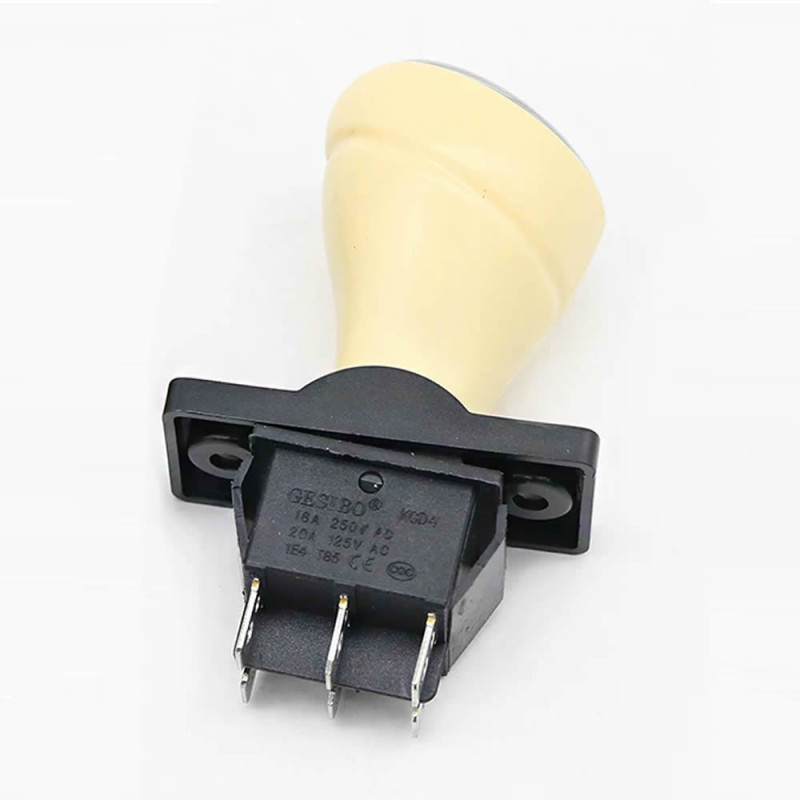

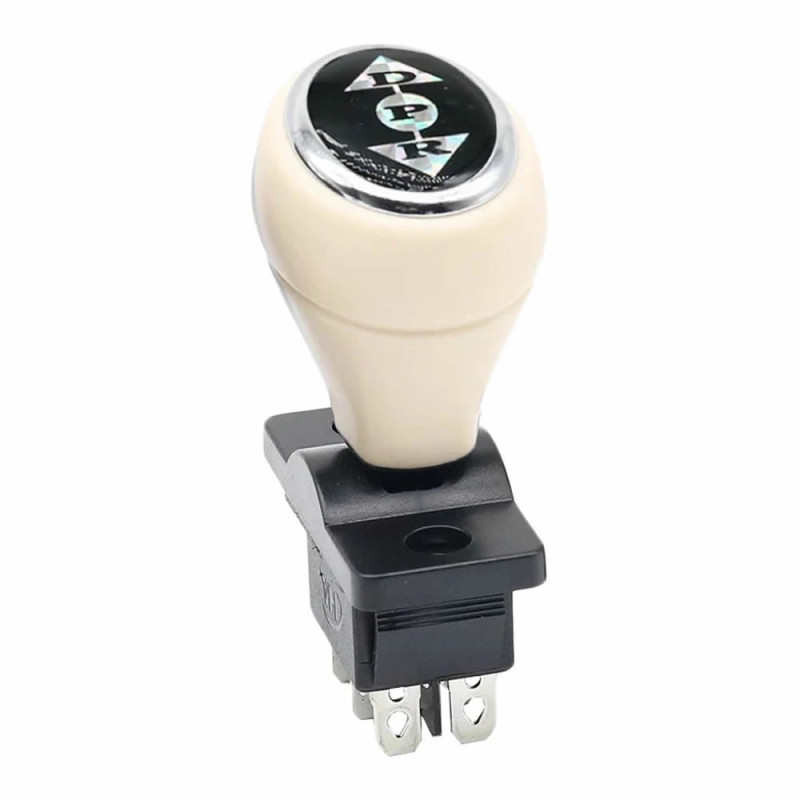

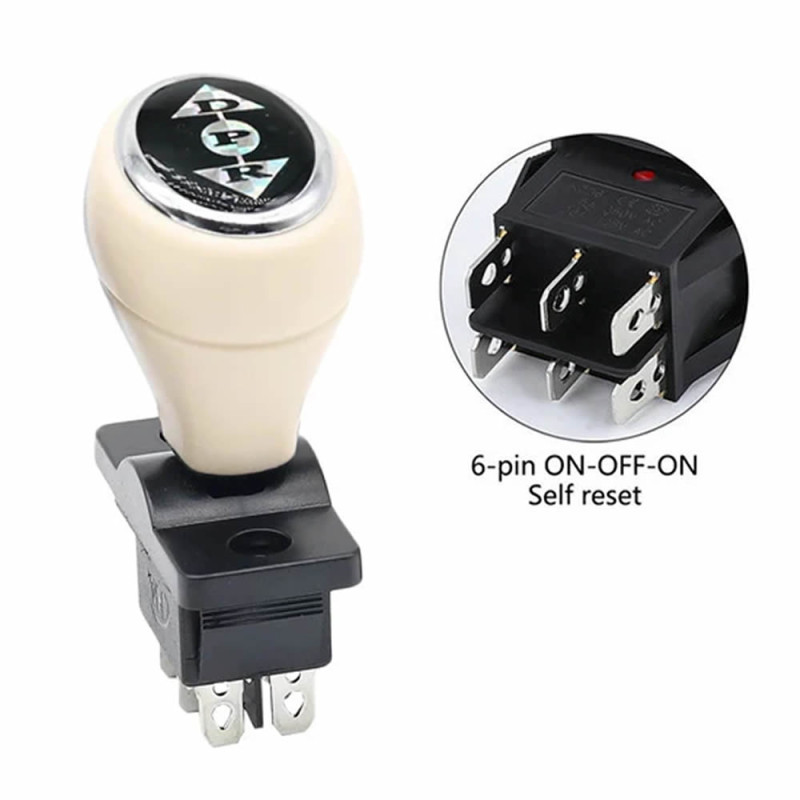

     Gear joystick lever that performs forward reverse switching in products such as electric vehicles. It has push type operating mode. After being moved to the forward or reverse position, when released the lever returns to the middle point and operation stops. If you want it to stay permanently fixed, you need to buy the latch type black product.

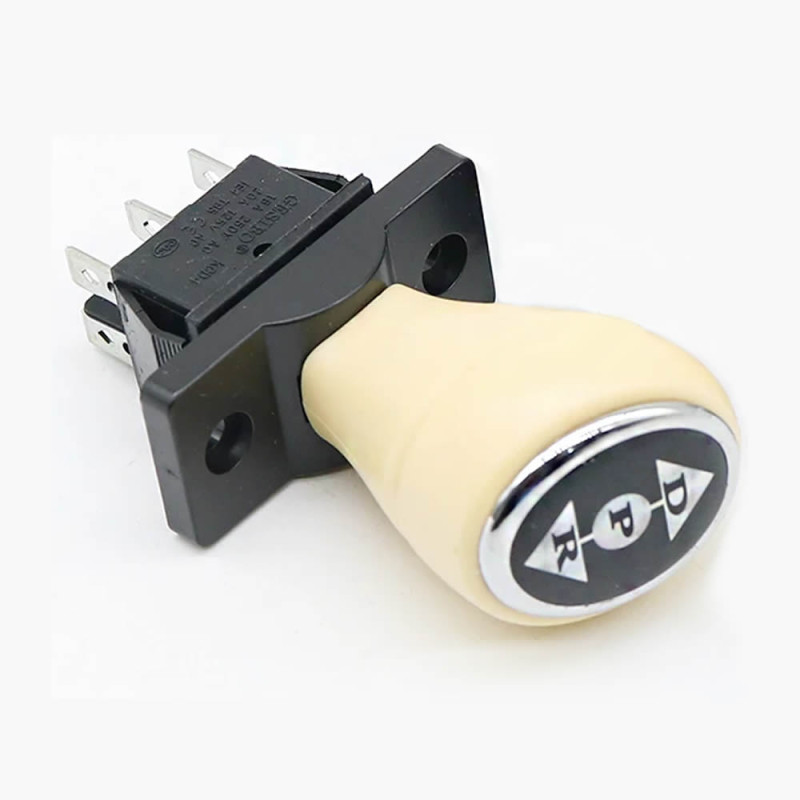

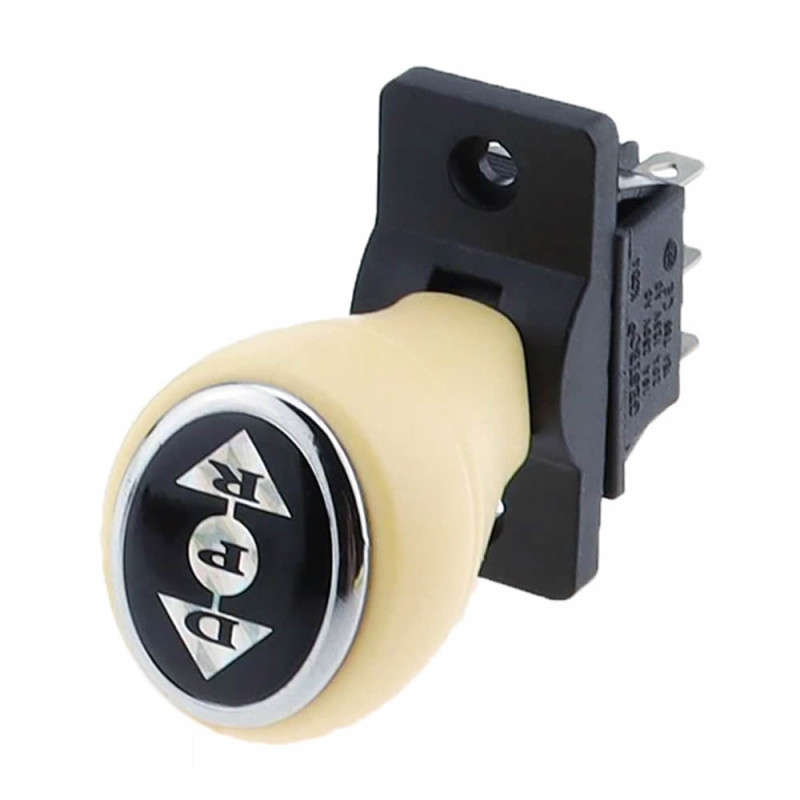

     It has a high switching capacity of 16A 250V. There are 2 switches independent of each other on the product. Forward (D), reverse (R), stop (O) symbols are present on the lever.

     It has a panel type mountable plastic case. It has 2 screw holes. It is widely used in many applications such as battery powered ride on cars, level control, elevators, cranes, motors, machines, robots etc. The forward reverse connection must be made according to the picture in the lower section. S1 and S2 are the terminals coming from the motor driver. The connection to the motor is made from the middle terminals.

Features:

• Joystick Kcd4 Switch Push White
• Operating current: 16A   (20A 125V)
• Operating voltage: 250V
• Number of switches: 2
• Function: On / Off (On / Off)
• Movement type: Push type  Returns to the middle position when the lever is released
• Material: Plastic /  Metal
• Contact resistance: 50mohm and below
• Operating temperature:  -25C  /   +65C
• Color: White
• Life: more than 50000
• Mountable plastic case

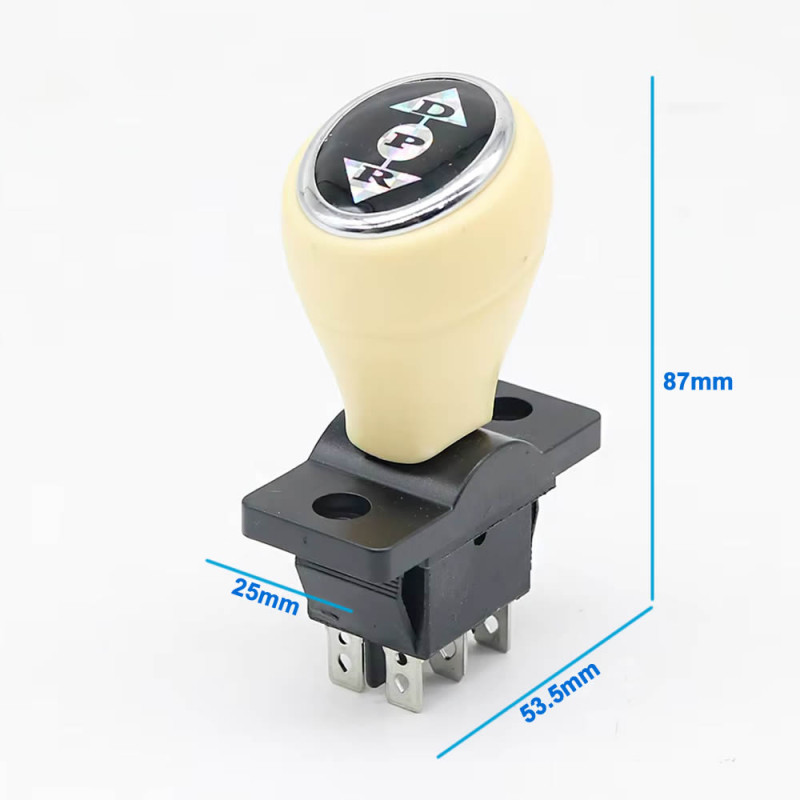

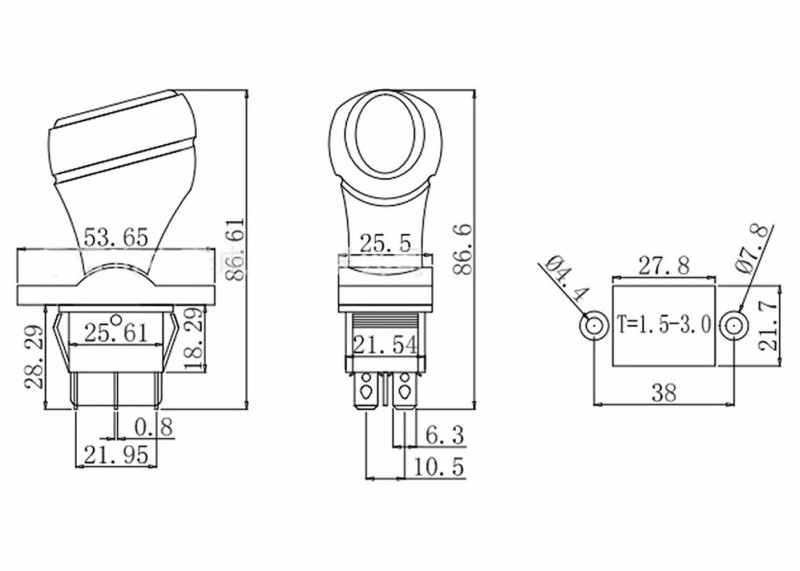

• Dimensions: 25mm x 53.5mm x 87mm
• Weight: 32gr

Package contents:

• 1 Piece  Joystick Kcd4 Switch Push White

.
