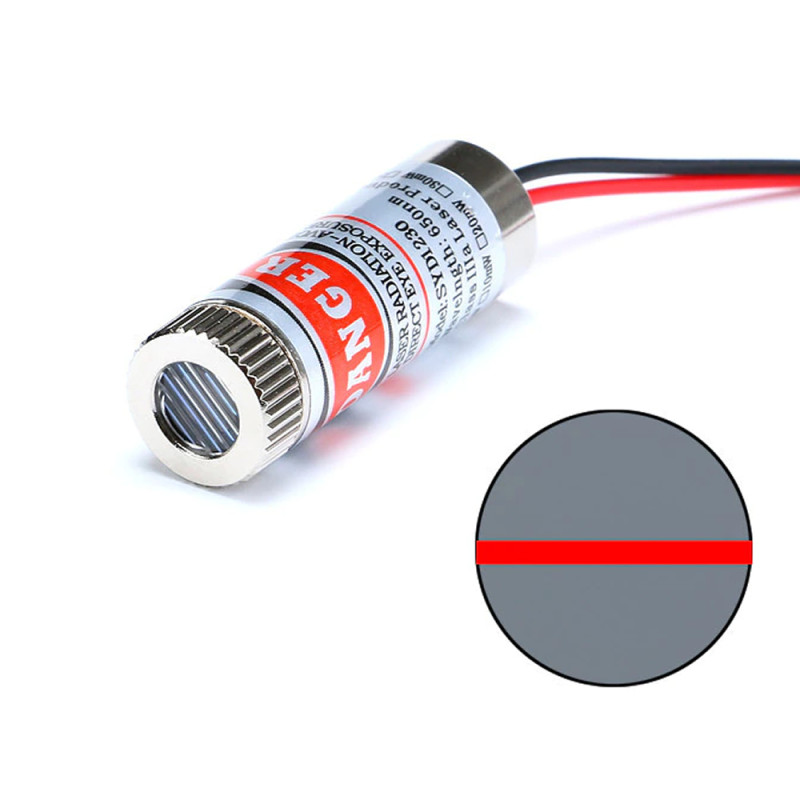

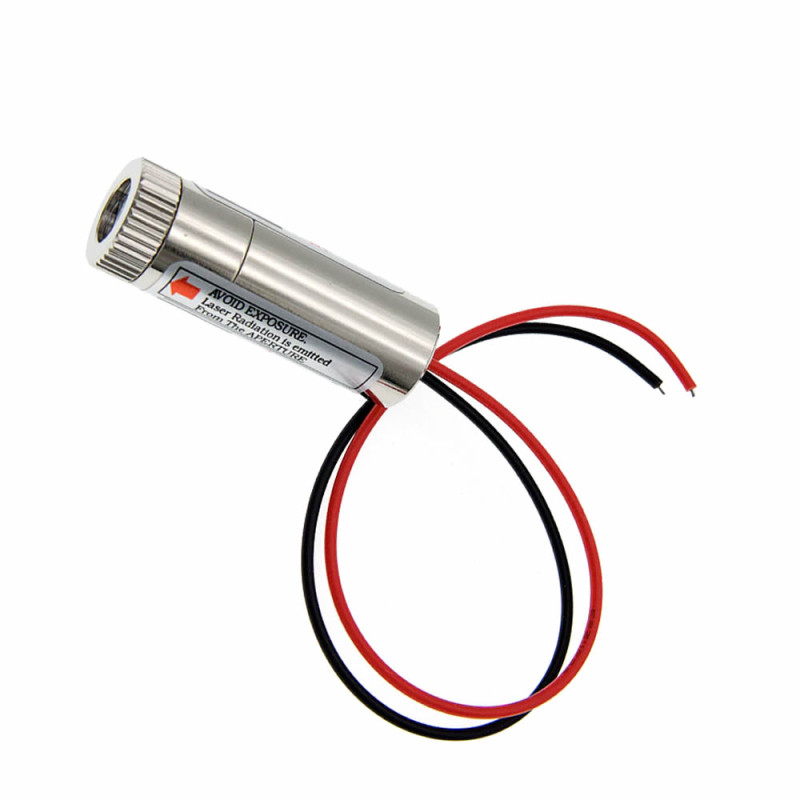

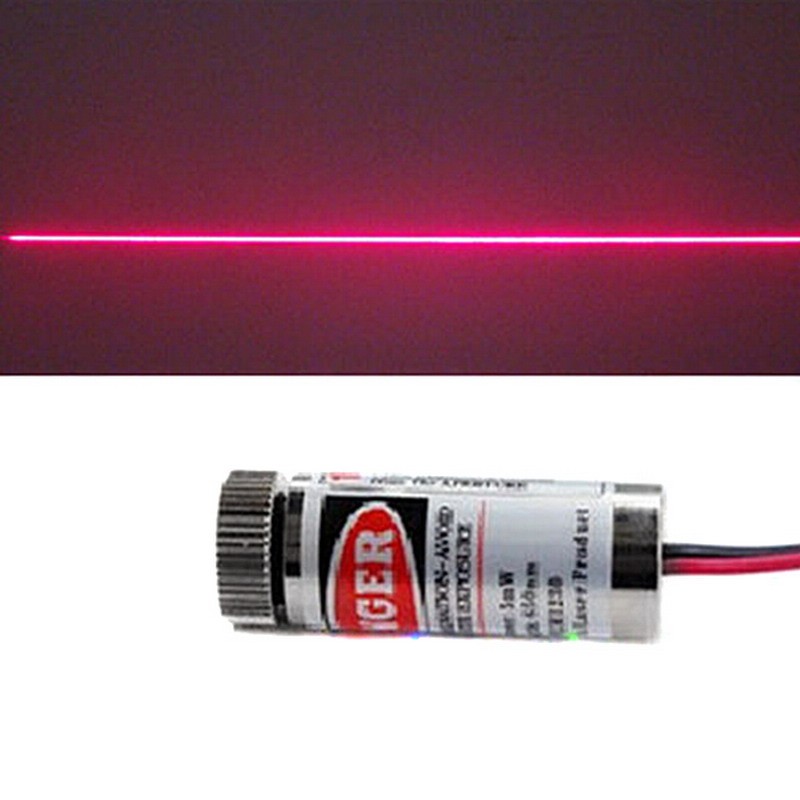

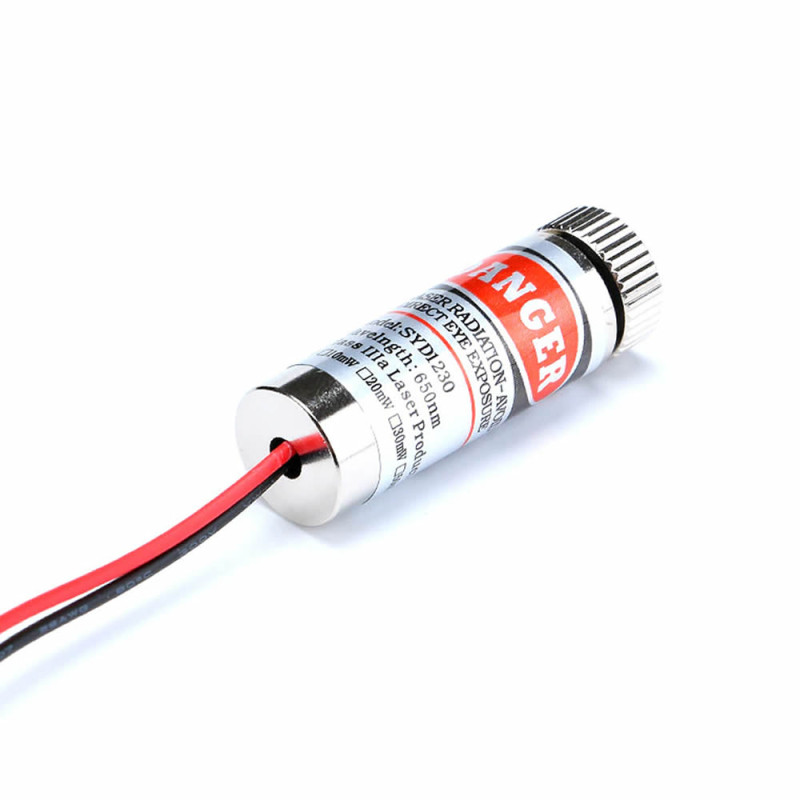

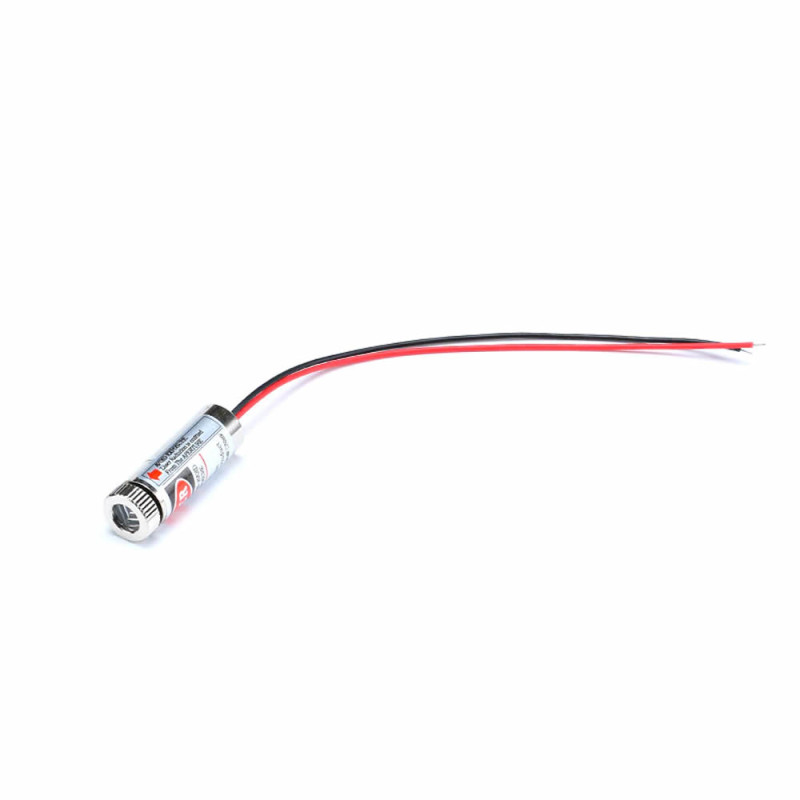

Line Laser Module Red 5mW 650nm

5mW 650nm Red Line Laser Module

Focus Adjustable Lens 12mm Diameter Marking Distance Indicator


     Lasers are led diode materials with directed high light power. It has high brightness. It is a product with 5mw power that can be used for various indication operations. It is easy to use and stable.

Usage:

     The product works with a supply between DC 3-5V. If you apply high voltage, the product will be damaged. By connecting 3 of the 1.2V pen batteries in series, you can connect the + battery end to the red cable. Keeping the lens end clean will increase the light brightness and clarity. The light must not be applied to the human eye.

Features:

• Laser shape: Line
• Operating voltage: DC 3 / 5V
• Operating current: 40mA  Maximum
• Output power: 5mw
• Wavelength: 650nm
• Lens:  Plastic

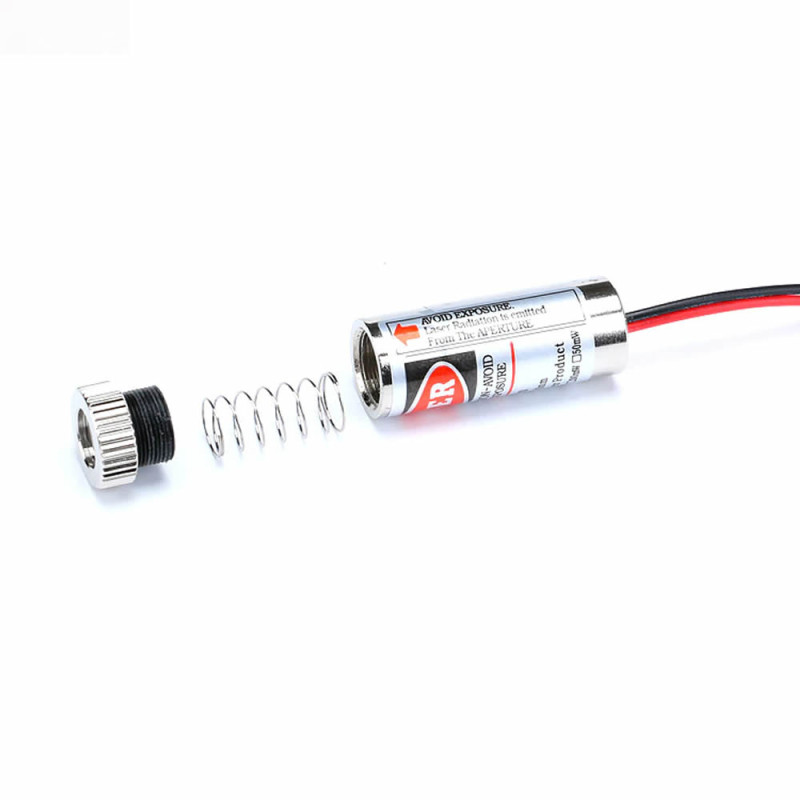

• Focusing: Yes
• Material: Metal
• Life 10000 Hours
• Operating temperature:  -20  /  40C
• Laser color:   Red

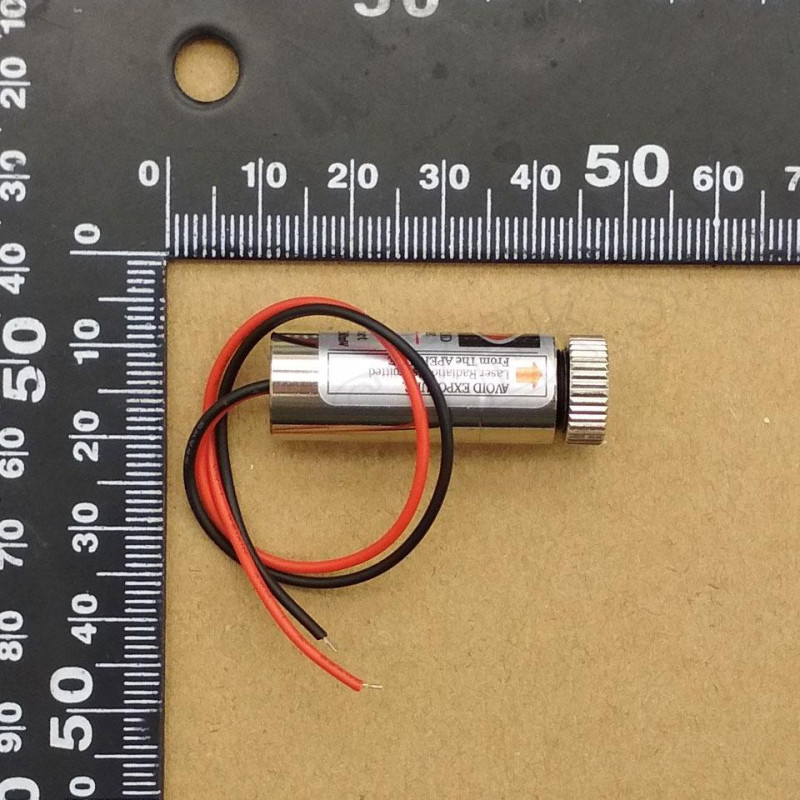

• Diameter:12mm
• Length: 36mm
• Cable Length: 10cm
• Weight: 13.5gr

Package contents:

• 1 Piece 650nm Red Line Laser Module
