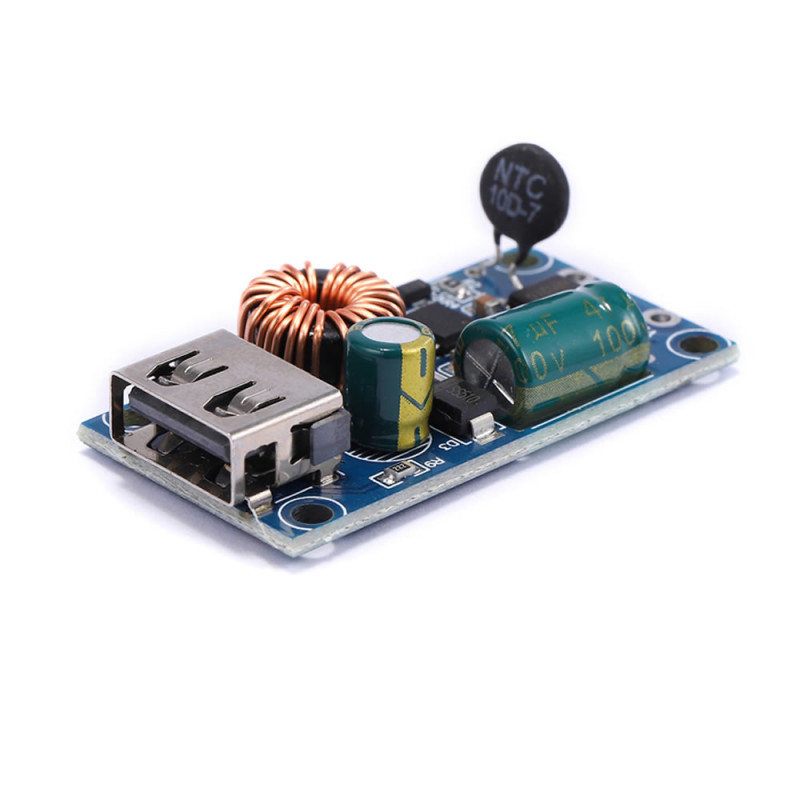

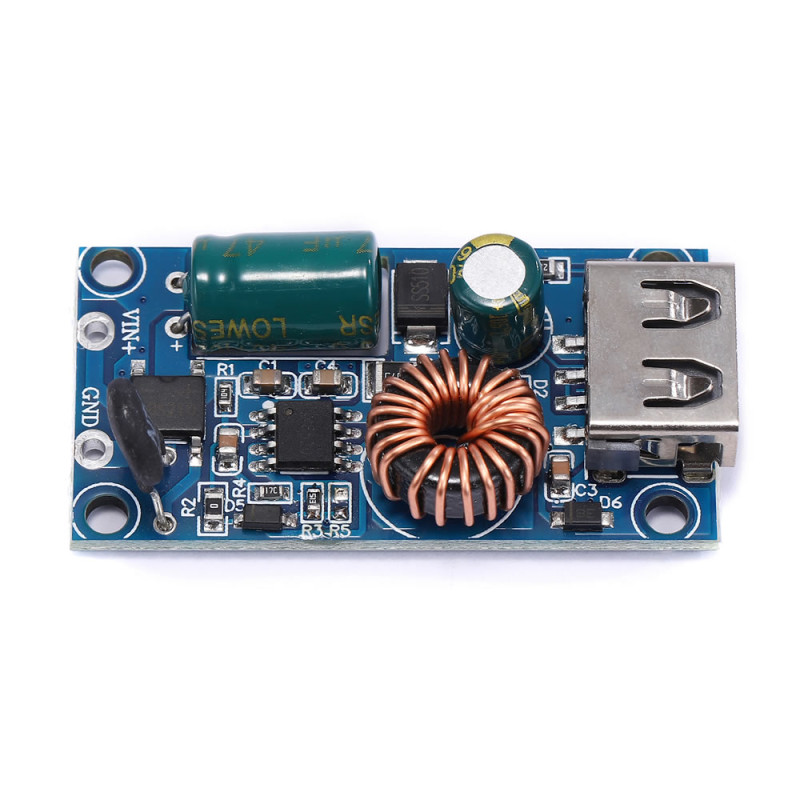

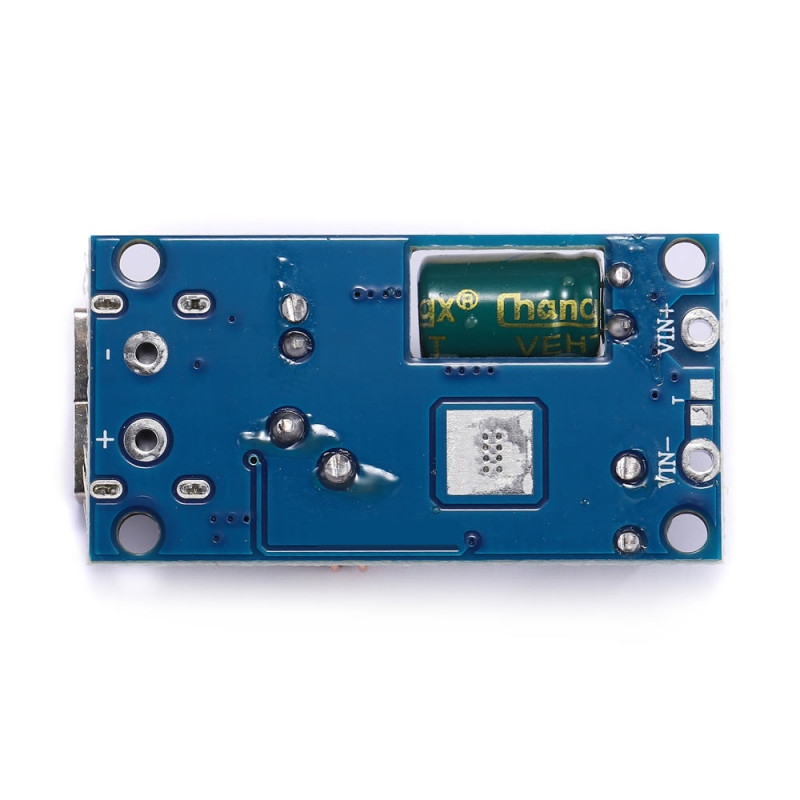

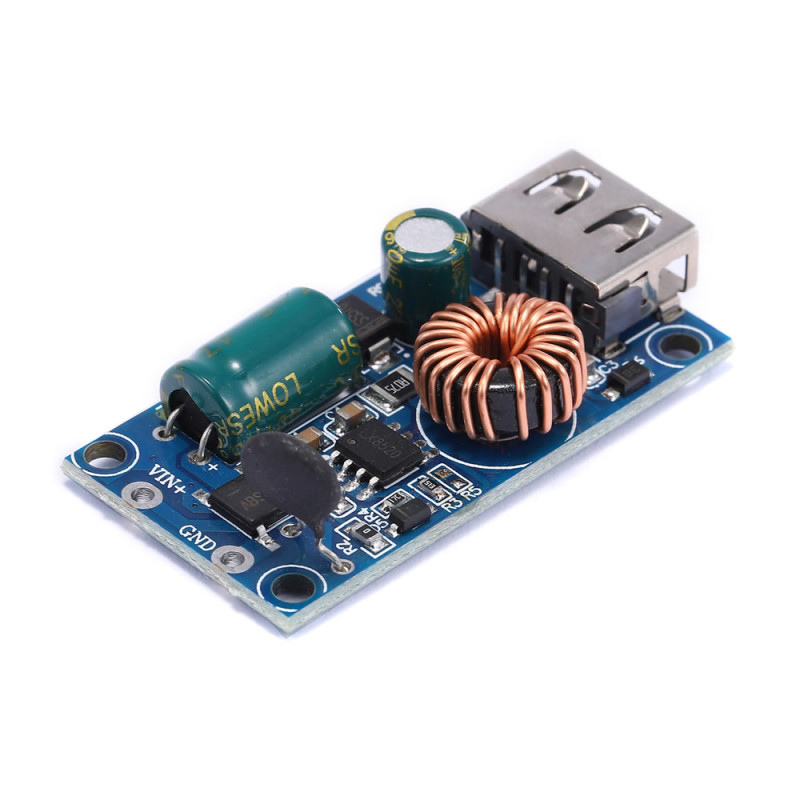

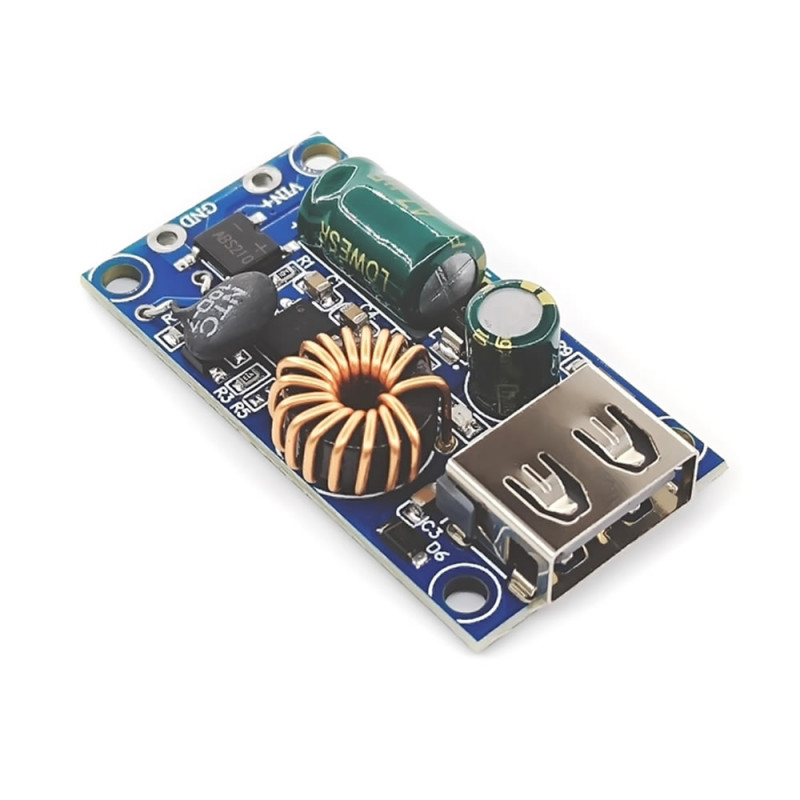

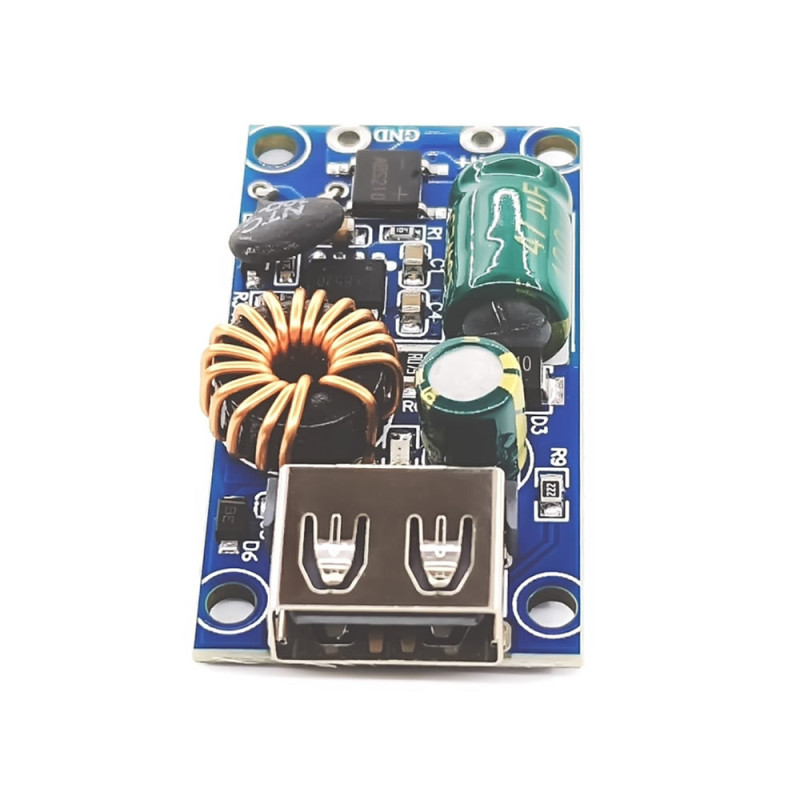

80V to 5V 2A Usb LX8520

80V to 5V 2A Usb Socket Power Supply Steps Down Voltage

Solar Energy Electric Bicycle Car Phone Charge Mobile Power Module High Power High Efficiency Low Noise Step-Down

     The products should be tested without performing the soldering process. Supply power at low voltages with a crocodile clip and measure the 5V output. Afterwards you can perform the soldering process and use it at high voltages. Soldering causes a physical change in the product.

     It can step down dc and ac voltages up to 80V input voltage to the 5V 2A level. There is no isolation between the input and the output. In case the product is damaged, the high input voltage may create danger.

     It has a usb power output socket. It can be used for supplying power to devices powered from a usb port. It does not support fast charging. It supports normal charging. It is suitable for use in applications requiring high voltage input. It supports ac voltages. It is suitable for use in applications having noisy power supply


Features:

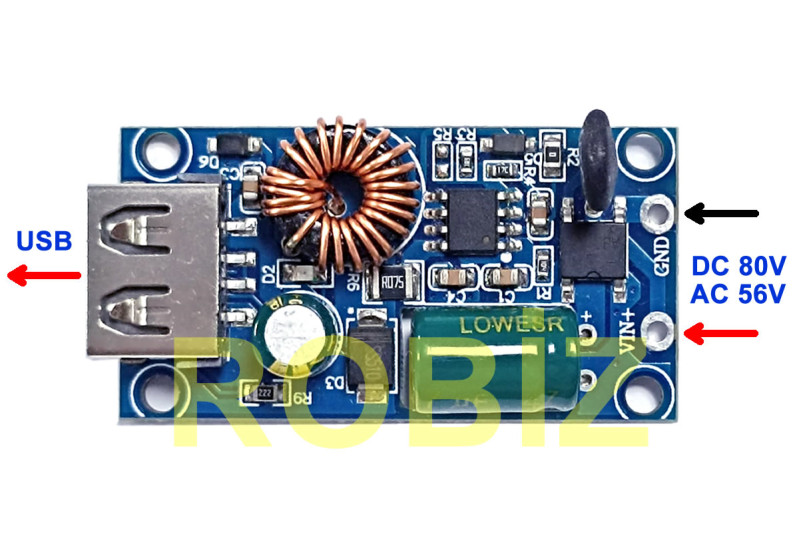

•     High input voltage: DC 9V - 80V  / AC 56V  ( DC 70V should not be exceeded. Instantaneous 86V Peak )
•     Output voltage:  DC 5V
•     Usb output socket
•     Output current:  2A
•     Output power:  10W
•     Power indicator led.
•     Low power consumption.
•     Input temperature protection
•     High current protection
•     High temperature protection
•     Short circuit protection
•     Operating temperature:  -40C  /  85C
•     4 mounting holes

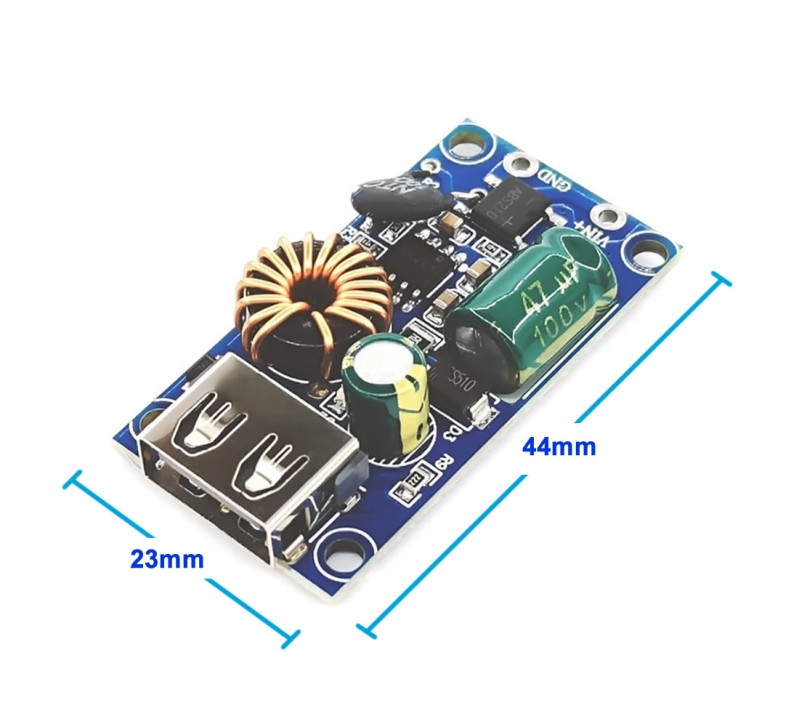

•     Dimensions: 23mm x 44mm
•     Weight:  9gr

Package Contents:

•      1 Piece 80V to 5V 2A Usb LX8520

.
