MCP4725 I2C DAC Module

MCP4725 I2C Digital to Analog Converter DAC Module

IIC Communication 12 Bit Resolution Sound Music Analog Signal Generator

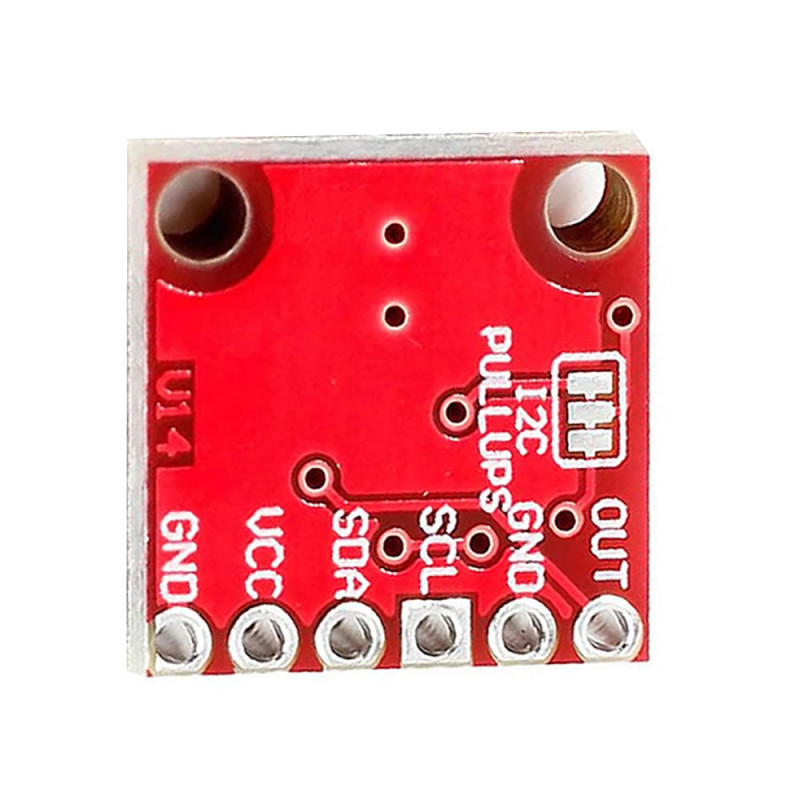

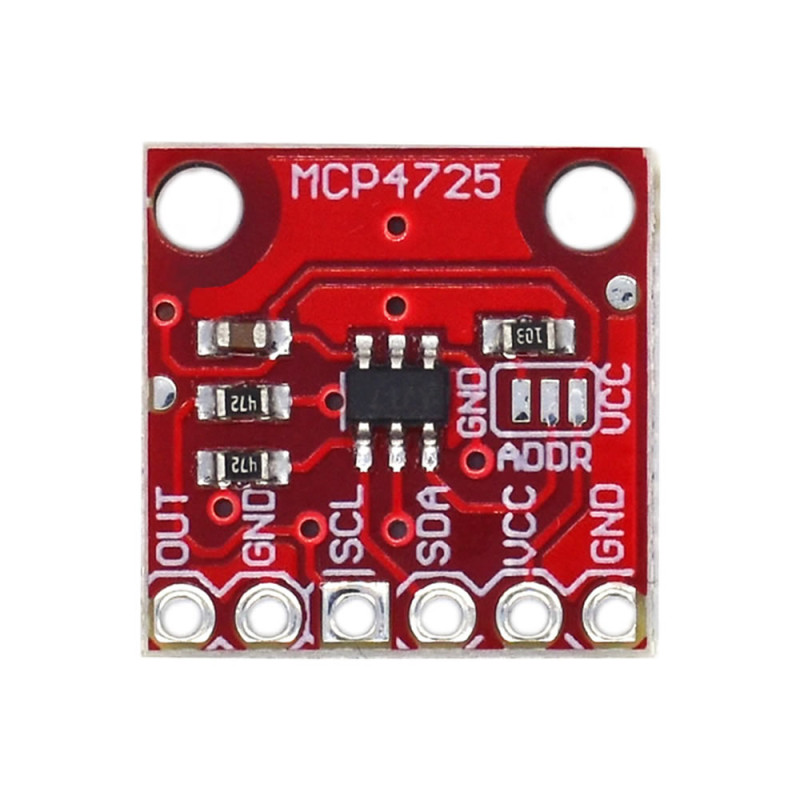

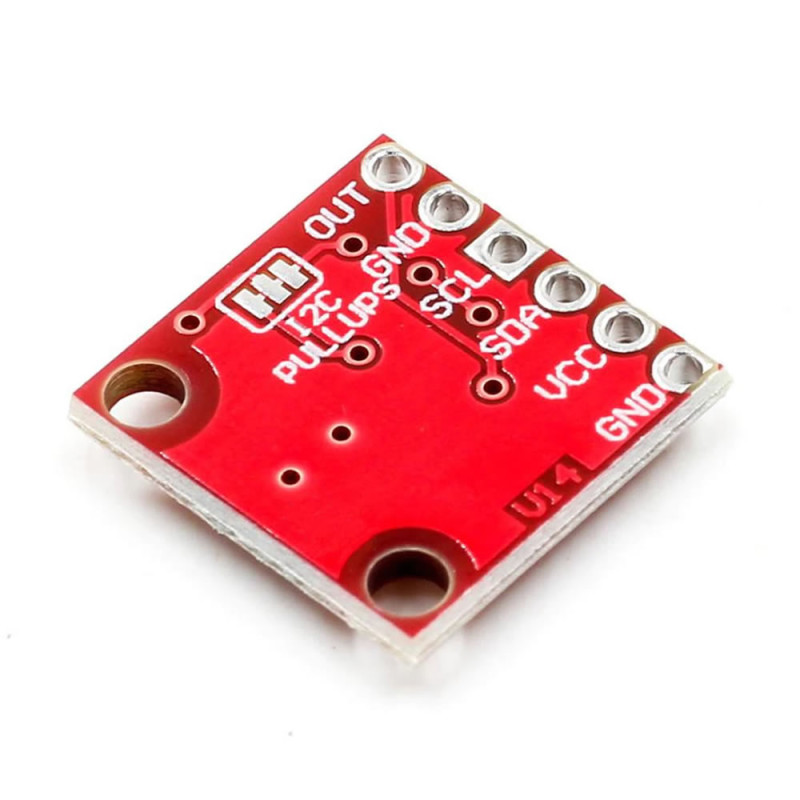

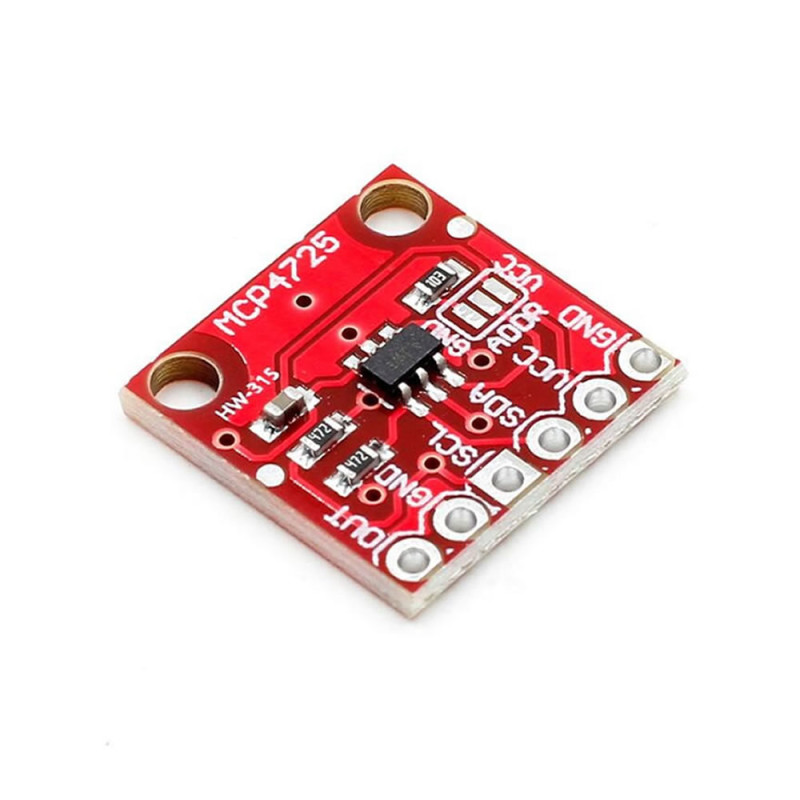

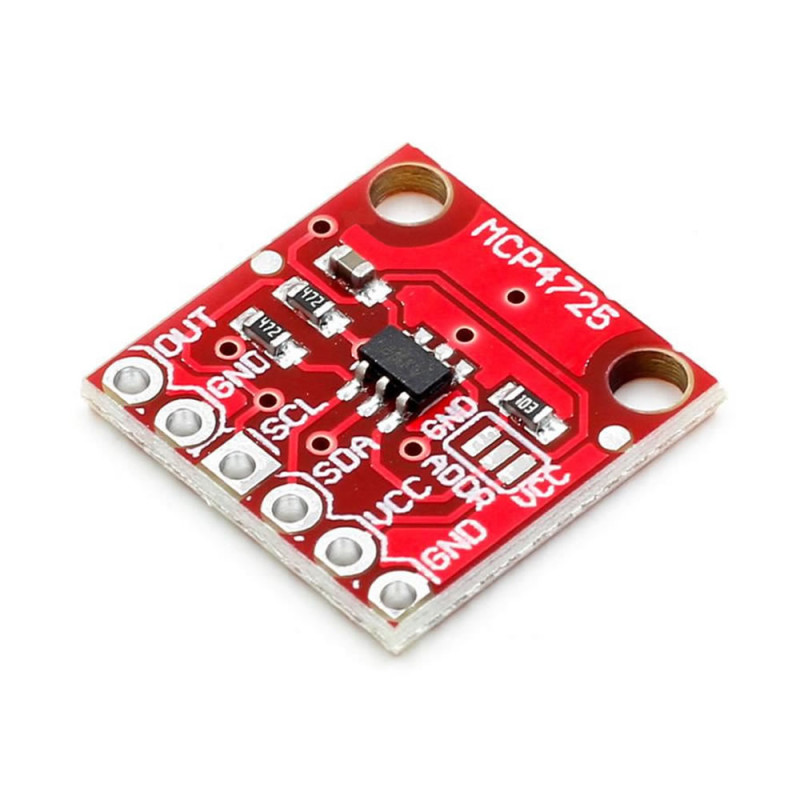

     MCP4725 is a module that generates analog signals by communicating with a microcontroller. It is an I2C controlled digital to analog converter. It generates analog signals such as sine waves according to the commands coming over the I2C interface on the microcontroller. Digital to analog converters are perfect for sound generation, music, instruments and many other creative projects. All pins of the integrated circuit are connected to the empty pin header socket at the edge of the board.

• MCP4725 Integrated circuit
• Working voltage:  DC 2.7V / 5.5V
• Communication:  I2C
• Resolution:  12 bit
• Eeprom memory for settings
• Color: Red
• Working temperature:  -20C  / 85C
• 2 Pcs mounting hole
• 6 pin male header connection socket

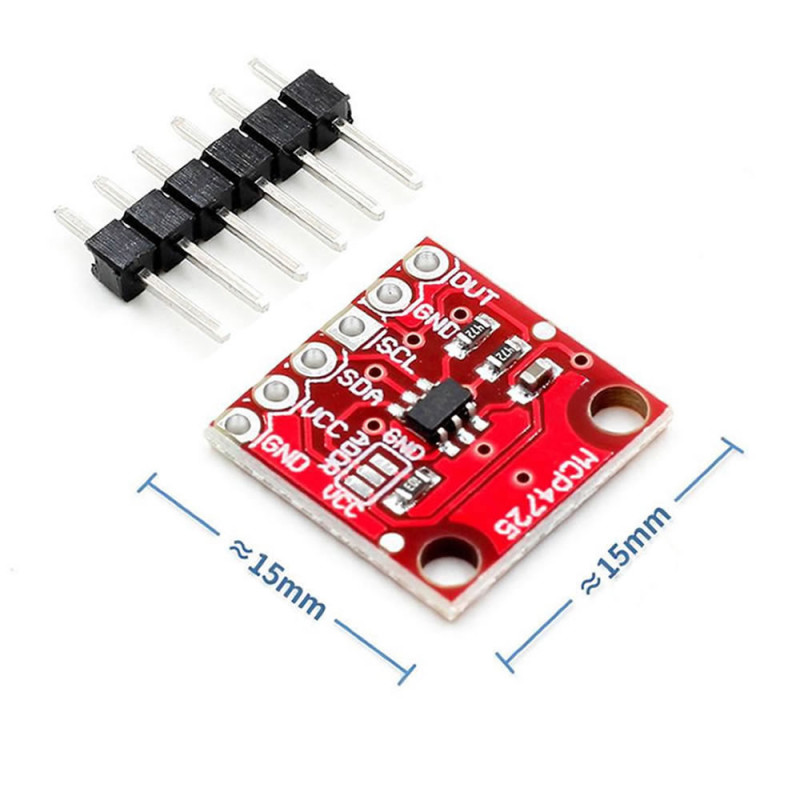

• Dimensions:  15mm x 15mm
• Weight:  1.5gr

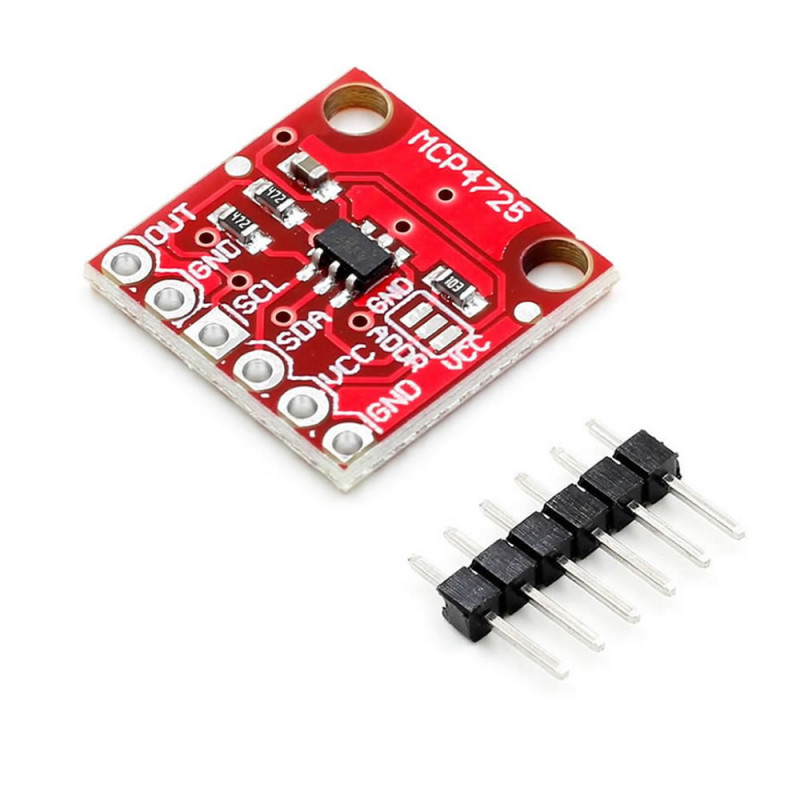

Package Contents:

•     1 Pcs MCP4725 DAC Module
•     1 Pcs 6 Pin male header socket

.
