Arduino Mega 2560 Terminal Adapter

Arduino MEGA 2560 Terminal Adapter Shield

3.5mm Terminal Block Expansion Board Prototyping Easy Connection

     It is an Arduino board containing an ATmega 2560 microcontroller. It is the most preferred Arduino board after the Arduino Uno. It has many more input output pins compared to the Uno R3. It is appropriate to use the mega2560 board in projects that need more io.

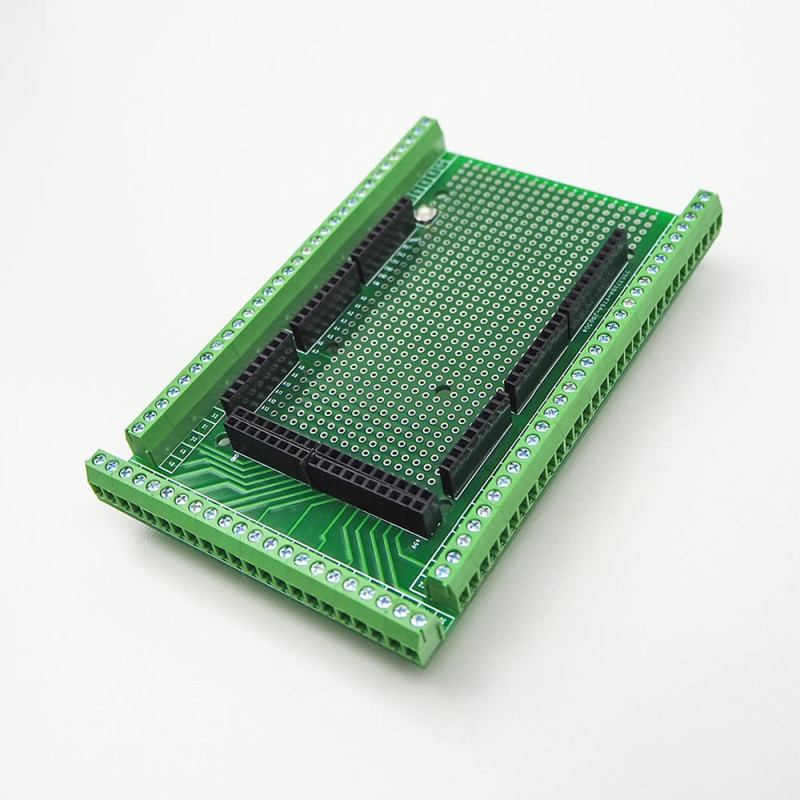

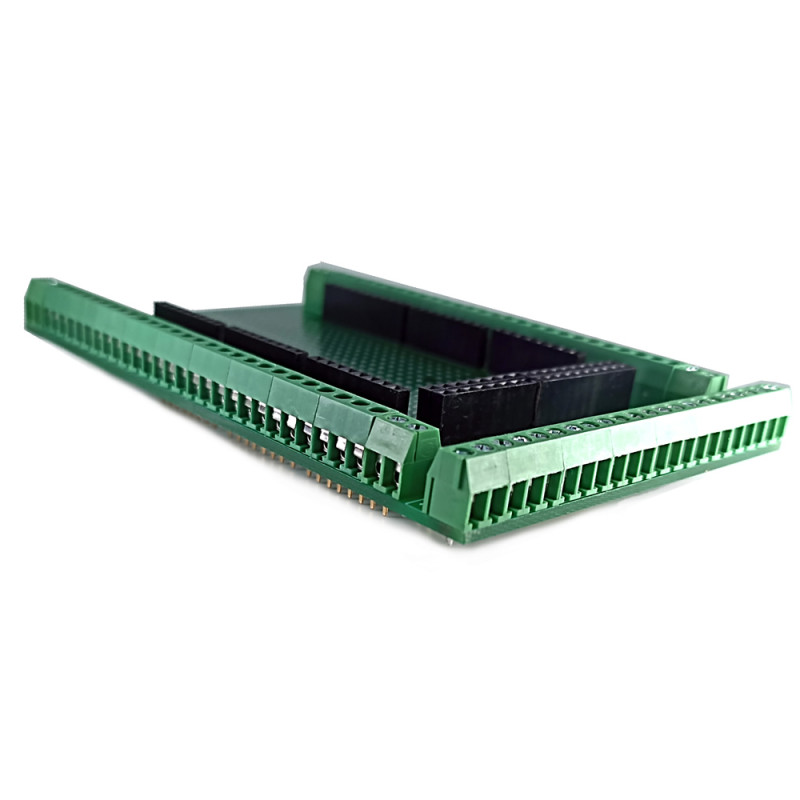

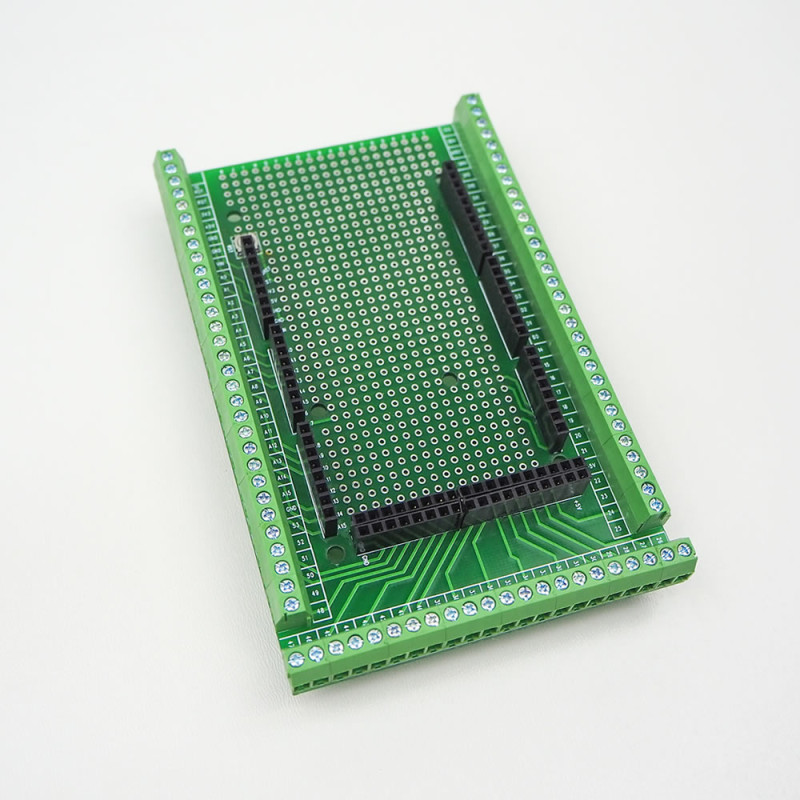

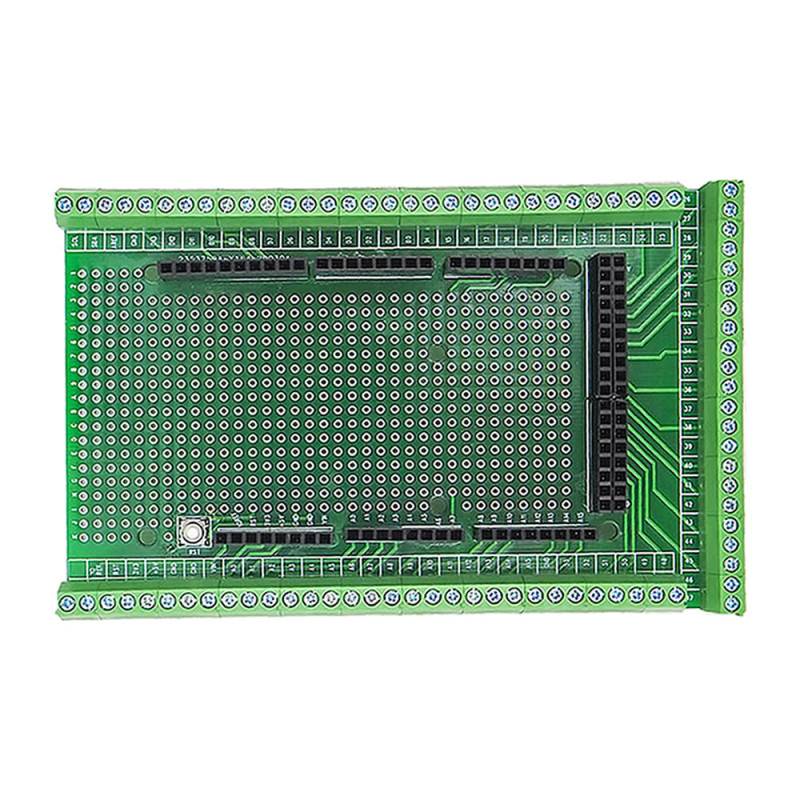

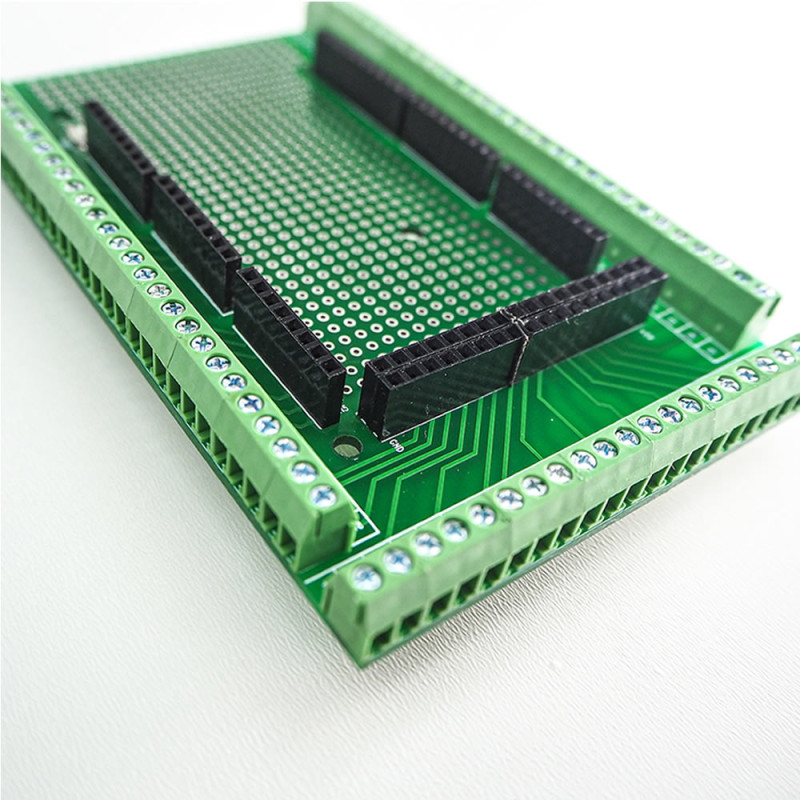

     This board is an expansion and prototyping board for the Arduino Mega.  It can be used with shields designed for the Arduino Mega. With the terminal blocks on its 3 edges, it allows an easy and solderless connection to be made to the arduino pins. It can be used by soldering various circuits to the prototype pads on the board. It allows you to easily carry out prototype test applications.

Features

• Arduino Mega 2560 Compatible expansion board
• Female headers on top of the board where the mega 2560 can be attached

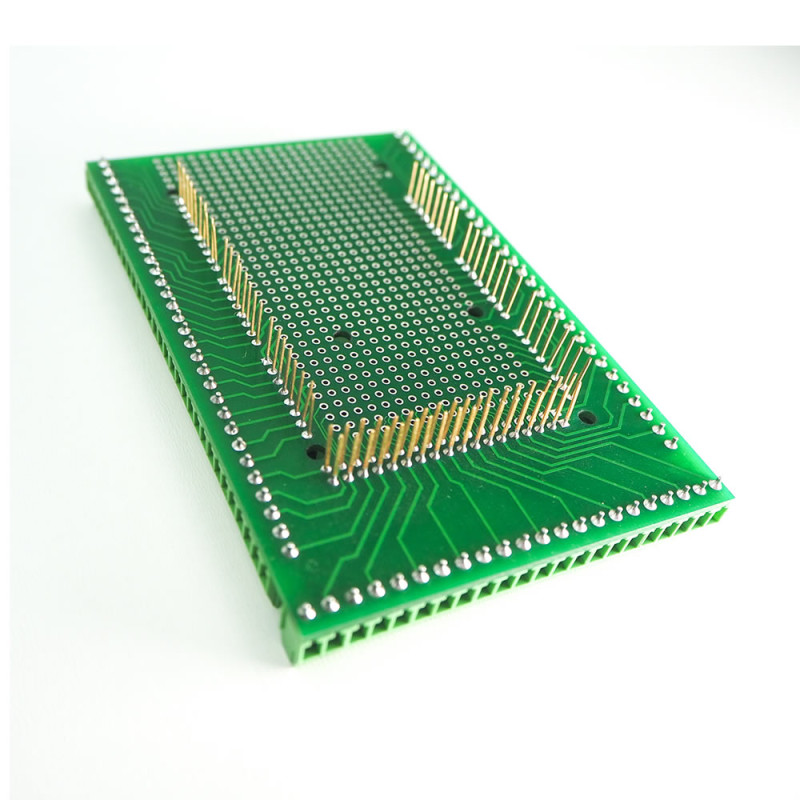

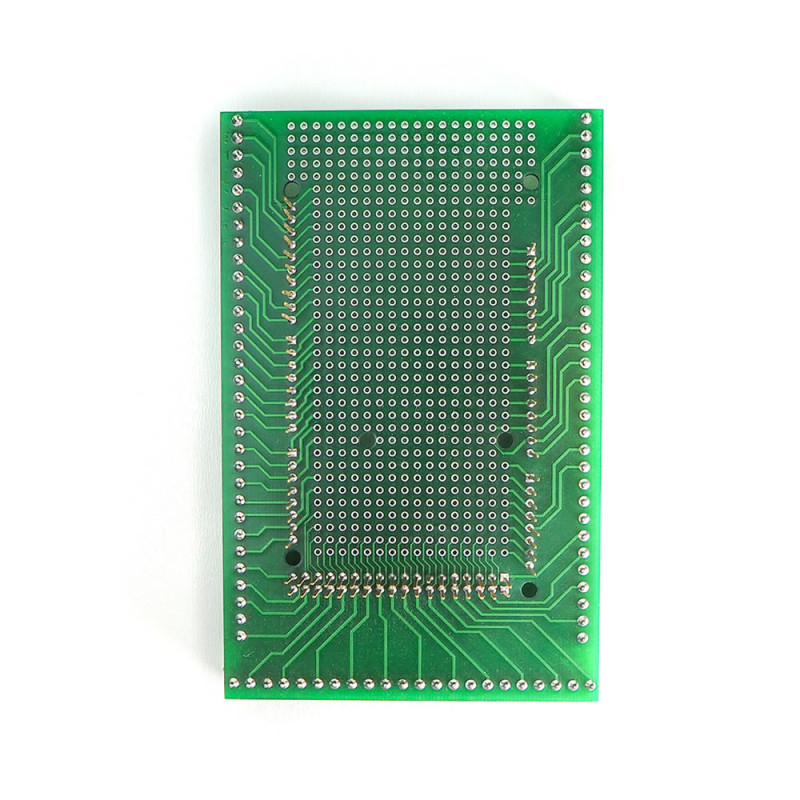

• Male header sockets under the board for additional board connection.
• It can be used together with Mega 2560 compatible shields.
• 1 Pcs reset button
• 84 Pcs terminal block connection.
• Terminal block type: 3.5mm screw
• Cables between 26-16 awg can be used in the terminal blocks 1..2mm
• 579 Pcs connection pad.
• Distance between 2 pads: 2.54mm
• Hole diameter: 0.8mm
• 6 Pcs mounting hole
• Quality FR4 pcb

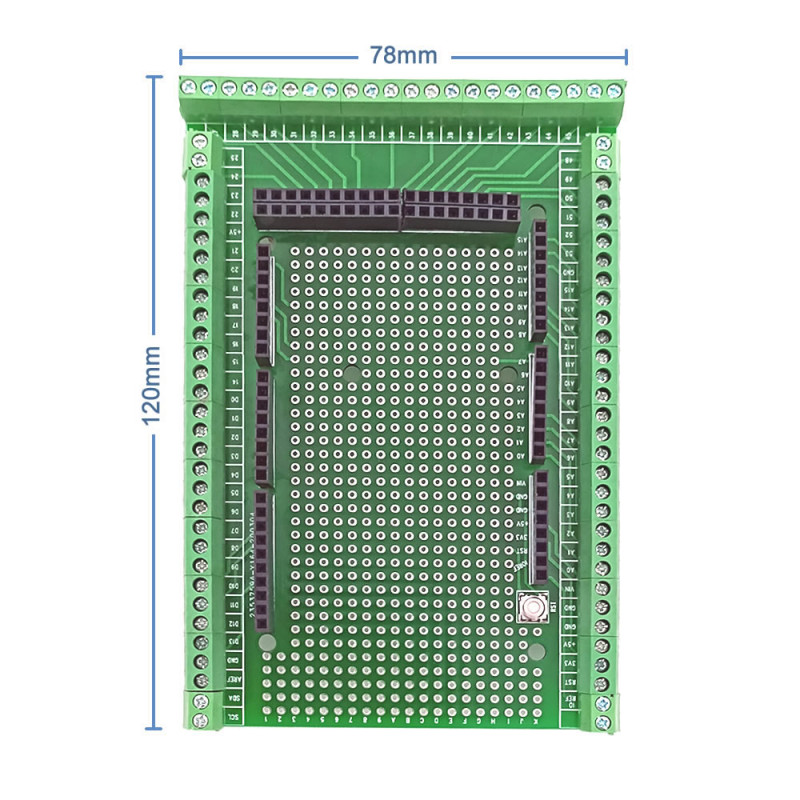

• Dimensions: 120mm x 78mm
• Weight: 75gr

Package contents :

•   1 Pcs Arduino MEGA 2560 Terminal Shield
