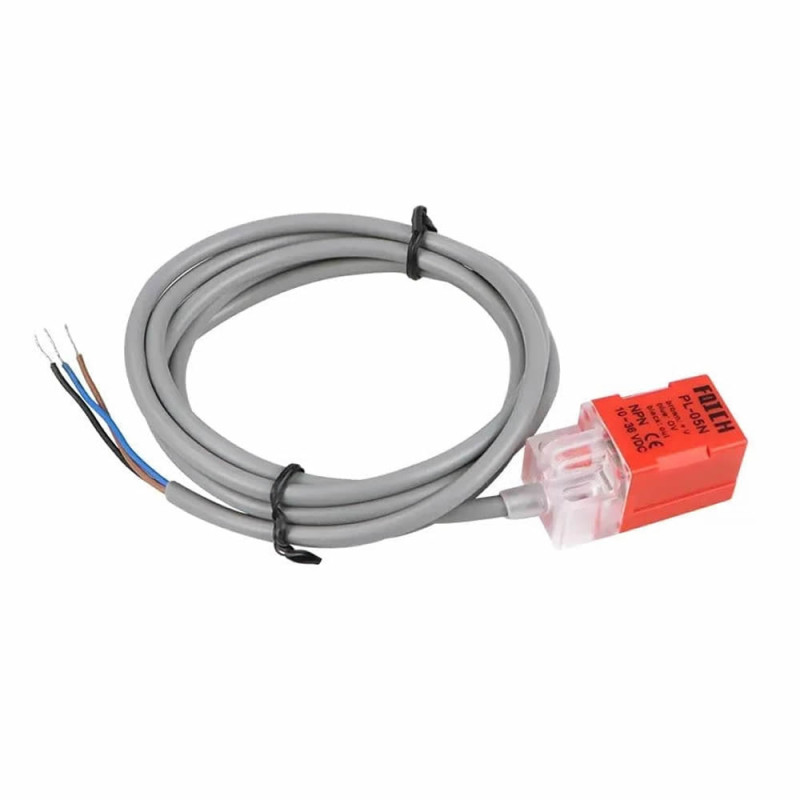

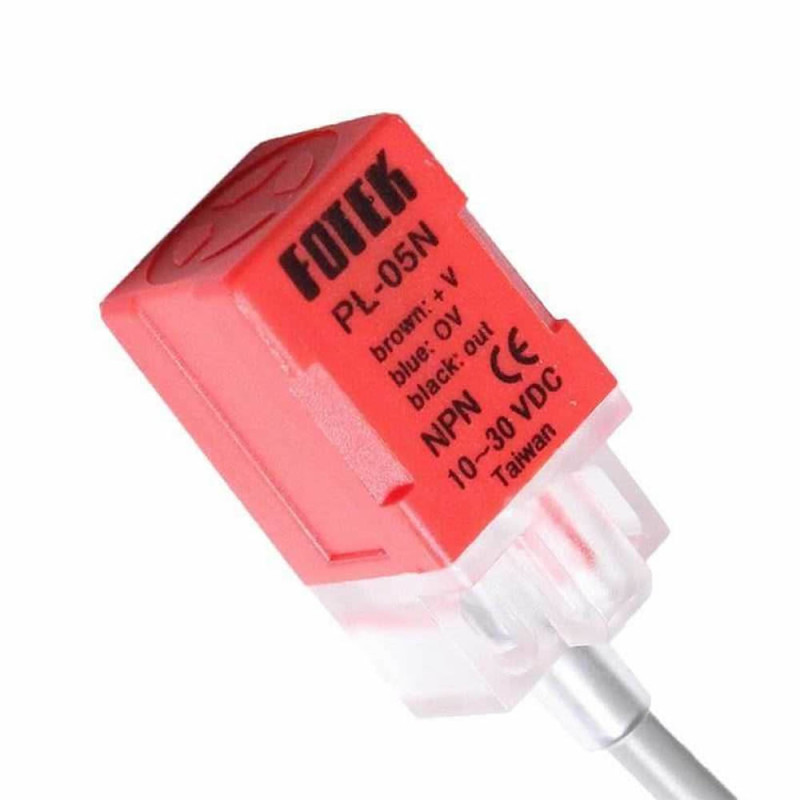

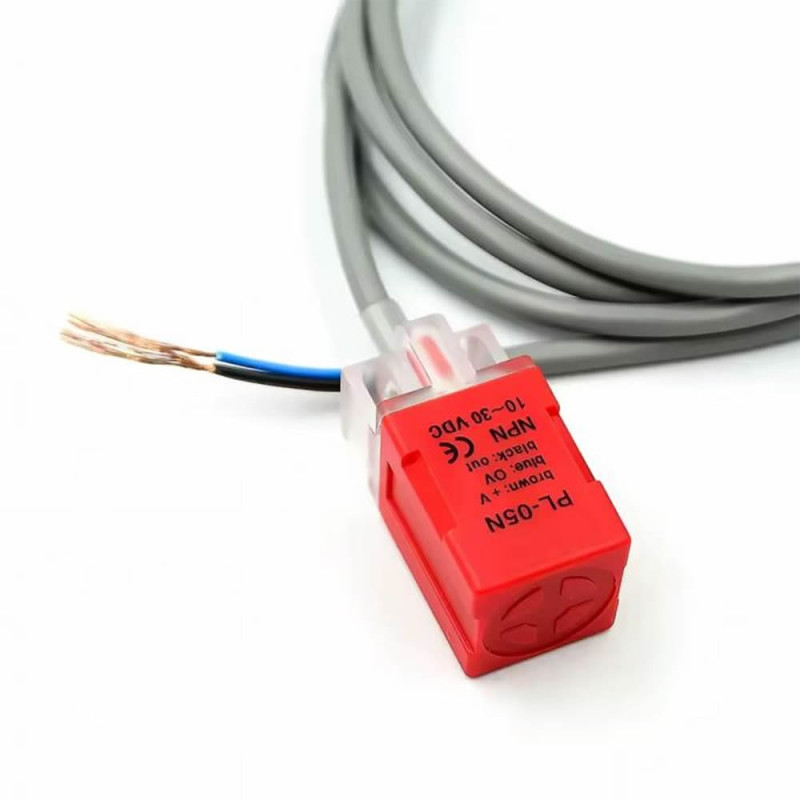

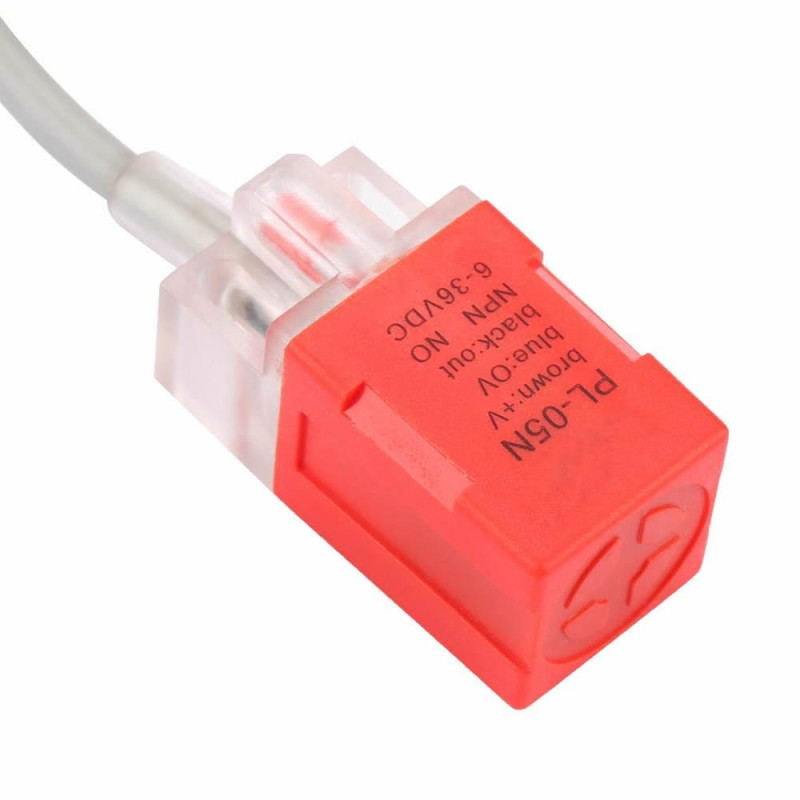

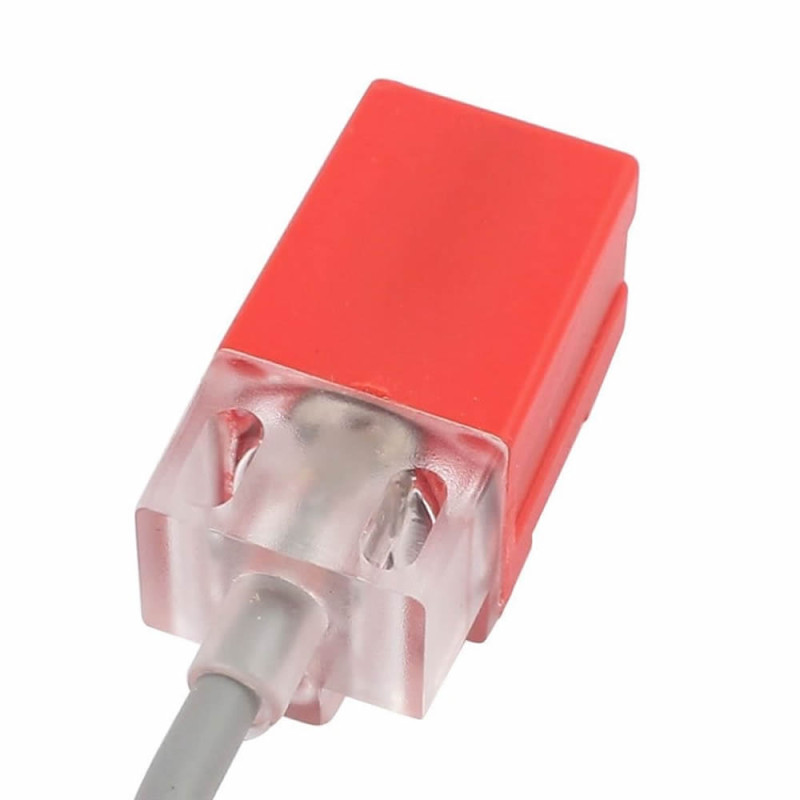

Pl-05n Inductive Metal Detection Sensor

PL-05N Inductive 5mm Metal Detection Sensor NPN NO

Contactless Proximity Switch DC 10V / 30V CNC 3D Printer Automation Industrial Control Part Counter Frequency Counter IP67

     It is an industrial type sensor that can be used to detect metal objects without contact from a distance of 5mm. It operates with DC 10-30V voltage. The detection indicator led easily shows the sensor operation. It is used in industry as an automatic control detection switch.

     When the metal part comes within 5mm distance, the control signal changes state. It can be used in applications such as part counting, frequency counter, liquid level control. It is manufactured to be unaffected by water, dust, oil and vibration.

Features:

•   Model: Pl-05n
•   Type: Inductive sensor
•   Detected object: Metal
•   Detection distance: 5mm  -+10%
•   Operating voltage: DC 10V / 30V
•   Output current: 150mA
•   Output: NPN NO
•   Large red detection indicator led.
•   Protection type:  IP67
•   Insulation resistance >50Mohm
•   Material: Plastic / Metal
•   Color:  Blue
•   Operating temperature:   -30C  /  +65C
•   Cable length:  100cm

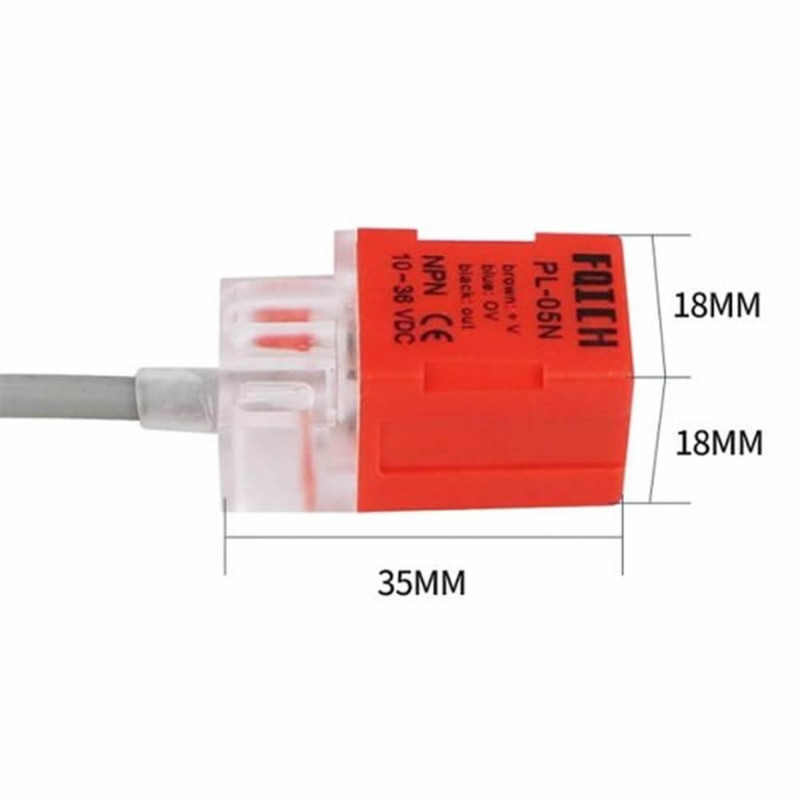

•   Dimensions: 18mm x 18mm x 35mm
•   Weight: 40gr

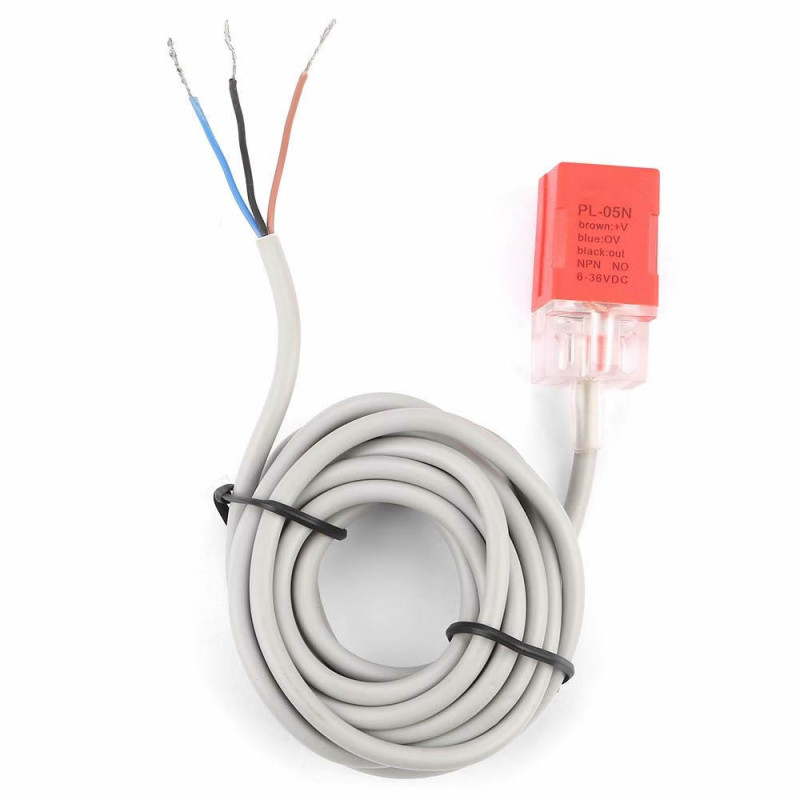

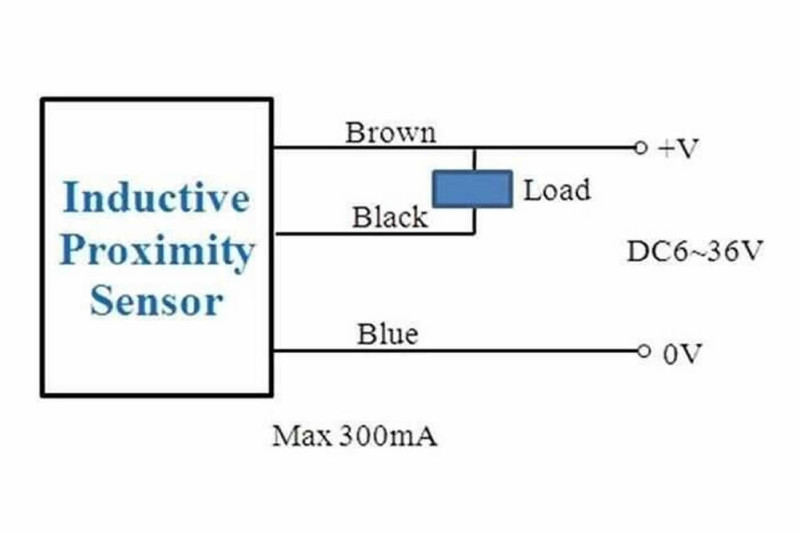

Cable Connections:

•    Brown: Supply + ( DC 10V-30V )
•    Blue: GND  0V
•    Black: Data Output

Package contents:

•   1 Piece Pl-05n Inductive Metal Detection Sensor
•   2 Pieces screws and nuts

.
