Arduino Proto Shield V5

Arduino Proto Shield V5 Syb170 Mini Breadboard

Uno R3 Base Board Prototype Expansion Board 2 Led Soldering Area Reset Button Electronic Circuit Experiment DIY Kit

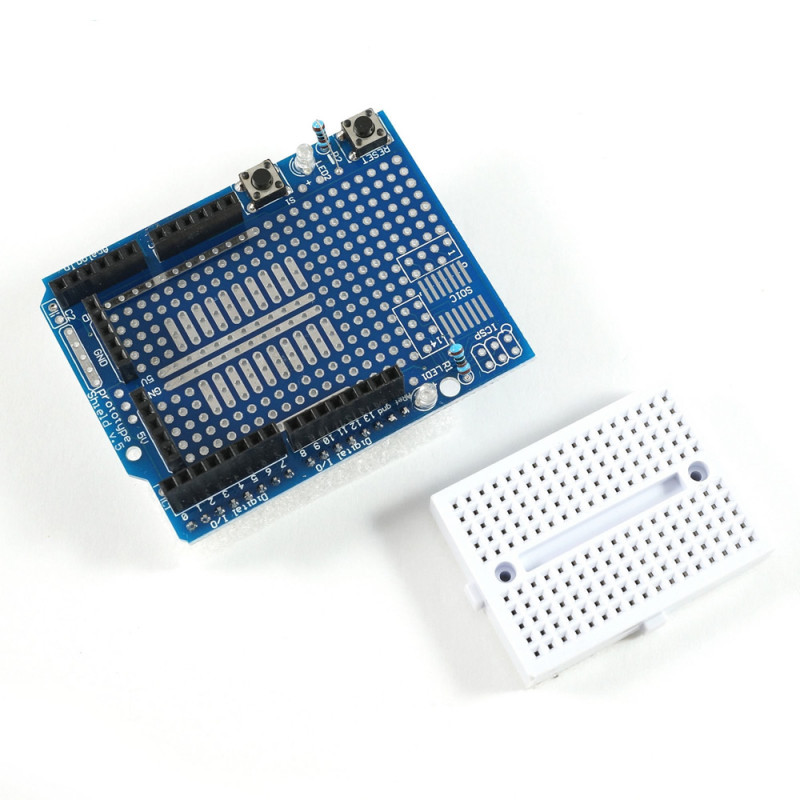

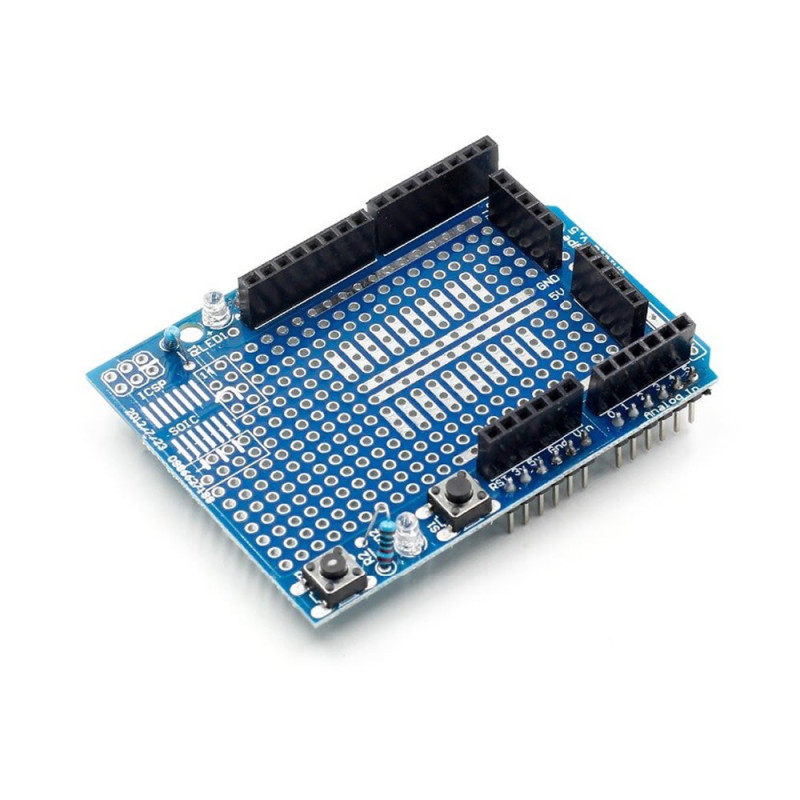

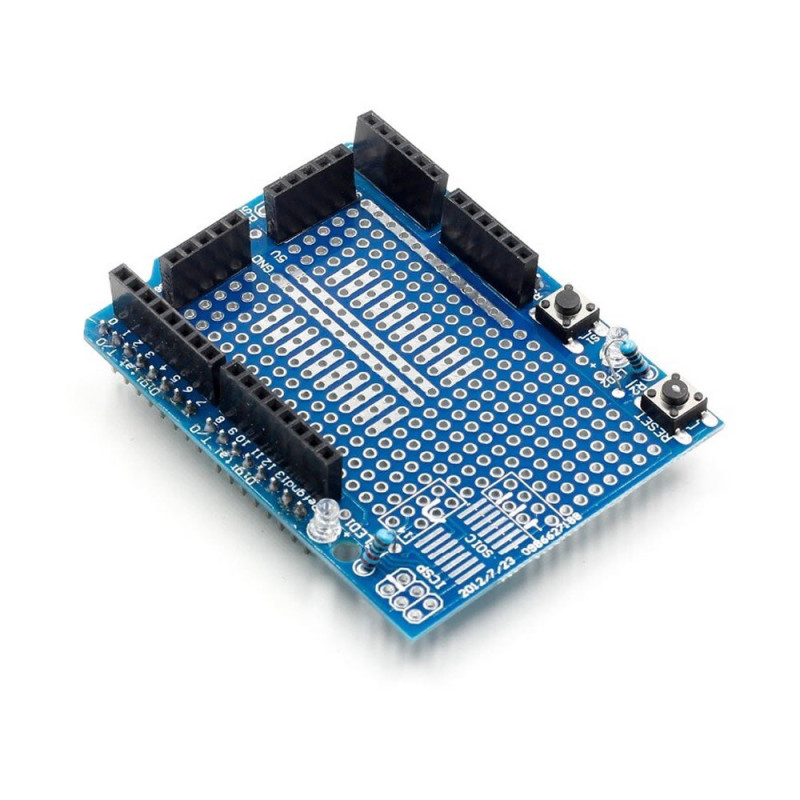

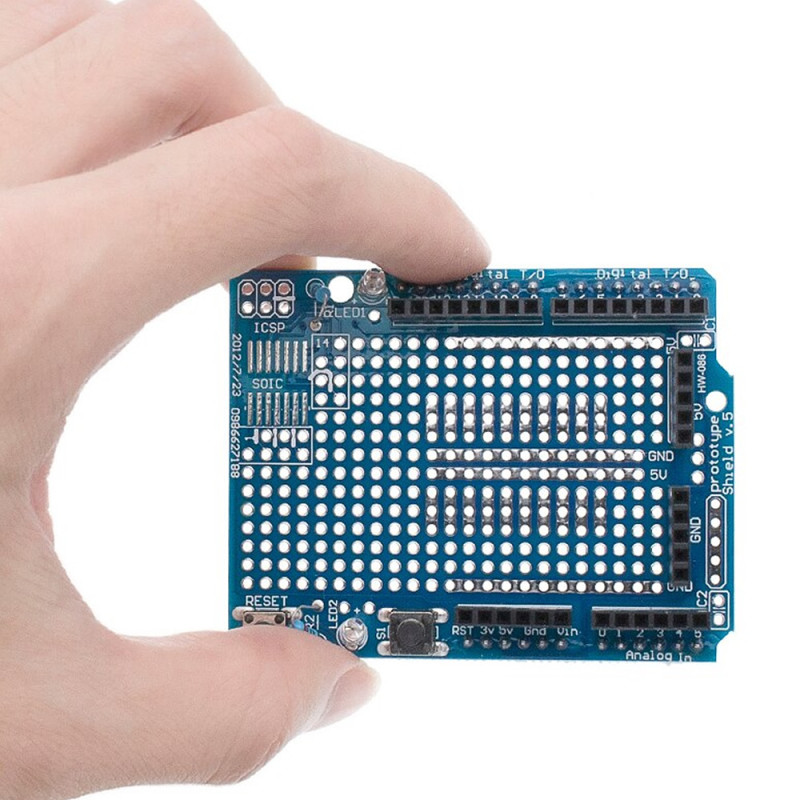

     It is a prototyping board for Arduino Uno boards ( V5 ). It allows you to move your Arduino projects off the breadboard into a proper circuit and to use the circuits you have designed specially together with Arduino.

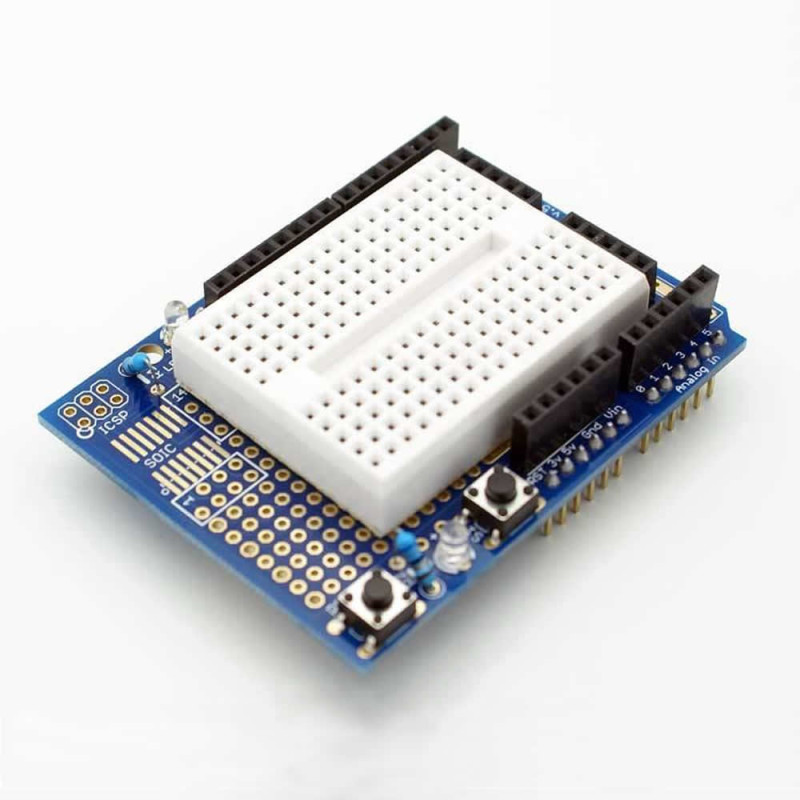

    You can also use the proto shield without soldering. With the mini breadboard placed in the middle section, you can do prototyping and testing quickly without dealing with soldering work. The proto shield carries all Arduino pins to an upper level, allowing you to use them easily. In addition, there is space on the proto shield for surface mount (SMD) components. This allows you to use this type of component as well. In the middle section there are 3-way pads where DIP integrated circuits can be soldered.

    Arduino Uno Proto Shield; has the Uno R3 pin layout, and there is also a reset button on the board. All headers and connectors are shipped soldered.

Features:

•     Arduino Uno R3 compatible base board
•     Syb170 mini breadboard
•     Arduino female pin header sockets
•     Reset button
•     1 pcs user button
•     2 pcs 3mm user led
•     2 pcs 5 pin female header sockets for 5V and GND connections
•     Soldering area for SOIC integrated circuits
•     Area in the middle of the board where dip integrated circuits can be soldered.
•     Long solderable line for 5v and gnd in the middle of the board.
•     ICSP empty connection header
•     The breadboard can be used by sticking it onto the shield.

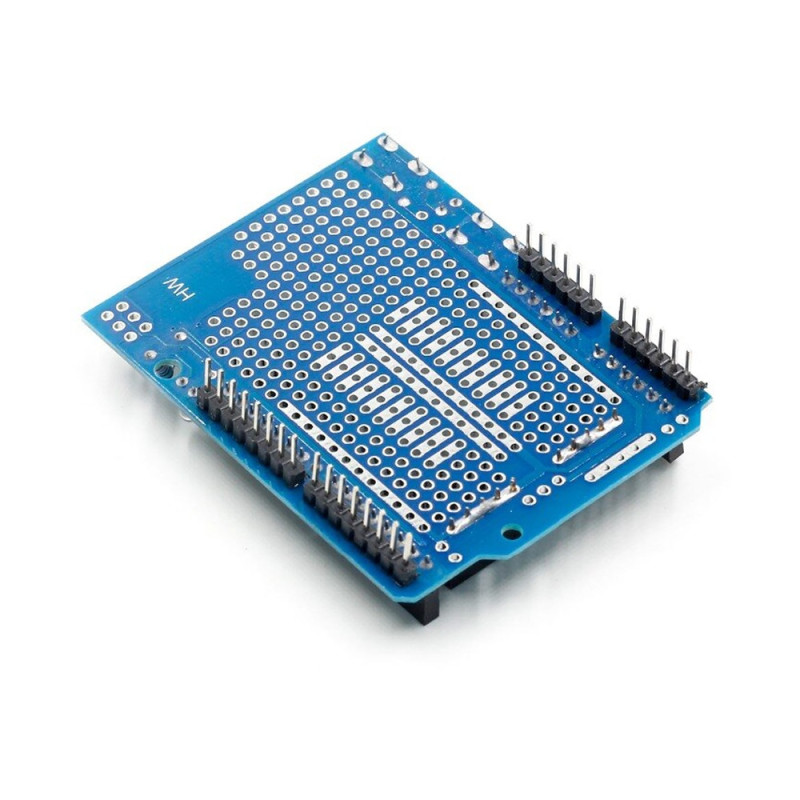

•     High quality 2 layer pcb
•     Operating temperature: -10C  /  80C
•     Color.  Blue / White

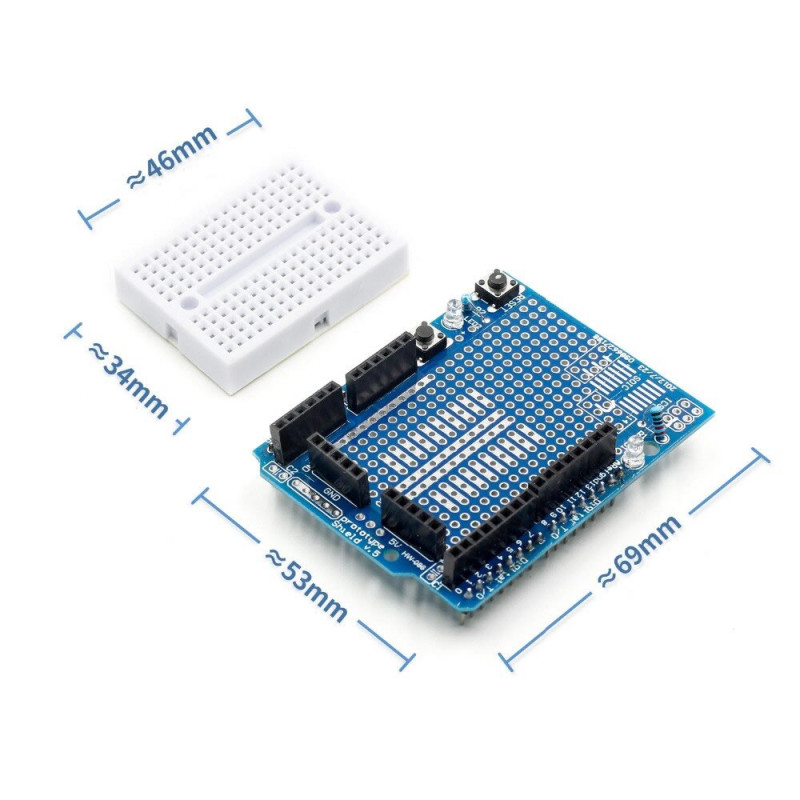

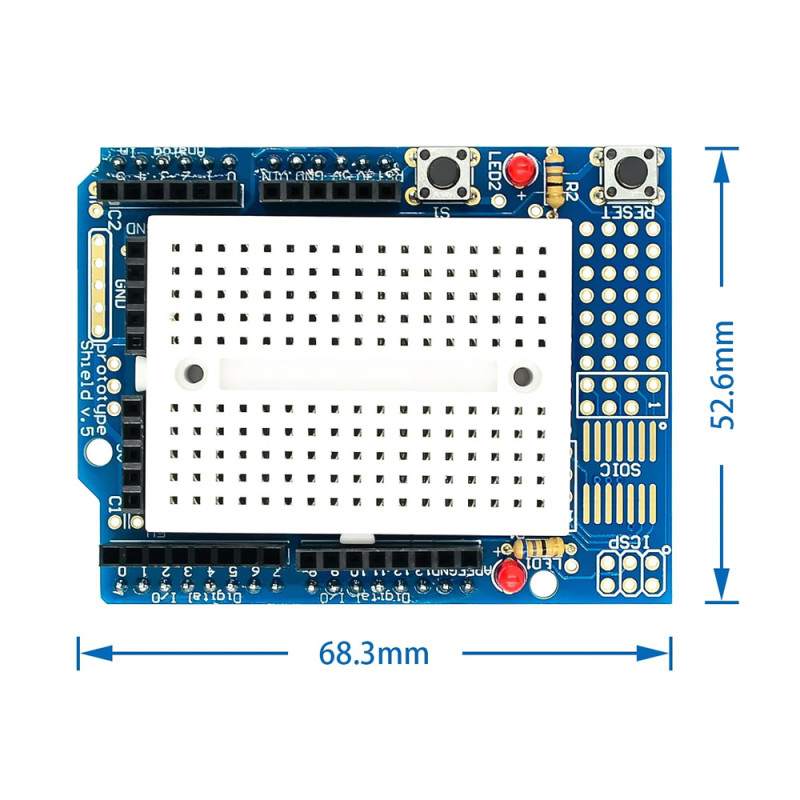

•     Shield dimensions:7cm x 5.5cm x 2cm
•     Breadboard dimensions: 4.4 x 3.4 x 1cm
•     Weight: 35gr

Package Contents :

•     1 pcs Arduino uno prototype shield
•     1 pcs Syb-170 mini white breadboard
