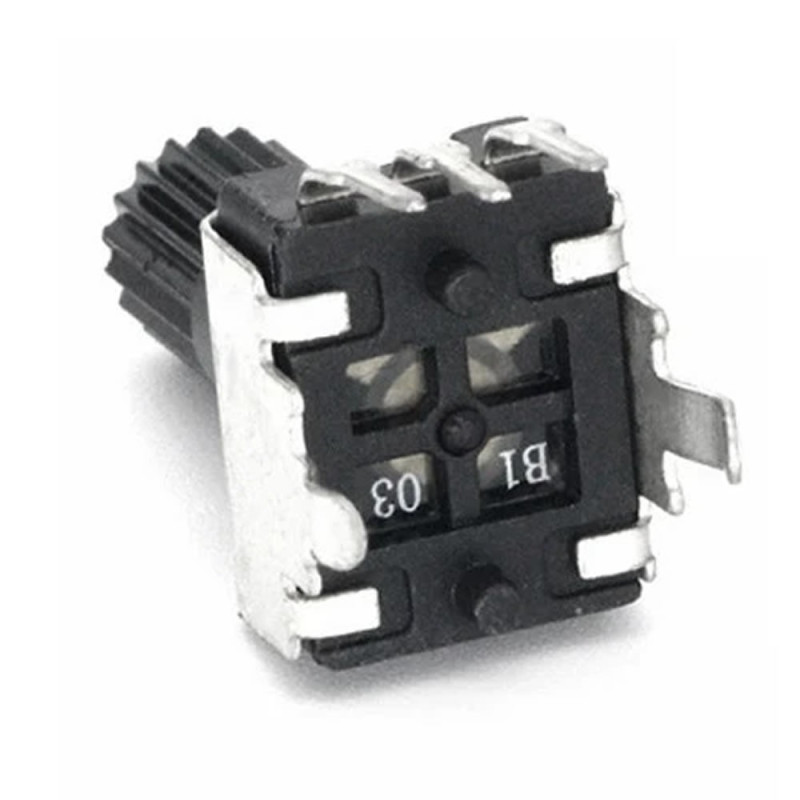

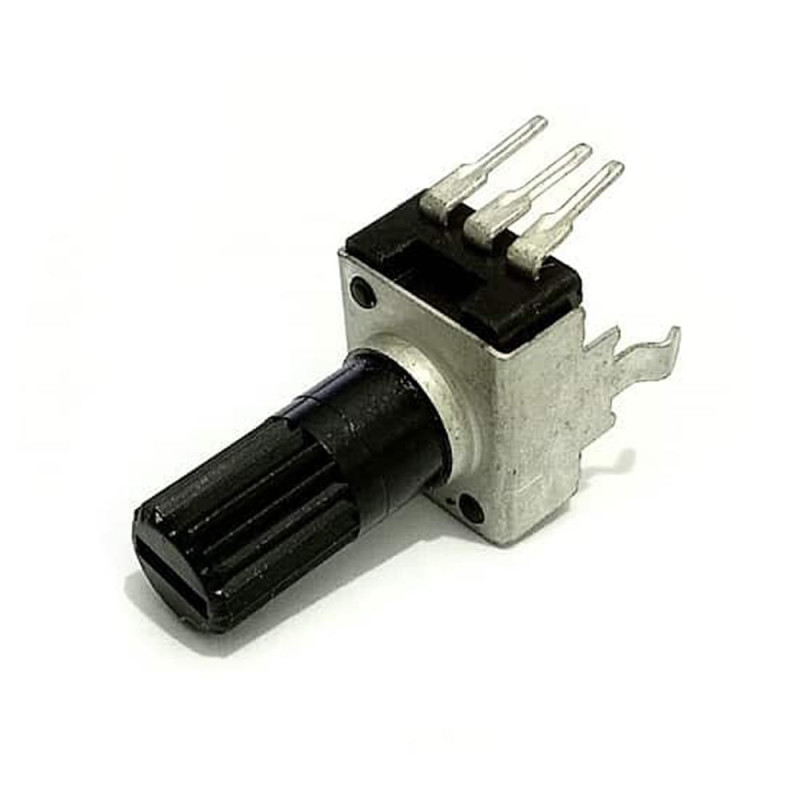

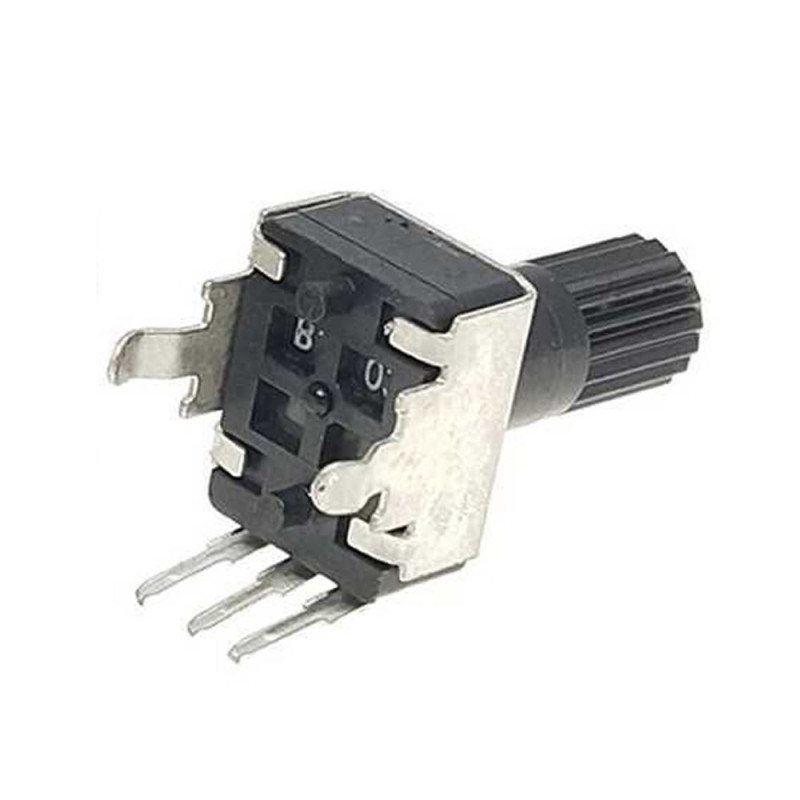

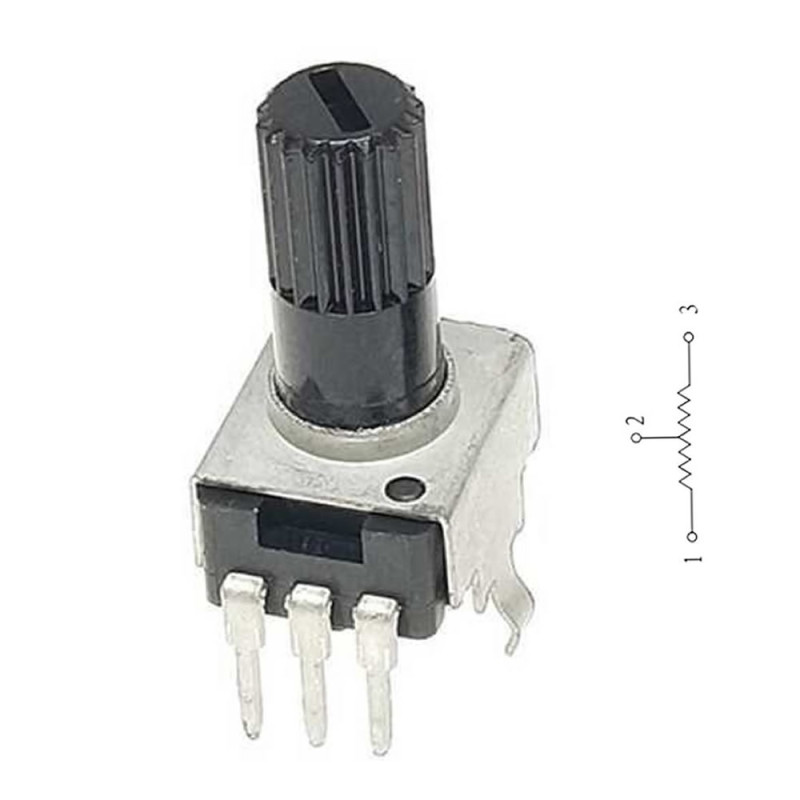

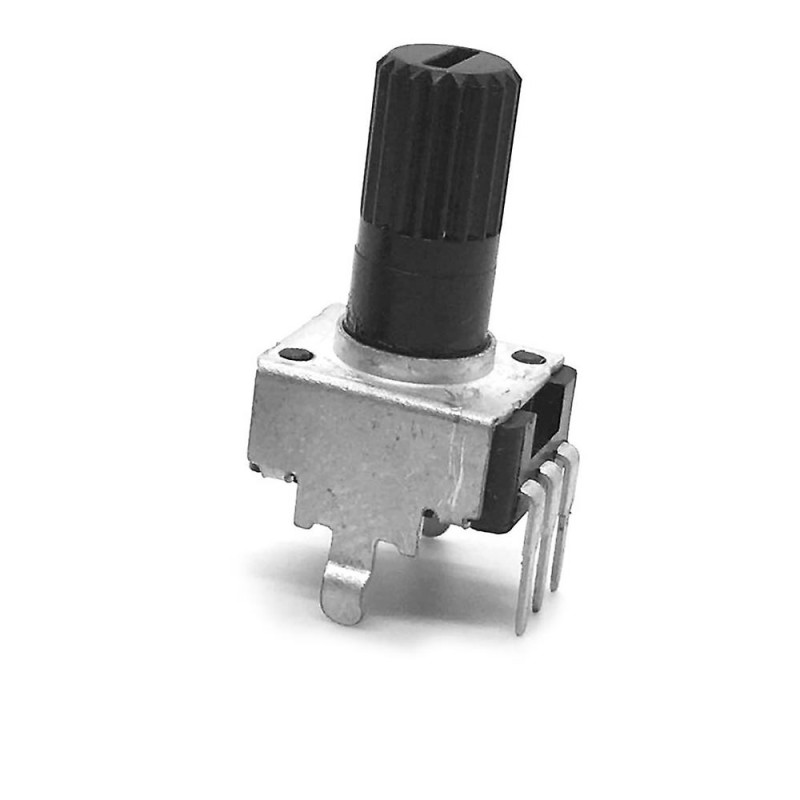

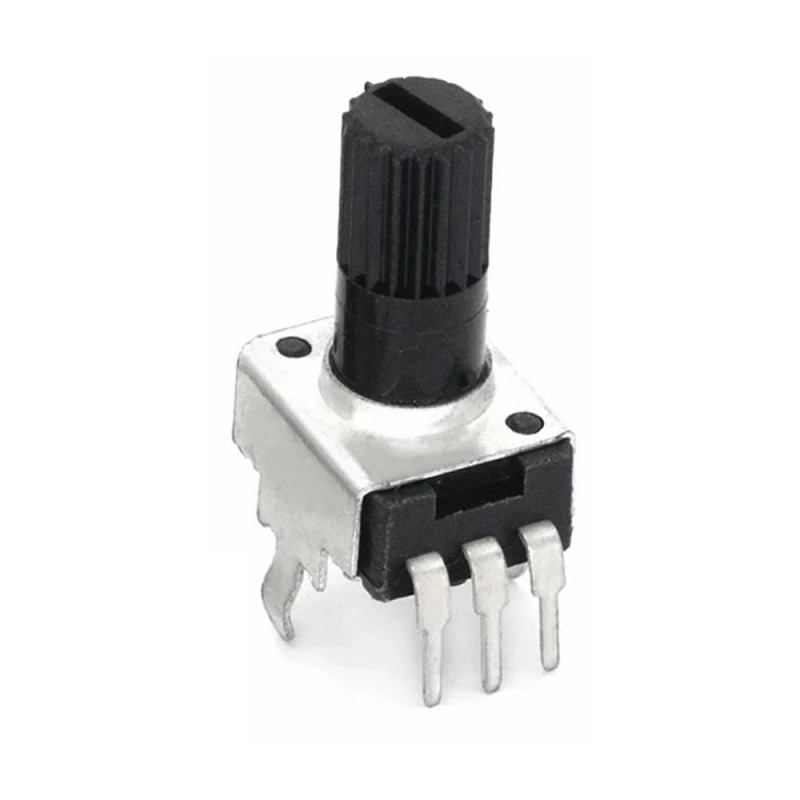

RV09 10kohm Potentiometer
12.96TL
Ex Tax: 10.80TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: RV09 10kohm Potansiyometre
- SKU: RBZ.101.639
This product has a minimum quantity of 2
10kohm Vertical Potentiometer RV09 Adjustable Resistor Pot
Knurled 13mm Sound Brightness Voltage Adjustment Amplifier Amp Car Radio Power Supply Test Measurement
10kohm rotary potentiometer. It has a rotation angle of 270 degrees. A potentiometer is a type of variable resistor generally consisting of a resistive body and a rotating or sliding system. It is widely used in areas such as sound, voltage, brightness etc. increasing and decreasing applications, various measurement and test applications. You can use it with a suitable pot knob.
Features:
- Model: RV09
- 10kohm potentiometer
- Rotation angle: 270 Degrees
- Tolerance: +-20%
- Maximum voltage: DC 12V / AC 50V
- Rotational noise: 100mV Max.
- Material: Metal / Plastic
- Knurled shaft
- Color: Gray / Black
- Life: 10.000 turns
- Operating temperature: -20C / 85C
- Pot shaft height: 13mm

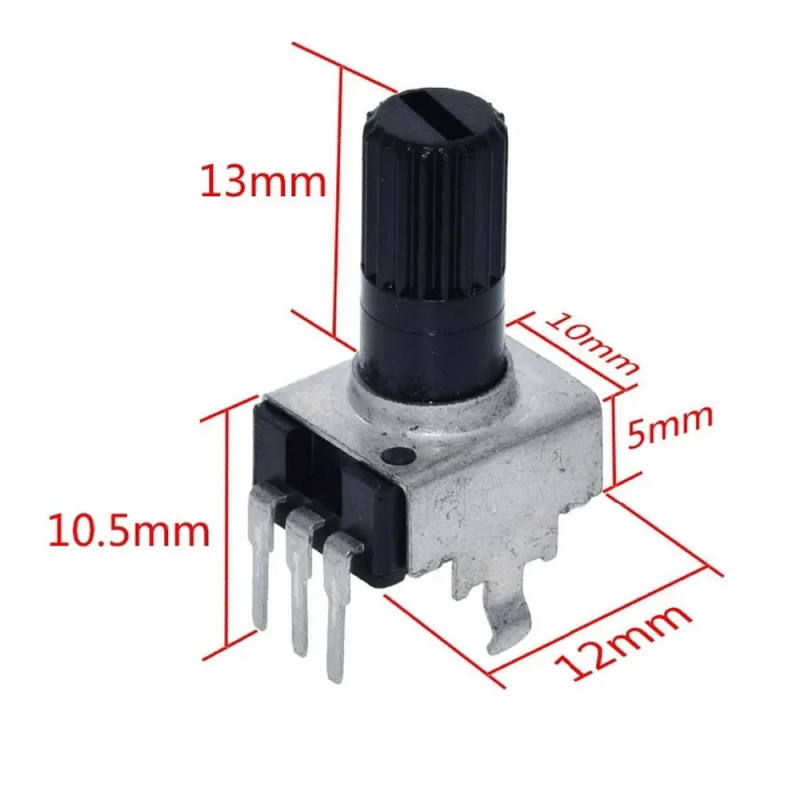

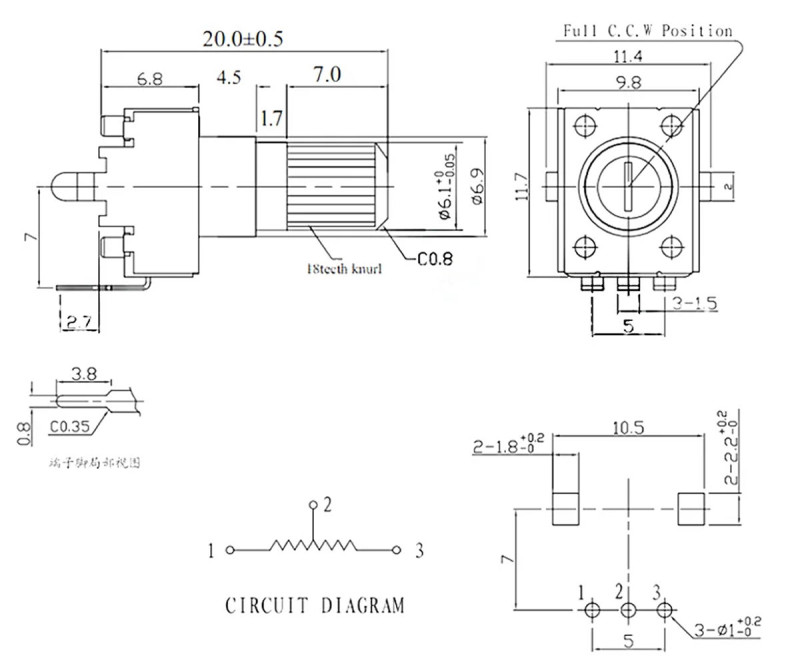

- Dimensions: 11.7mm x 11.5mm x 20mm
- Weight: 1.5gr
Package contents:
- 1 pcs RV09 10kohm Potentiometer
.
