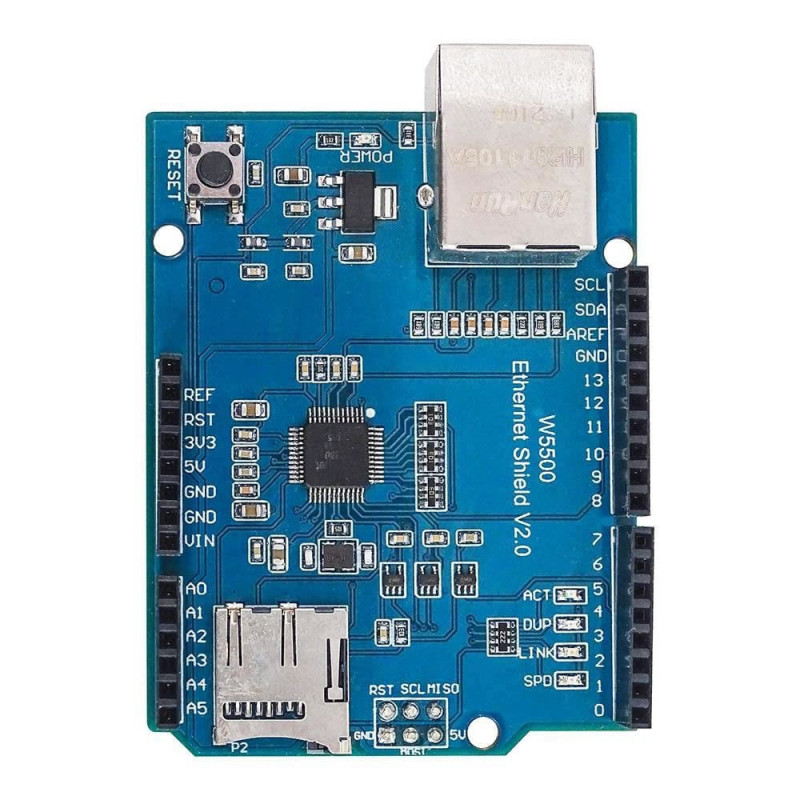

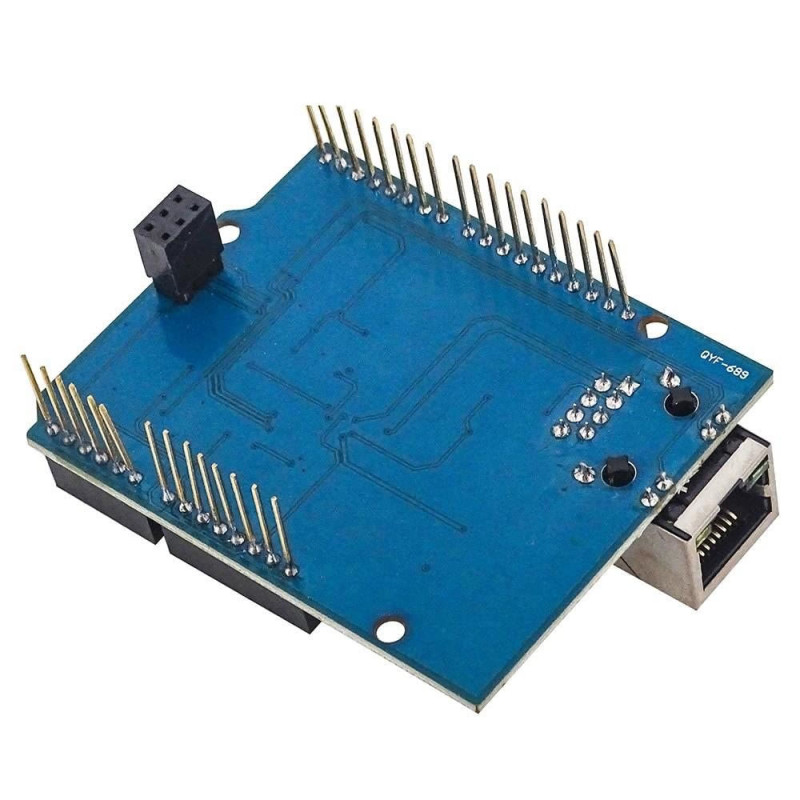

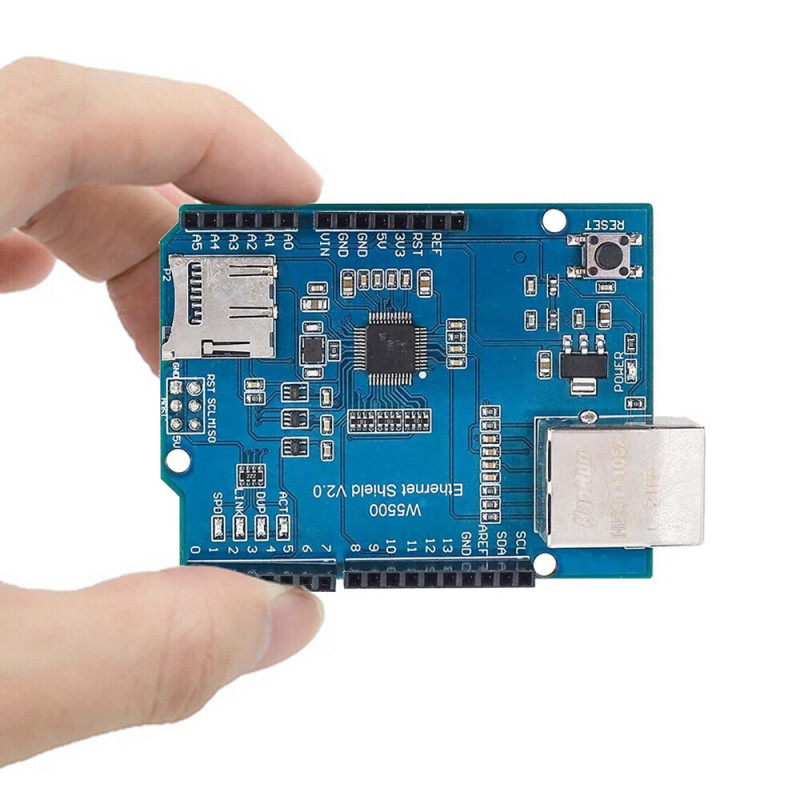

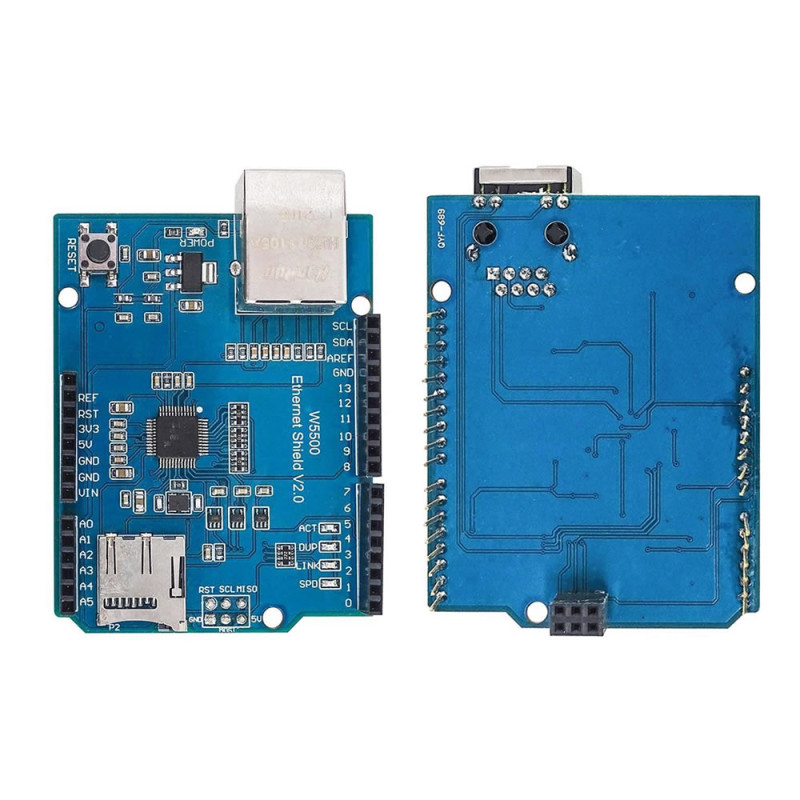

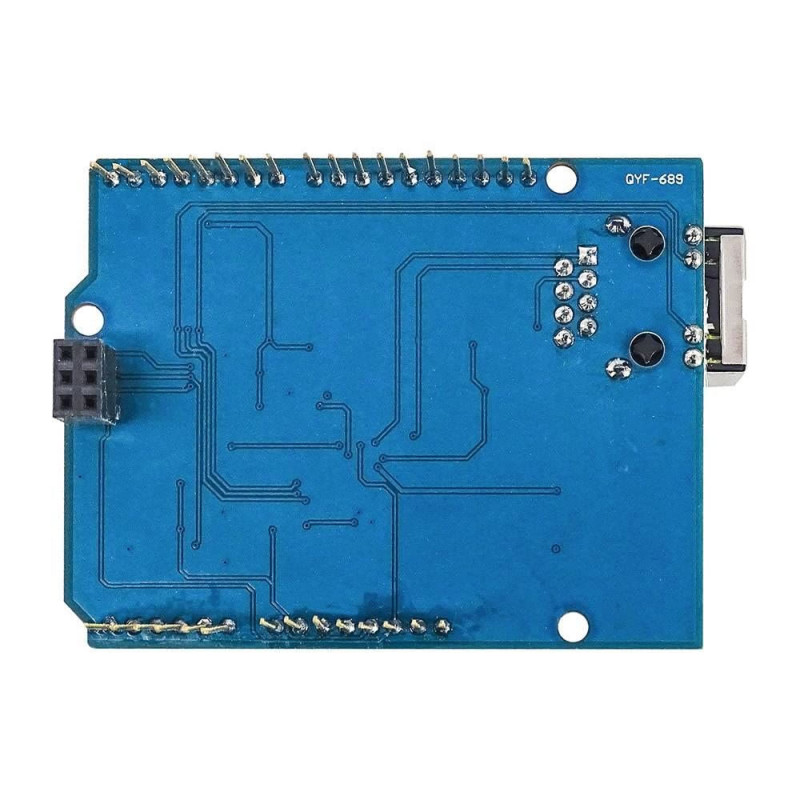

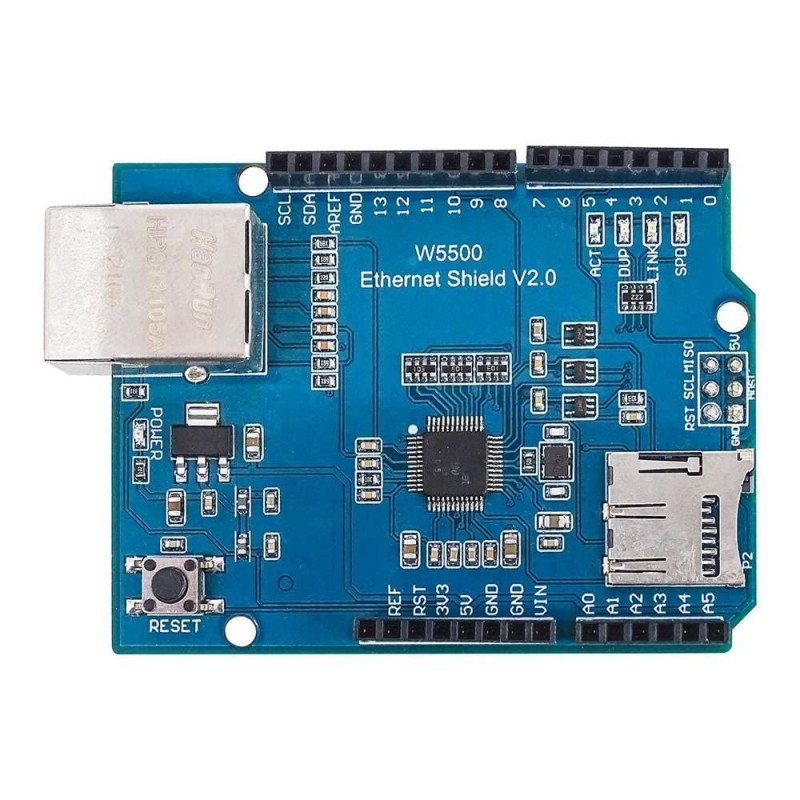

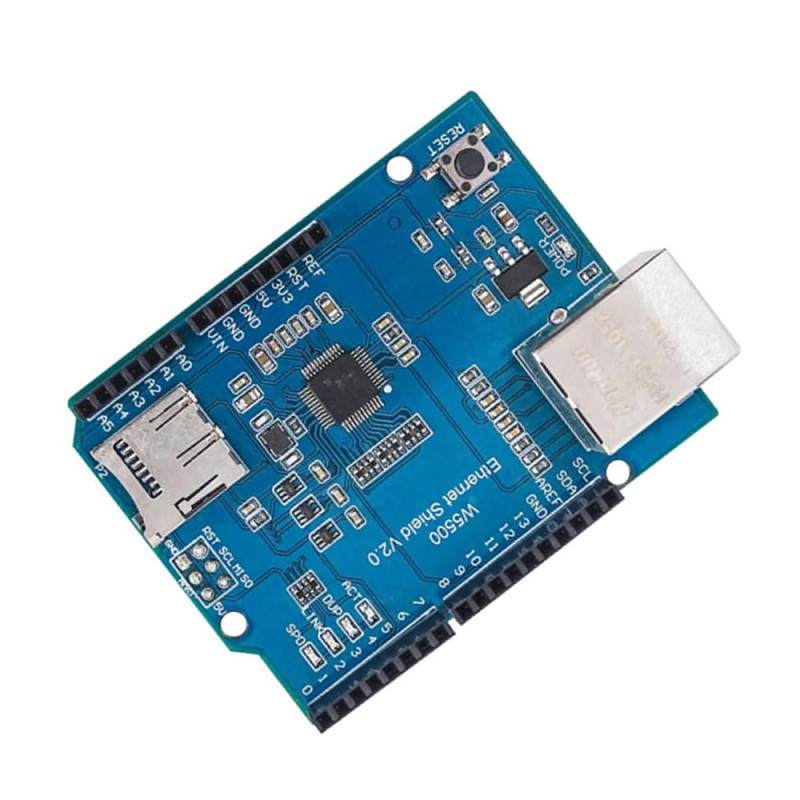

Arduino W5500 Ethernet Shield

Arduino Ethernet Shield Wiznet W5500

3.3V SPI TCP/IP UDP Network Lan Communication Internet Iot Control Data Transfer RJ45

     It is a module developed for ethernet communication over Arduino boards. Wiznet's W5500 chip is used. The protocol software required for ethernet communication is loaded into the chip. This allows you to perform ethernet communication without dealing with complicated ethernet software. Connection is established over the SPI port ( 80 Mhz ).

Features:

•     Chip: Wiznet w5500
•     Operating voltage:  DC  3.3V
•     Current: more than 200mA
•     5V IO signal tolerance is available
•     Hardware supported protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
•     Supports 8 independent sockets at the same time.
•     Supports wake on lan with udp protocol.
•     High speed SPI communication support 80MHz
•     32Kbyte memory
•     10BaseT/100BaseTX
•     Automatic ethernet protocol setting support ( Full and half duplex, 10 and 100-based )
•     Does not support IP fragmentation.
•     Link and activity indicator leds.
•     Operating temperature:    -10C  /  85C
•     Color: Blue

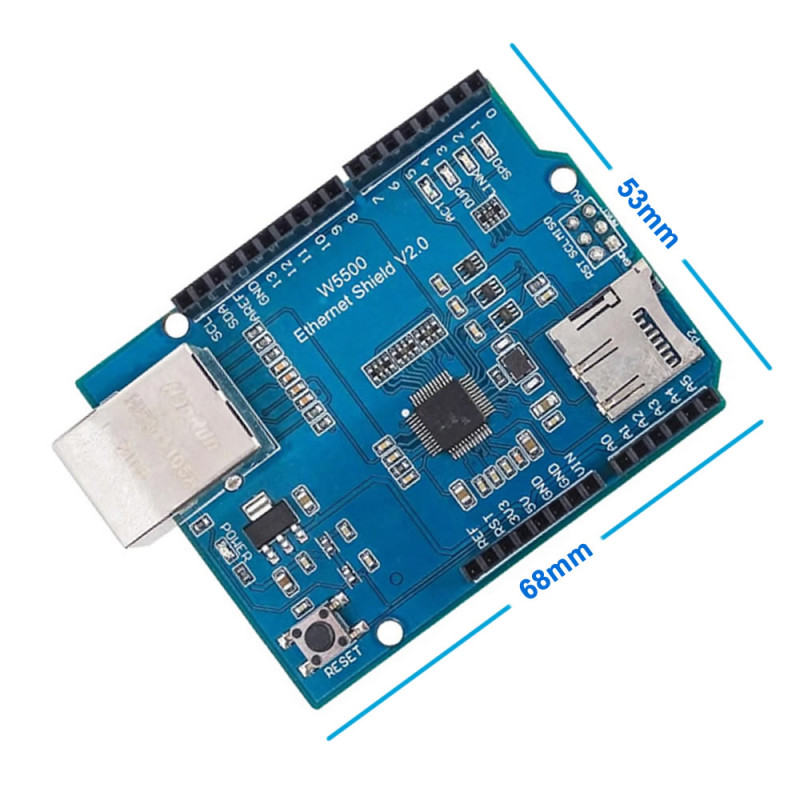

•     Dimensions:  53mm x 68mm
•     Weight: 25gr

 Package contents:

• 1 Piece Arduino W5500 Ethernet Shield
