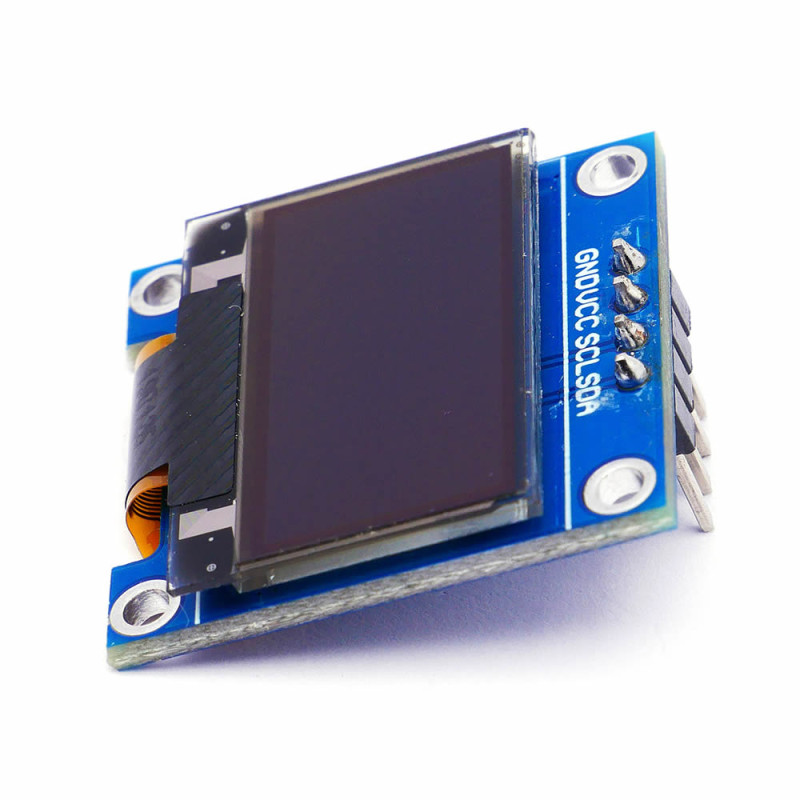

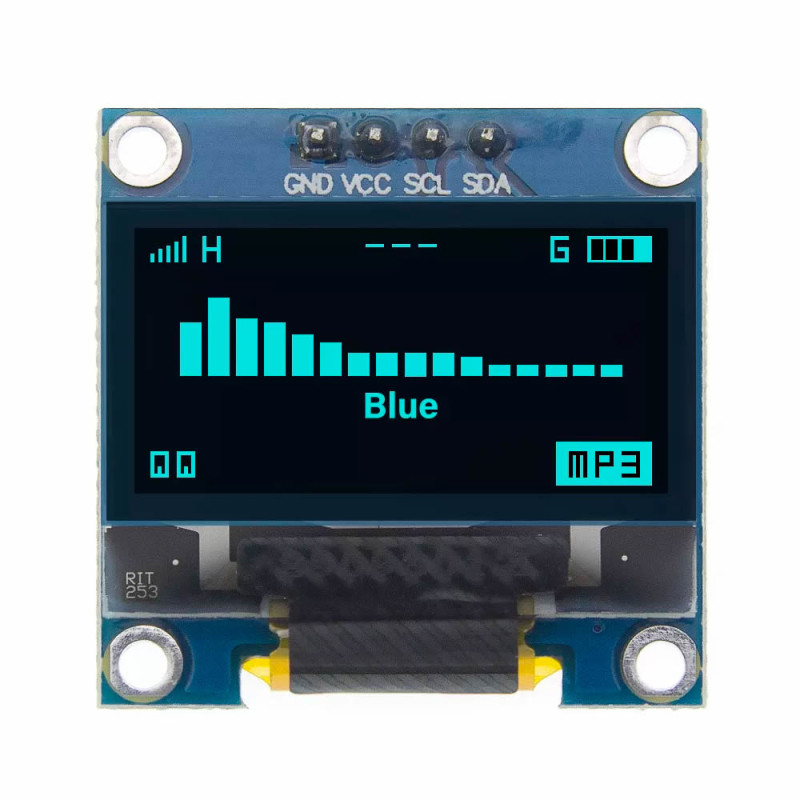

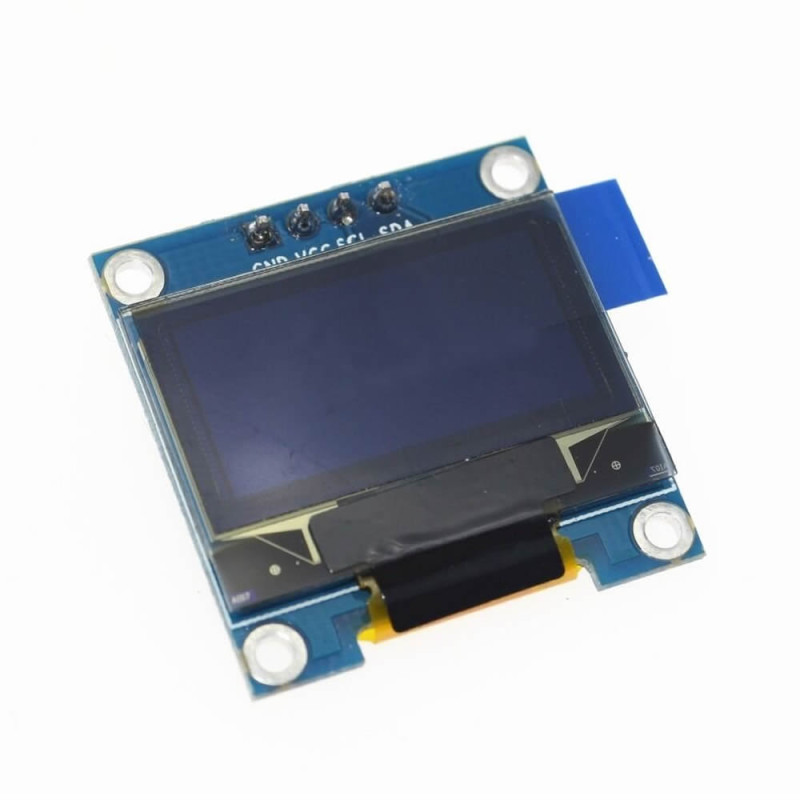

128x64 OLED LCD 0.96" Blue

0.96 Inch Blue Oled Lcd Module

128x64 Pixel IIC I2C Serial 0.96” Screen Display SSD1306 3.3V 5V Matrix Display

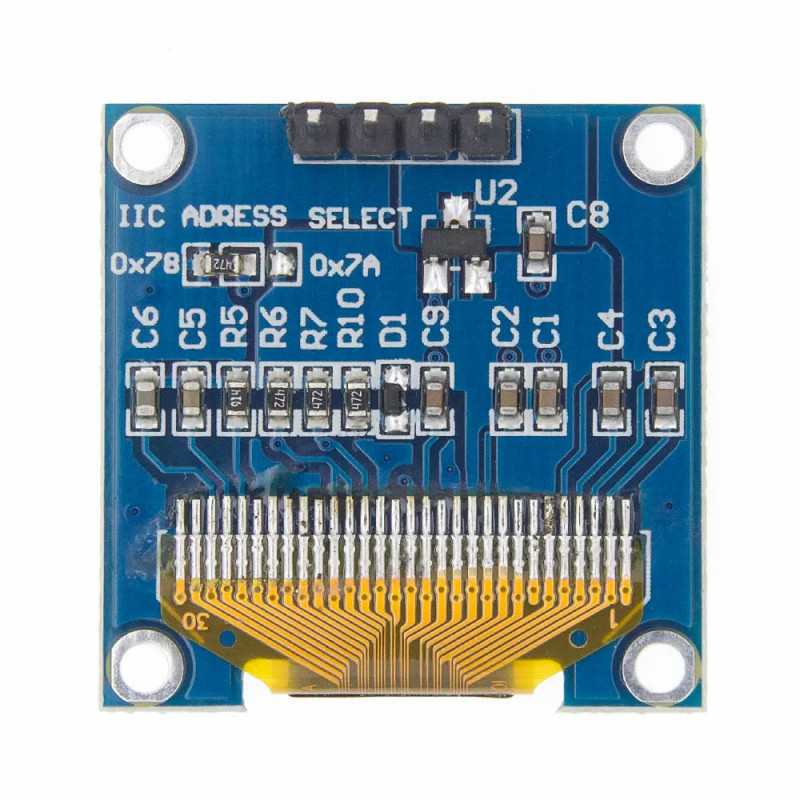

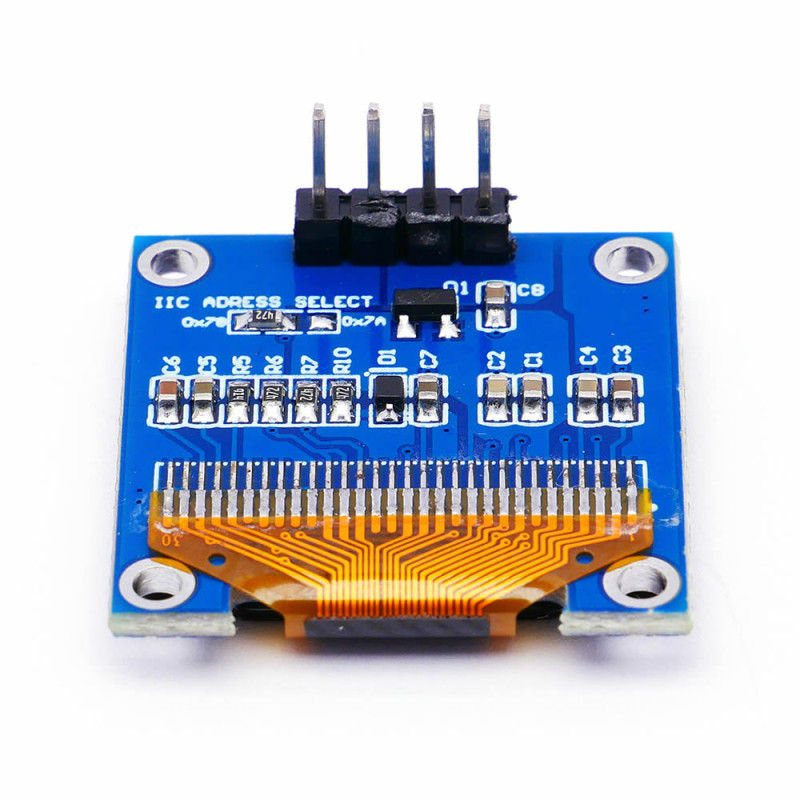

You can run it with the Adafruit SSD1306 library. The I2C addresses of the products in stock may vary. On some model products you need to define the I2C address correctly.

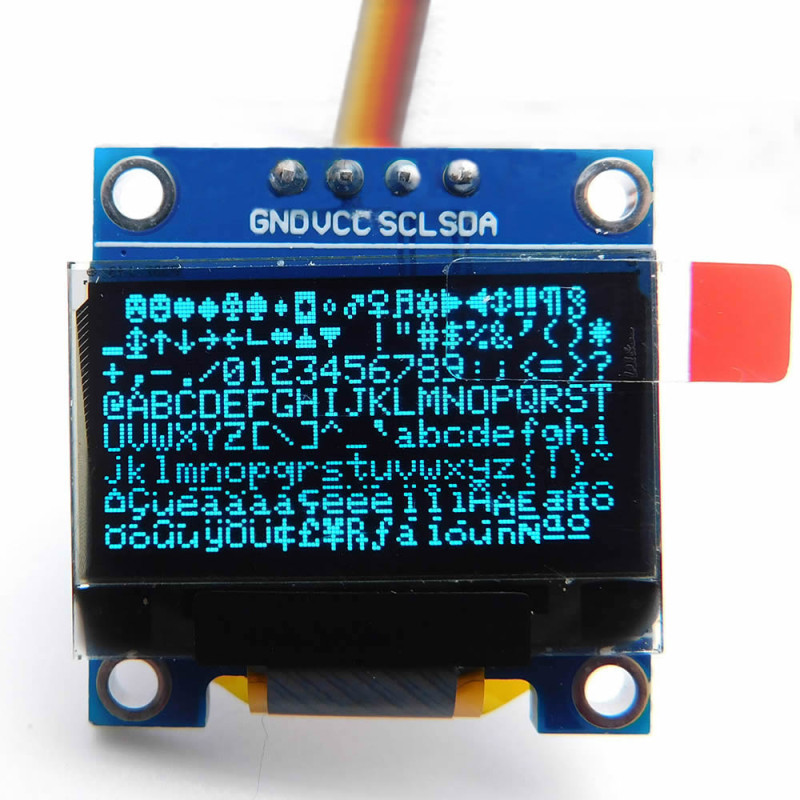

     The 0.96" Oled lcd is a very suitable display solution for your small projects. It has 128x64 high resolution and high brightness. It is ideal for applications requiring visual outputs as text and images.  It is blue on a black base. It is used over the I2C communication port. With its thin and small structure, it takes up little space in circuits.  It can operate in a wide temperature range. It has low power consumption.

     The SSD1306 driver IC is embedded inside the lcd. It can operate with DC 3.3V / 5V supply. It is easily used with Arduino and many microcontrollers.


Features:

• 0.96 inch oled lcd
• 4 Pin male header connection socket
• Communication: IIC
• Screen color: Blue
• Operating voltage:  DC 3V / 5V
• Driver IC: SSD1306 ( Embedded inside the Lcd )
• Resolution: 128 x 64 pixel
• Low power consumption: Full screen 0.08W
• High brightness contrast
• Angle: lower than 160 degrees
• It can be used with Arduino, 8051 series mcu, MSP430, STM32 and similar ICs.
• Operating temperature:   -30C  /  70C
• Active screen area:  21.74mm x 11.2mm
• Dimensions:: 27mm x  27mm
• Weight: 5gr

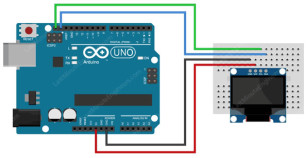

Pin Description:

• GND: Ground
• VCC: Supply
• SCL: I2C Clock
• SDA: I2C Data

Package Contents:

• 1 Pcs   0.96 Inch Blue Oled Lcd Module

.
