1200w Voltage Booster

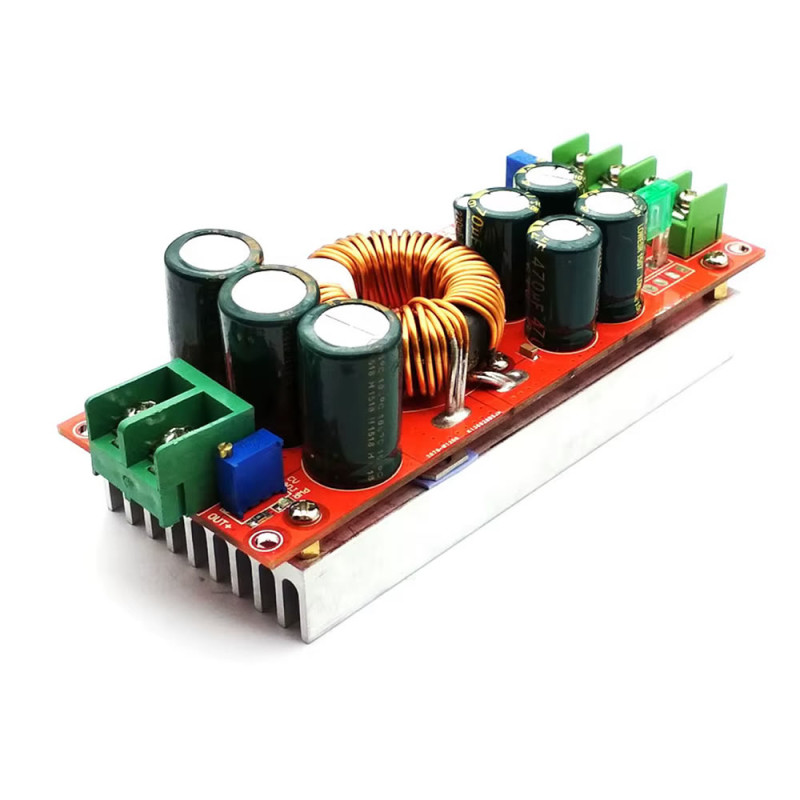

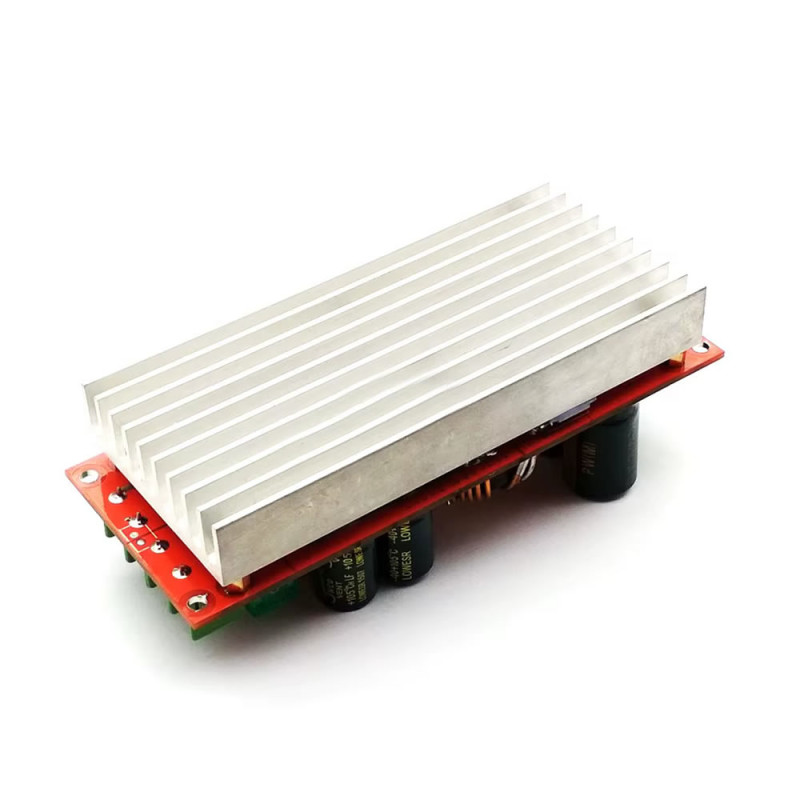

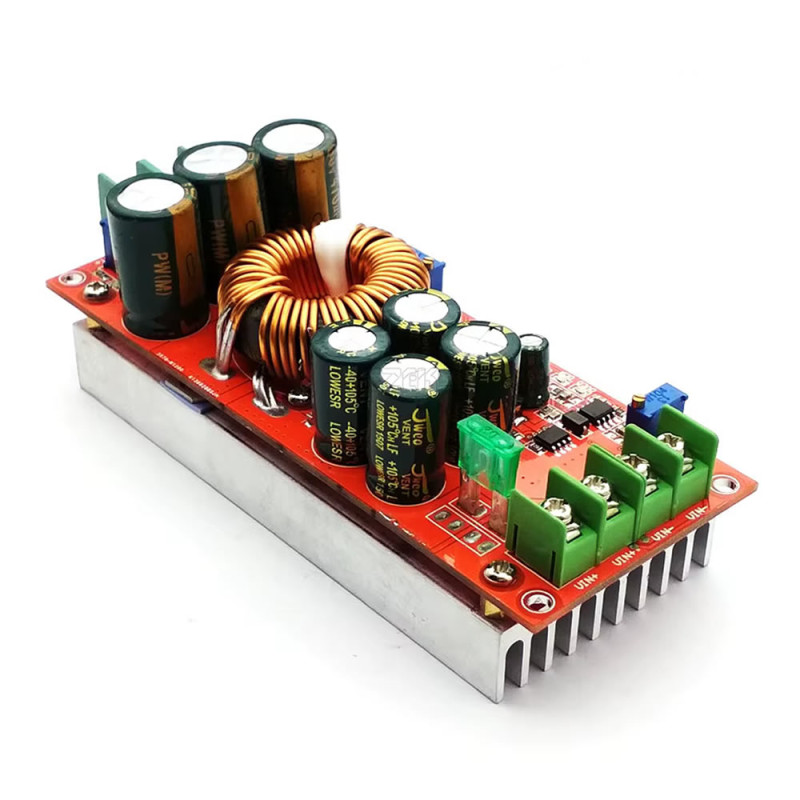

1200W Voltage Booster Module

83V 12A Current Voltage Adjustable Led Driver Dc Converter Regulator Power Supply Step Up Boost

The output voltage cannot be lower than the input voltage. It is a voltage booster.

You must use an input source 1.25 times greater than the load power you will draw at the output.

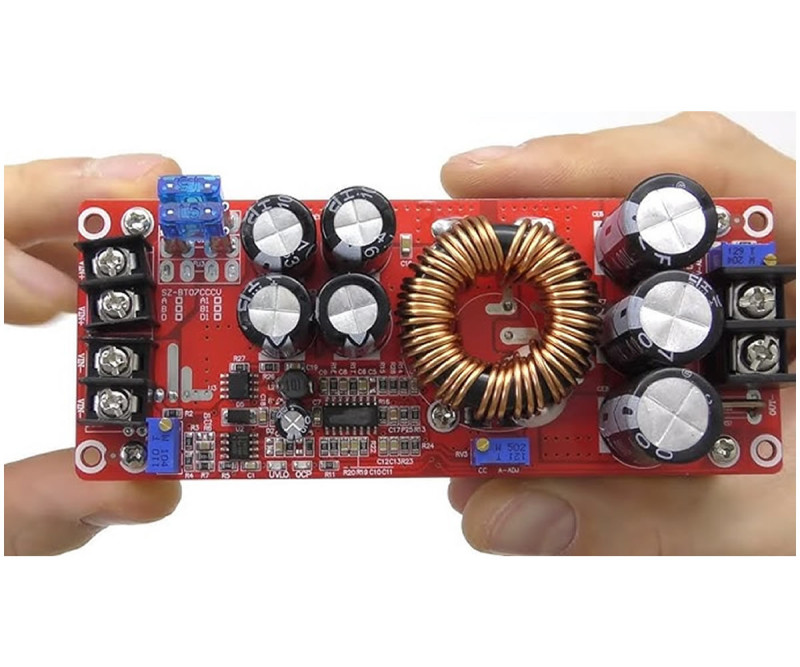

     It is a 1200w 20A Dc step-up voltage booster circuit. The input voltage is between Dc 8V/60V. According to the voltage value applied in this range, the voltage can be boosted to output voltages between 12V/83V by using the trimpot on the board. Looking at the input output voltages, some may think that the voltage can be stepped down. The product can only be used to raise the applied voltage to a higher level. This voltage regulator board, which is very easy to use and high performance, allows you to boost your input voltages in many of your hobby and robotic projects. The output current can also be limited with the pot on the board.

     When a power above 1200w is required, 2 modules can be used in parallel.

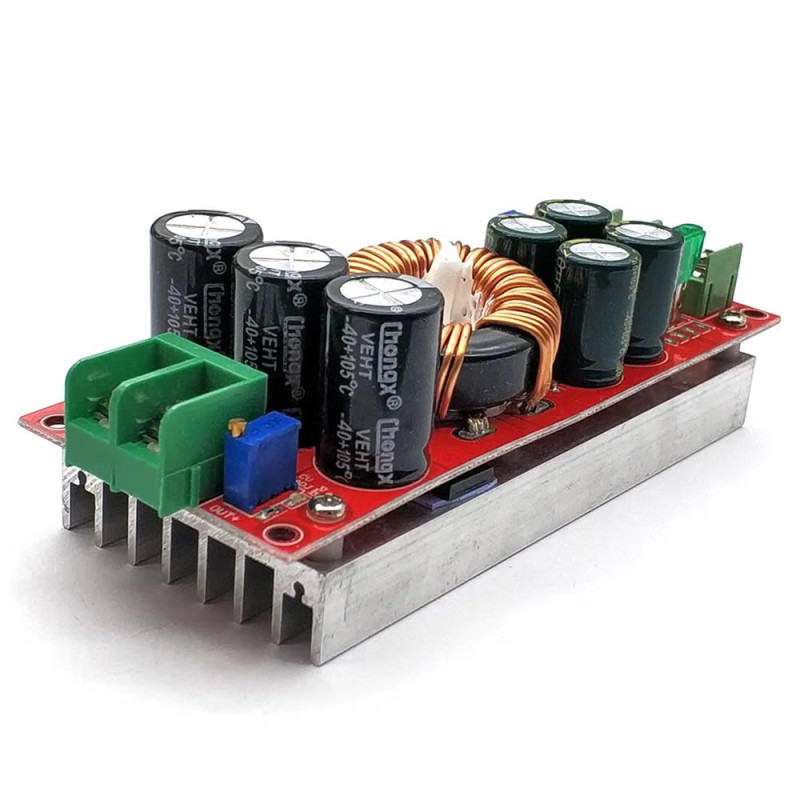

     Cable connections are made easily with terminal blocks without using solder. The output voltage must always be higher than the input voltage. It allows low power supplies to be used by boosting their voltage in a number of applications requiring high voltage such as laptop supply, solar panel applications, led driver.

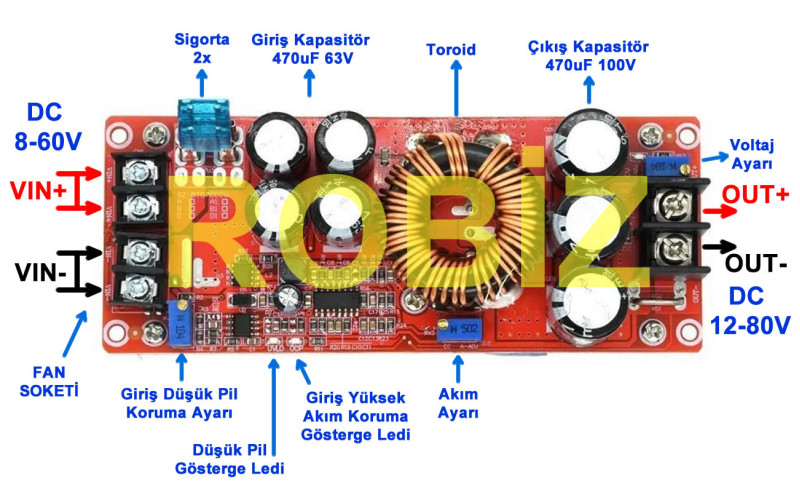

Features:

• 1200w 20A Voltage Booster
• Input voltage: DC 8V / 60V
• Output voltage: DC 12V / 83V
• Adjustable constant current output
• Current: 12A  (For short term 20A or high currents an external fan must be used)
• Power: 1200W
• Operating frequency: 150KHz
• Efficiency: %95
• The pots are multi-turn. (It can turn 30-40 turns. You must turn it a lot to see the change)
• Overcurrent protection
• Short circuit protection 2 pcs 20A fuse
• Input reverse polarity protection: None (If necessary, add one diode to the Input + pin.)

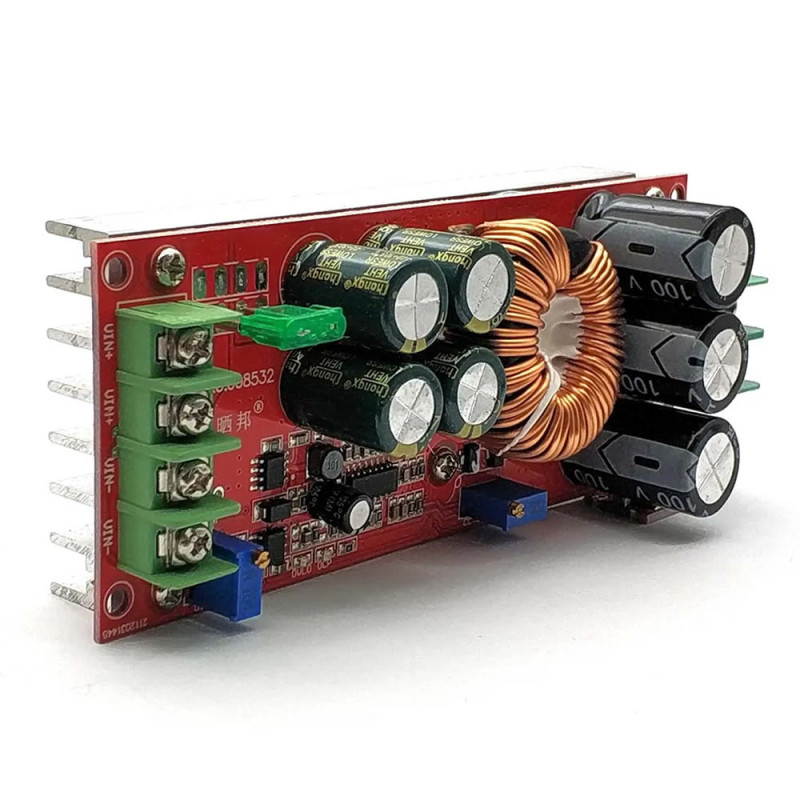

• Terminal block sockets at the input and output for easy connection.
• Temperature: -40C /  85C
• Color: Red
• 4 Pcs M3 mounting hole
• Terminal block type input output connection sockets

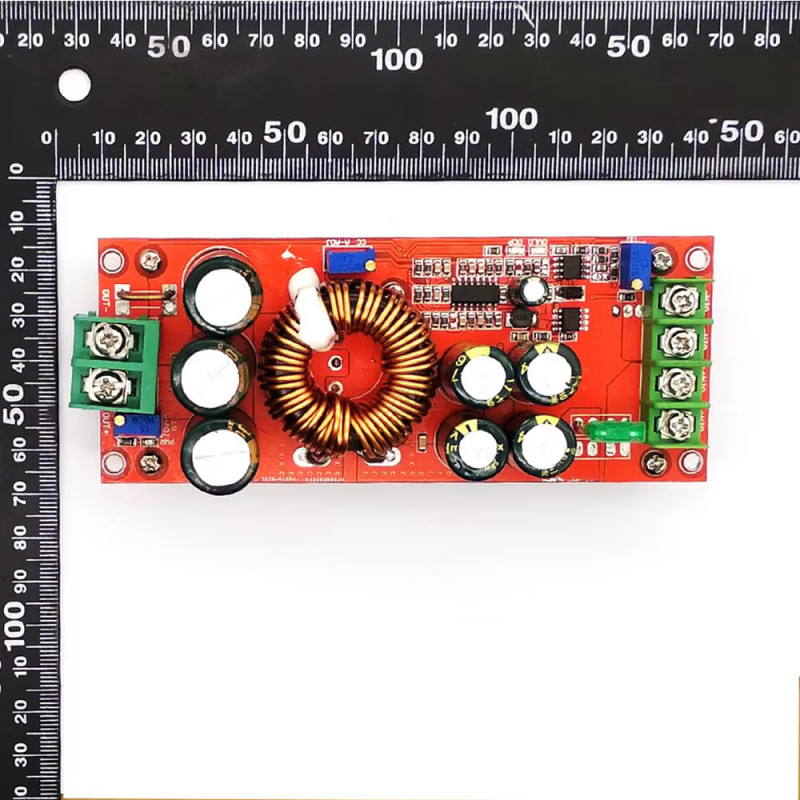

• Dimensions: 46mm x 52mm x 130mm
• 4 pcs 2.55mm holes for mounting
• Weight: 245gr

Pot Usage:

•     The pots are multi-turn. They can turn 20-30 turns in both directions. Generally, by turning very little, one can fall into the mistake that the products do not work. It is necessary to turn a lot to see the effect.
•     Turning clockwise; Increases the value for the relevant parameter. For example the voltage increases.
•     Turning counterclockwise; Decreases the value for the relevant parameter. For example the voltage drops.

Package contents:

•   1 Pcs 1200w 20A Voltage Booster
