- Stok Durumu: Stok Var
- Marka: OEM
- Model: 3S 8A BMS V3
- SKU: RBZ.101.695

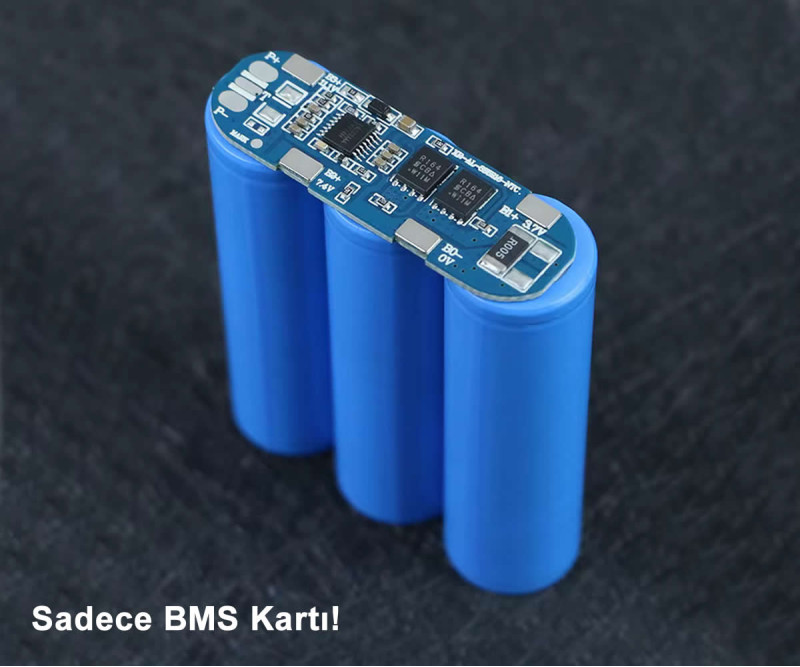

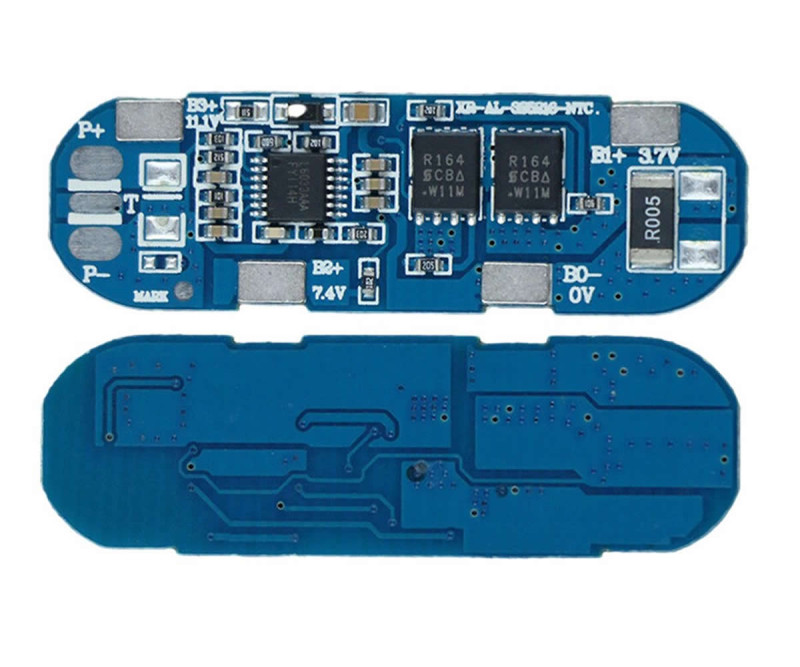

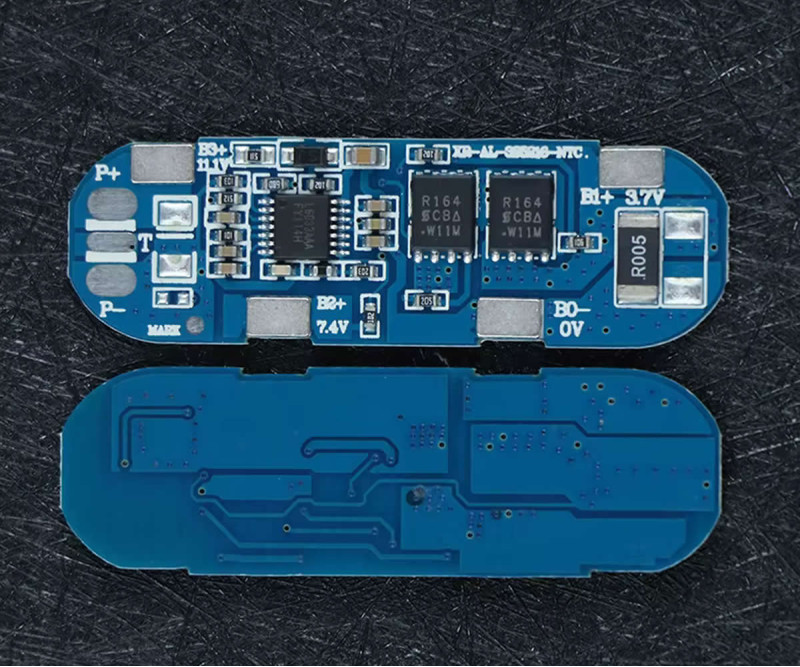

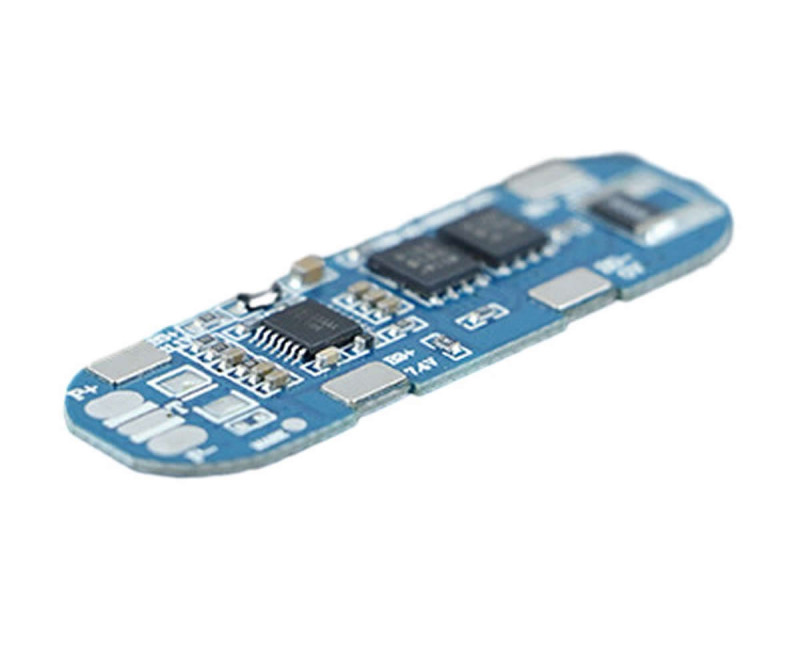

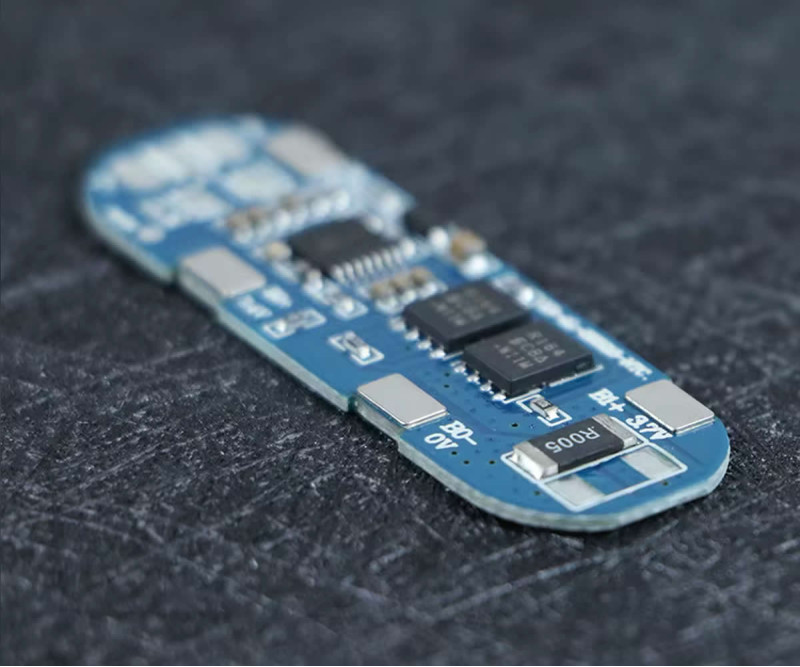

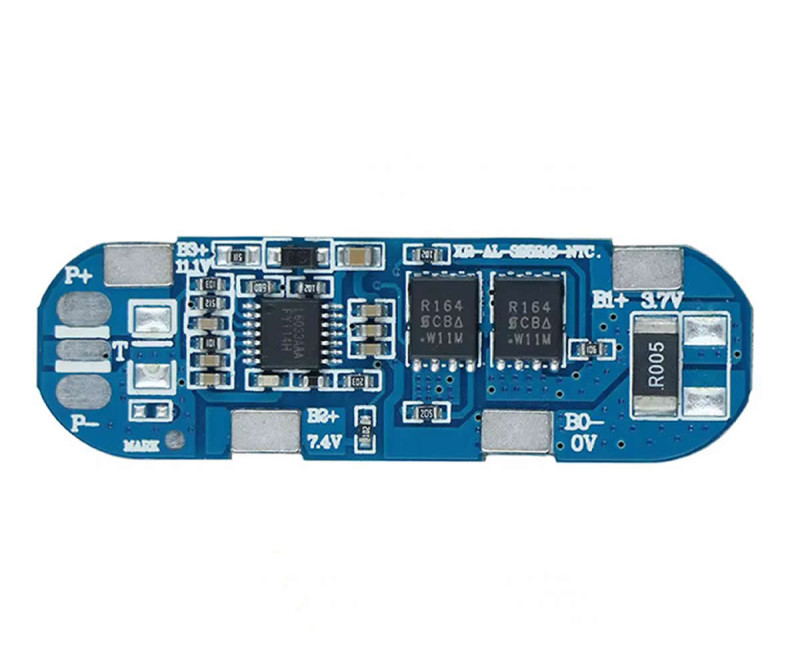

3S 8A 12V BMS Protection Board
18650 Battery Lithium Li-Ion Lipo Battery Protection 11.1V 12.6V Over Charge Discharge Protection Protection

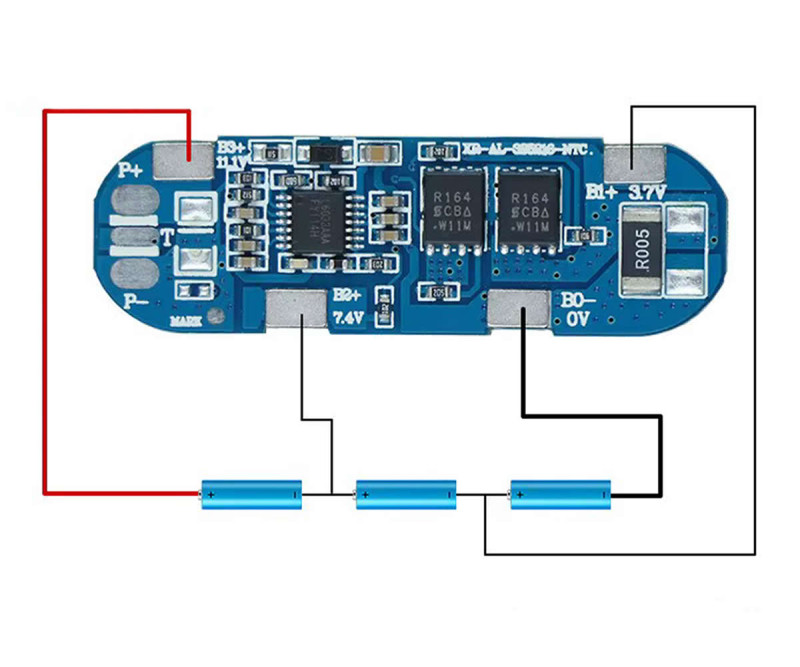

It is suitable for 3 series 18650 batteries. It is used with a 12.6V supply charging voltage. It has functions such as protecting lithium batteries, charging them in a balanced way and preventing high current draw from the battery. There is a built-in ntc on the board. Thanks to this, it has a temperature protection function. It works more stably thanks to the mcu on the board.
Batteries are charged with a low level constant current. This current level varies according to the batteries. It is generally appropriate to charge them at 1/10, 2/10 levels. A battery is not charged with high current by connecting an adapter. This practice reduces battery life. Battery charging circuits that can provide a constant current at an appropriate level are required for battery charging. For this reason, bms boards are not battery charging boards. They are battery protection boards. They have protection duties such as short circuit, high current, high voltage.

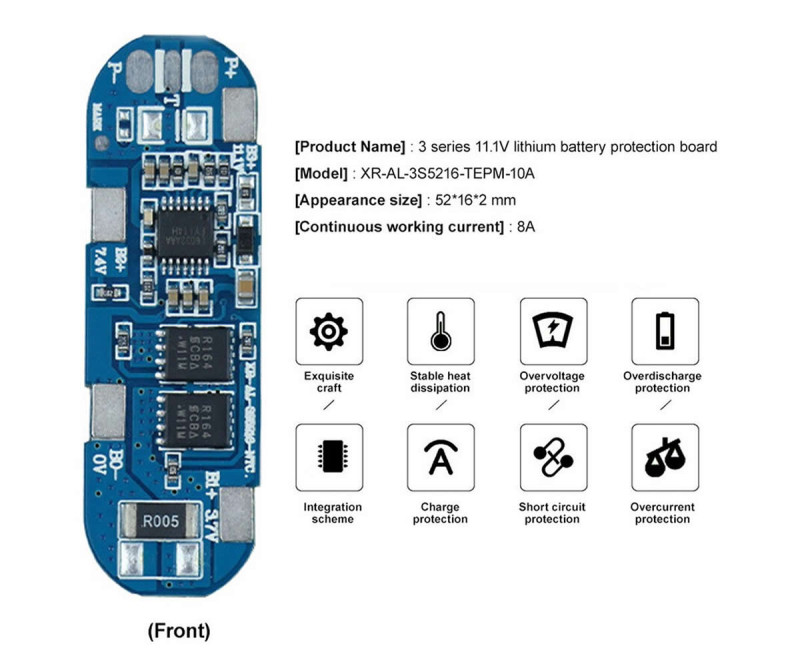

Features:
- 3S 8A 12V BMS Protection Board
- Operating voltage: 12V (3S)
- Charging current: 1-2A
- Charging voltage range: 12.6V-13V
- Operating current: 8A
- Instantaneous protection current: 20A
- Leakage current: <20uA
- Over charge protection: 4.25v ± 0.05v
- Over discharge protection: 2.5v ± 0.05v
- Over current protection,
- Short circuit protection
- Lifetime: 30000hours
- Color: Green
- Operating temperature: -20C / 70C
- Dimensions: 16mm x 52mm
- Weight: 3gr
Package contents:
- 1 Piece 3S 8A 12V BMS Protection Board
