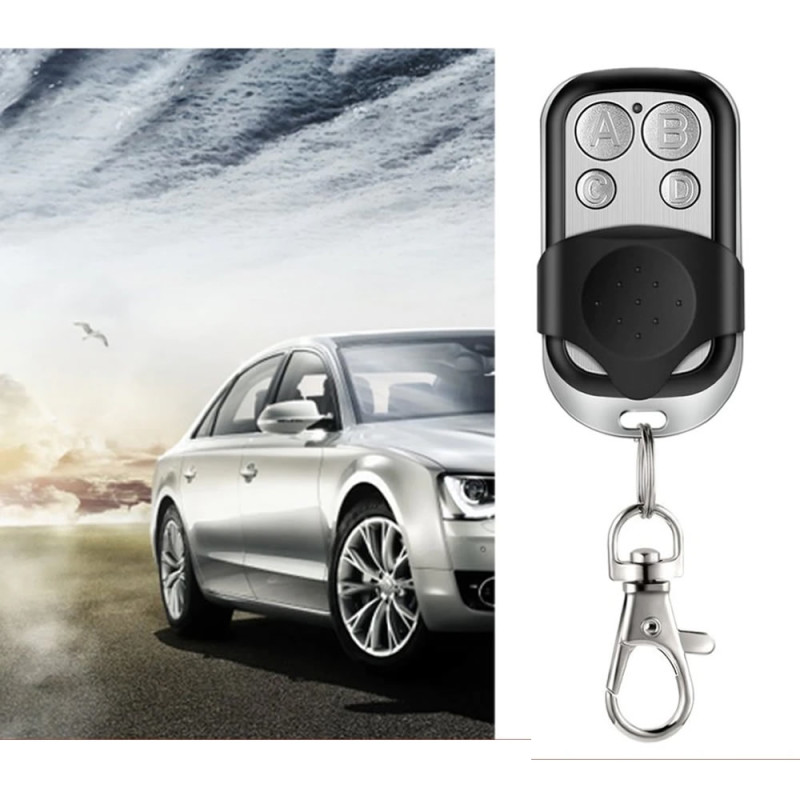

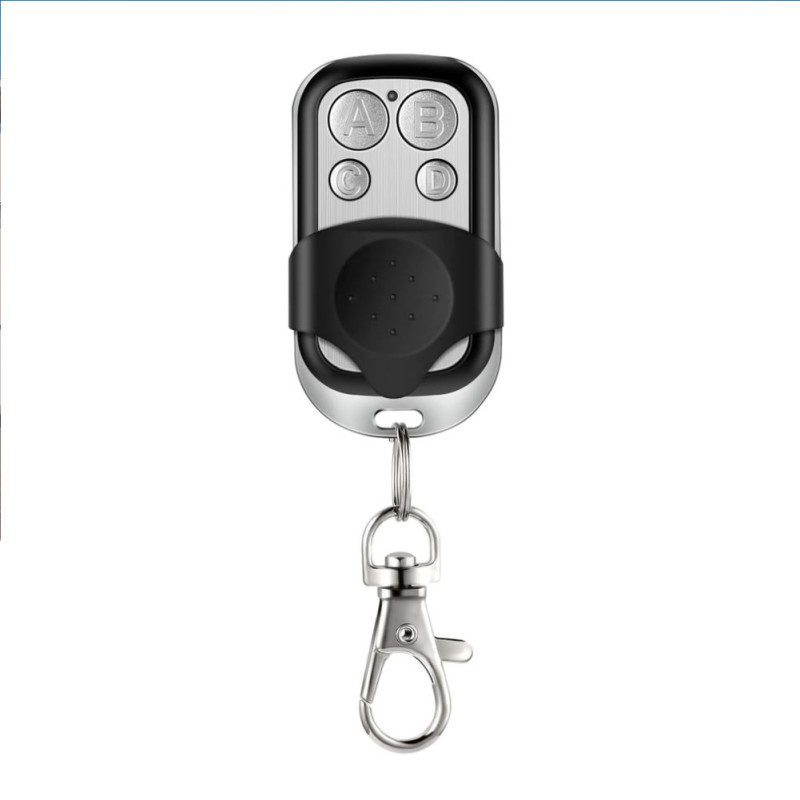

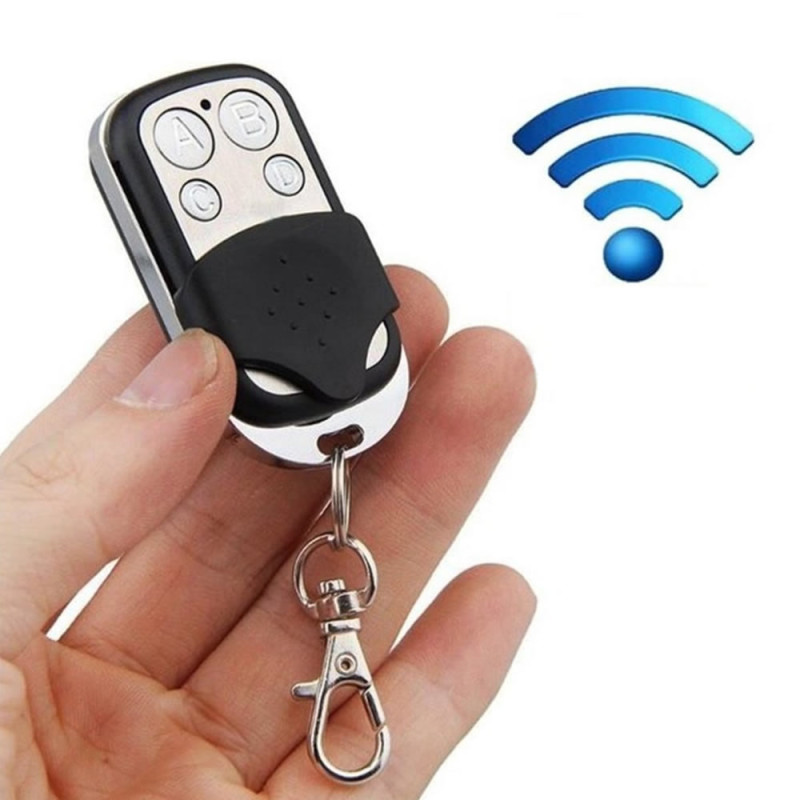

433Mhz Remote Control

433Mhz Learning Remote Control

Car Garage Automatic Door Shutter Barrier Alarm Lamp Control Switch 4 Buttons

     It is a 4 button 4 channel 433Mhz. remote control circuit used so that you can create a backup of your remote controls in various systems using remote control. It can be used in the copying process of remote controls operating at 433Mhz frequency. It cannot be used with products at different frequencies. Also it cannot copy all products. Some remote controls ( rolling code special remote controls ) cannot be copied even if they are 433mhz. Make your purchase decision by watching the videos on Youtube.

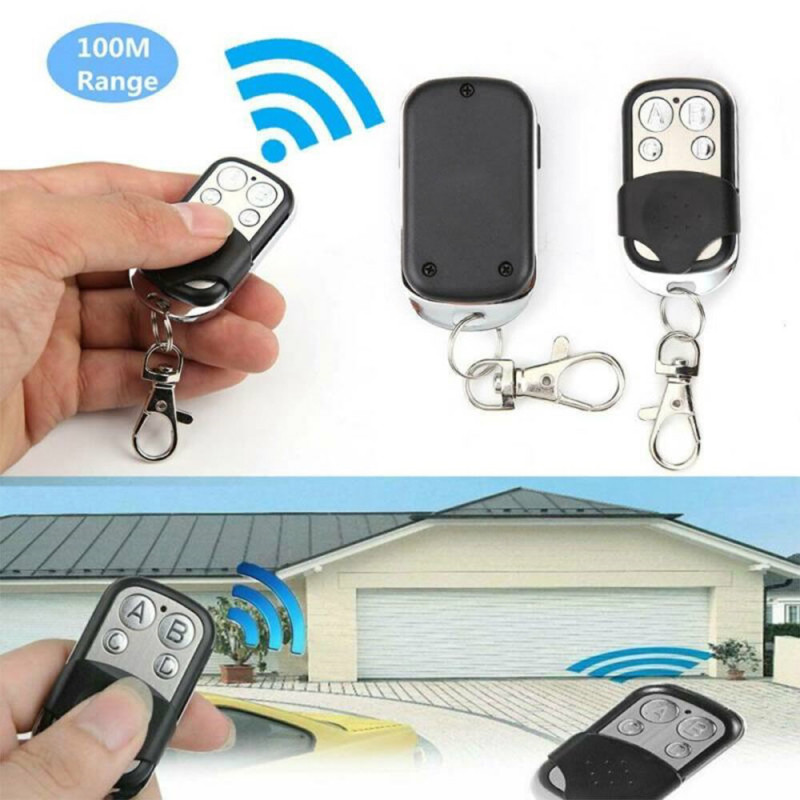

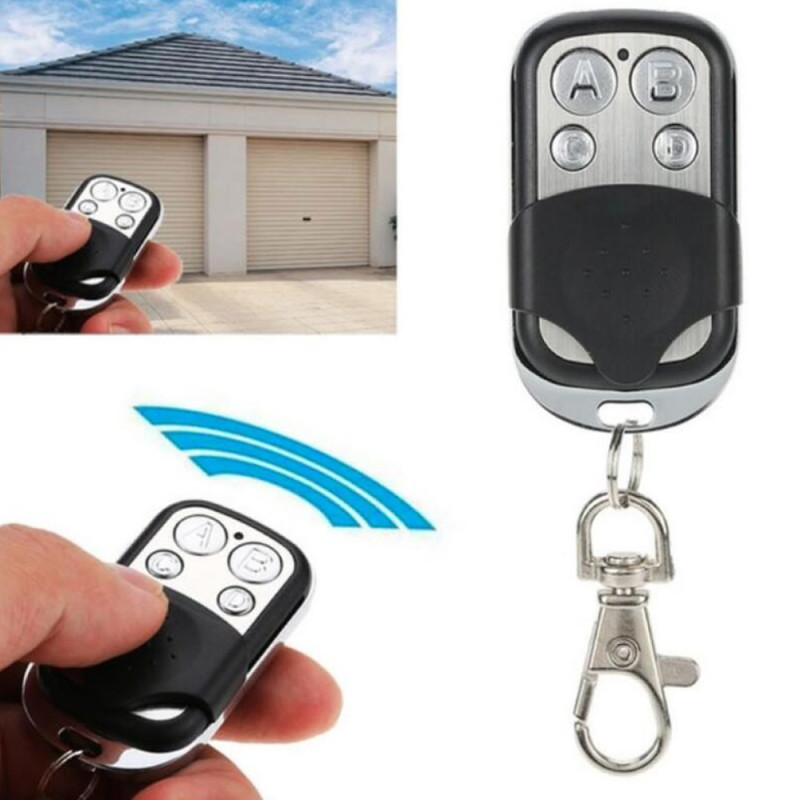

     It can copy all kinds of wireless fixed code remote controls and learning code remote controllers. It can be used in systems such as garage door, barrier, alarm, lamp, shutter, motorized devices  etc.

Features:

• 4 Button wireless remote learning control
• Operating frequency 433Mhz
• Number of channels: 4 ( A,B,C,D )
• Communication Distance: Maximum 50 meters in open area
• Supported coding types: EV1527, IC 2262, IC 2260, IC 2240

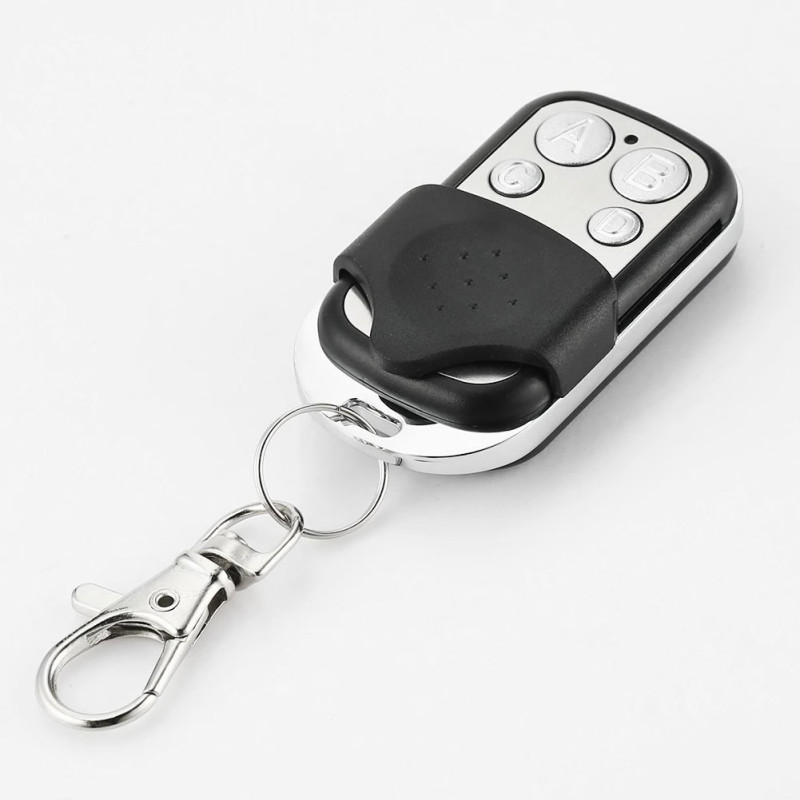

• Openable closable button cover

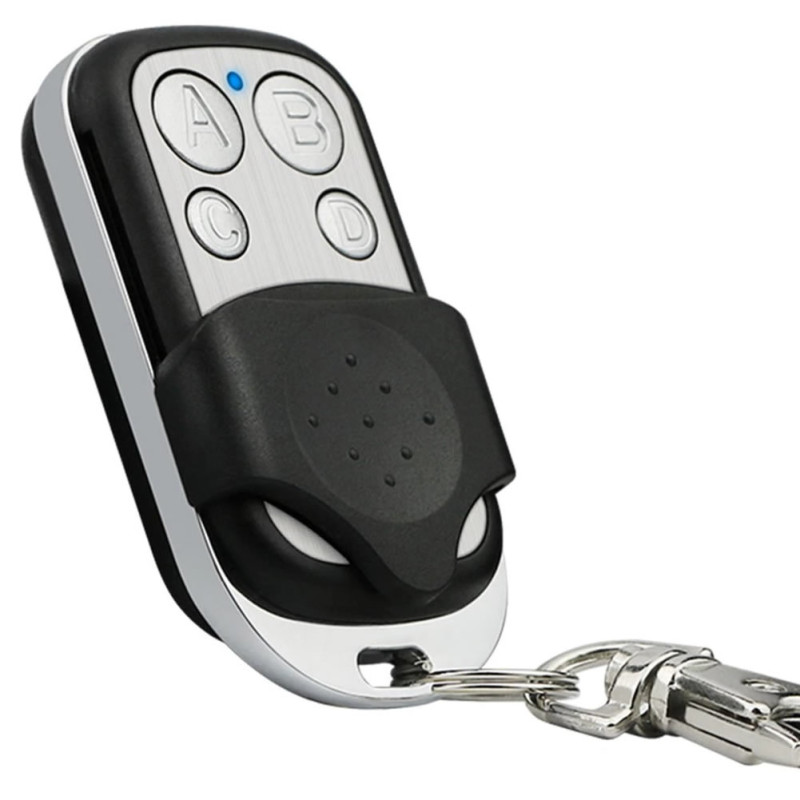

• Indicator led
• Color: black silver
• Battery: 27A 12V

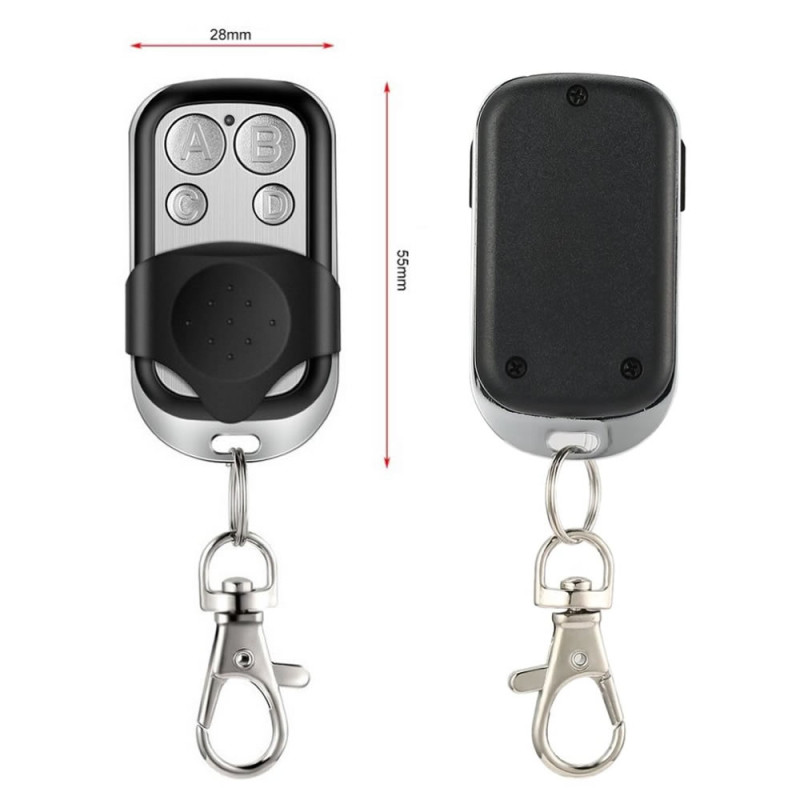

• Dimensions: 55 x 28 x 14mm
• Weight: 15gr

List of ICs it can copy: Many ICs besides the list below are also supported. It also supports products with different names but using the same protocol.

2260 (e.g. PT2260, SC2260, LX2260,HX2260); 2262, (such as PT2262, SC2262, LX2262,HS2262,HX2262, etc.), PT2264, PT2240 (LX2240), 1527(such as EV1527, HS1527, HX1527), FP527, CS5211, SMC918, SMC926, AX5026, ax5326-3, ax5326-4, HT600, HT680, HT6207, HT6010, HT6012, HT6013, HT6014, HT12D, HT46F49E, PIC16F629, PIC16F630, etc.,

2260 (all manufacturers), 2262 (all manufacturers), PT2264 (all manufacturers), 5326 (all manufacturers),
527 (all manufacturers), 1527 (all manufacturers), 2240 (all manufacturers)
HT6026, HT6012, HT6014, HT600, HT680, HT6010, HT6207, HT640, HT6P12E, HT6P20D, 12L-4SC
PT2292, 12L4SC, SC5262, PLC168, NF9420116, UM3750AM, SMC918, SMC908, 1416, 5211
HCS101, HCS200, HCS201, HCS300, HCS301(only part work)

Erasing: If the led blinks when the buttons are pressed one by one it means there is code on those buttons. To erase press and hold the A and B buttons. The led will blink. In this case release the B button. While holding the A button press and release the B button 3 times. The light will start blinking fast. In this case release the A button. After these operations the remote control records are erased.

Copying: It is brought side by side with the remote control to be copied. The button on the empty remote control is pressed and held. The led blinks. Then while continuing to press the held button press and hold the button to be copied on the other remote control. After a short time the led will remain constantly lit. This operation shows that the code of the relevant button has been recorded.


Package contents:

• 1 Piece 433Mhz Remote Control
• 1 Piece 12V battery
