Water Level Sensor 52mm

     It is used to detect the liquid level in tanks filled with liquid. It can activate devices such as a pump, indicator, alarm and the like. With the liquid level sensor, you can see whether your reservoirs are full or empty. The sensor gives output as a dry contact. Depending on the position you place it, it can be normally open or normally closed.

     It can be placed on top of the liquid or inside the liquid. In vertical type, it is used in places such as containers, boilers, reservoirs, rooms etc. where liquids are present. The moving part is magnetic. According to the movement of the moving part on the sensor rod, the switch passes into No Nc states. According to the placement direction, detection of water present or absent is provided.

Features:

•     Liquid level sensor
•     Contact: NC Vertically mounted at the top
•     Maximum power: 10W
•     Maximum Switching Voltage: 100V DC
•     Maximum Switching Current: 0.5A
•     Contact resistance: 100 mohm
•     Operating pressure: 1Mpa Maximum
•     Temperature: -10C  /  85C
•     Material: Plastic
•     Mounting hole: 10mm

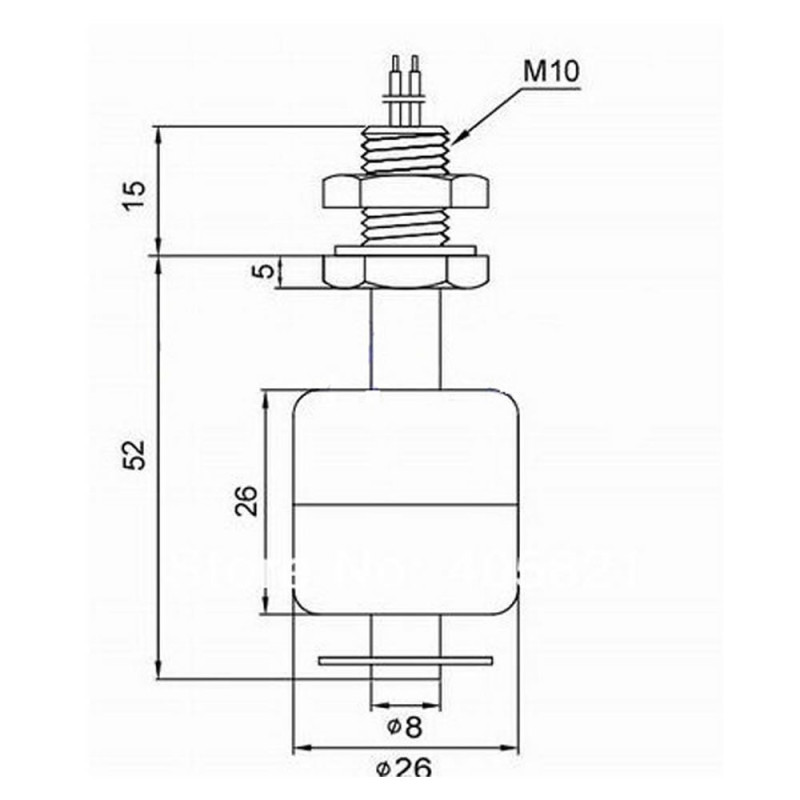

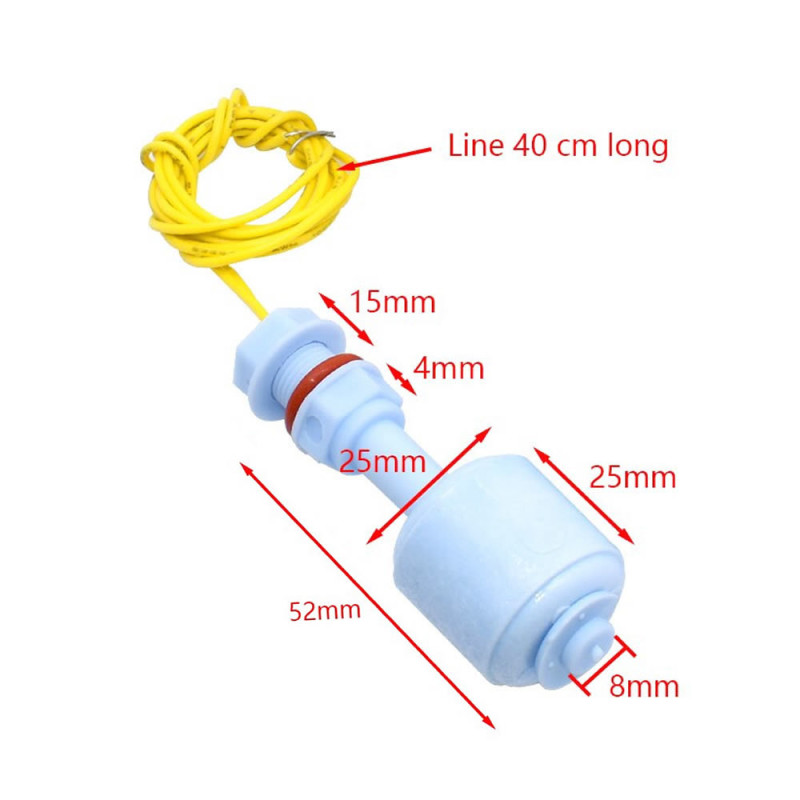

•     Dimensions: 52(67)mm x 24mm
•     Cable length: 40cm
•     Weight: 15gr

Package Contents:

•      1 Piece Water Level Sensor 52mm
