A2212 930KV Brushless Motor

A2212 930KV Brushless Motor
2S/ 3S Lipo RC Model Plane Helicopter Multicopter Drone Quadcopter Fpv Racing High Power Bldc Lipo

     The A2212 930KV brushless motor is a powerful motor offering high speed and efficiency. It is designed to be used in your hobby projects such as drones, RC planes and helicopters. Thanks to its brushless structure it produces less heat and provides long life performance. With its light and compact structure it is ideal for small sized model vehicles. The 930KV motor is an excellent choice for applications requiring high torque. Thanks to its balanced rotor design it reduces vibration to a minimum level, thus offering a trouble-free usage experience. When run together with a suitable esc driver it provides superior control.

Features:

• A2212 930KV Brushless Motor
• Speed (KV): 930KV
• Maximum power: 109W
• Operating voltage:   7.4V  /  11.1V
• Battery cell count: 2S / 3S Li-Po
• Current:  9.8A    (Requires a cooler in long duration use)
• No load current:  10V 0.5A
• Maximum thrust power:  1000/1200gr  (3S)
• Efficiency:   %80
• Connection type: 3 phase cable ( banana connector compatible )
• Application area: RC drone, plane and helicopter projects
• Material: aluminum alloy body
• Operating temperature: -10C /  50C
• Color:  Metallic gray / Gold

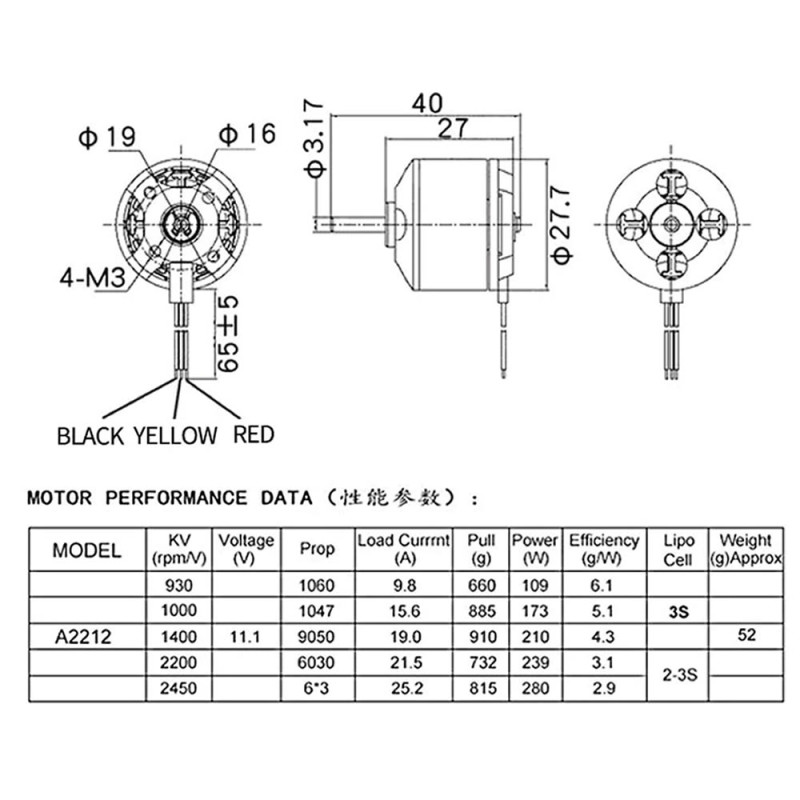

• Mounting holes: Standard cross mounting (25mm x 25mm)

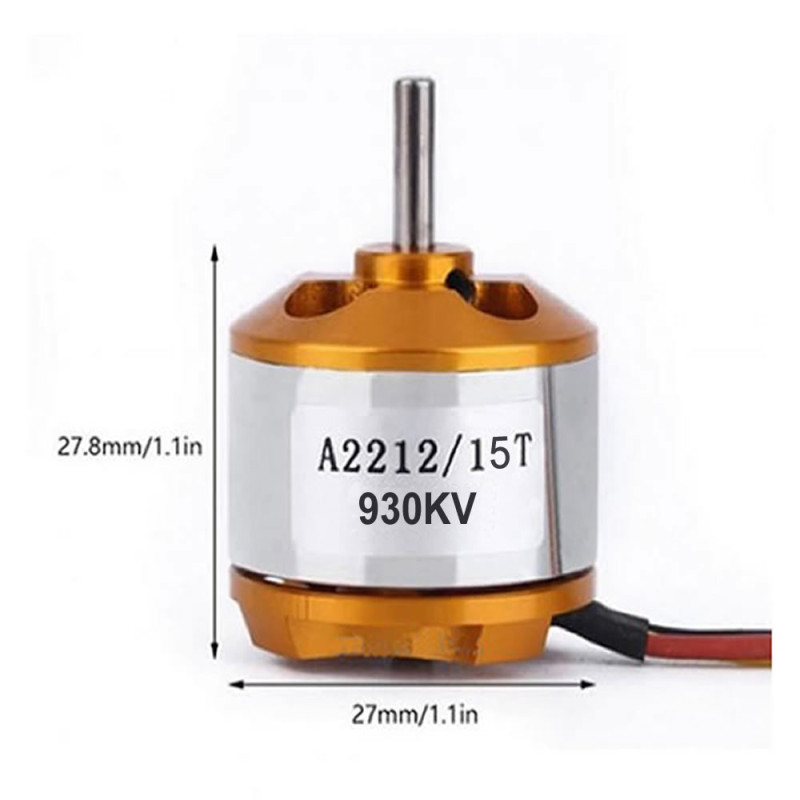

• Dimensions: 27.5mm x 30mm
• Shaft Diameter: 3.17mm
• Color:Yellow
• Weight: 54gr  ( 67gr including accessories )

Package contents:

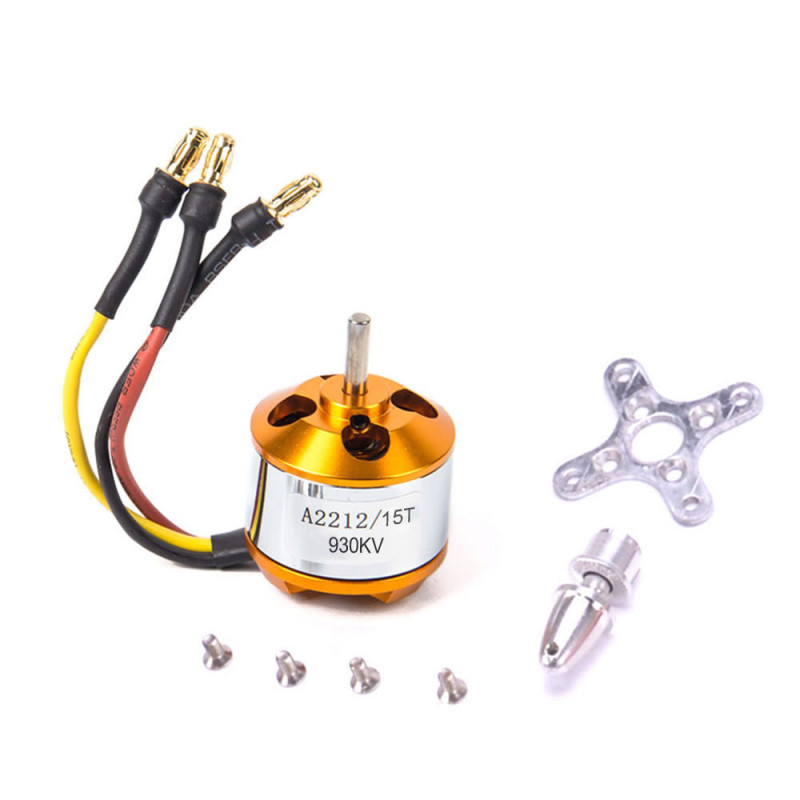

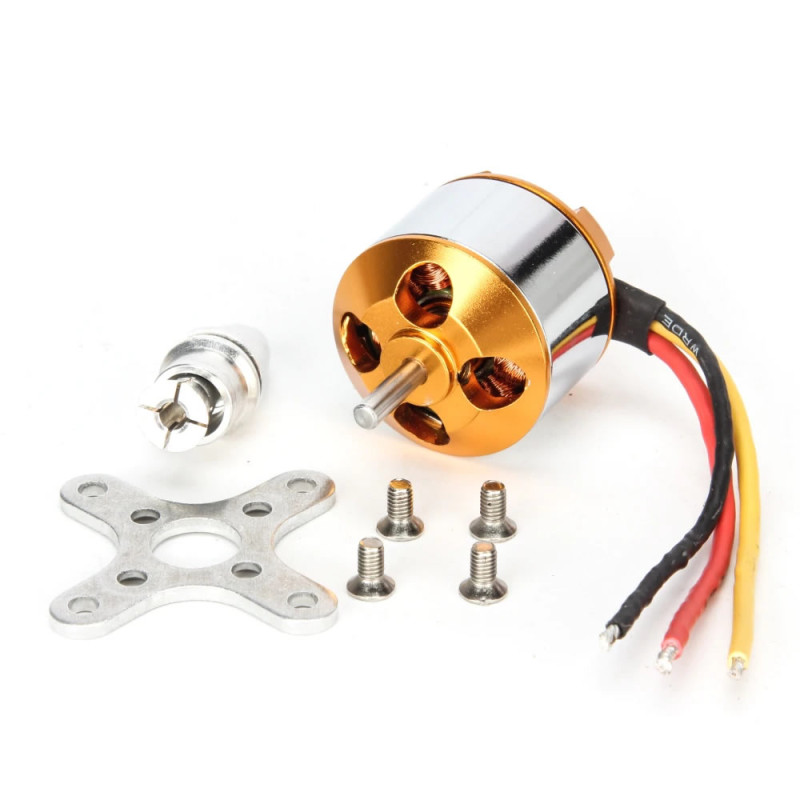

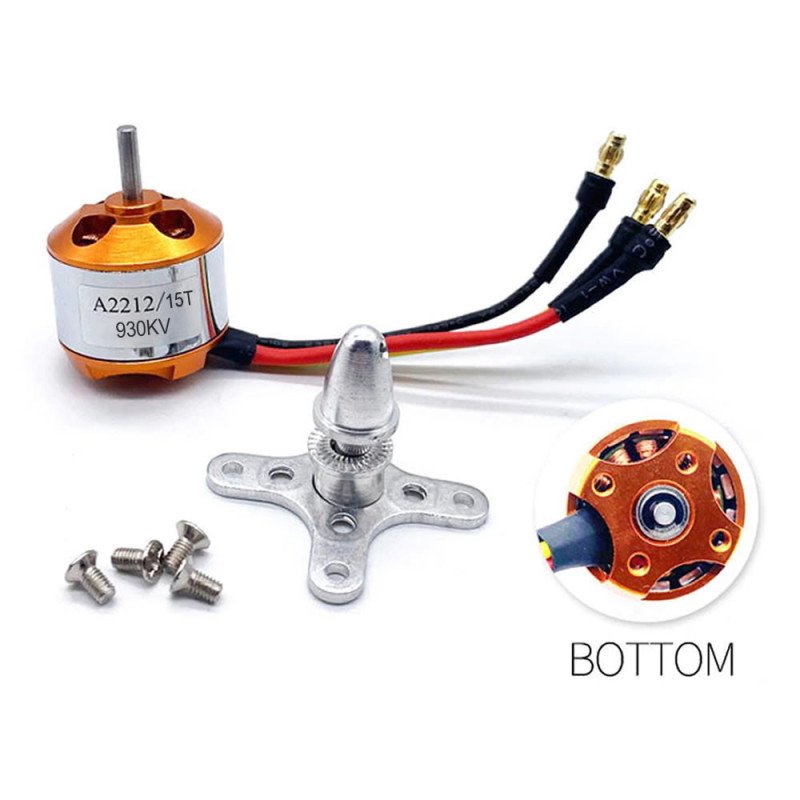

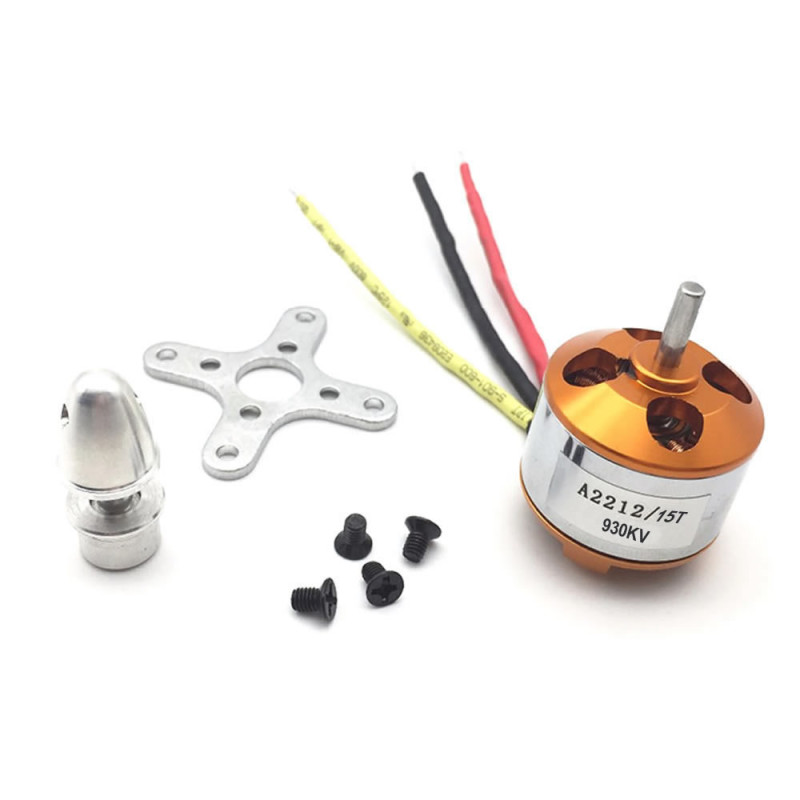

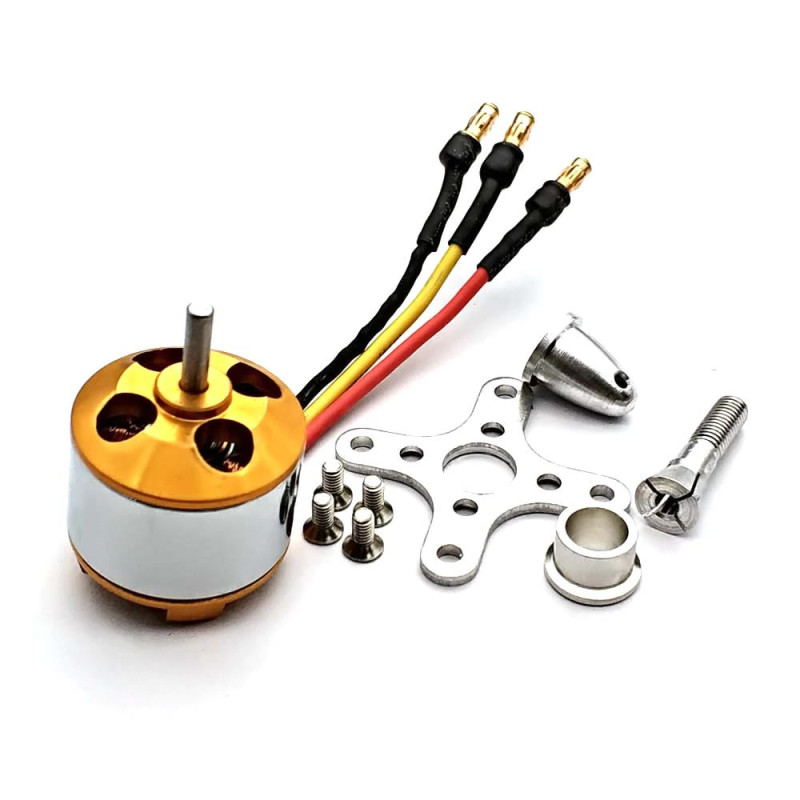

•    1 Piece A2212 930KV Brushless Motor
•    4 Pieces Screw

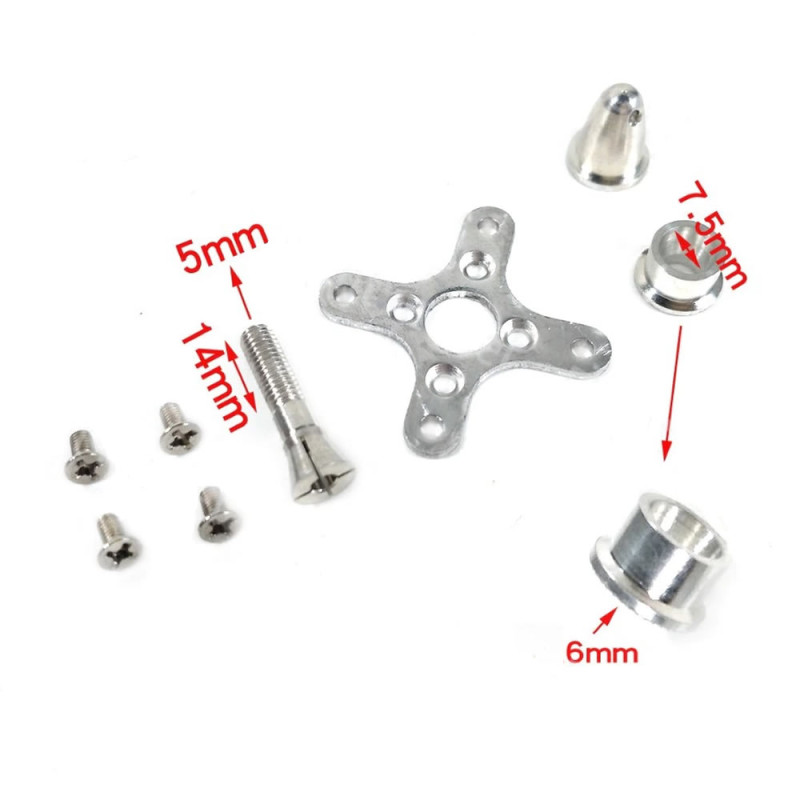

•    Various motor parts ( Picture 4 )
