DC 5V Beam Sensor Pair 30cm

DC 5V Beam Sensor Pair 30cm

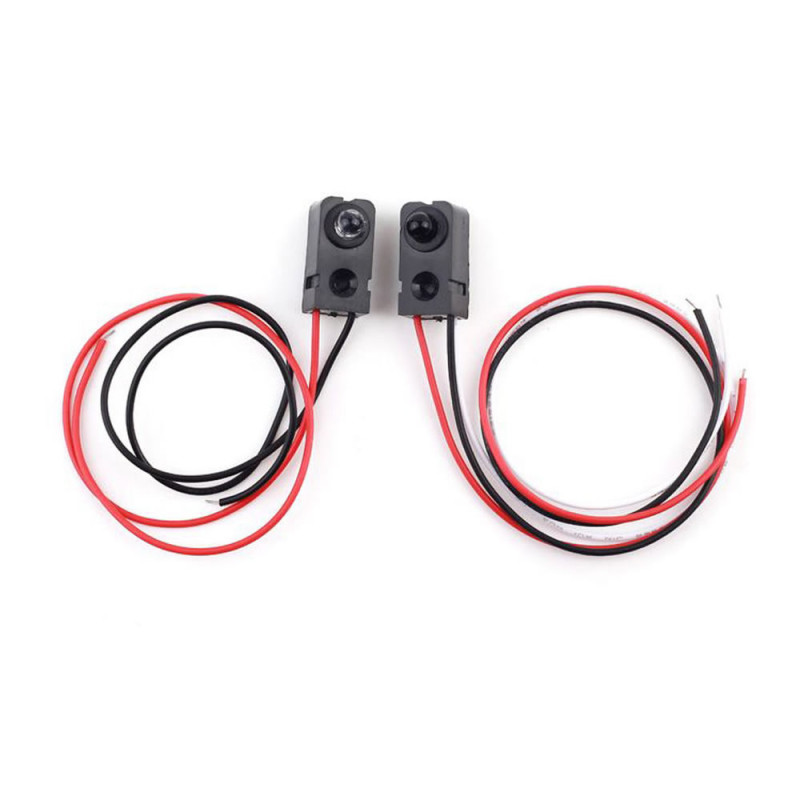

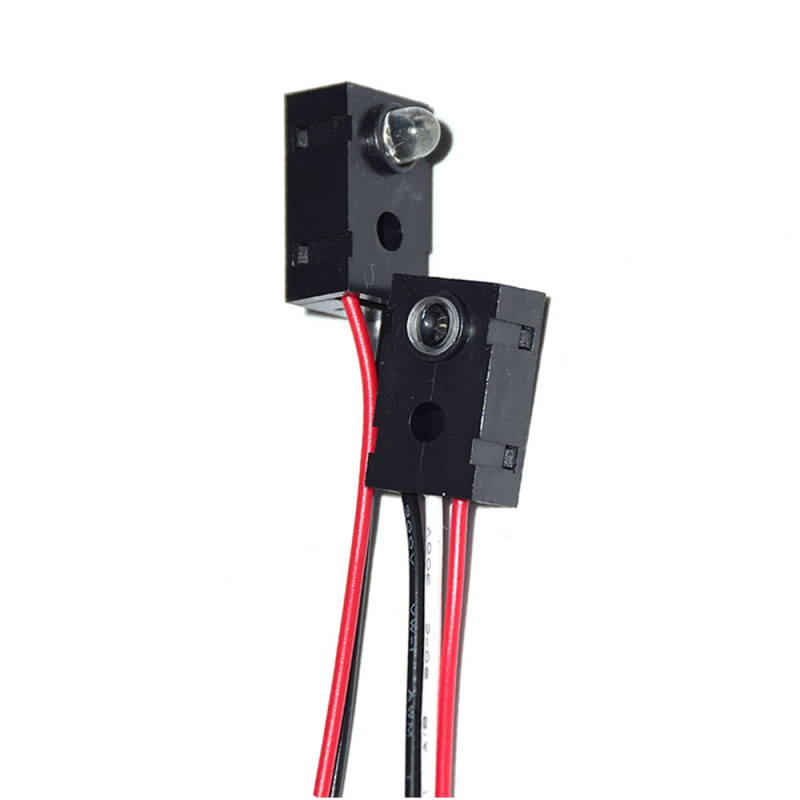

       It is a sensor pair consisting of 1 infrared beam transmitter and 1 infrared beam receiver. It detects an object entering between the 2 sensors.  It is used to perform object detection in places such as windows, doors and various passage points.  It can also be used in applications such as product counting with product passage on production lines.  Normally, if there is no obstacle in between, there is 5V on the output pin. When an obstacle occurs, there is 0V.

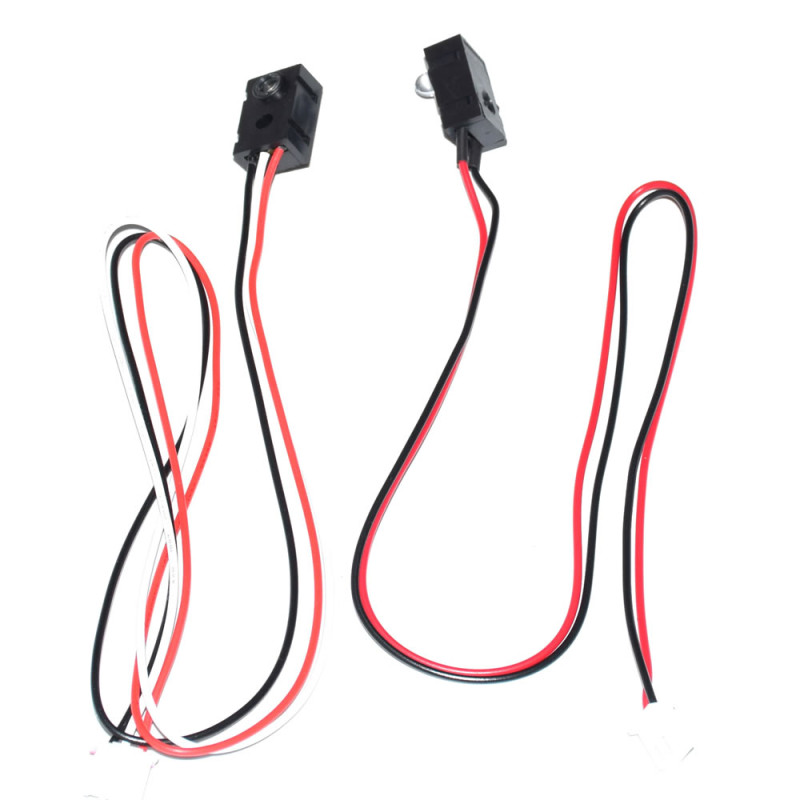

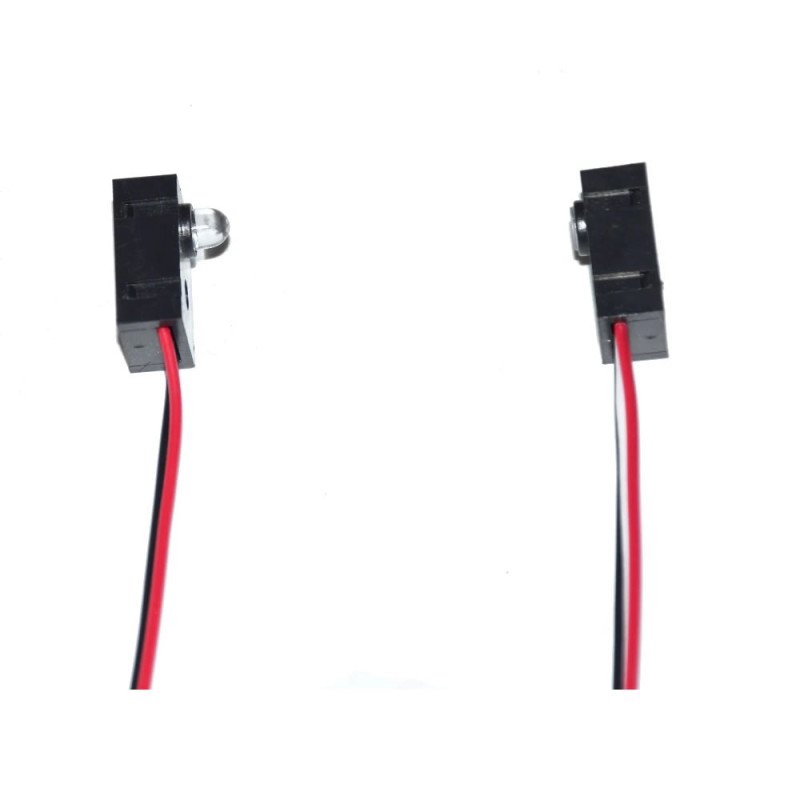

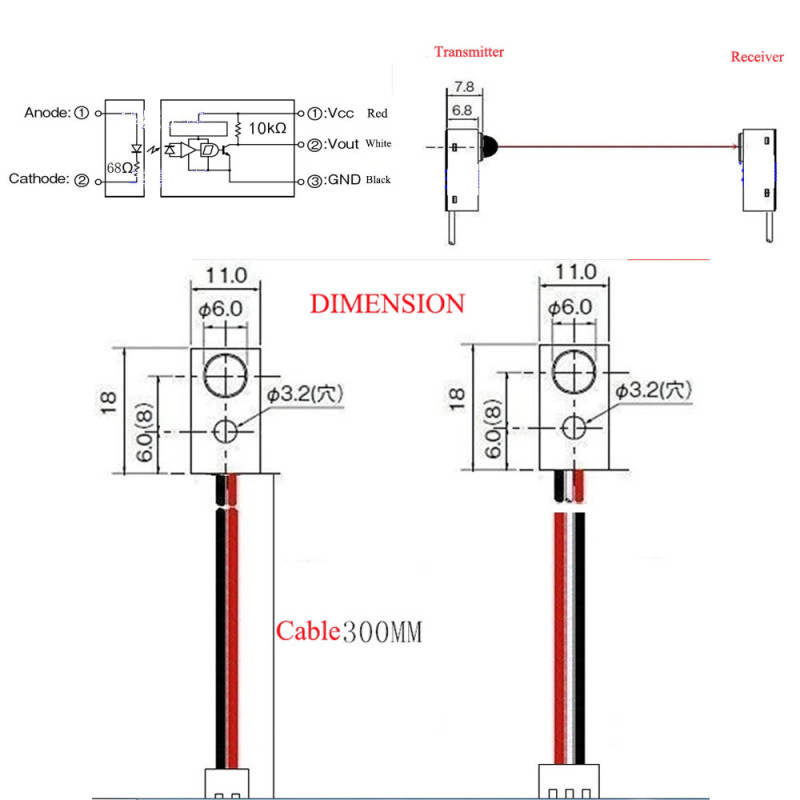

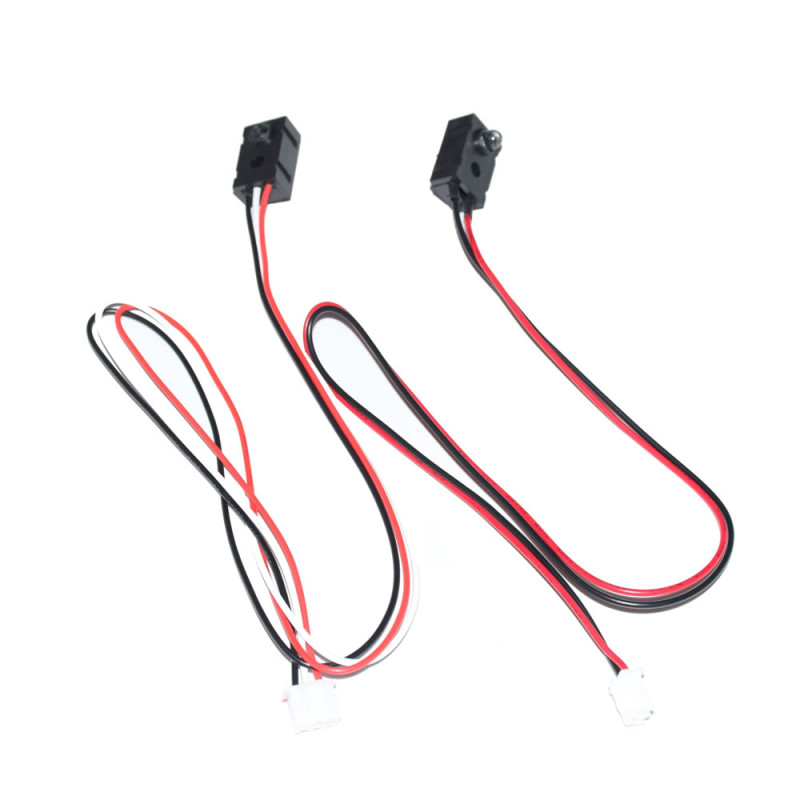

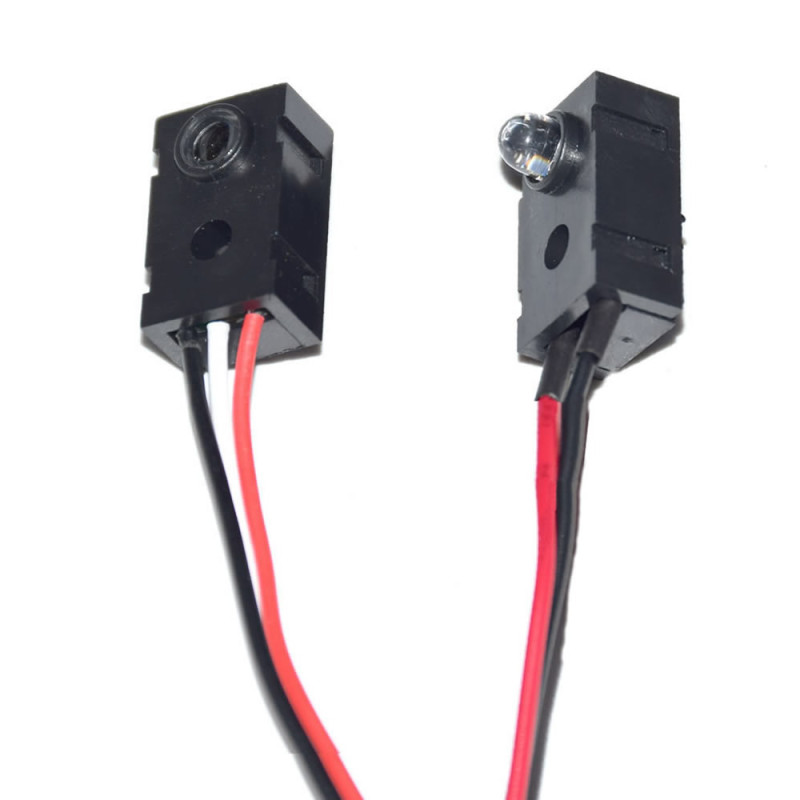

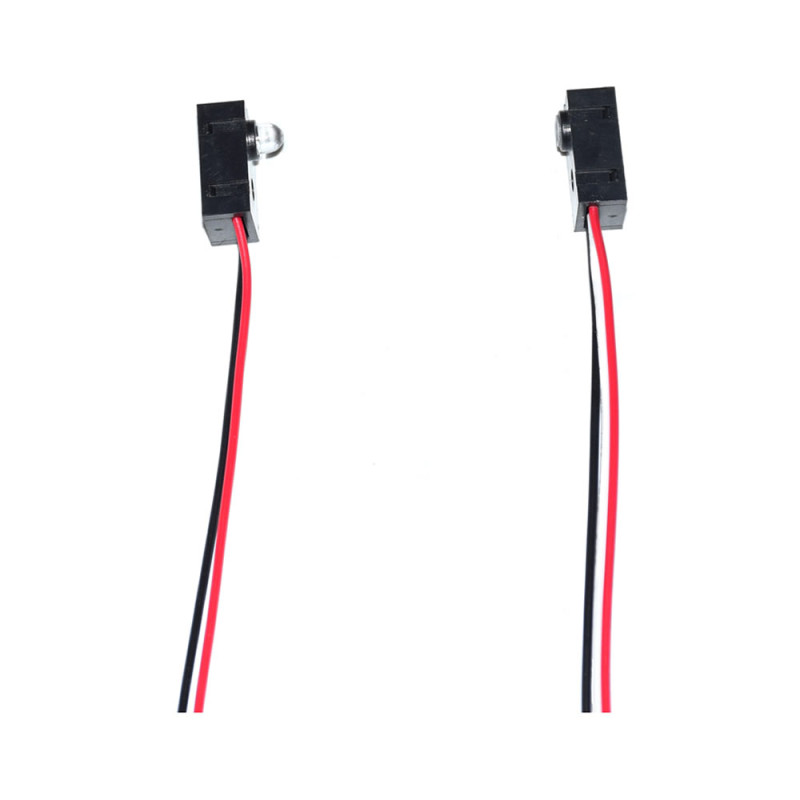

• The 3 pin sensor is the receiver. The 2 pin one is the transmitter.
• Red Cable: 5V
• Black: 0V
• White ( Only on the receiver ): Output Pin

Technical Specifications:

• Infrared beam sensor pair
• It passes water, it is suitable for indoor use.
• Operating distance: 1 meter
• Operating voltage: DC 5V
• Operating current: 200mA
• Output current: 15mA ( It can drive a relay directly. )
• Output : NPN (NC, normal close )
• Sensor Angle: +-10°
• Response time : 2ms
• Mounting hole
• Operating Temperature: -25C - 60C
• Cable length: 30cm
• Weight: 6gr

Package Contents :

•     1 Pair  Receiver Transmitter Beam Sensor 30cm
