BMP280 Digital Air Pressure Sensor

BMP280 Digital Air Pressure Sensor

-500/9000 Meters 300/1100hPa Barometer Mobile Phone Watch Elevator Altitude Sports  Weather Health Devices Vertical Speed Measurement Drone Helicopter

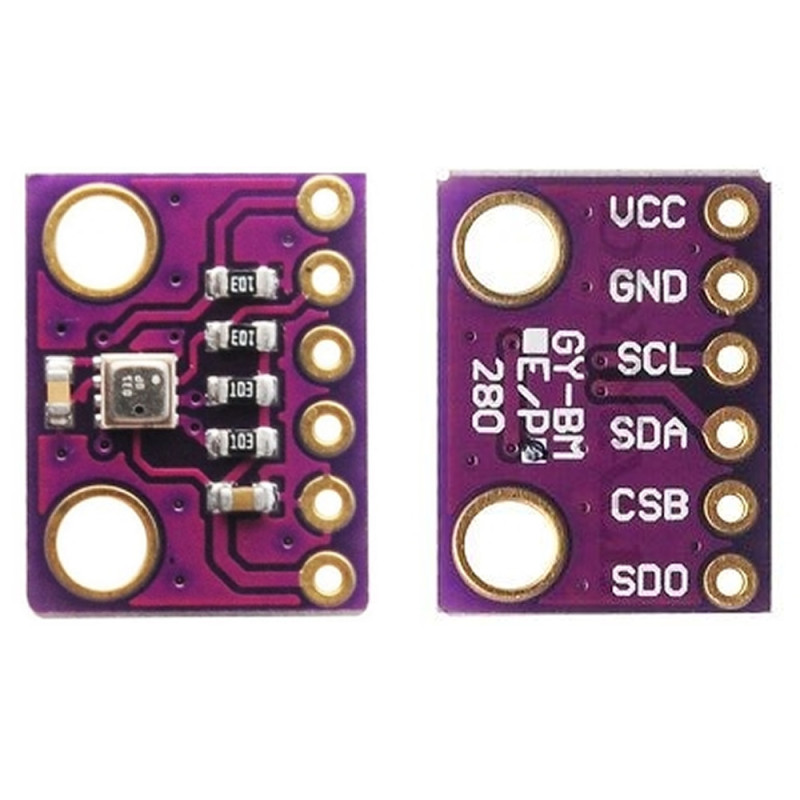

     It is a pressure sensor built using the Bosch BMP280 sensor. It is a sensor module that measures the pressure in the air and gives a digital output. It also allows altitude to be measured based on the air pressure. It can be used in many applications, primarily various multicopter projects. Communication can be established in I2C and/or SPI communication format.

     The BMP280 can measure pressure values between 300 / 1100 hPa and provides information about altitude between -500 meters and 9000 meters. It has a very high resolution of 0.01 hPa (< 10 cm). It has low current consumption, high accuracy and low emc interaction.

Features:

• IC: BMP280

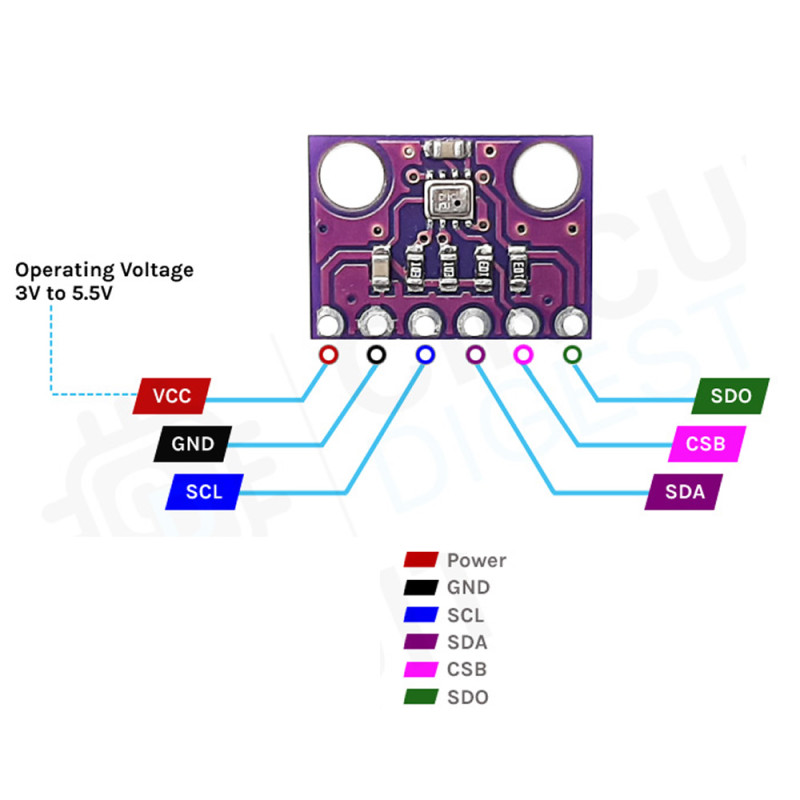

• Operating voltage:  Dc 1.62V/3.6V
• Operating pressure: 300/1100 hPa   ---   4.35PSI/15.95PSI
• Pressure range:  -500 / 9000 Meters
• Low noise: 0.02hPa (17cm)
• Calibrated

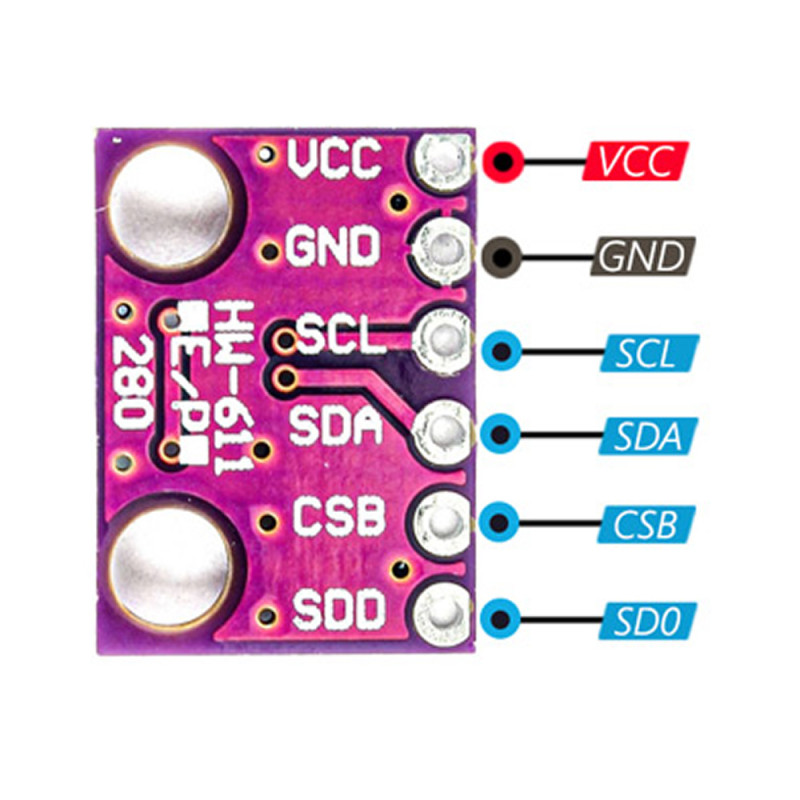

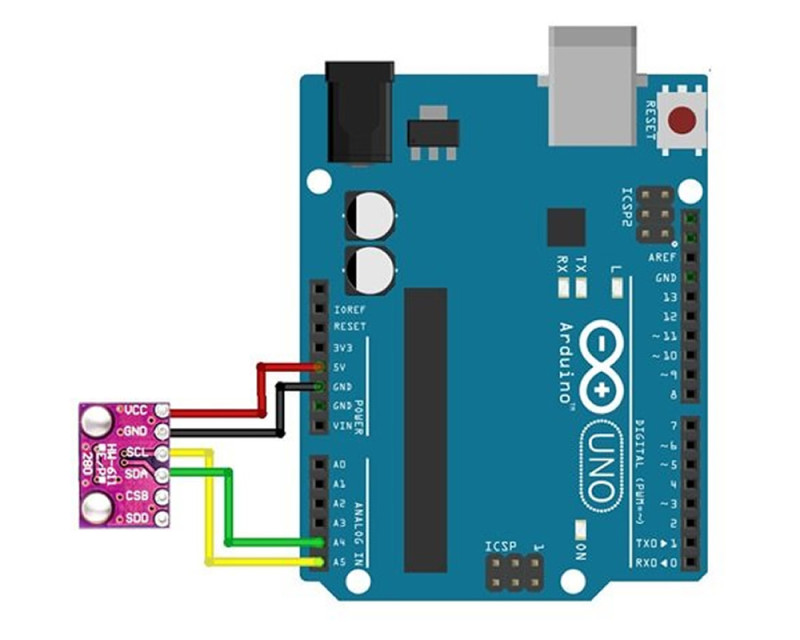

• Communication type:  IIC / SPI
• Output:   16 / 19 b
• Accuracy:    +-1 hPa
• Resolution: 0.01 hPa ( < 10 cm 0.01C )
• Temperature coefficient:   1.5 Pa/K  /  12.6 cm/K
• High accuracy linear measurement result
• Low emc interaction
• Color: Purple
• Operating temperature:  -40C  / 85C
• 2 mounting holes

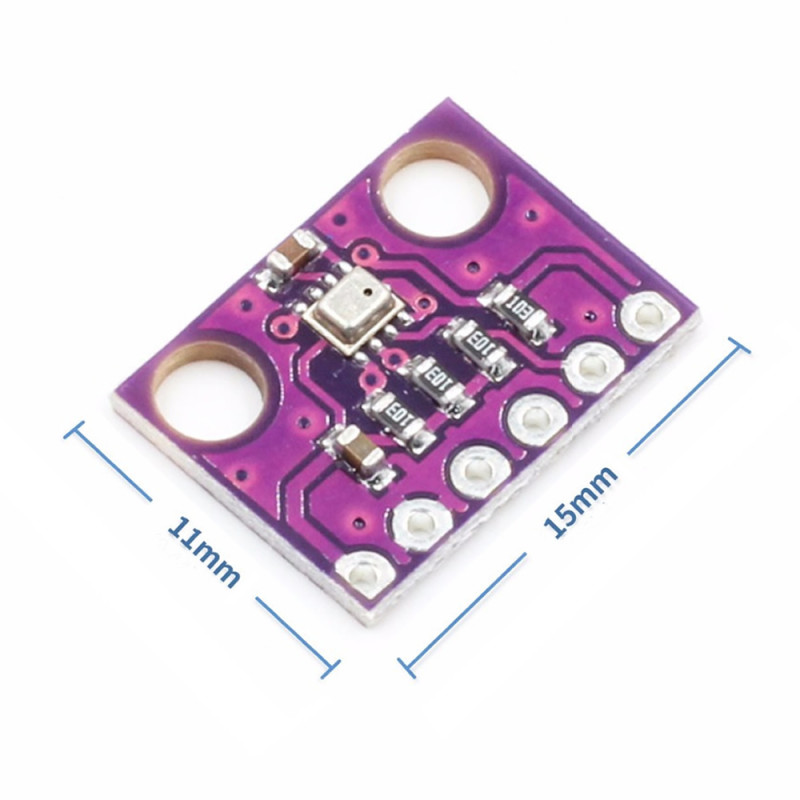

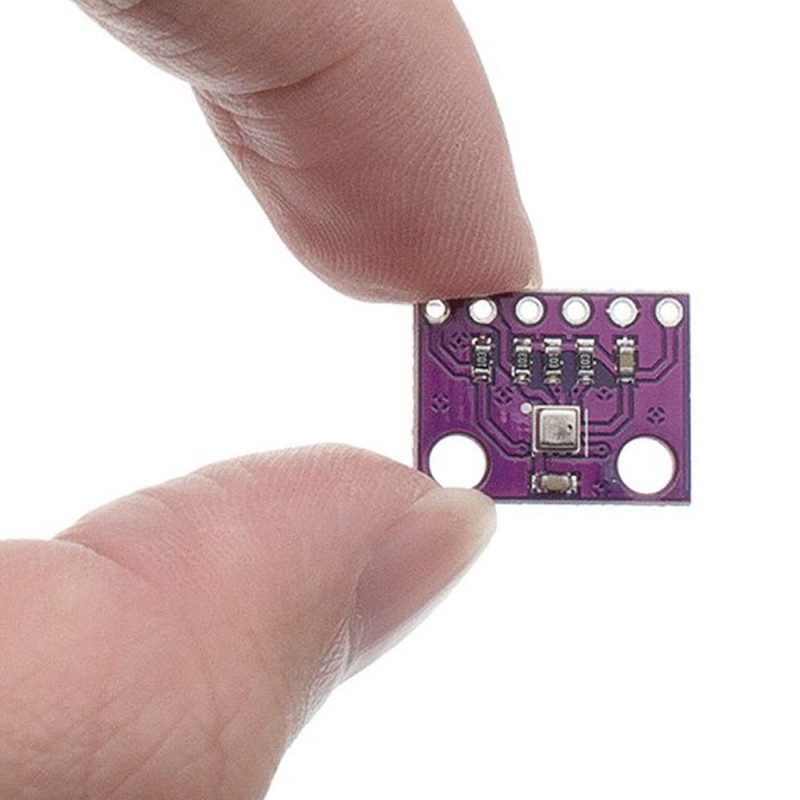

• Dimensions: 11mm x 15mm
• Weight:   1.5gr

Software: electropeak.com/learn/interfacing-bmp280-barometric-pressure-sensor-module-with-arduino/

Package Contents:

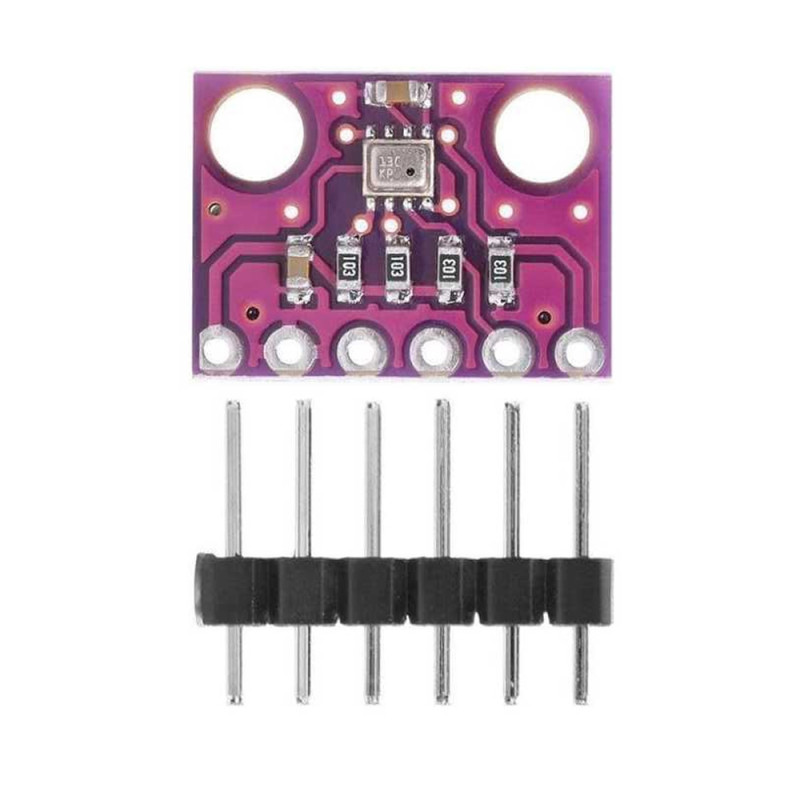

•   1 pcs BMP280 Sensor

.
