Dual Usb Output 30V to 5V

Waterproof Dual Usb Output Power Supply

12V/24V to 5V 1A 2.1A Automobile Motorcycle Boat Vehicle Charger Panel Type Mount Plastic Protective Cover

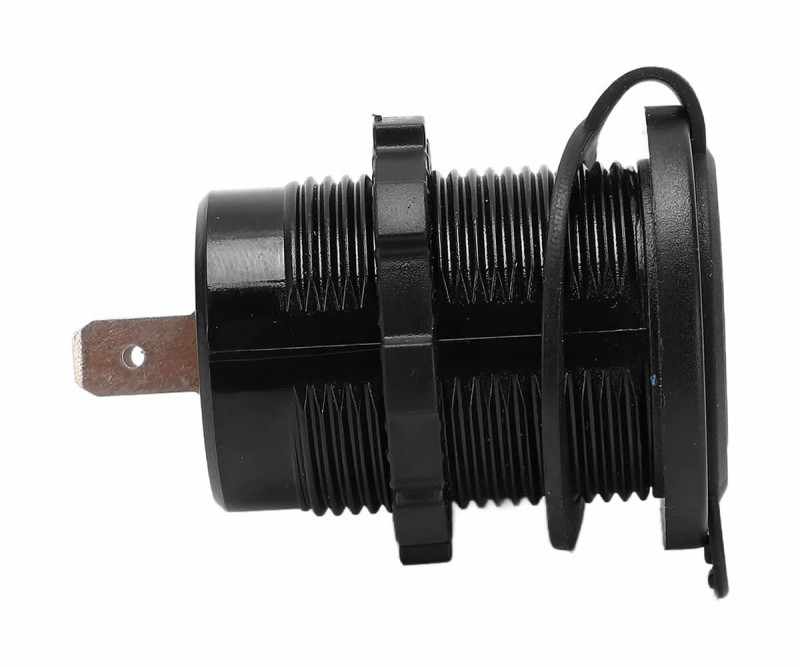

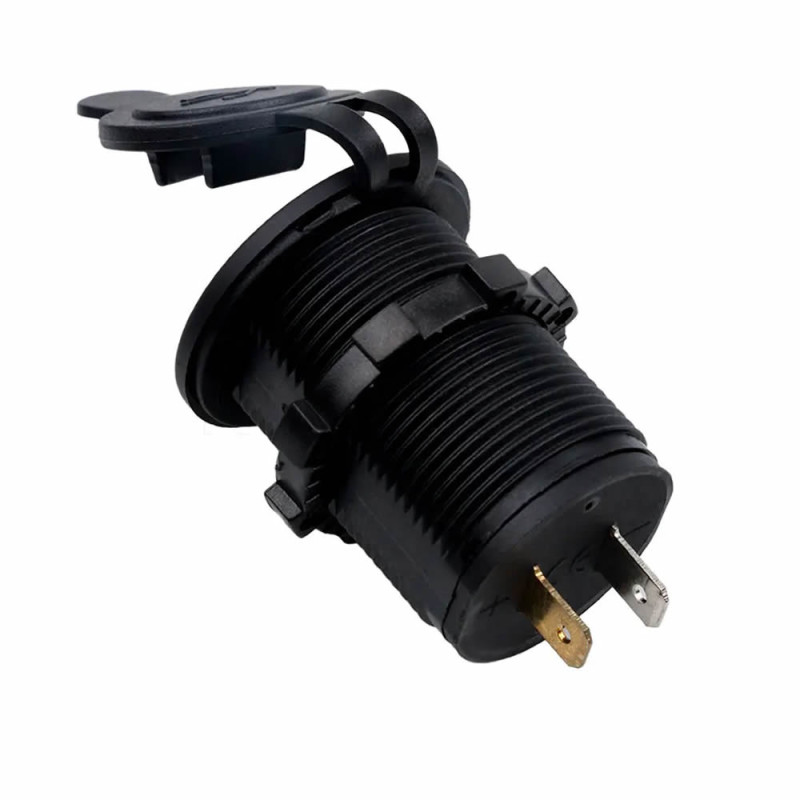

     It is a power supply module with 2 usb outputs in a waterproof case. It can be used with a supply voltage up to DC 30V. There are metal pins on the back part for 12V / 24V battery / supply connection. It has 5V 1A and 5V 2.1A usb outputs. 2 Usb can be used at the same time. It is widely used in vehicles such as cars, motorcycles, atv, boats, dinghies and similar.

     It is a round type plastic case suitable for panel mounting. There is an openable and closable plastic protective cover on the front part to protect it from dust and water. A 30mm hole must be drilled on the mounting surface. It can be used in outdoor environments with products such as motorcycles, scooters and cars.

Features:

• Dual usb output 30V to 5V
• Supply voltage: DC 6V / 30V ( If a higher voltage is applied, the product will be damaged. )
• Usb output: 2 Pieces  ( 1A / 2.1A )
• Waterproof IP66 protection
• Reverse connection protection available
• High voltage protection
• Over current protection
• High temperature protection
• Short circuit protection
• Blue indicator led
• Operating temperature:  -10C / 75C
• Black plastic case
• Usb sealing plastic for waterproofing
• Mounting hole diameter: 29mm
• Dimensions:  37mm x 54mm
• Weight: 25gr

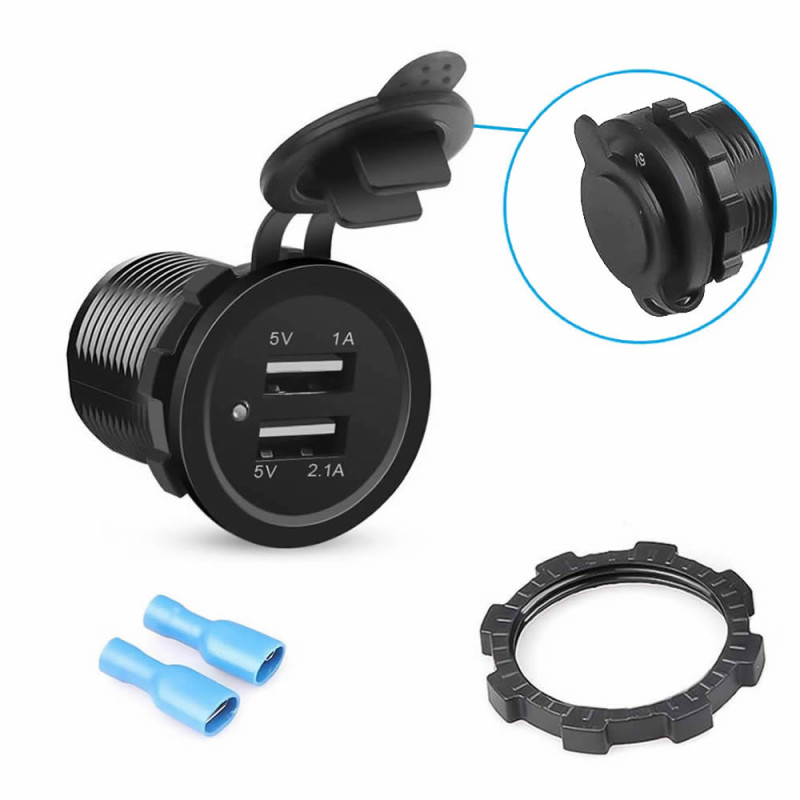

Package contents:

•      1 Piece Dual Usb Output 30V to 5V Converter
•      1 Piece Front usb protection plastic
•      1 Piece Mounting clamping plastic part
•      2 Pieces protection heat shrink tube
