DY-SV17F MP3 Module

DY-SV17F MP3 Wav Audio Playback Module

4Mbyte Memory Class D Amplifier 5W 4-8Ohm Speaker Microusb Uart Button Triggering Product Museum Automobile Telephone Voice Guidance

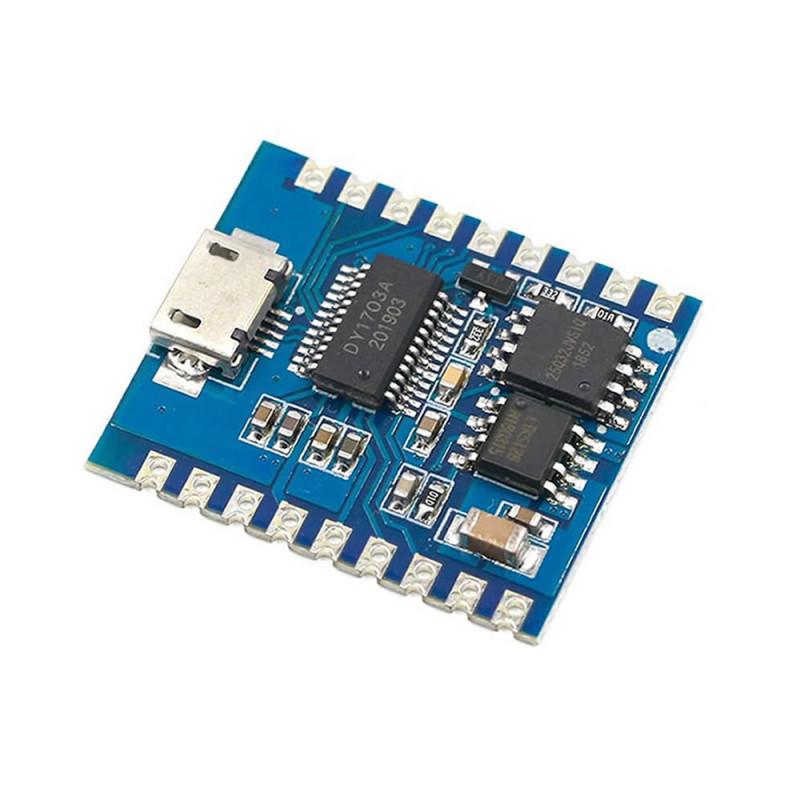

     DY-SV17F is an advanced audio module. It supports mp3 and wav audio formats. There is 4mbyte flash memory on the board. It has a 5w audio amplifier chip.

     By connecting directly to the pc through the usb socket, you can upload and delete audio files. It is automatically recognized as a usb drive on the pc. It can be controlled over the serial port.

     It has widespread use in many areas such as vehicle navigation, road direction payment guidance systems, train and bus security control voice guidance systems, telephone guidance systems, museum product presentation systems, automatic broadcast systems and so on.

Features:

• Series: DY-SV17F
• MP3 and WAV format support
• Microusb connection support
• Sampling Frequency (KHz): 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48
• DAC Output: 24bit
• Dynamic Range: 90dB
• SNR: 85dB
• Memory: 32Mbit (4MByte) flash
• 5W class D audio amplifier
• Can drive a 4Ohm 3- 5W speaker.

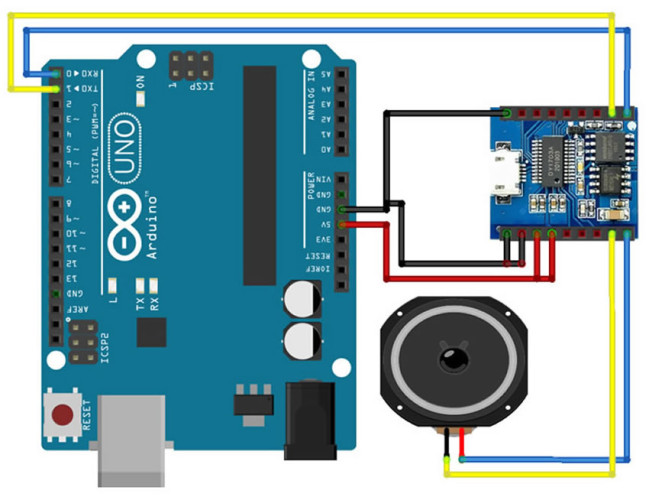

• Control over UART. File selection, stop, volume up and down.
• Control over One line ( Single Wire ). playback, pause, track selection.
• Communication Speed: 9600bps
• Control capability over 8 IO ( button etc )
• Color: Blue
• Operating temperature:  -10C  / 85C

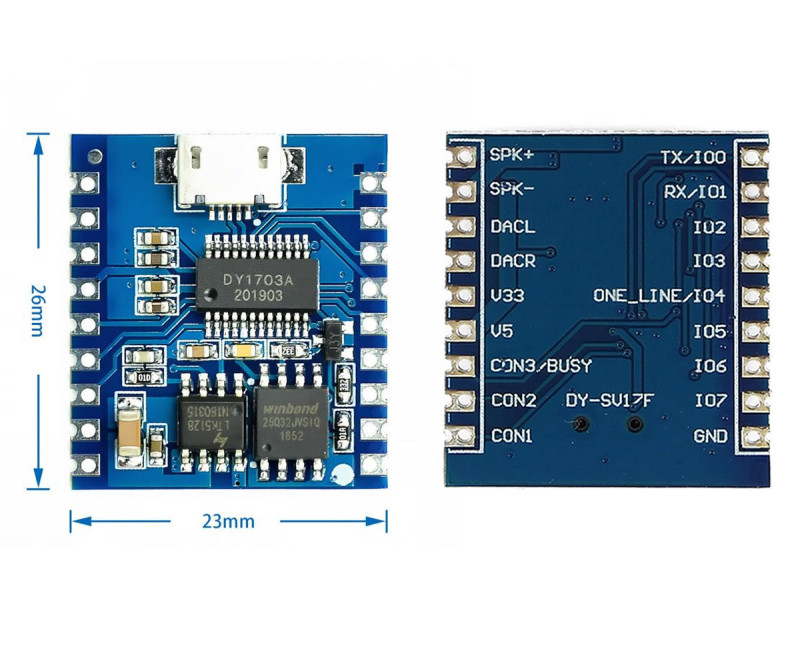

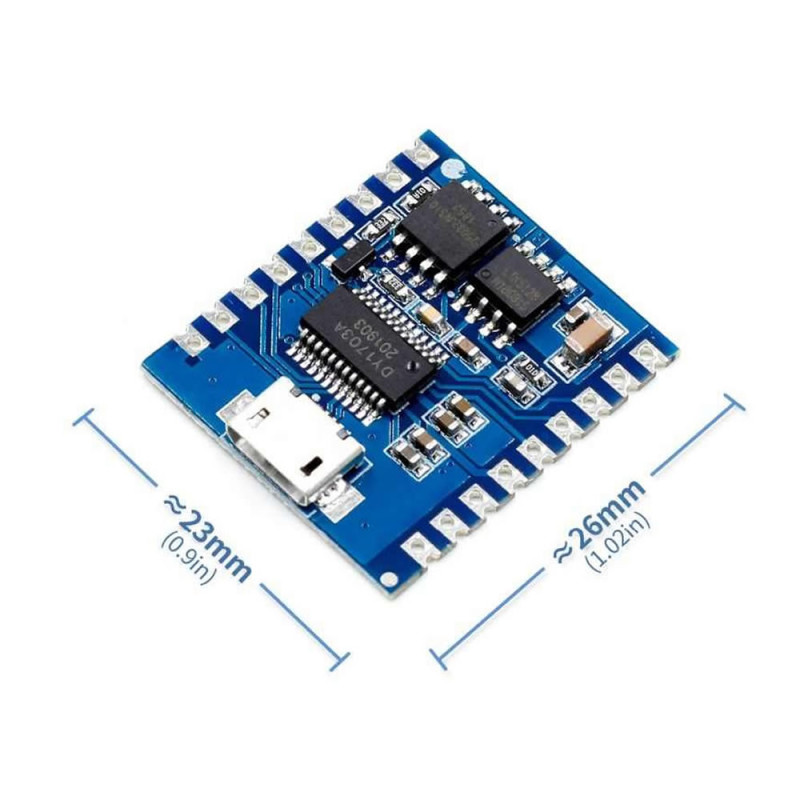

• Size:  23mm x 26mm
• Weight: 2.5gr

Package Contents:

• 1 Piece DY-SV17F Audio Playback MP3 Module

.
