ESP-01 USB Adapter V1

ESP-01 CH340 Usb Connection Adapter with Reset Button

Esp01 Esp8266 Esp-01s Wifi Module Setting Firmware Update Programming Usb Serial Converter 3.3V

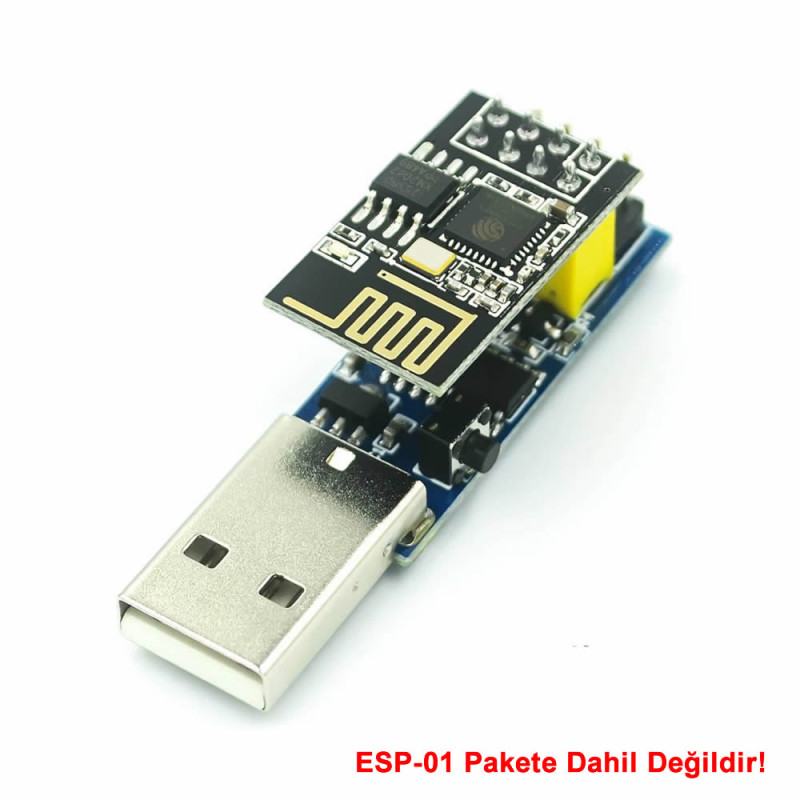

     It is a usb adapter board for the ESP8266 ESP-01 module. With this adapter board you can connect your esp8266 board to the pc. In this way, the possibility of easily programming your module and making the necessary settings is obtained. It can also be used for wifi serial port applications. Thanks to the reset button on the board, the esp-01 can be put into programming mode without the need for an additional circuit part.

    The programmer is powered from the USB port and does not require an external power supply. Without the need for a cable connection, it enters automatic programming mode with the wifi module.

     Esp-01 programming: When the GPIO0 pin is connected to ground and you press the reset button, the esp-01 goes into programming mode. In this case, a com port is created on the pc. With this com port number, the necessary port selection is made in the arduino ide. Afterwards you can continue with the programming operations.

Features:

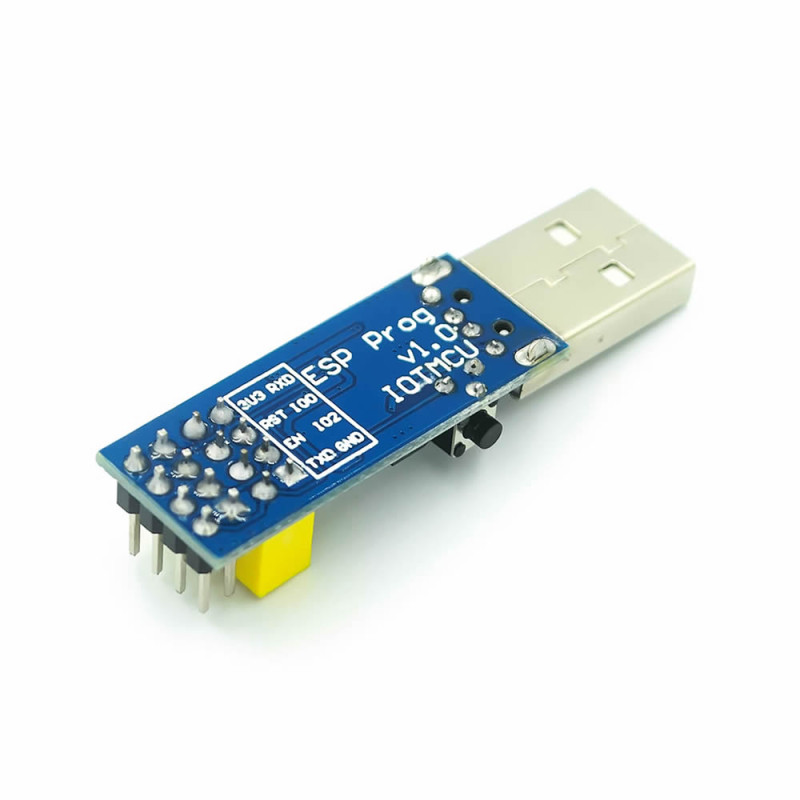

• Model:  ESP Prog v1.0 IOTMCU
• It is compatible with ESP-01 ESP-01S modules
• Ch340 usb ttl converter
• 3.3V voltage regulator on the board

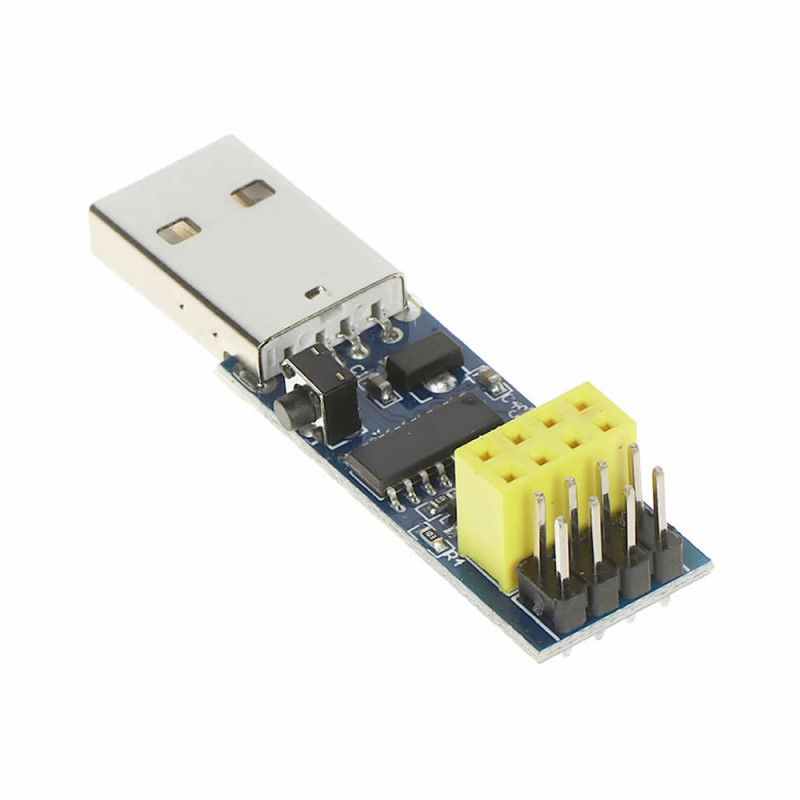

• 2x4 pin female header socket for mounting the Esp-01.
• Parallel 2x4 pin male header socket to access the Esp-01 pins.

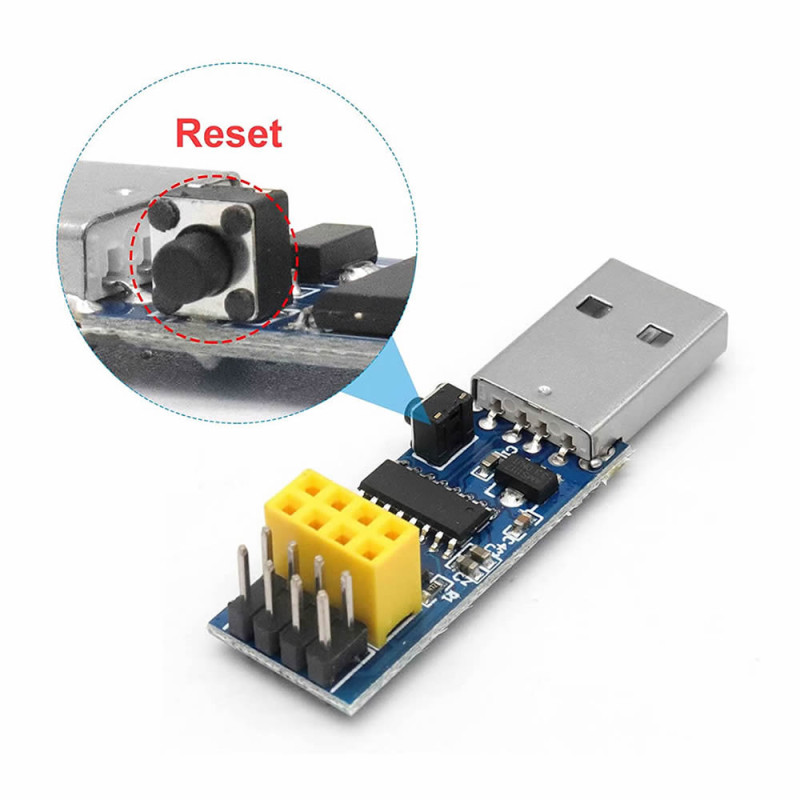

• Reset button
• Color: Blue
• Operating temperature: -10C  / 85C
• Socket pin spacing: 2.54mm ( 100mil )

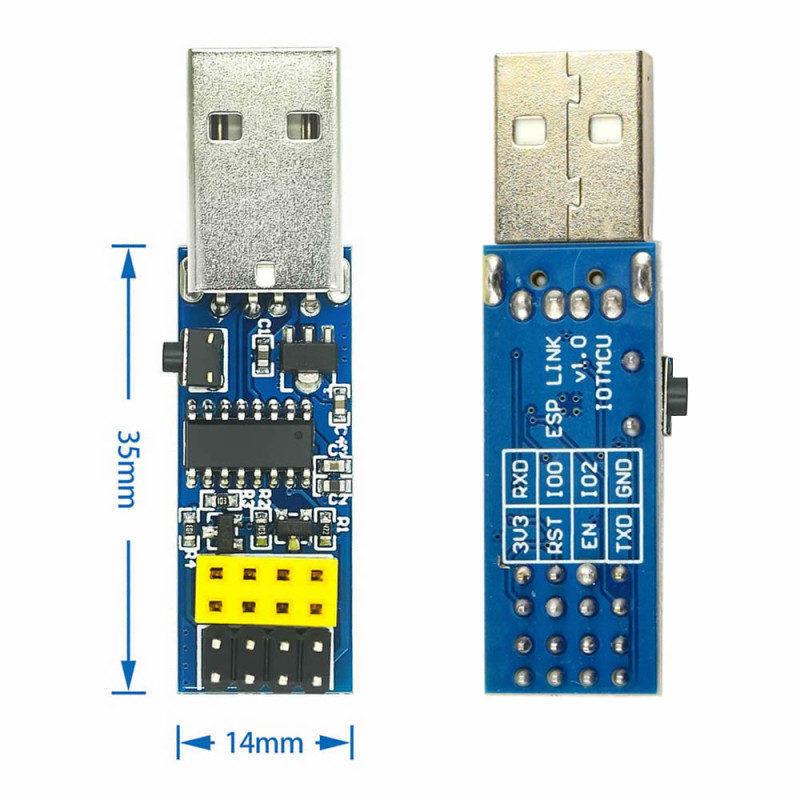

• Dimensions:  14mm x 35mm ( 50mm ) x 12mm
• Weight: 5gr

Driver : The CH341SER.EXE file must be downloaded via Google and installed. When you connect the board to the computer, a new com port is created in “ports”. This com port is selected and used in the program to be used.

wch-ic.com/products/CH340.html

Package Contents :

•     1 Piece ESP-01 USB Adapter V1

.
