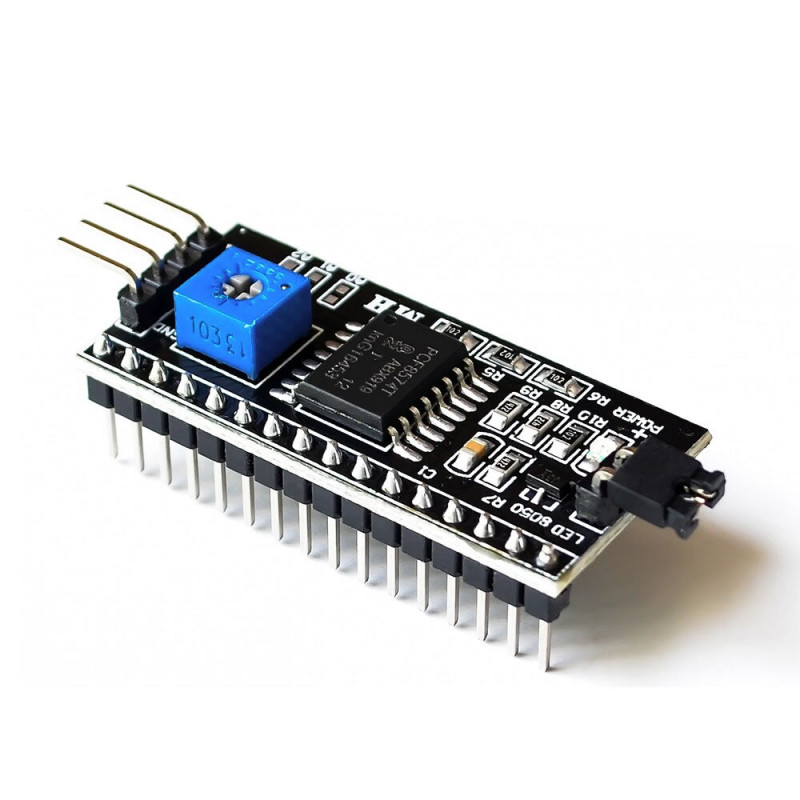

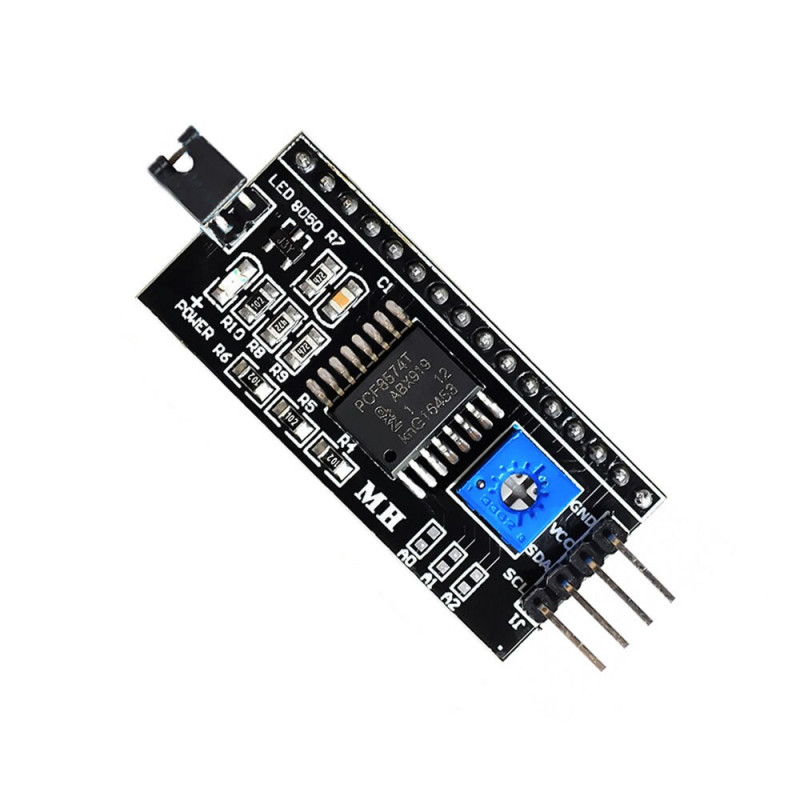

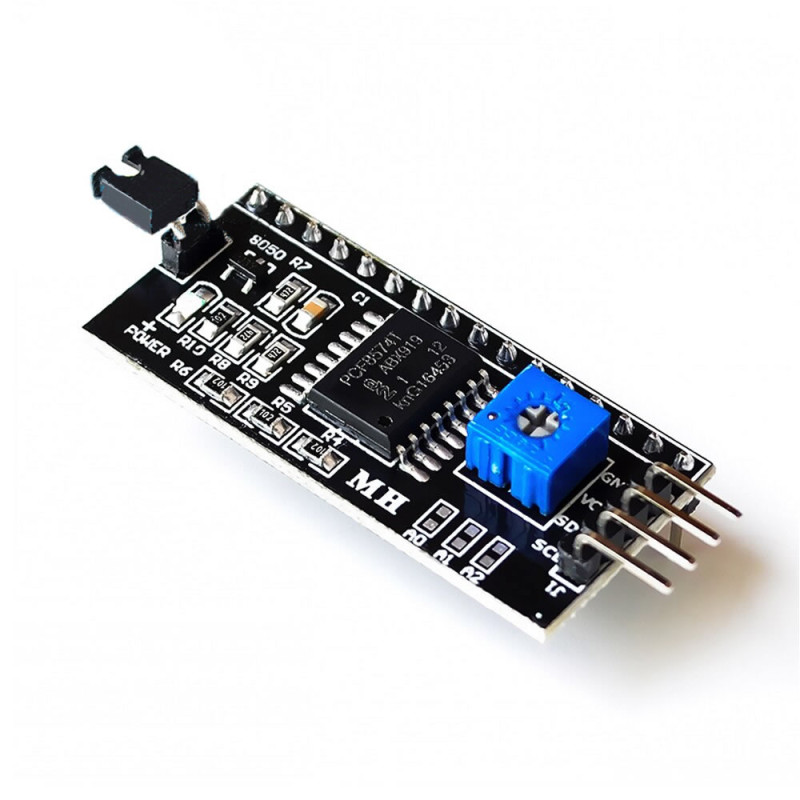

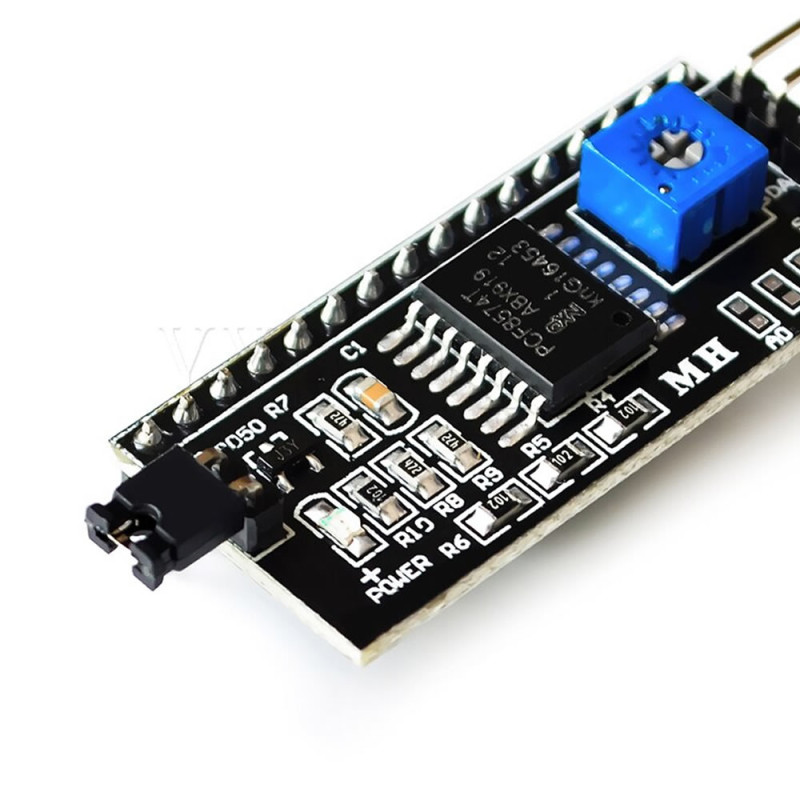

IIC I2C Serial Lcd Module Board

IIC I2C Serial LCD Module

PCF8574 Adapter Converter Driver Board 1602A 1604A 2004A Contrast Pot

The images are representative. An lcd is not included with the product.

     It was developed in order to be able to use character lcd modules such as 16x2 20x4 with 2 pins over the IIC communication protocol. Using an lcd with mcus and kits that have a low pin count creates a problem. When this module, communicated with over the I2c port, is used, there is the possibility of using the mcu pins that are gained for different jobs. In the case that standard lcds are driven in 4 bit, 7 io must be allocated to lcd use. However with this board an lcd can be driven with only 2 pins. You gain 5 pins. In addition, with the same I2c port, you can continue to use it in different circuits as well by defining an address.

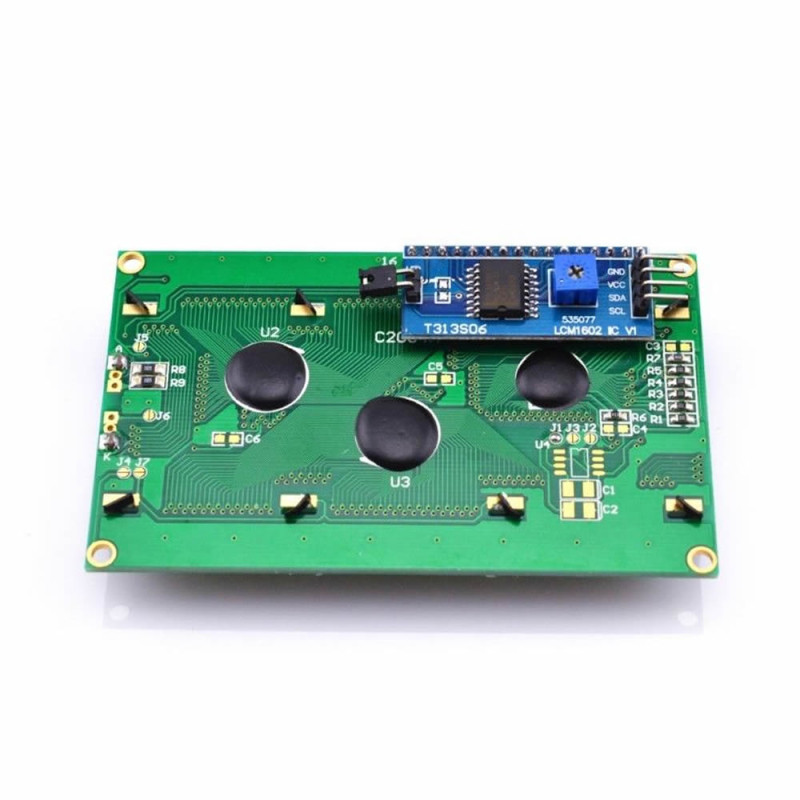

     On the board there is 1 pcs potentiometer for contrast adjustment. There is 1 pcs jumper switch to be used in the task of turning the backlight on and off.  A 16 pin male header is on the board for the lcd connection.  With its very small structure it takes up very little space behind lcds. It is very suitable for use in your projects.

Features:

•     Chip: PCF8574
•     Communication: I2C
•     I2C address: 0x27
•     Operating voltage: Dc 2.5V / 5V
•     IO count: 8

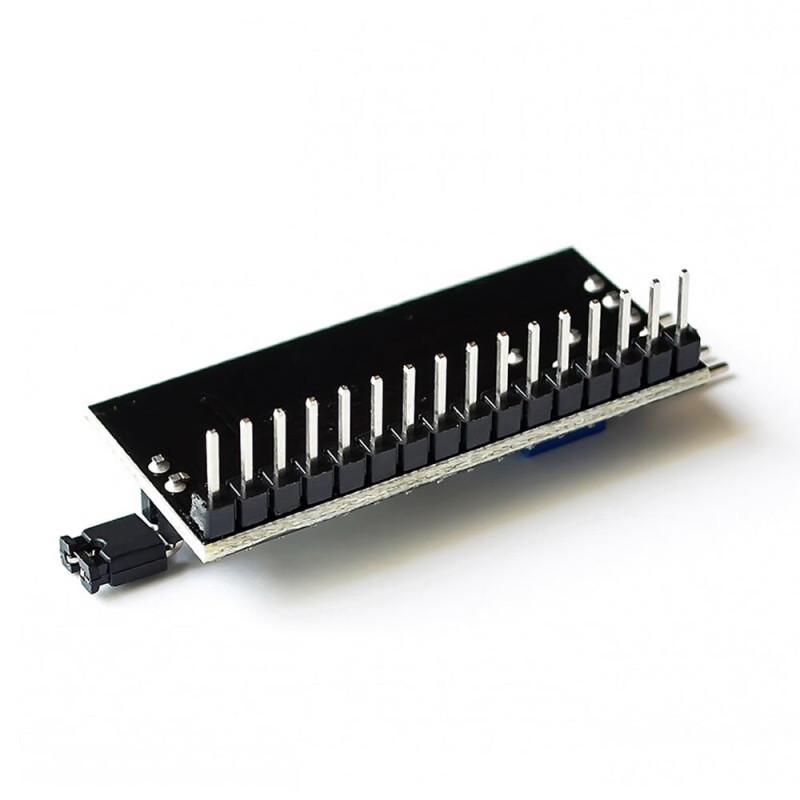

•     Male header connection socket to drive standard 16 pin lcds
•     Backlight contrast adjustment pot ( Clockwise increases the contrast )
•     Backlight control jumper
•     Power indicator led.
•     Lcds it is compatible with:  1602A,1604A, 2004A
•     Up to 8 pcs can be used by defining an address.
•     Material: Various electronic parts
•     Operating temperature:  -10C  /  85C
•     Color: Black
•     4 Pin male header communication port socket

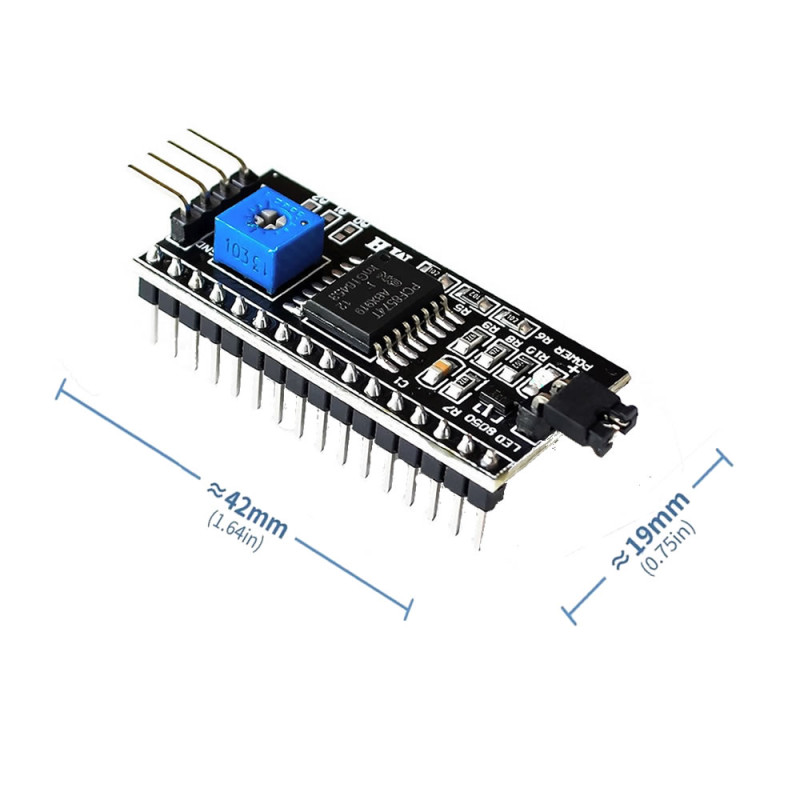

•     Dimensions: 20mm x 42mm
•     Weight: 5gr

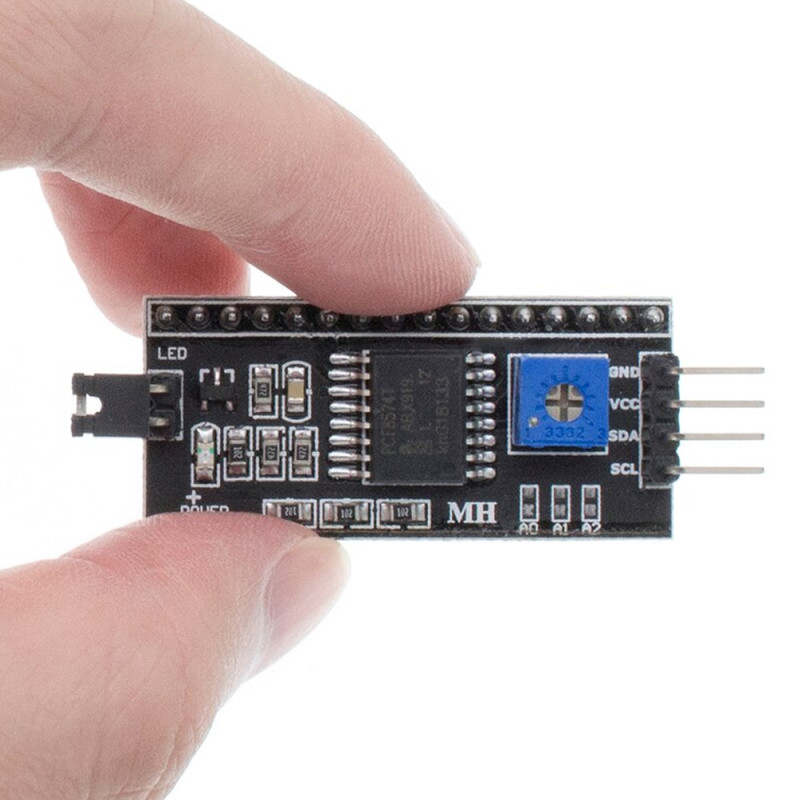

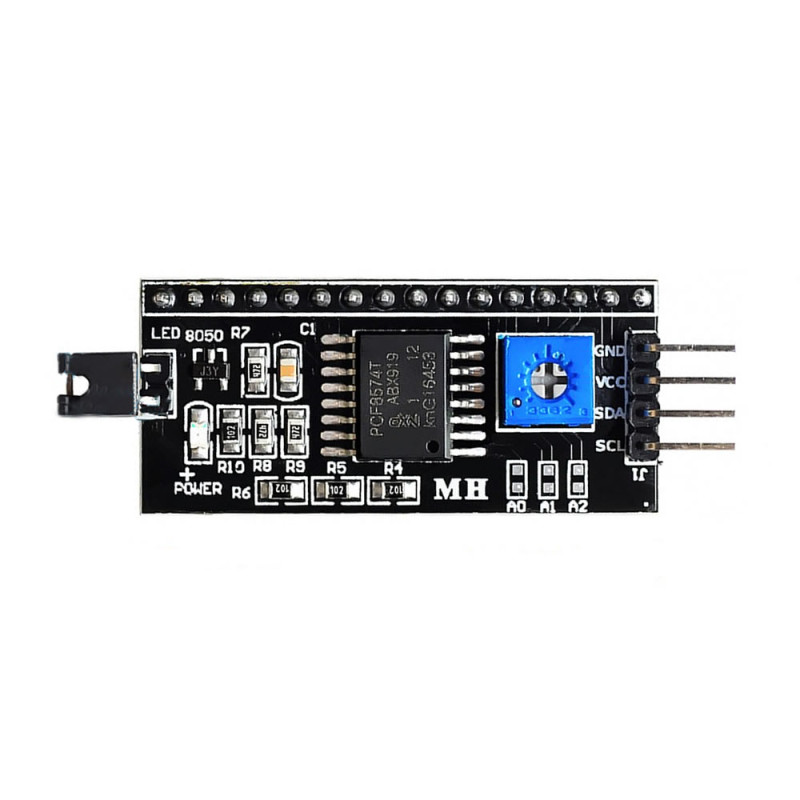

Pin Description:

• GND: Ground
• VCC: Supply +
• SDA: I2C data pin
• SCL: I2C clock pin

Package contents :

•    1 pcs  IICI2C Serial LCD Module

Note: An lcd is not included with the product.
