IRF520 MOSFET Driver Board

IRF520 MOSFET Driver Board

Terminal Block Connection Socket SSR Relay Motor Led Lamp Brightness Dimmer Pump Solenoid Valve

In high power applications the mosfets must be cooled. Otherwise the mosfets burn!

     The IRF520 Mosfet driver board has been developed to be used in high current switching applications. It has the capacity to switch at 24V 5A power. It can be driven with signals at the DC 3V / 5V level. In this way it can be used with arduino and other mcu boards.

     It can be driven with Pwm capable mcu pins. It is not suitable for the control of Ac powers. When switching at high powers it must be used with a heatsink..It can be used in applications such as Dc motor speed control and led, lamp brightness control.

Features:

•     IRF520 mosfet module
•     Trigger signal: DC  3.3V / 5V
•     Output power adjustable with PWM signal
•     Output voltage: DC 0V / 24V
•     Output current: 5A Maximum  ( at currents above 2A it must be used with a heatsink)
•     Can operate with PWM signal
•     You can control your LED, solenoid, motor etc. devices operating with 24V
•     Low resistance

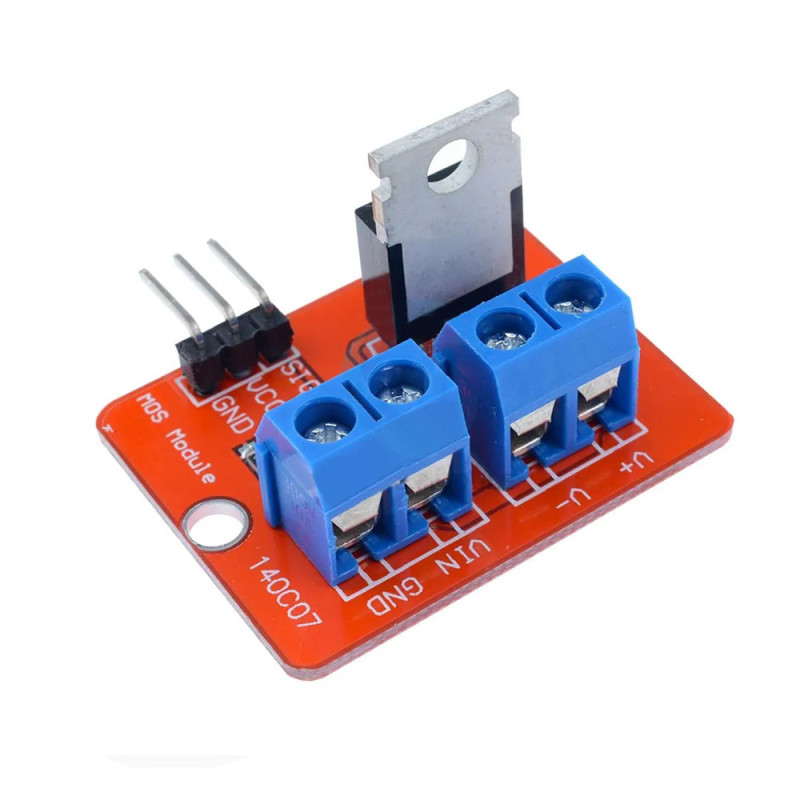

•     2 pieces 2 way terminal block socket for easy connection
•     Color: Red
•     Operating temperature: -20C / 65C
•     2 Pieces mounting hole

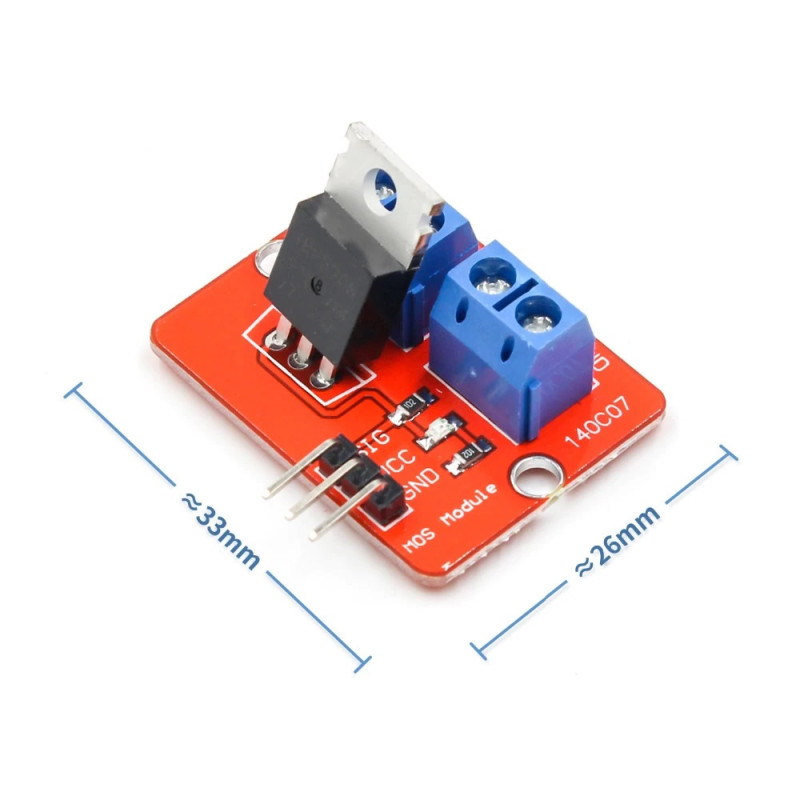

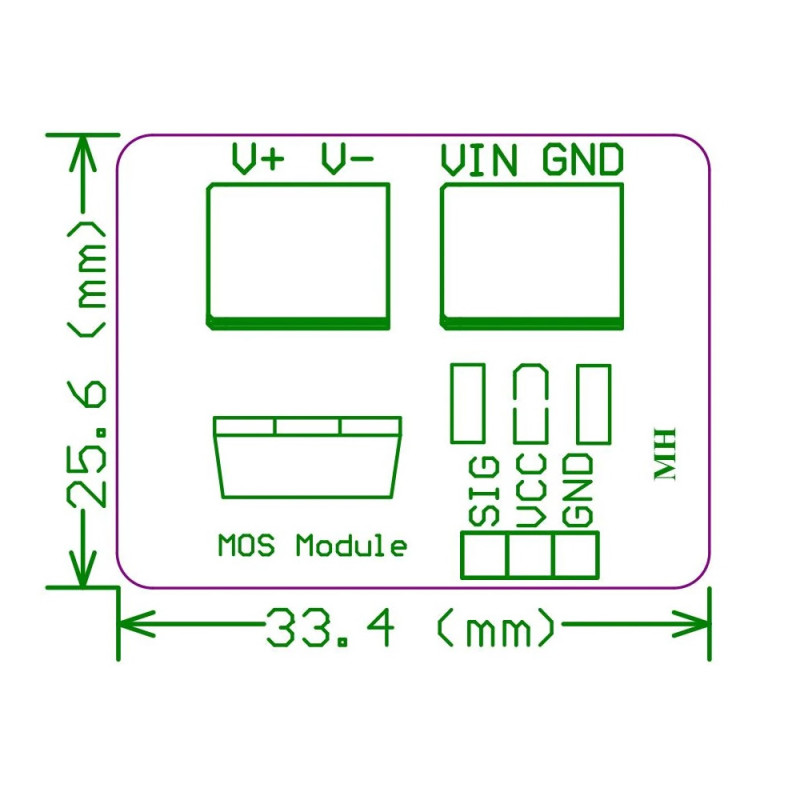

•     Dimensions: 26mm x 33mm
•     Weight:  9gr.

Package Contents :

•     1 Piece IRF520 MOSFET Driver Board

.
