JDY-23A Bluetooth 5.0 Module

JDY-23A Bluetooth 5.0 Module

Ble Wireless Communication Rf Transceiver Digital Communication Mobile Phone Computer Wireless Control Data Transfer

     There are 2 types of operating mode, spp and ble 5.0. Spp compatibility is widely used in systems such as windows android ios. For this reason it will reach you in spp operating mode. There are returns saying it is not Bluetooth 5.0. This is the reason. 7 jdy23 units can be controlled in slave mode at the same time via Jdy-34. Spp can communicate at a maximum speed of 16kbyte.

     JDY-23A is a dual mode Bluetooth wireless communication module. It operates at 2.4ghz frequency. It has low current consumption. It has Uart communication pins. It uses the AT commands given in the table below. It works in slave mode. It is used together with ble supported devices such as mobile phones. It has a built-in pcb antenna.  The maximum communication distance is 30 meters. The distance is lower in enclosed areas.

Features:

• Model: JDY-23
• Bluetooth version: BLE 5.0 ( compatible with BLE4.0, BLE4.2)
• Type: Slave
• Operating voltage: DC 1.8V - 3.6V
• Transmission distance: 30m
• Operating frequency: 2.4Ghz
• Transmission power: 4db  maximum

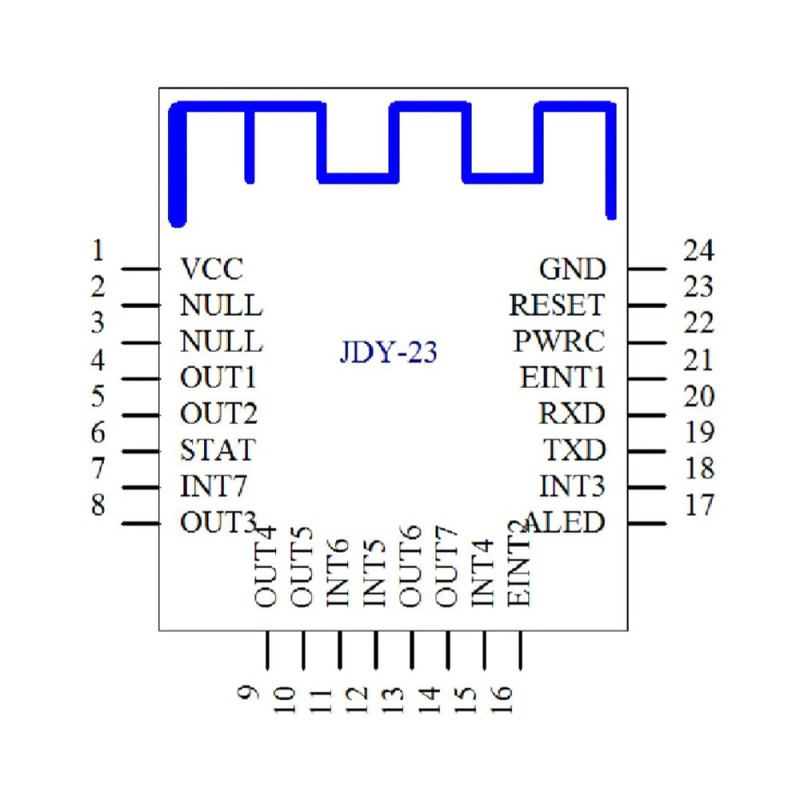

• Communication interface: Uart

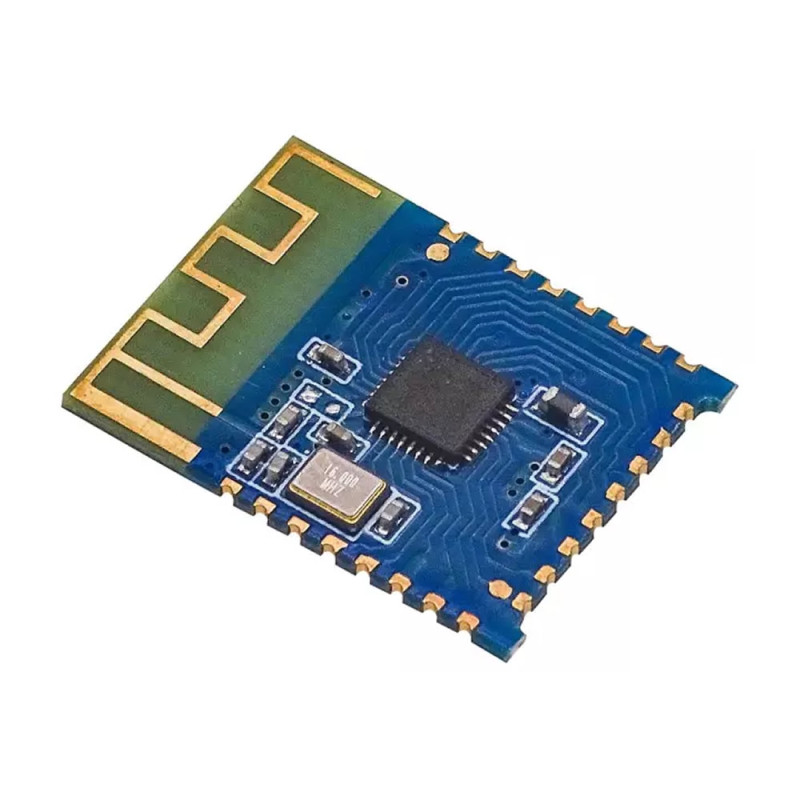

• Built-in pcb antenna
• Receiver sensitivity: -97dbm
• RF-TX/RX peak current : 5mA
• Awakening state current : 800uA（Broadcast）
• Light sleep state current :<50uA (Broadcast)
• Deep sleep current : 9uA （No broadcast）
• Settings are saved to memory.
• Operating temperature:  -10C  /  80C
• Color: Blue

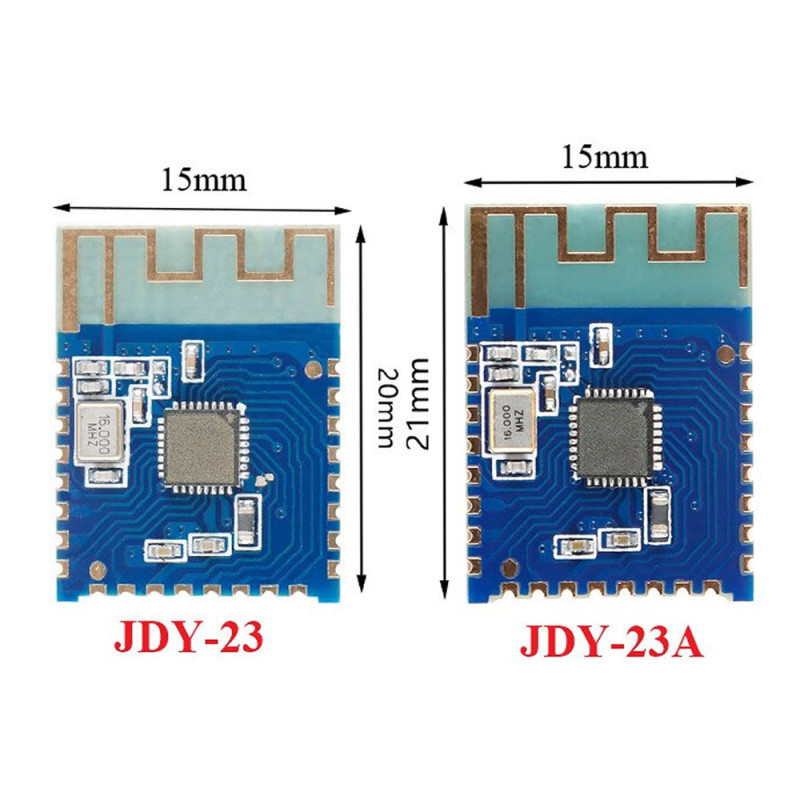

• Dimensions:  14mm x 19mm
• Weight: 0.5gr

Package Contents:

•  1 Piece JDY-23A Bluetooth 5.0 Module
