MAX31865 Thermocouple Module

MAX31865 Thermocouple Module

RTD Temperature Heat Sensor Reader 15 Bit ADC SPI PT1000 Boiler Thermostat Industry Medical

     MAX31865 is a high precision Pt100 and pt1000 temperature sensor reading module that uses SPI communication. It makes the RTD reading process much easier. It is used together with 2 3 and 4 wire PT100 and PT1000 thermocouple sensors.

     Platinum PT100 RTDs generally have a resistance value of 100ohm at 0C. PT1000s have a resistance value of 1000ohm at 0C degrees. The temperature sensitivity of RTDs is very high. It has a high precision  delta sigma analog to digital converter circuit.  It can work on DC 3.3V / 5V supplies. Rtd is used in many applications such as industry, laboratory, medical, automation etc. The module automatically corrects the errors caused by the cables used in the rtd connections.

Features:

•  Operating voltage:  DC 3V / 5V
•  Sensor type: 2 / 3 / 4 wire PT100 and PT1000
•  Pt100: 100ohm at 0C
•  PT1000: 1000ohm at 0C
•  Resolution: 15-bit ADC
•  Reading time: 21ms
•  Measurement temperature range: Maximum 800C ( Depends on the sensor used. )
•  Temperature accuracy: 0.5C
•  Communication type: SPI
•  Operating temperature:  -10C  /  85C
•  Color: Purple

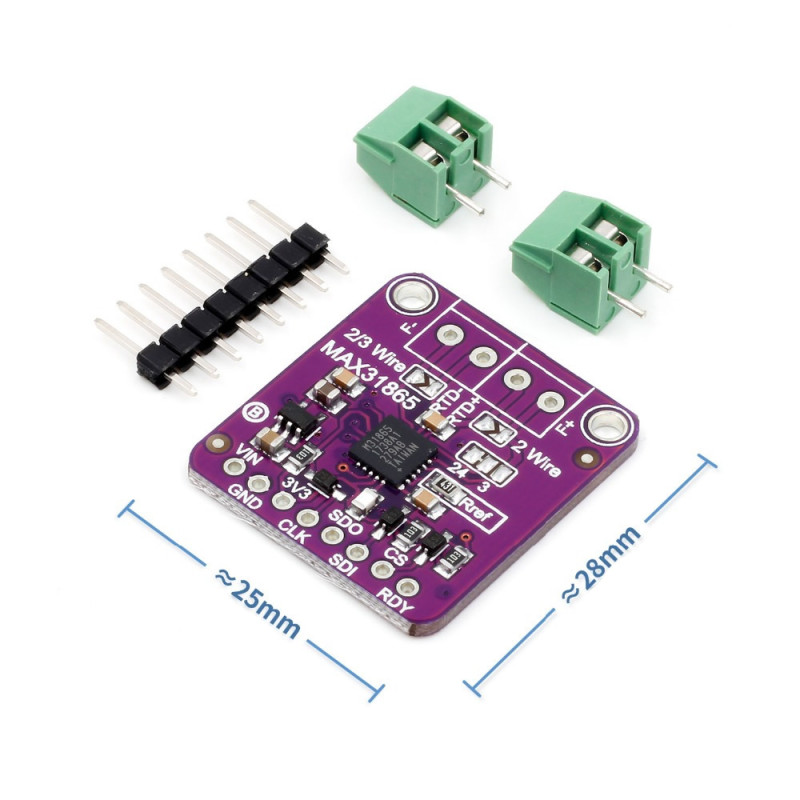

•  Dimensions:  25mm x 28mm
•  Weight:  15gr

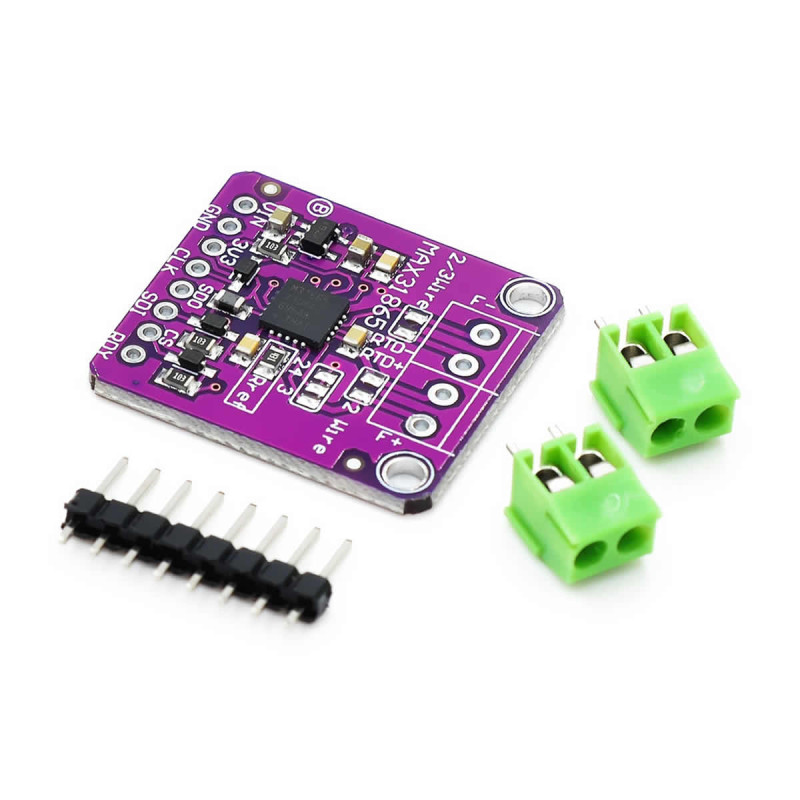

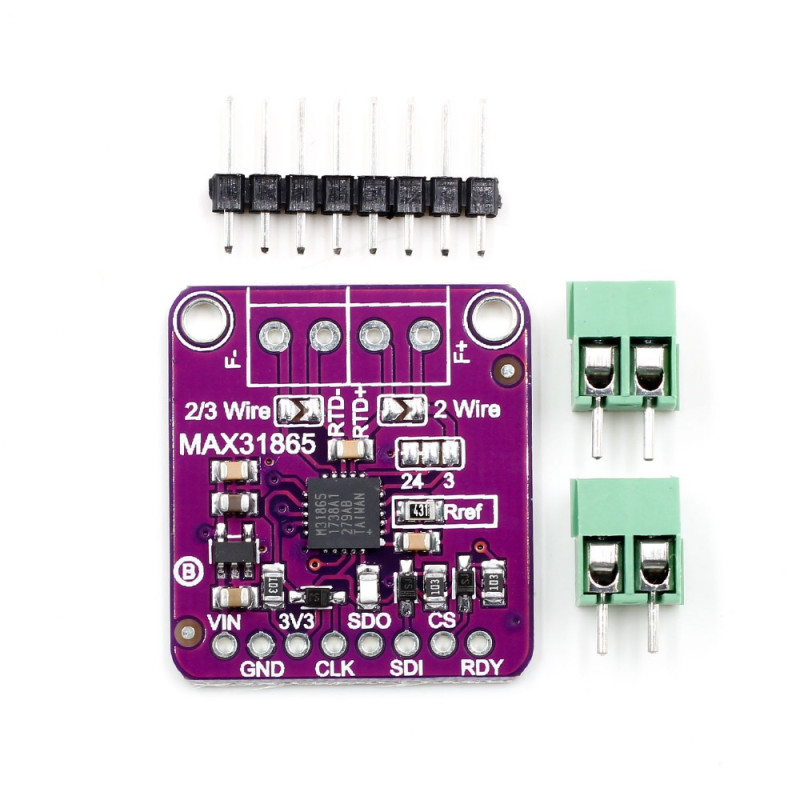

Package contents :

•     1  pcs MAX31865 Module
•     2  pcs 2 Pin terminal block
•     1  pcs 8 Pin male header

.
