Mini-360 Module
40.32TL
Ex Tax: 33.60TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: Mini-360 Modül
- SKU: RBZ.101.552
Mini-360 Voltage Step Down Module
Power Supply Adjustable Voltage Output 1V/ 17V Rc Airplane Car Quadcopter Drones
The voltage adjustment pot is sensitive. It breaks if pressure / force is applied.

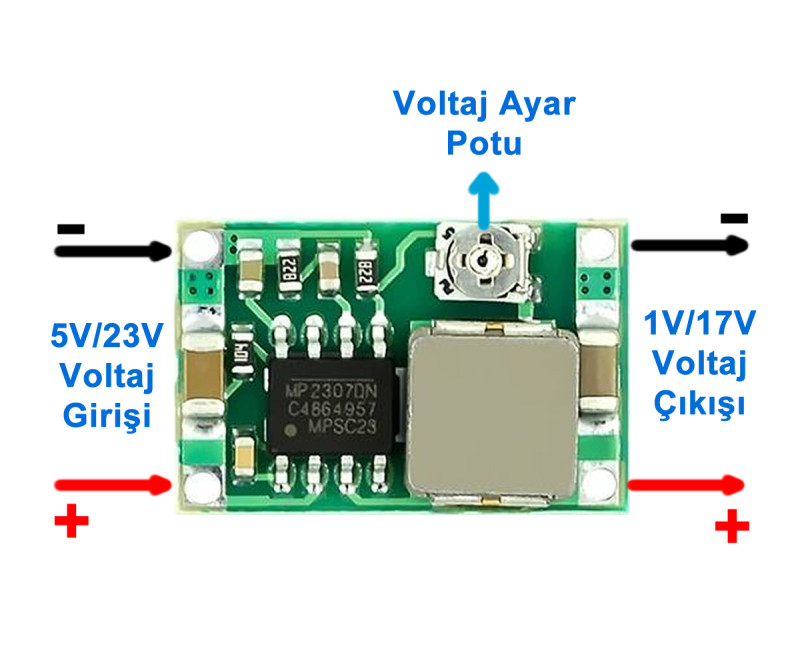

Mini 360 1.8A voltage step down module. Any voltage input between 4.75V and 23V can be applied. You can provide an adjustable output between 1V and 17V. The output voltage is adjusted with the pot on it. The pot is made of a sensitive material. It is appropriate to be gentle while adjusting, it can break easily. It is used in Rc airplane, quadcopter, drones, rc car, arduino and other microcontroller applications. It is ideal for projects requiring a very small size.
Features:
- Integrated: MP2307
- Input voltage: DC 4.5 / 23V
- Output voltage: Dc 1V / 17V Adjustable
- Output current: 1.8A / Short term 3A
- Switching frequency: 340KHz
- Noise: 30mV
- Efficiency: 95% ( Maximum )
- Leakage current: 0.85ma
- Short circuit protection
- Operating temperature: -40C +85C

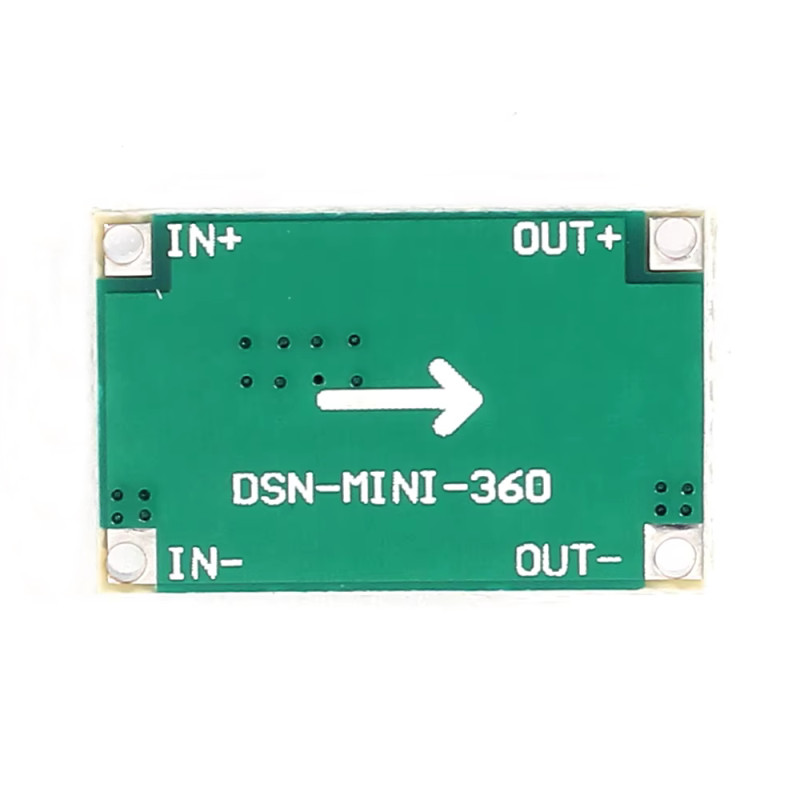

- 4 Pin connection socket

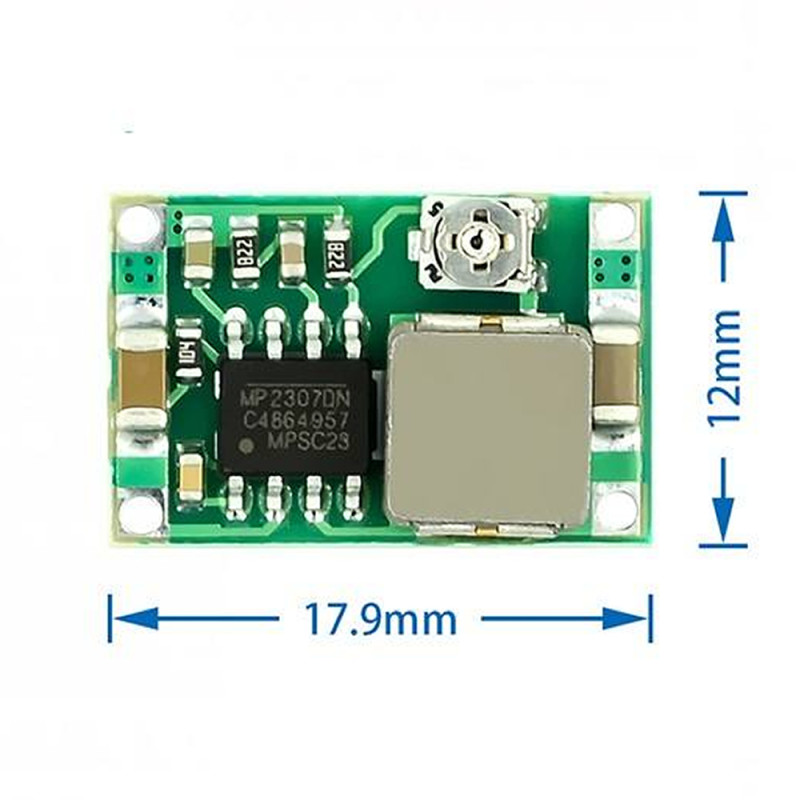

- Dimensions: 12mm x 18mm
- Weight: 1.5gr
Package contents:
- 1 Piece Mini-360 Module
