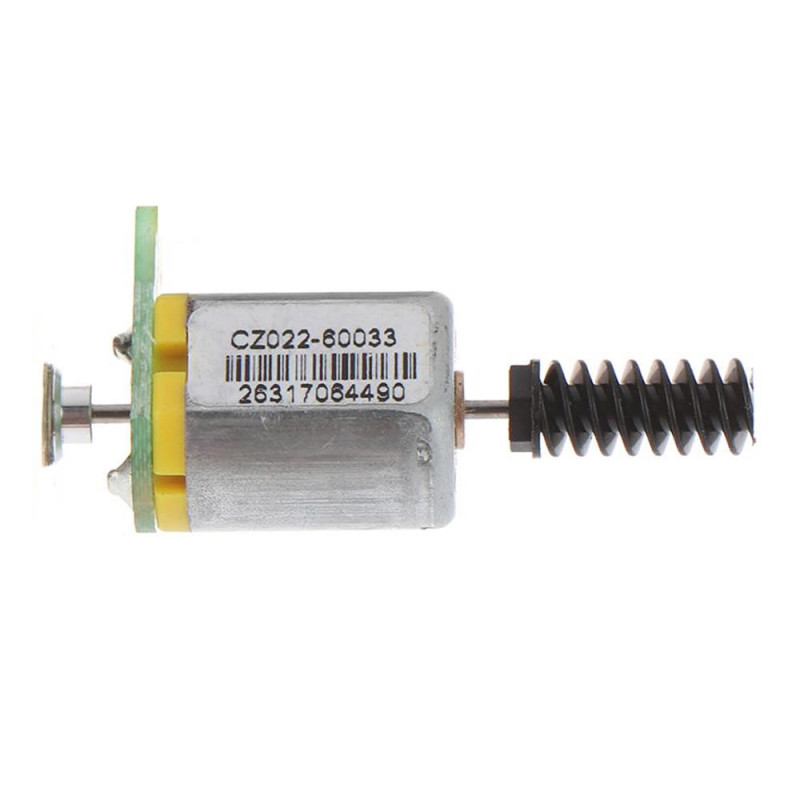

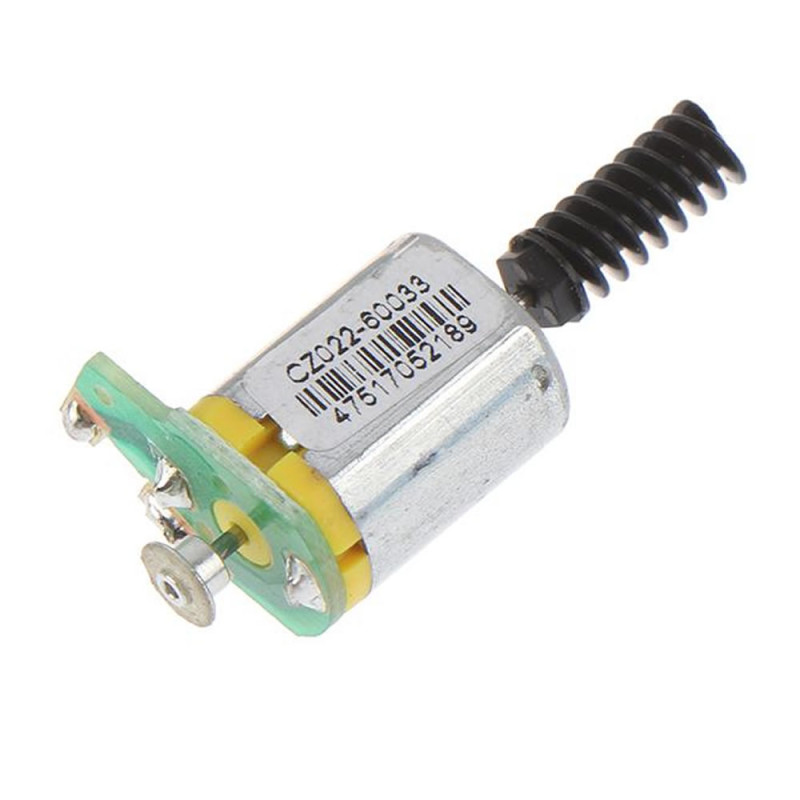

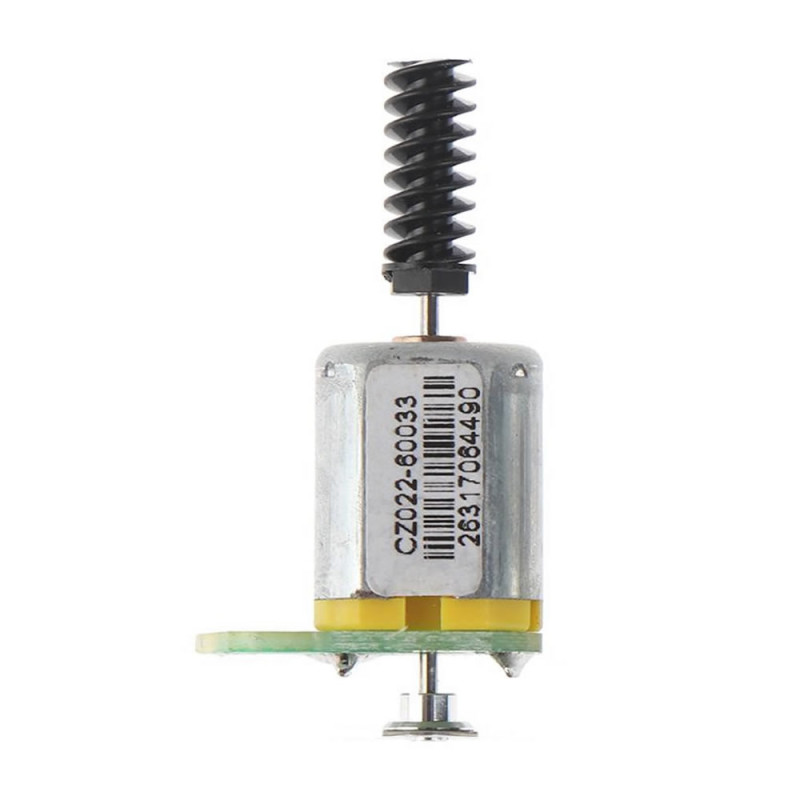

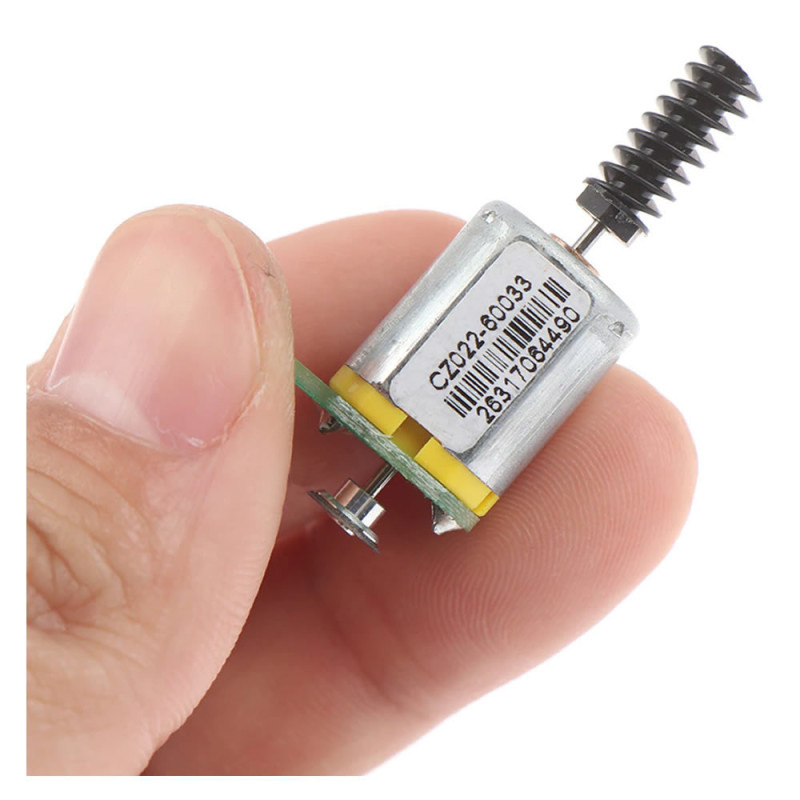

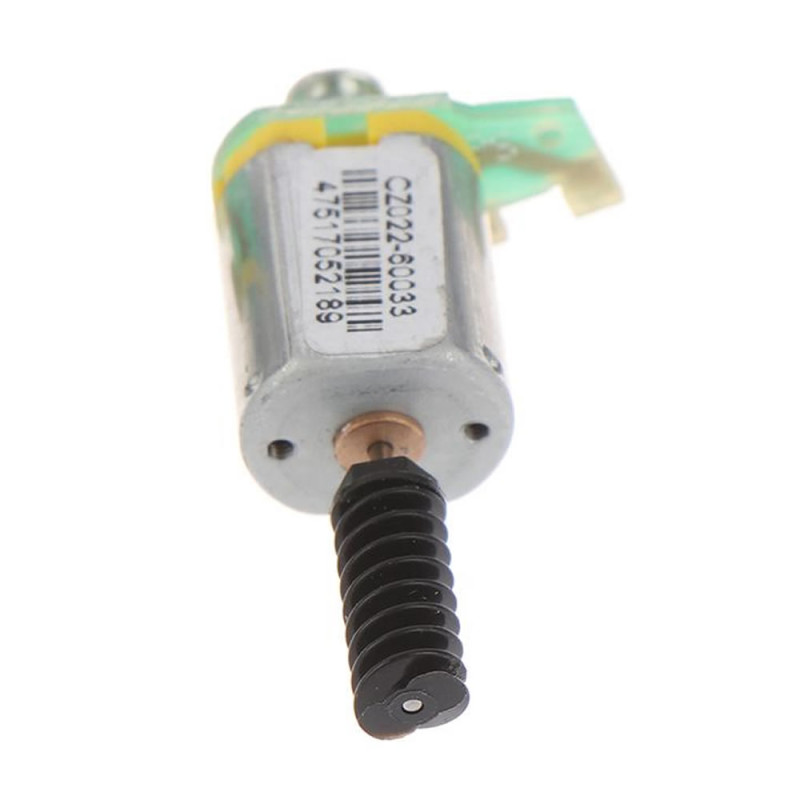

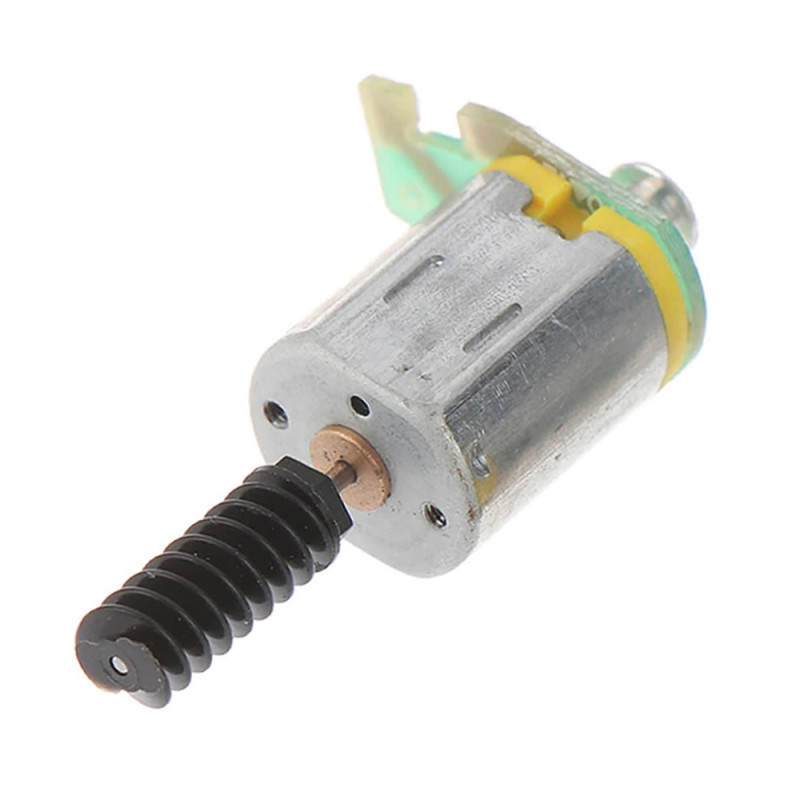

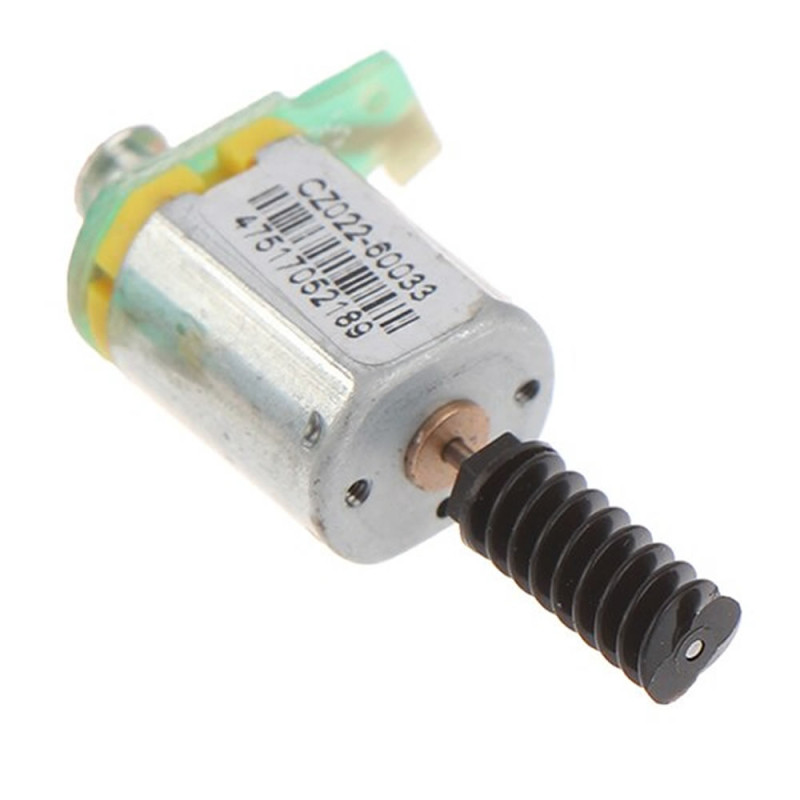

N20 Worm Dc Motor

N20 Worm Shaft Dc Motor 30000Rpm

N20 Micro Motor Dc 5V-24V Long Shaft Rotating Worm Gear

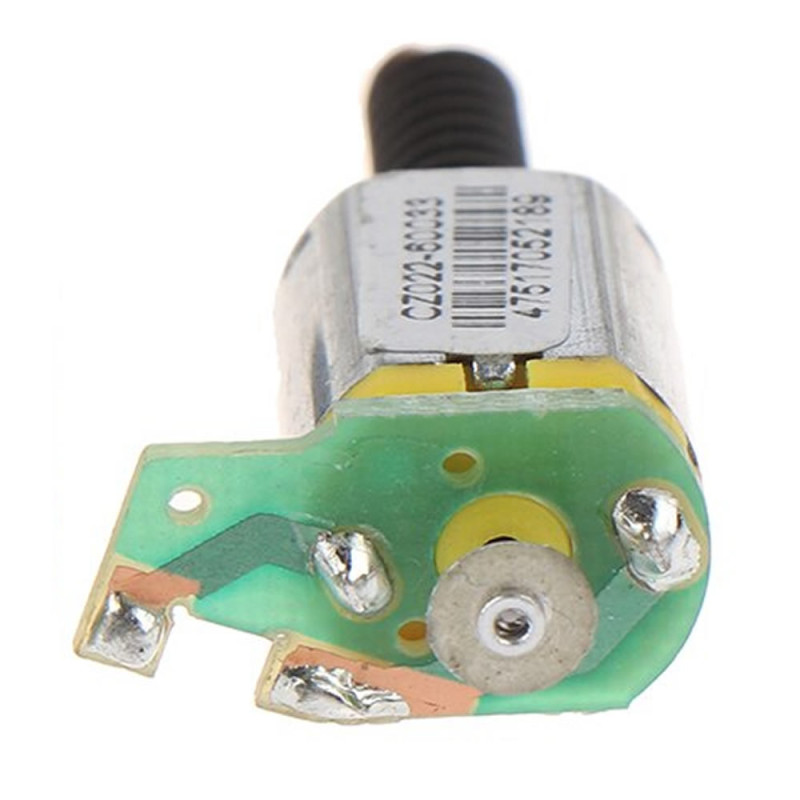

     The solder joints on the pcb at the back of the motor are of low quality. It was added for use in an external product. It was supplied in bags of 100. Some solder joints may be lifted. It has no effect on the operation of the product. You can use it by soldering from the continuation of the trace.

     With its rotating part in worm structure, it is used to control the movements of moving parts. It is used in cars and various machines.

Features:

• Operating voltage: 5V-24V ( It is suitable to use with a maximum of 12V. At higher voltages the motor heats up and the windings may burn. )
• Operating current: 50mA
• Stall current: 500mA
• Speed: 30000rpm ( No load 18V )
• Motor width: 10x12 mm
• Motor Length: 15mm
• Shaft length: 15mm
• Weight: 6gr

• Voltage: 12 V, speed: 19300 RPM, current: 40 MA (blocking 326 MA)
• Voltage: 18 V, speed: 29000 RPM, current: 45 MA (blocking 460 MA)
• Voltage: 24 V, speed: 39600 RPM, current: 55 MA (blocking 600 MA)

     Measurement results without the worm part. At higher voltages a higher rotation speed and higher torque are obtained. In return, the heat generated will also increase. It is important that you use it paying attention to this. Cooling should be applied if necessary. Otherwise the motor windings will burn.

Package Contents:

• 1 Piece N20 Worm Dc Motor

The dimensions below are for N20 standard motors. The worm and the pcb section at the back are not visible in the drawings.
