ENC28J60 Nano 3.0 Ethernet Shield
576.00TL
Ex Tax: 480.00TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: Nano V3 ENC28J60 Modül
- SKU: RBZ.100.424

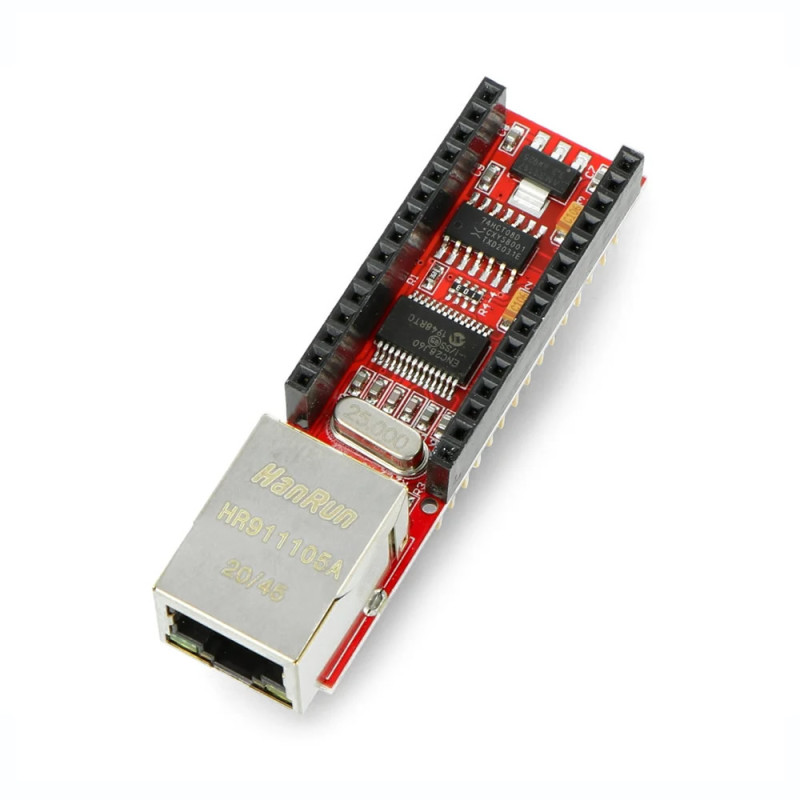

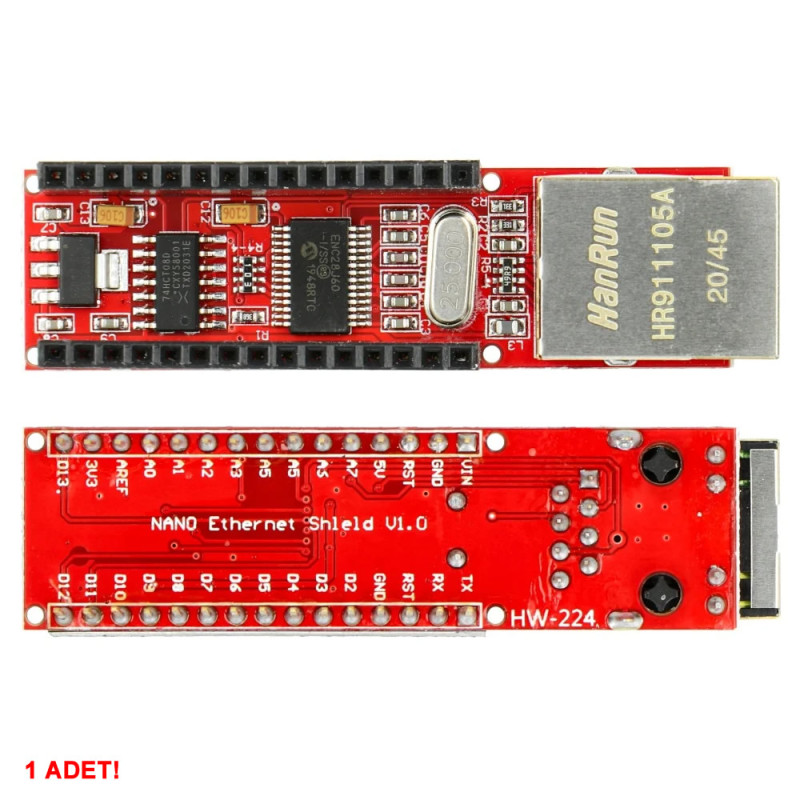

Arduino Nano 3.0 ENC28J60 Ethernet Shield Board
Microchip LAN SPI IOT Internet Communication Transceiver Communication Network Module Webserver RJ45
It is an ethernet communication sub board prepared for Arduino nano 3. Microchip ENC28J60 is used. It has Mac and Phy layers. Communication with the module is done over SPI. The pins are 5V tolerant. It is used together with an Arduino board.

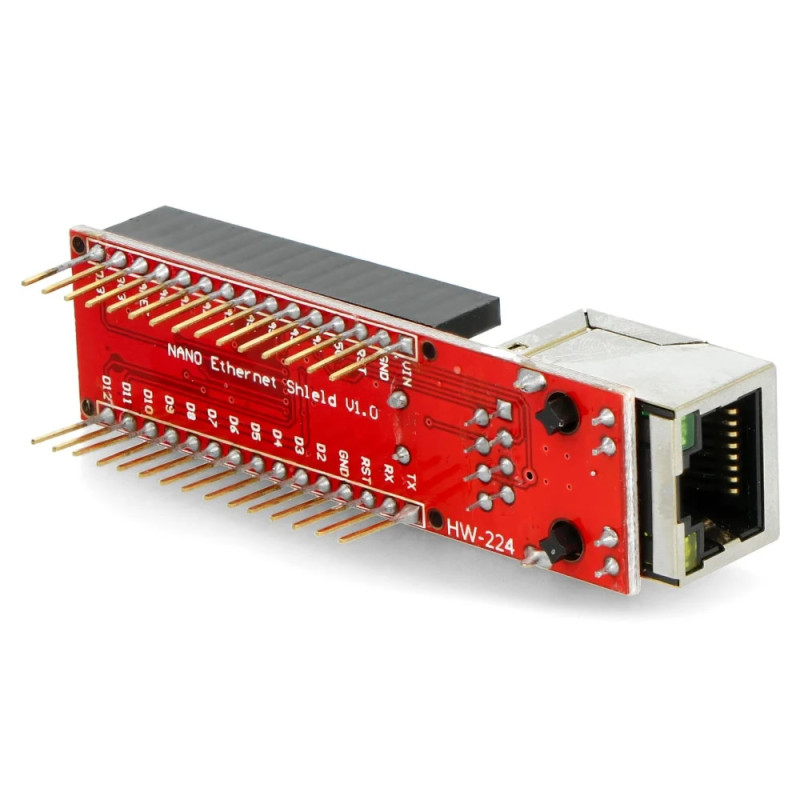

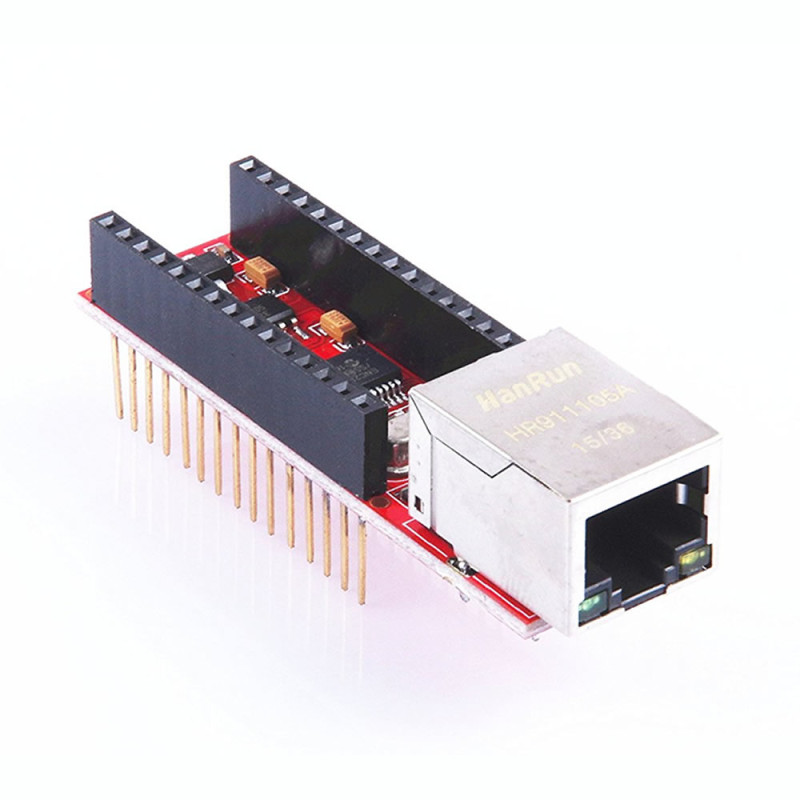

The headers under the board allow connection to external circuits. It has gold plated pins. There is a 3.3V regulator on the board. It connects to the network with an rj45 socket with led indicator.
Features:

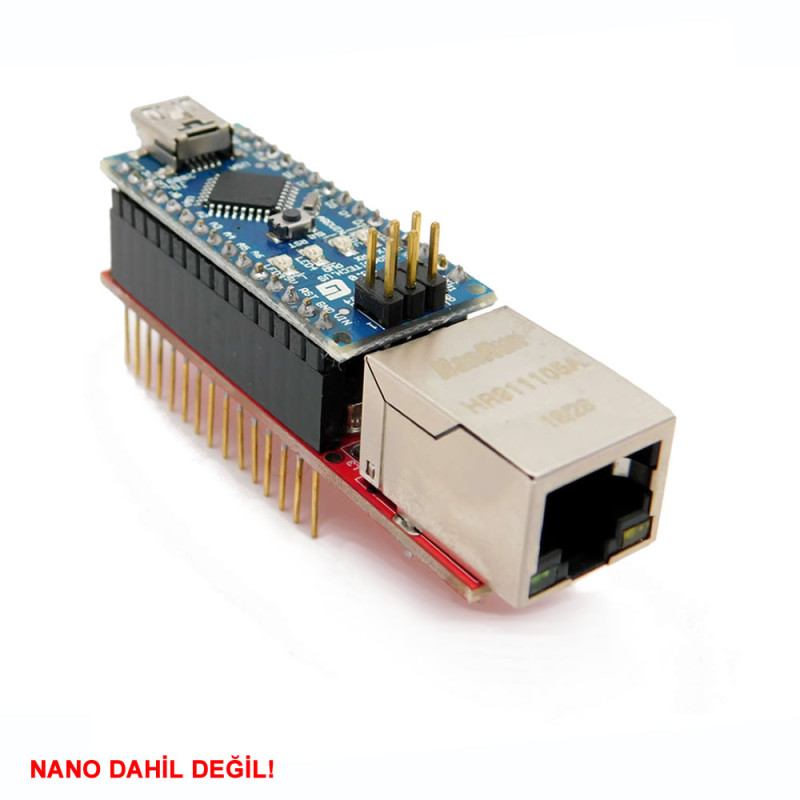

- Arduino Nano compatible ethernet shield
- Integrated circuit: Microchip ENC28J60-I/SO
- Operating voltage: DC 3.3V
- SPI communication speed at most 10 Mb/s
- 25MHZ crystal.

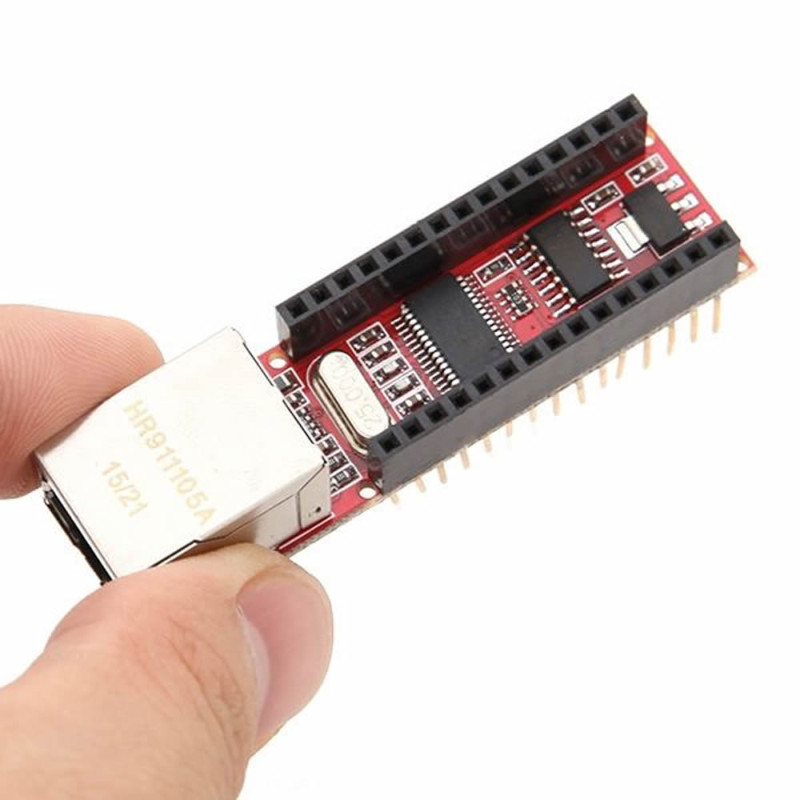

- Ethernet socket: HR911105A
- No soldering required
- Easy connection
- Color: Red
- Operating temperature : -10C / 70C

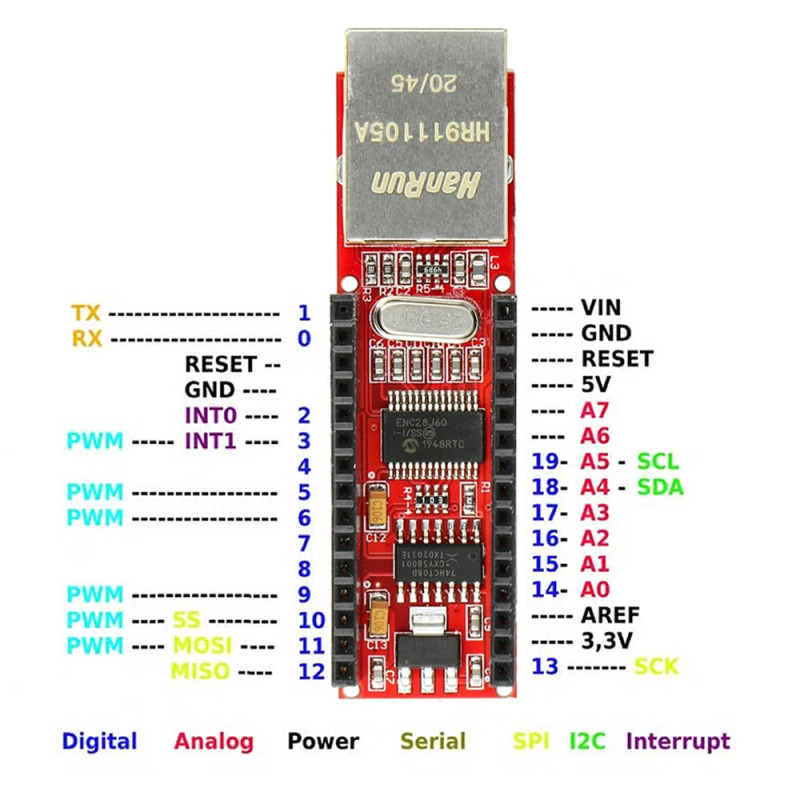

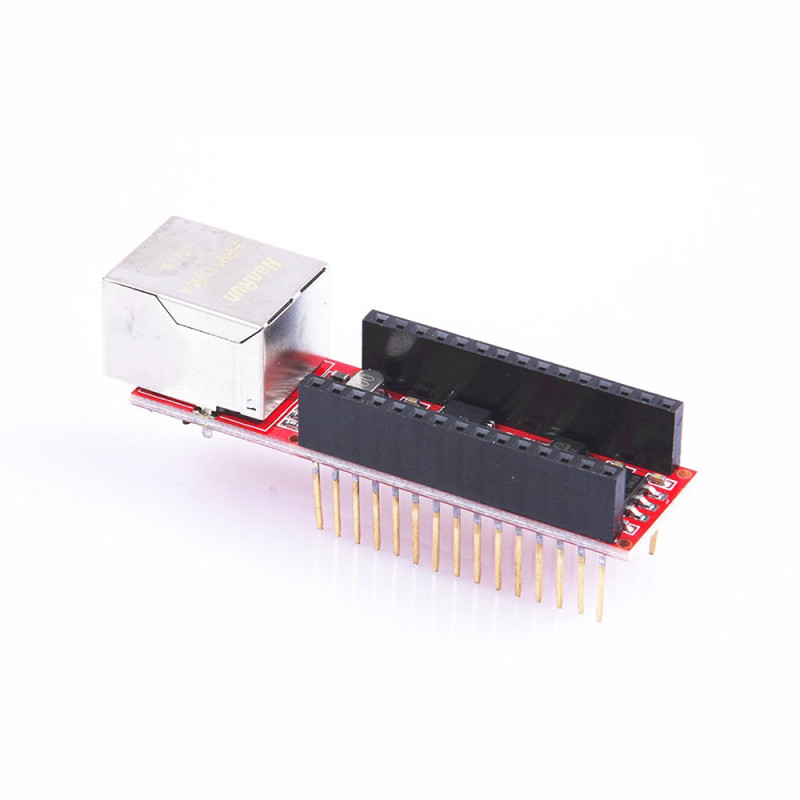

- 2 rows 15 pin male/female connection socket
- Dimensions: 18mm x 63mm
- Weight: 15gr
Package contents :
- 1 Piece Nano 3.0 ENC28J60 Ethernet Shield
.
