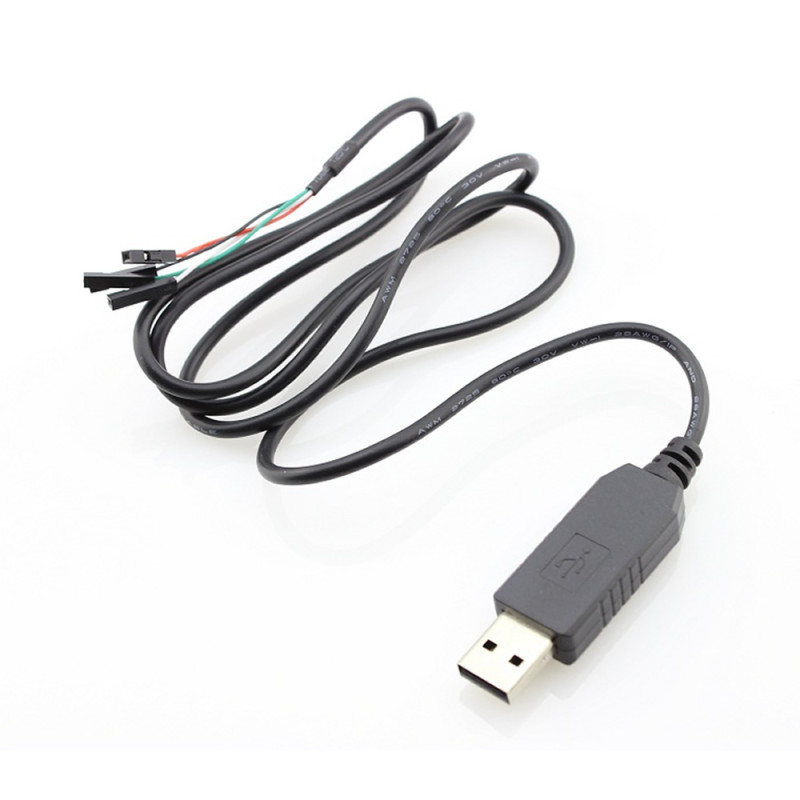

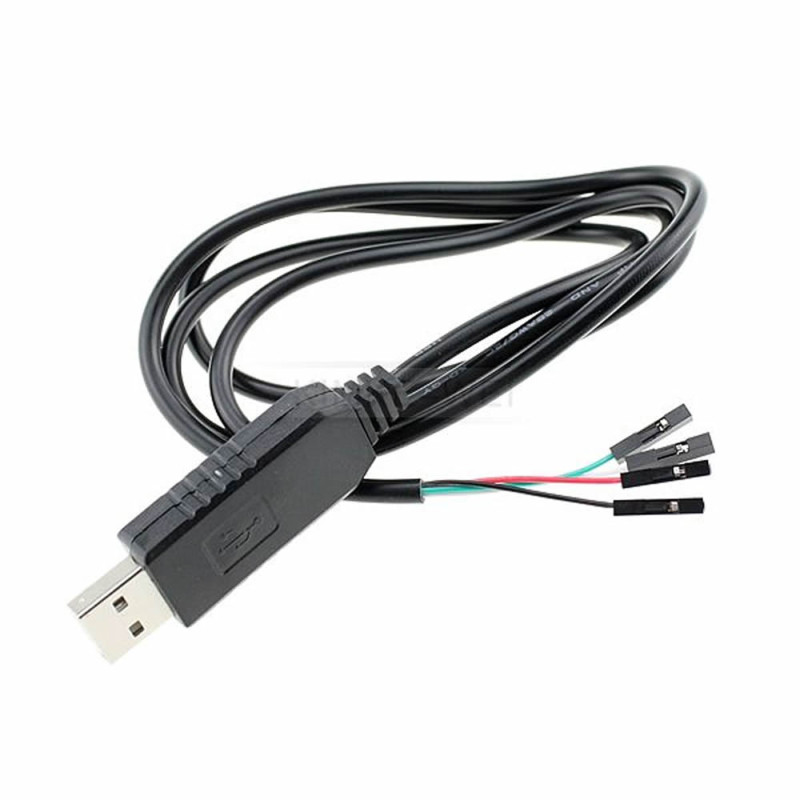

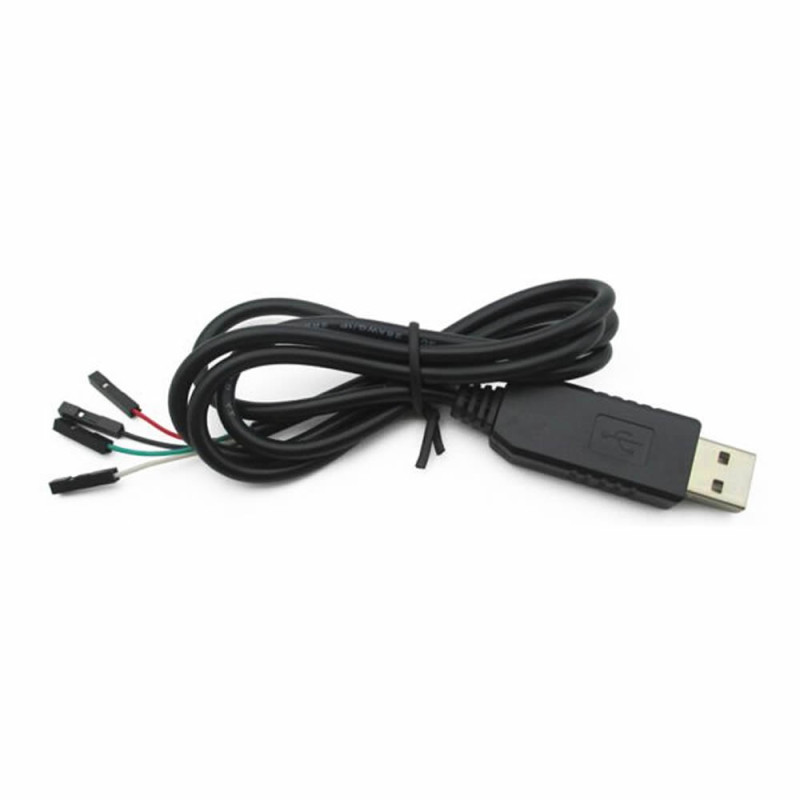

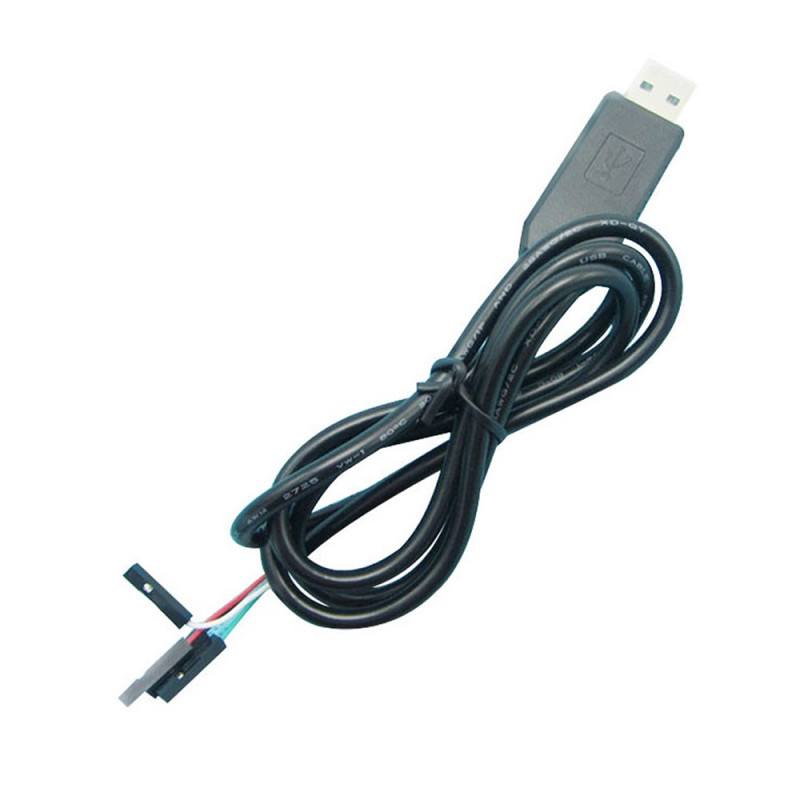

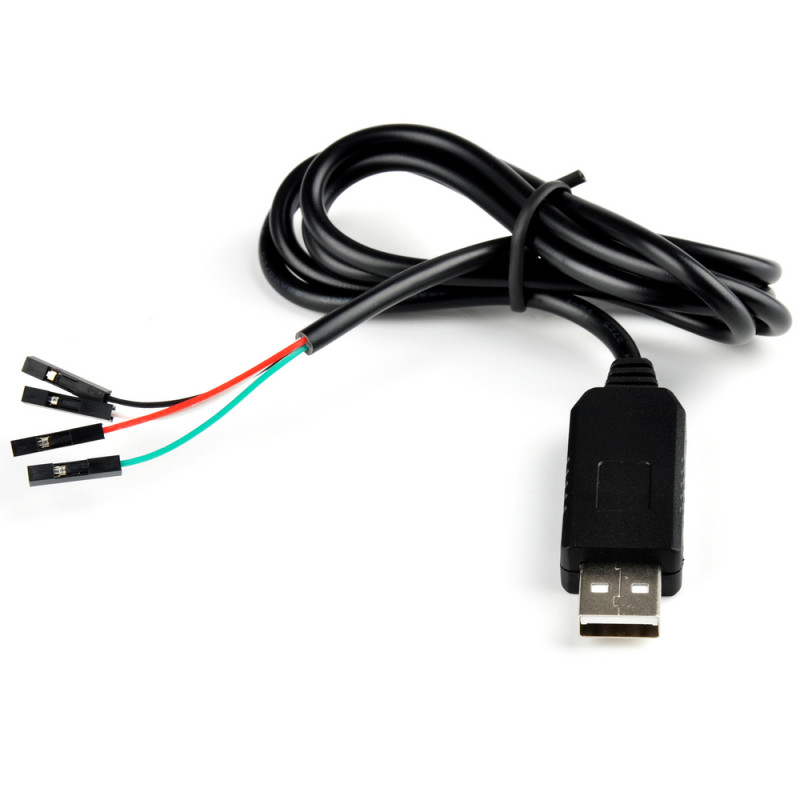

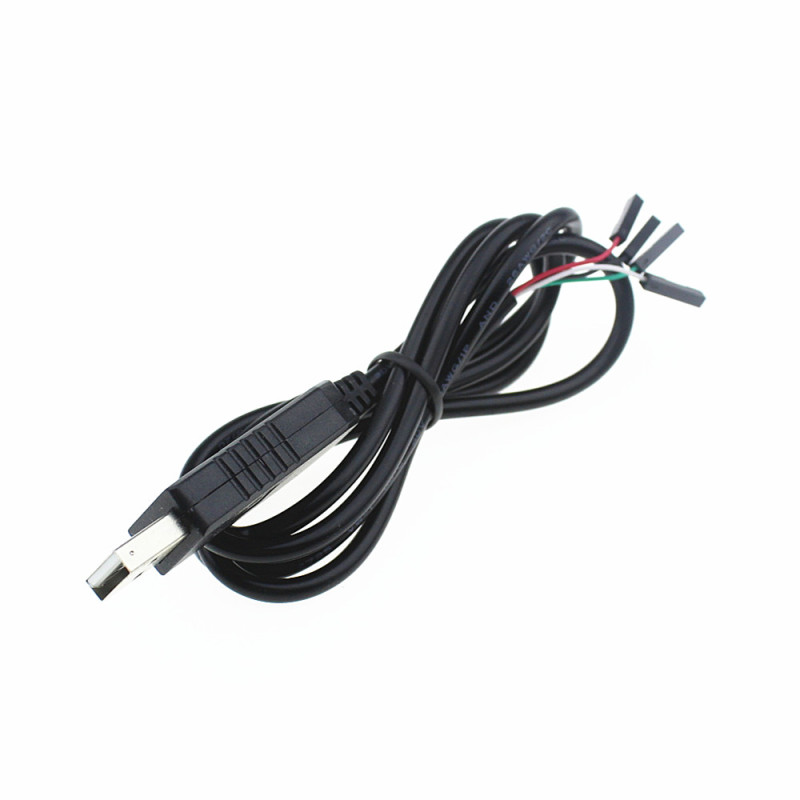

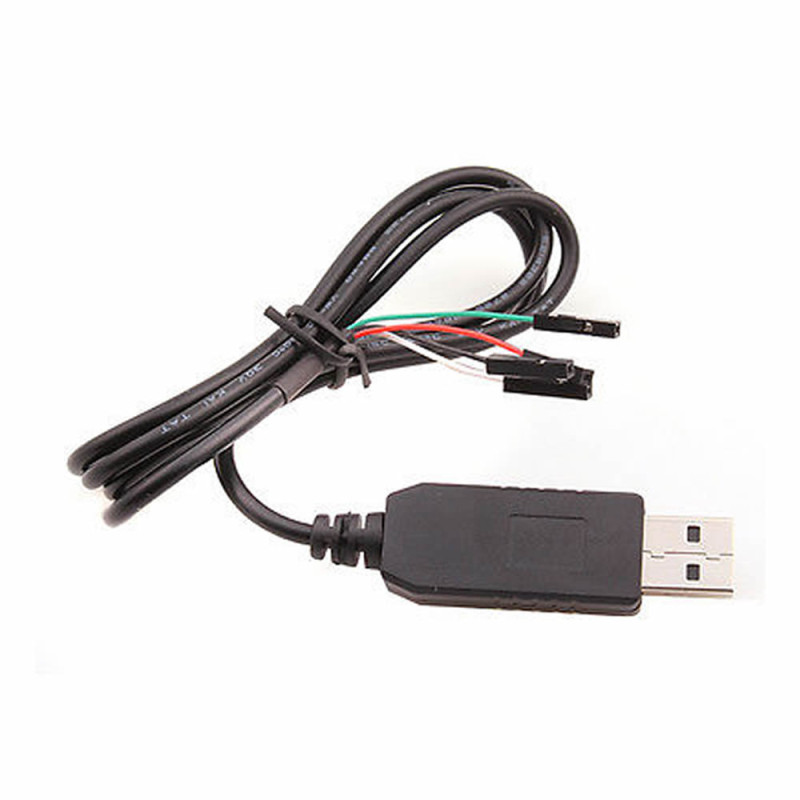

Cabled PL2303 USB to TTL UART Module

Cabled PL2303 USB To RS232 TTL UART Converter Module

Serial Port Communication Mcu Satellite Receiver Dvd GSM Phone Pl2303hx

     It allows serial port communication to be performed over the usb port. The pl2303 ic is used on this product. It allows the usb port to be used as a com port on computers without a com port. After the driver installation, 1 com port is created in the device manager. This port is selected as the communication port in the console or related serial port communication programs, and after the necessary settings are made, com port communication starts.

Features:

•     Converts the USB port to a TTL serial port.
•     The PL2303HX ic is used.
•     It is suitable for projects where ttl serial communication will be made over USB.
•     It performs USB 2.0 compatible communication at 12Mbps speed.
•     It can communicate at baudrates from 300 bps to 1.5 Mbps.
•     It supports special speeds that the user can set.
•     There is a standard USB type A male socket.
•     TTL 4 Pin cable connection
•     Thanks to the TTL outputs, it easily provides communication with an mcu.
•     Windows XP, 7, 10 ( 32/64bit), Mac OS 9/X, Linux 2.40, Android
•     Color:  Black
•     Cable length:  1 Meter
•     Weight: 25gr

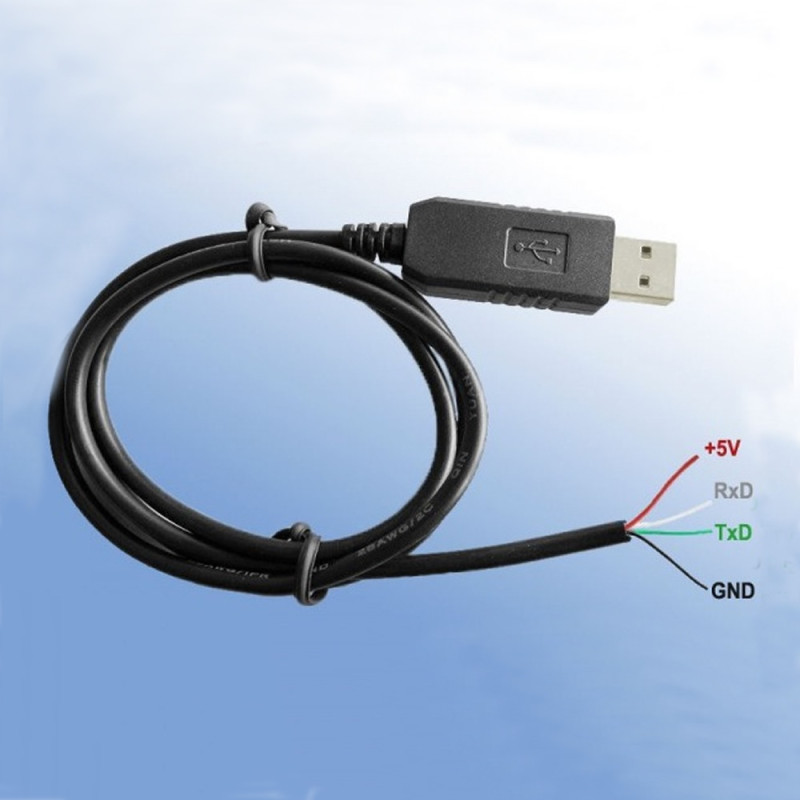

Cable connection description:

•     Black Cable-----GND
•     Green Cable----TXD
•     White Cable----RXD
•     Red Cable ---- VCC 5V

Driver:
1- You need to turn off Windows Driver signing on your computer. Perform this operation from one of the many sites explaining this subject on Google.

2- After driver signing is turned off, install the driver on the site below and complete the operation by selecting the version 3.3 driver.

wp.brodzinski.net/hardware/fake-pl2303-how-to-install/

Package contents :

• 1 Piece  Cabled PL2303 Module
