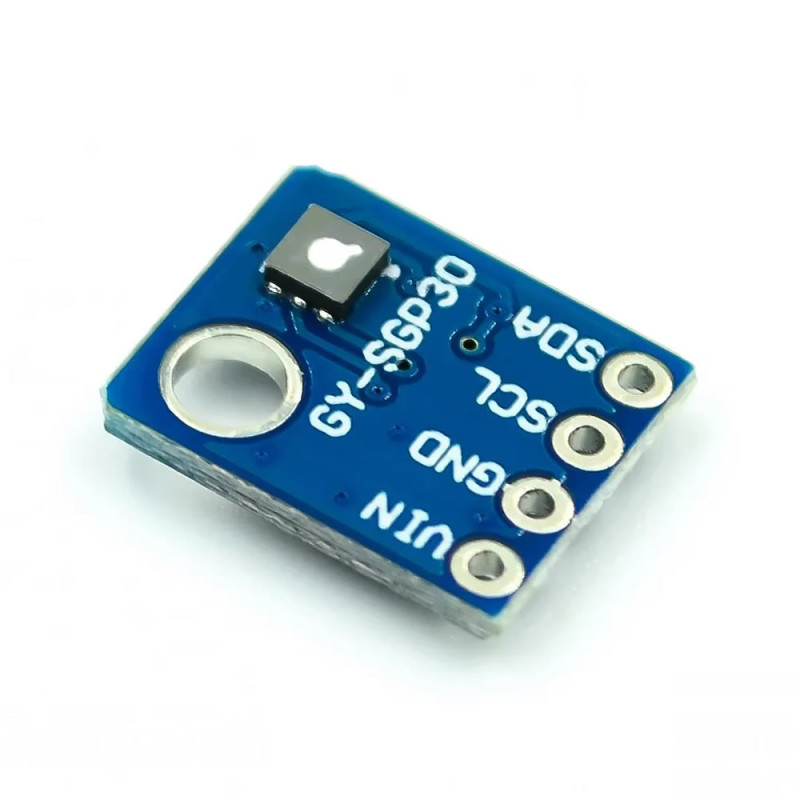

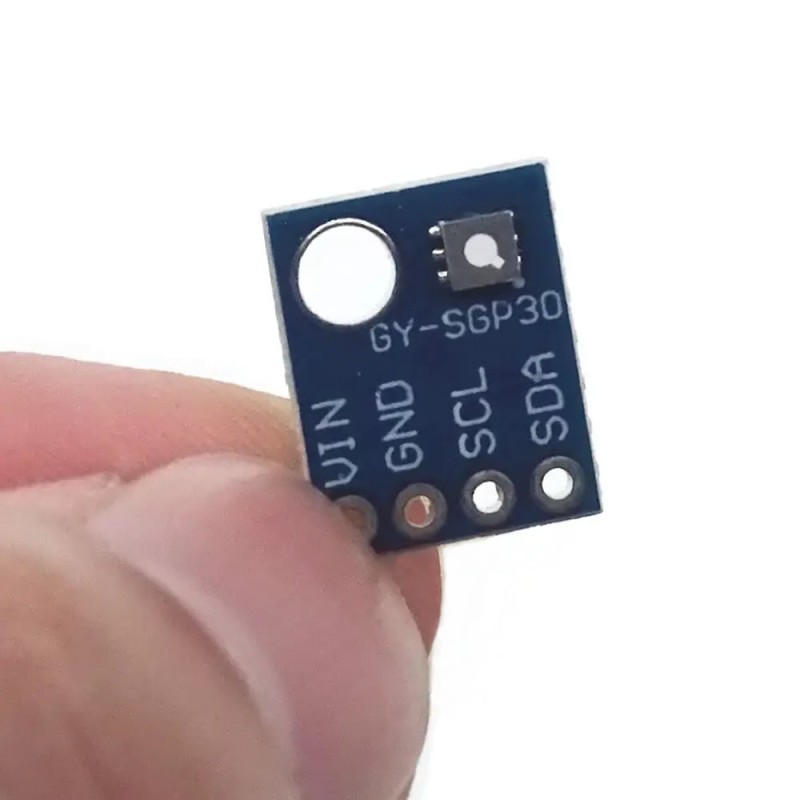

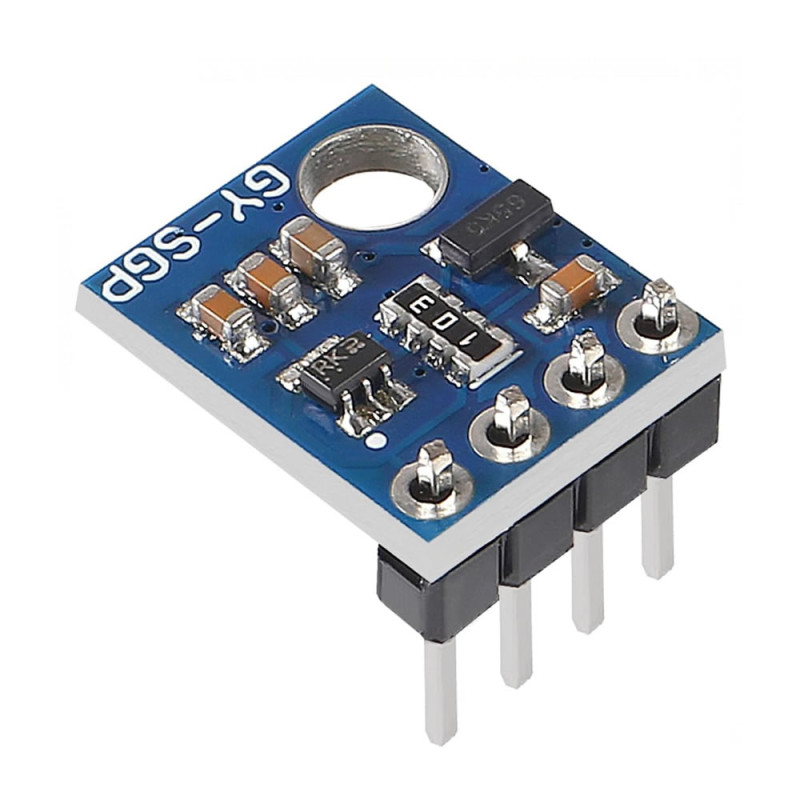

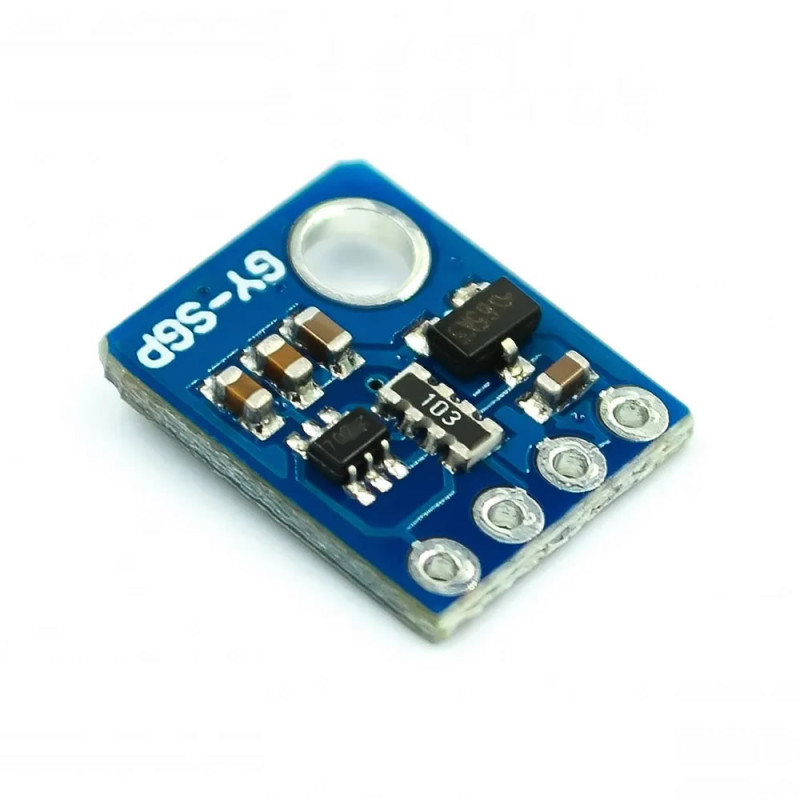

SGP30 Air Quality Sensor

SGP-30 Air Quality Gas Sensor

Carbon Dioxide TVOC Formaldehyde CO2 Digital Detection Measurement Module Air Purifier Ventilation Air Conditioner Iot

     The SGP30 is a gas sensor with very high sensitivity for indoor air quality applications. It has outstanding long-term stability and uses the I2C interface for TVOC and CO2eq output signals. It can detect the presence of ammonia NH3, sulfur, alcohol vapor, benzene, butane, propane, smoke and CO2 gases. With its low cost, it provides the ability to detect a wide variety of gases.

     It is suitable for use in monitoring harmful gases in enclosed areas crowded with people such as homes, factories, schools, etc. The SGP30 can be used in various applications to measure indoor air quality. For example, air purifiers and ventilation systems can monitor air quality using the SGP30 and provide fresh air when necessary. Internet of Things (IoT) applications can also measure indoor air quality using the SGP30 and transfer this information to users or other applications.

Features:

•     Model: SGP30
•     Operating voltage: DC 1.8V / 5V
•     Power consumption: 48mA
•     Accuracy:  -+ %10
•     TVOC: 0,001 ppb
•     CO2eq: 0,001 ppb - 5000 ppb
•     Communication: IIC
•     Calibrated
•     Lifetime: 10 years
•     Color: Blue
•     Operating temperature:  -40C  /  +85C

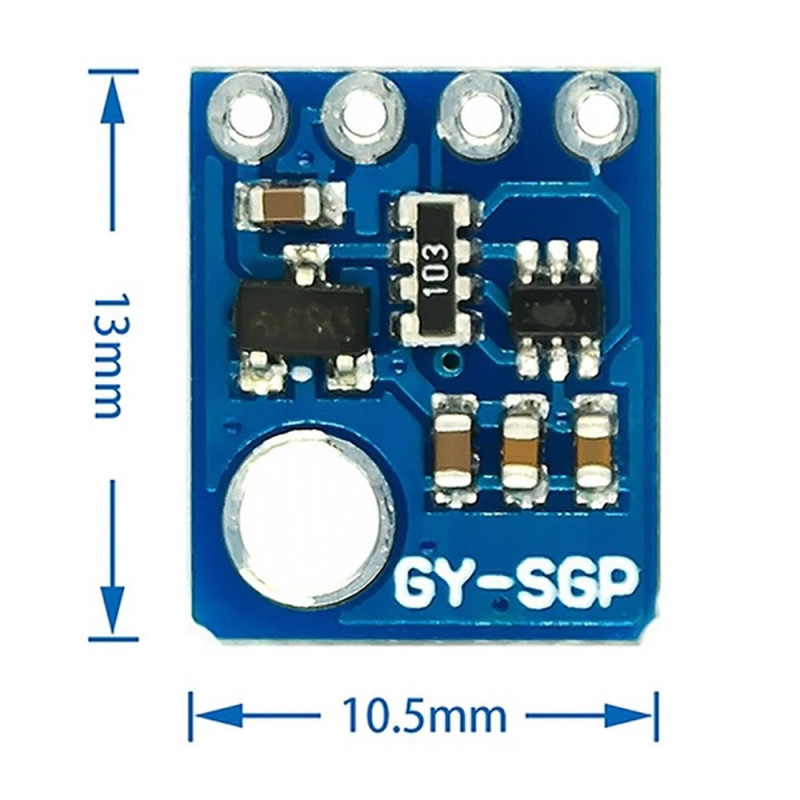

•     Dimensions: 10.5mm x 13mm

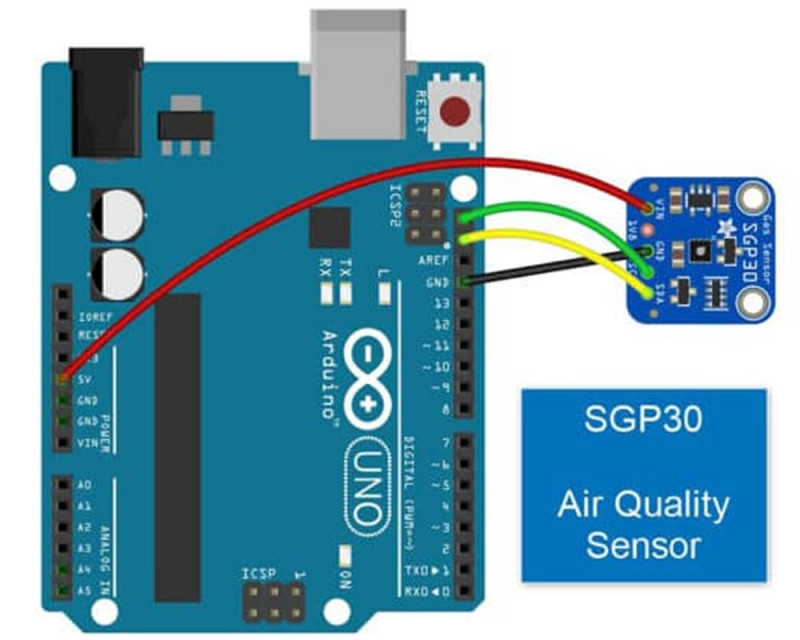

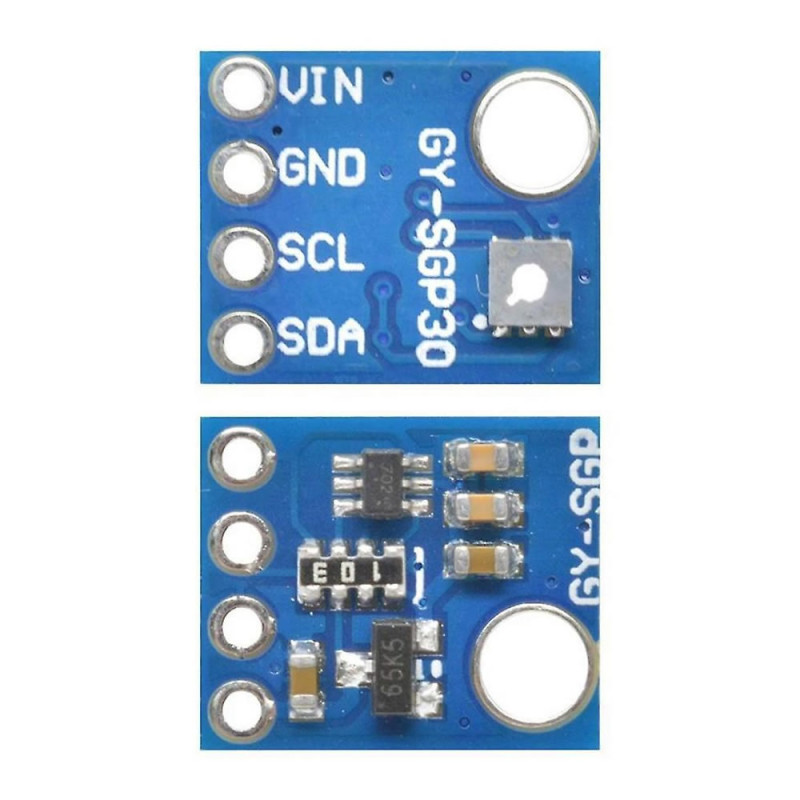

Pin description:

• VIN: Supply +
• GND: Ground  -
• SCL: IIC clock pin
• SDA: IIC data pin

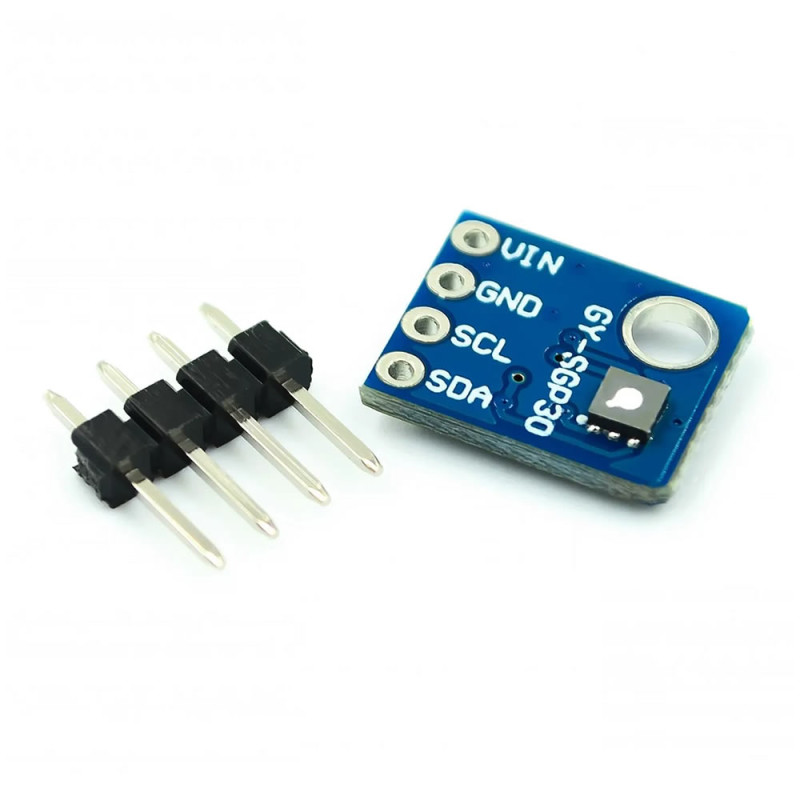

Package Contents:

• 1 pcs  SGP30 Air Quality Sensor
