STM32F051 Discovery

ST STM32F051 STM32F0DISCOVERY Discovery Kit + Proto Pcb

STM32F051R8T6 Cortex M0 Arm 48 MHz Mcu Development Board ST-LINK V2 Jtag Programmer 64Kb Flash Motor Control CEC Functions

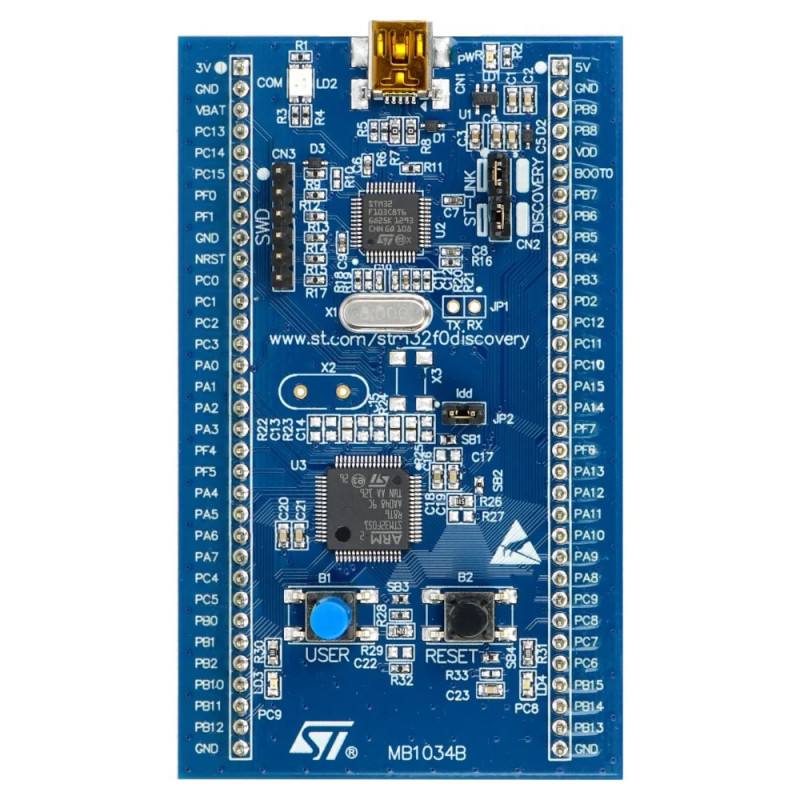

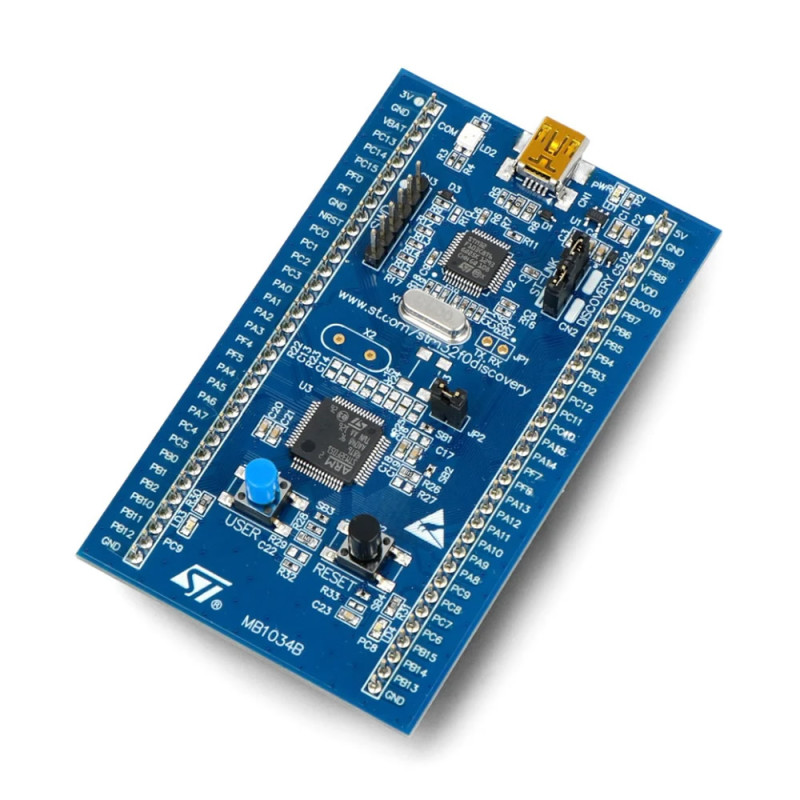

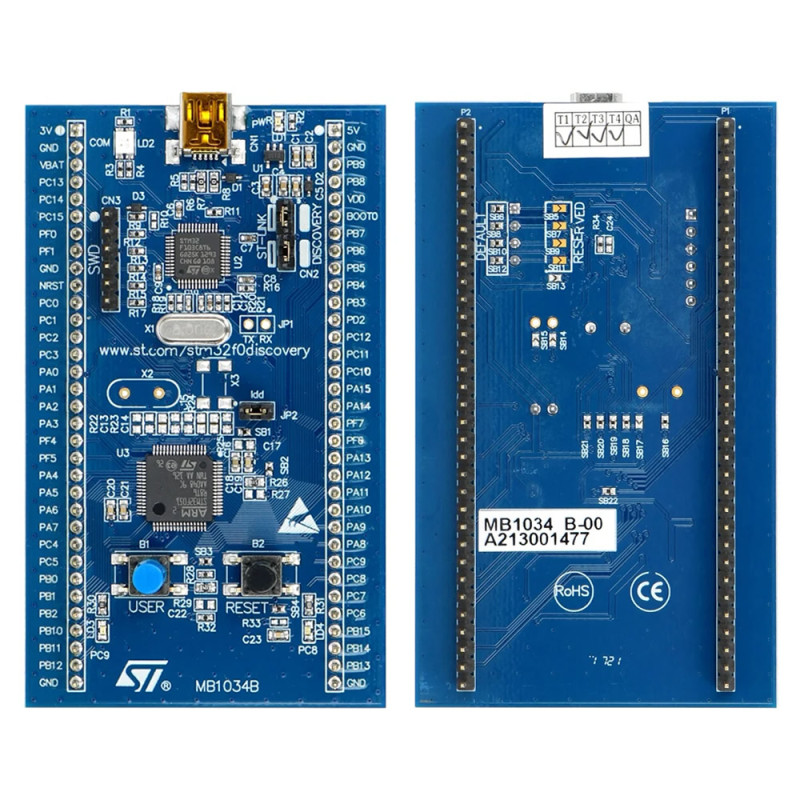

      The STM32F0DISCOVERY helps you to discover the STM32F0 Cortex-M0 features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.

      Based on the STM32F051R8T6, it includes an ST-LINK/V2 embedded debug tool, LEDs, pushbuttons and an additional prototyping board for easy connection of additional components and modules.

      A large number of free ready-to-run application firmware examples are available on www.st.com/stm32f0discovery to support quick evaluation and development.


Features:

•     STM32F051R8T6 microcontroller featuring 64Kb Flash, 8Kb RAM in an LQFP64 package
•     Clock Frequency 48 MHz / 38 DMIPS

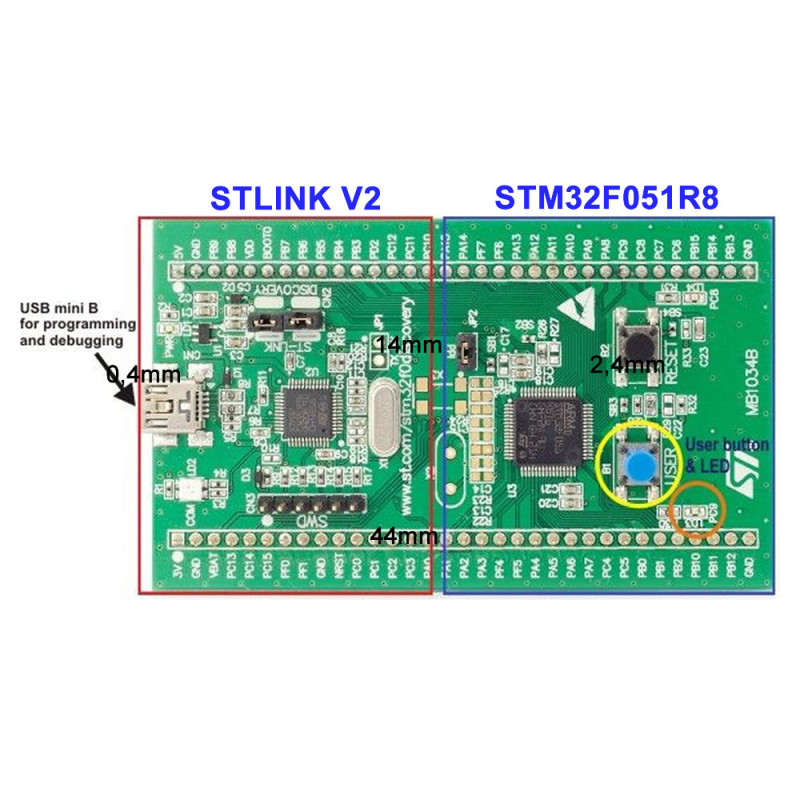

•     On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
•     Board power supply: through USB bus or from an external 5 V supply voltage
•     External application power supply: 3 V and 5 V
•     Four LEDs:
•     LD1 (red) for 3.3 V power on
•     LD2 (red/green) for USB communication
•     LD3 (green) for PC9 output
•     LD4 (blue) for PC8 output
•     Two push buttons (user and reset)
•     Up to 36 I/Os with 5 V tolerant capability

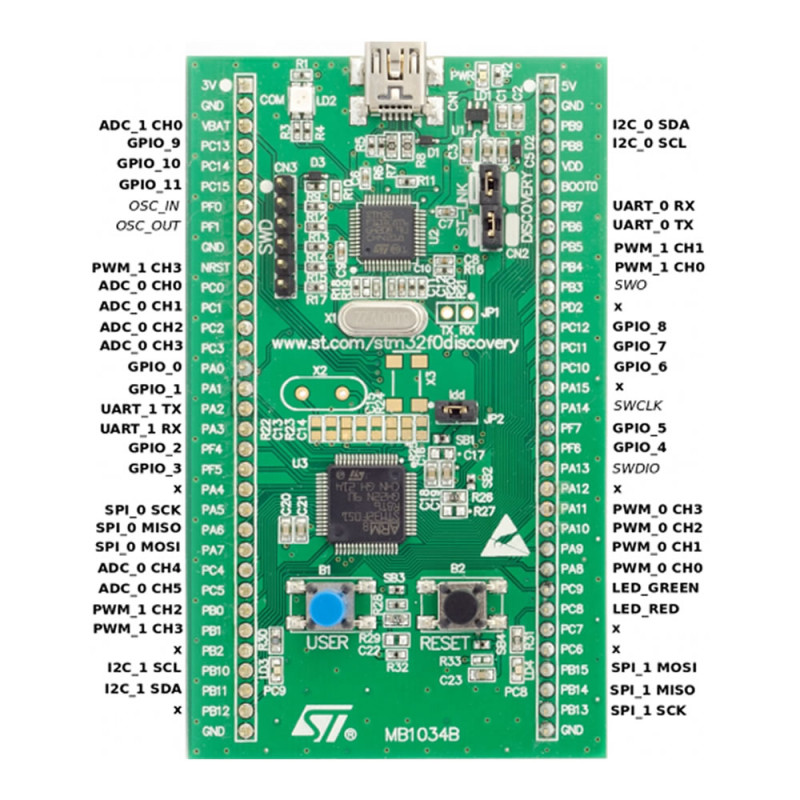

•     Extension header for all LQFP64 I/Os for quick connection to prototyping board and easy probing
•     Up to two I²Cs, up to two SPIs, one I²S, one HDMI CEC and up to two USARTs
•     One 12-bit ADC, one 12-bit DAC, six 16-bit timers, one 32-bit timer and an advanced-control PWM timer

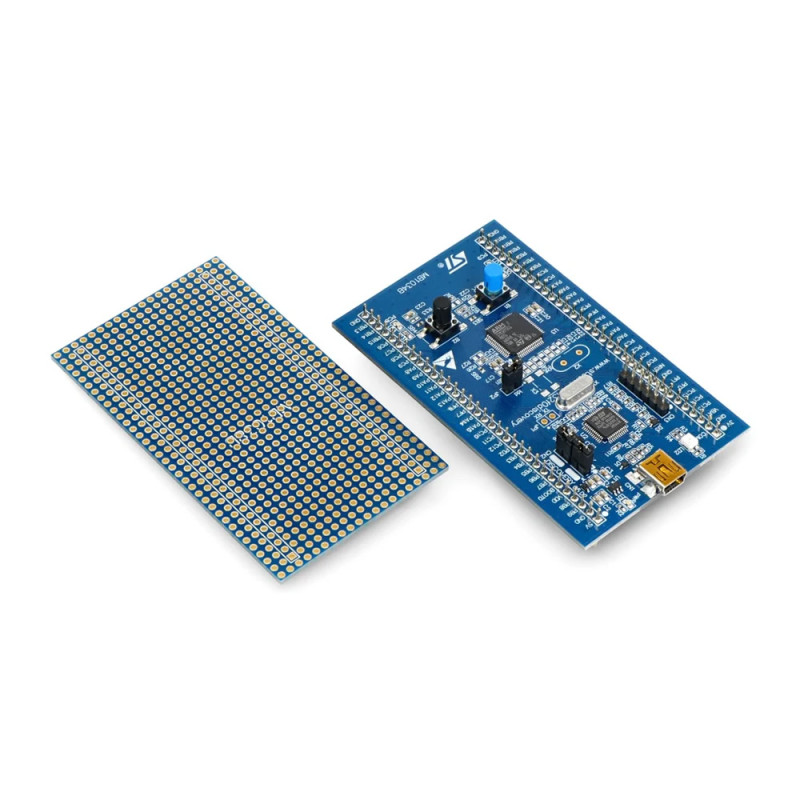

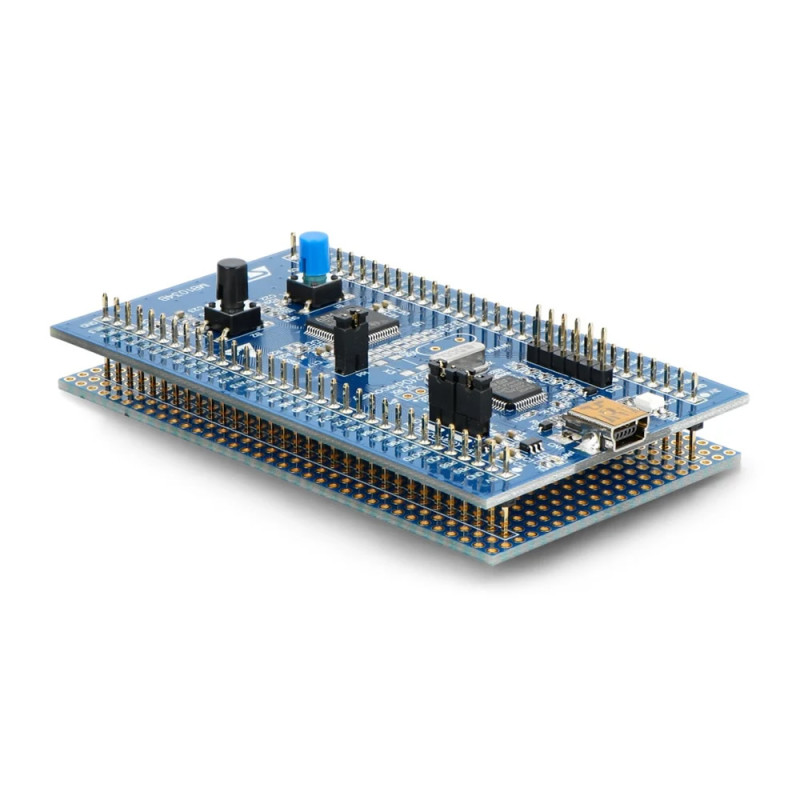

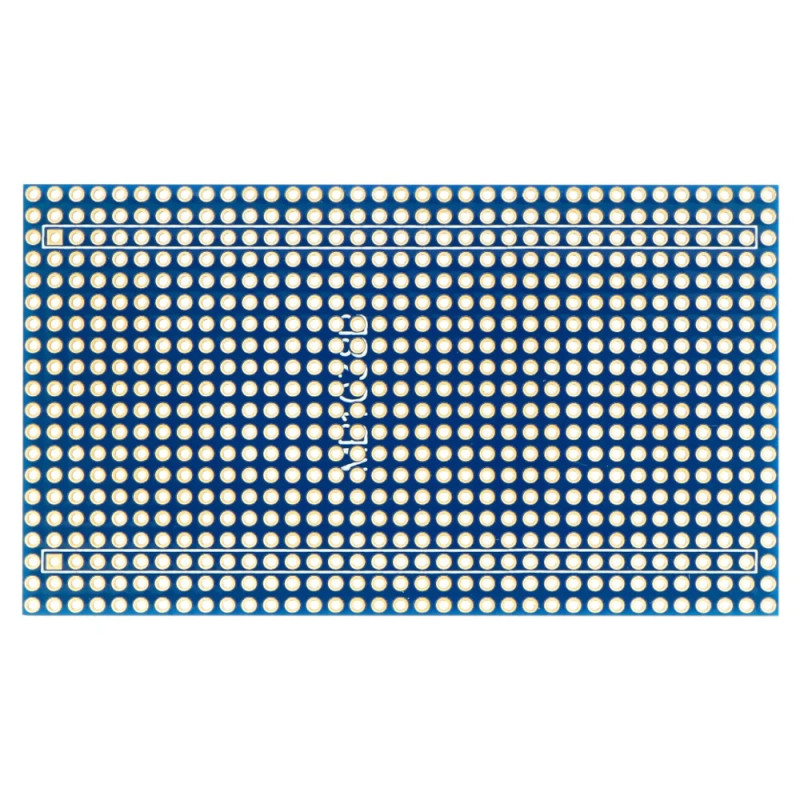

•     An additional board is provided which can be connected to the extension connector for even easier prototyping and probing.

Package Contents:

• 1 pcs STM32F0 DISCOVERY

Attention = A mini usb cable is not included in the package.
