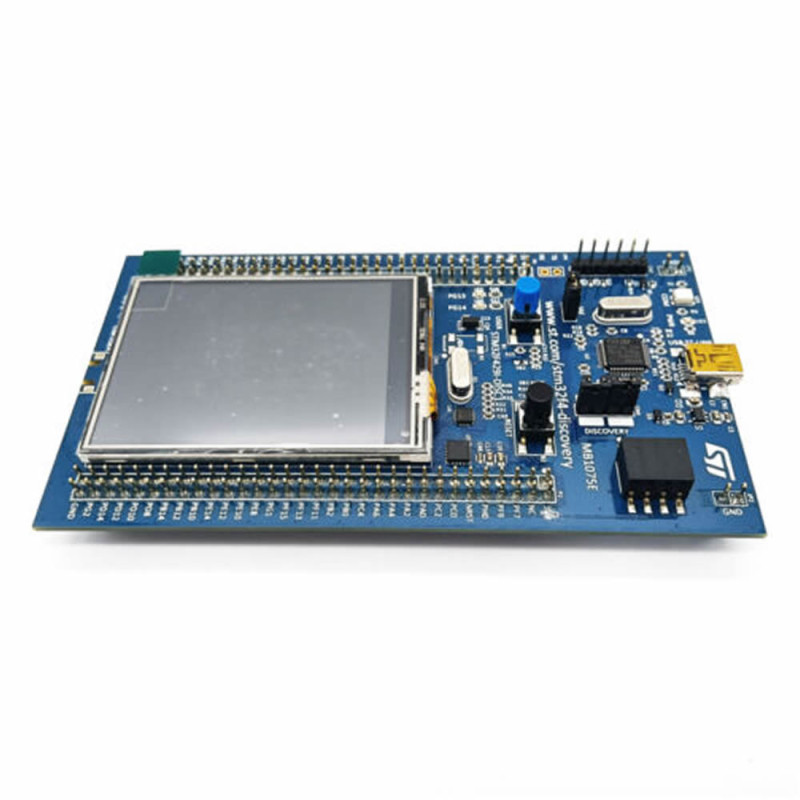

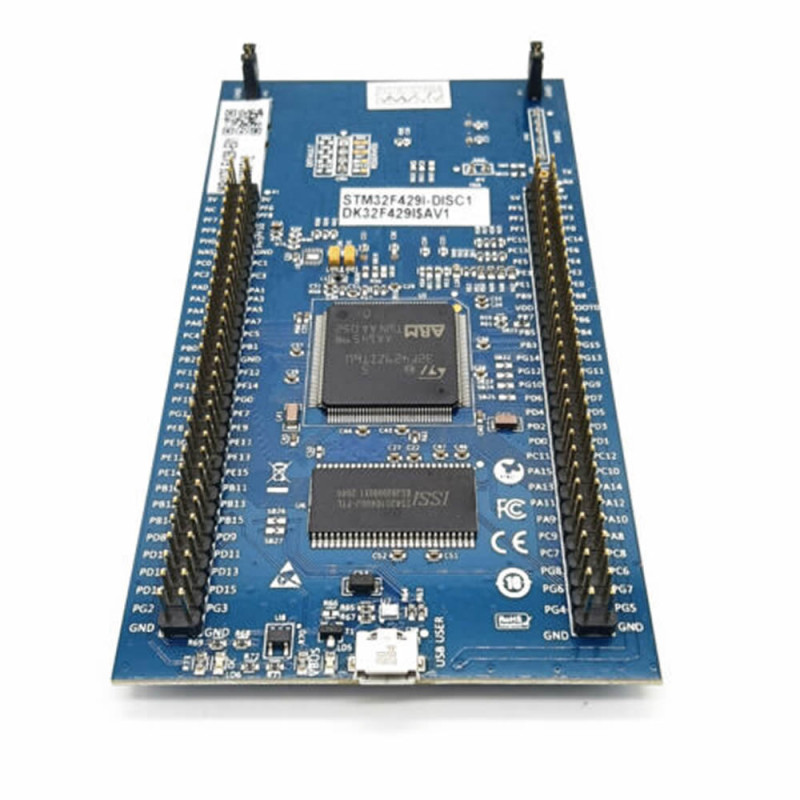

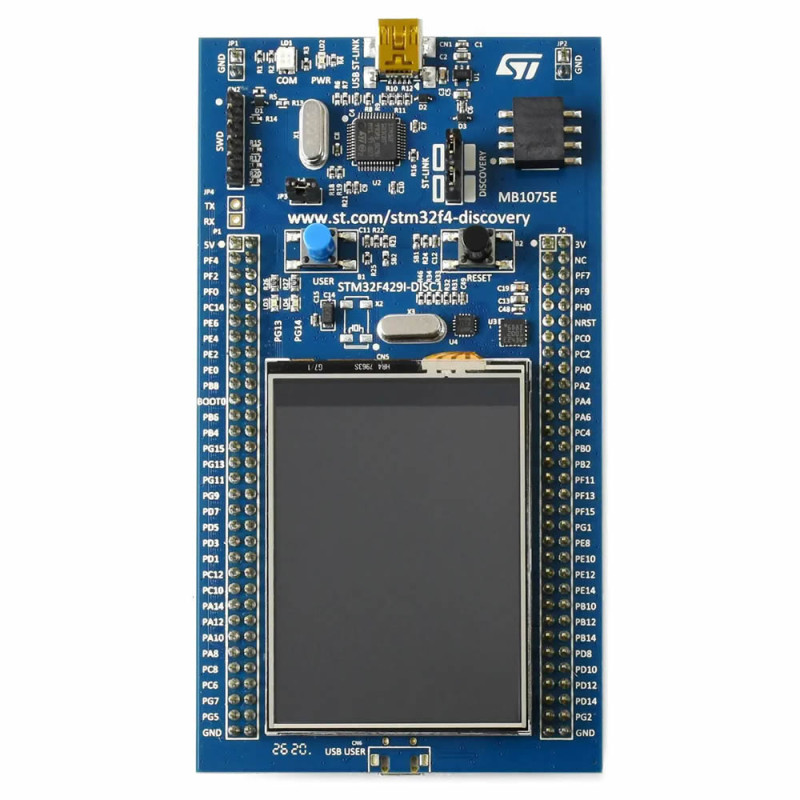

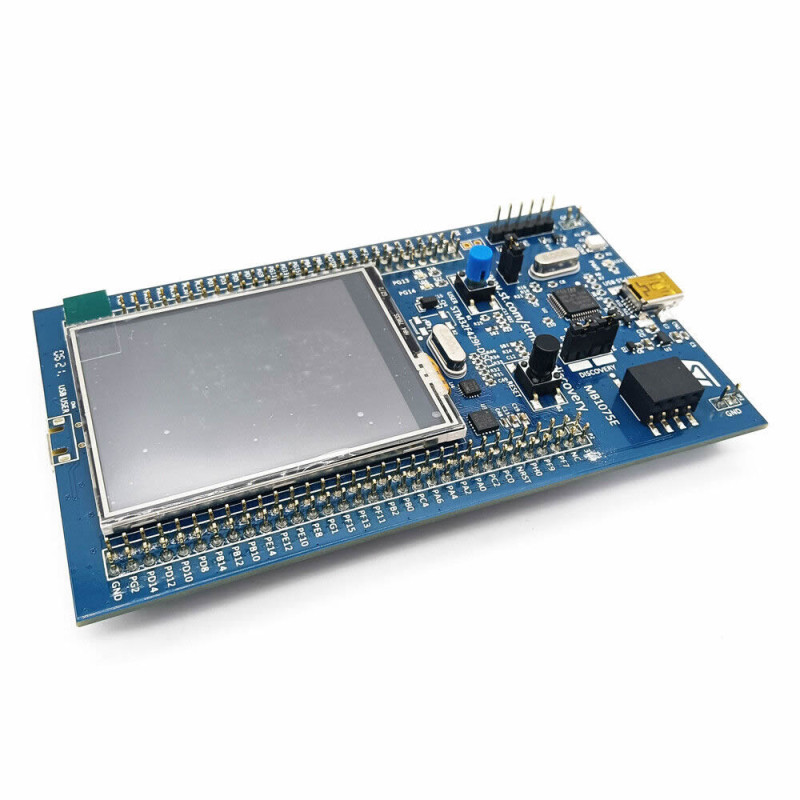

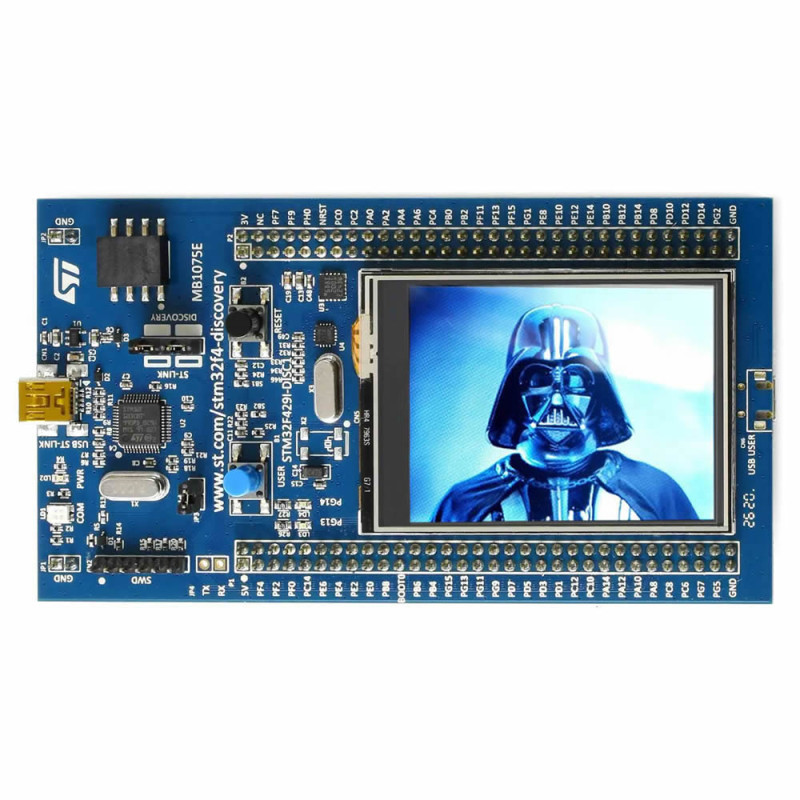

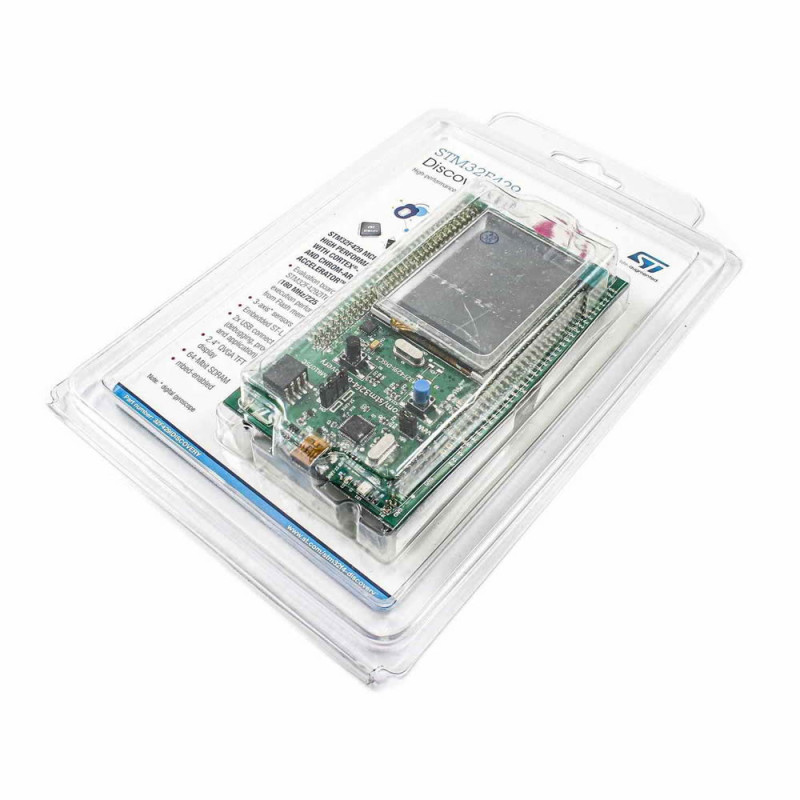

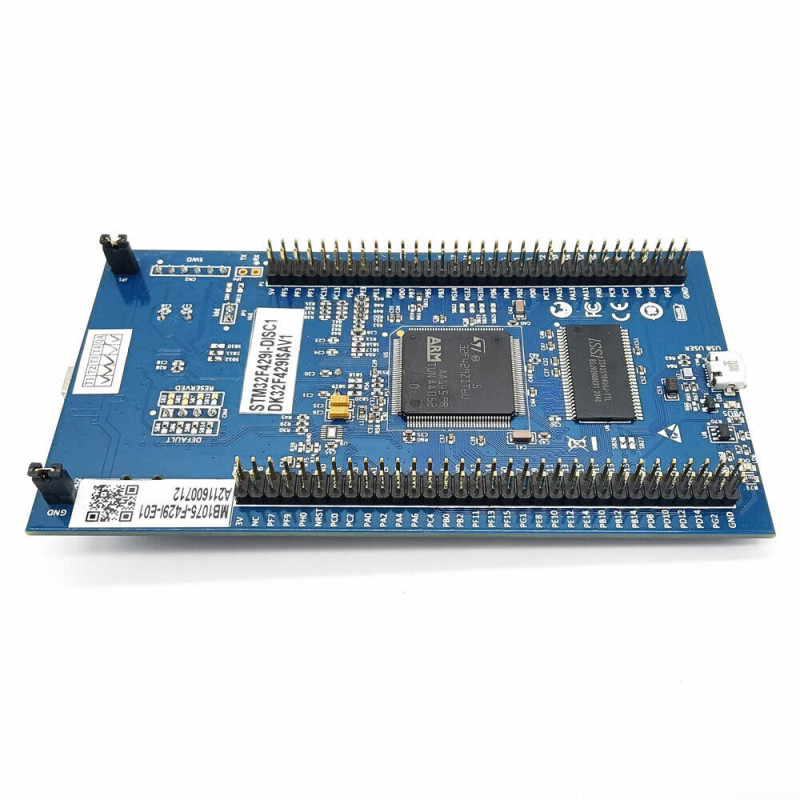

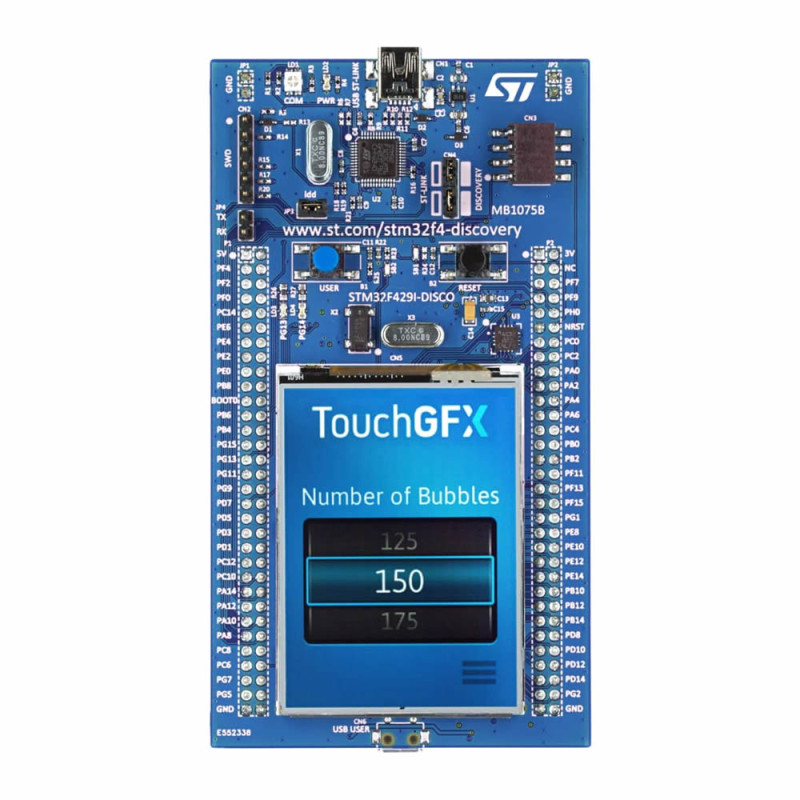

STM32F429I-DISC1

     The STM32F429 Discovery kit (32F429IDISCOVERY) allows users to easily develop applications with the STM32F429 high-performance MCUs with ARM^®Cortex^®-M4 core.

     It includes an ST-LINK/V2 or ST-LINK/V2-B embedded debug tool, a 2.4" QVGA TFT LCD, an external 64-Mbit SDRAM, an ST MEMS gyroscope, a USB OTG micro-AB connector, LEDs and push-buttons.

Key Features

• STM32F429ZIT6 microcontroller featuring 2 Mbytes of Flash memory, 256 Kbytes of RAM in an LQFP144 package
• On-board ST-LINK/V2 on STM32F429I-DISCO or ST-LINK/V2-B on STM32F429I-DISC1
• mbed^™ -enabled (mbed.org) with ST-LINK/V2-B only
• USB functions:
  • debug port
  • virtual COM port with ST-LINK/V2-B only
  • mass storage with ST-LINK/2-B only
• Board power supply: through the USB bus or from an external 3 V or 5 V supply voltage
• 2.4" QVGA TFT LCD
• 64-Mbit SDRAM
• L3GD20, ST MEMS motion sensor 3-axis digital output gyroscope
• Six LEDs:
  • LD1 (red/green) for USB communication
  • LD2 (red) for 3.3 V power-on
  • Two user LEDs: LD3 (green), LD4 (red)
  • Two USB OTG LEDs: LD5 (green) VBUS and LD6 (red) OC (over-current)
• Two push-buttons (user and reset)
• USB OTG with micro-AB connector
• Extension header for LQFP144 I/Os for a quick connection to the prototyping board and an easy probing
• Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32138 for legacy standard libraries usage
