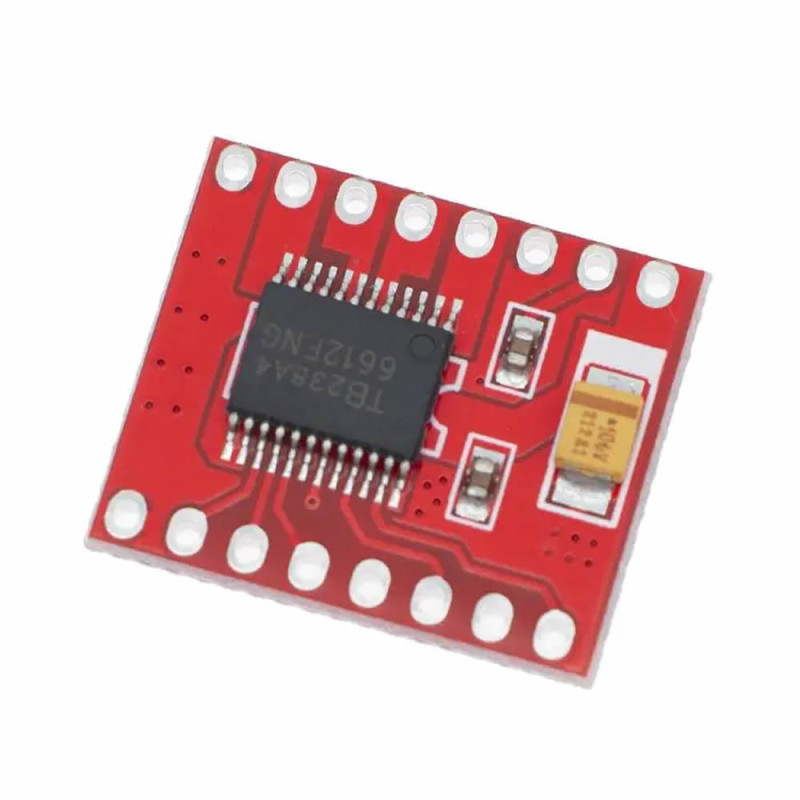

TB6612FNG Dual Motor Driver Module

Toshiba TB6612FNG Dual Dc Motor Driver Module

DC 13V 1.2A Mini Dual Pwm Speed Control Robot Toy Car Sumo

     The Toshiba TB6612FNG IC is a motor driver circuit designed to control 2 independent dc motors. The circuit, which is also known to be used as a bipolar step motor driver, can also be used as a single motor driver by connecting the input and output pins in parallel. The circuit, which operates in the DC 4.5V / 13.5V voltage range, provides 1A continuous and 3A momentary output. In parallel connection, it provides 2A continuous and 6A momentary output.

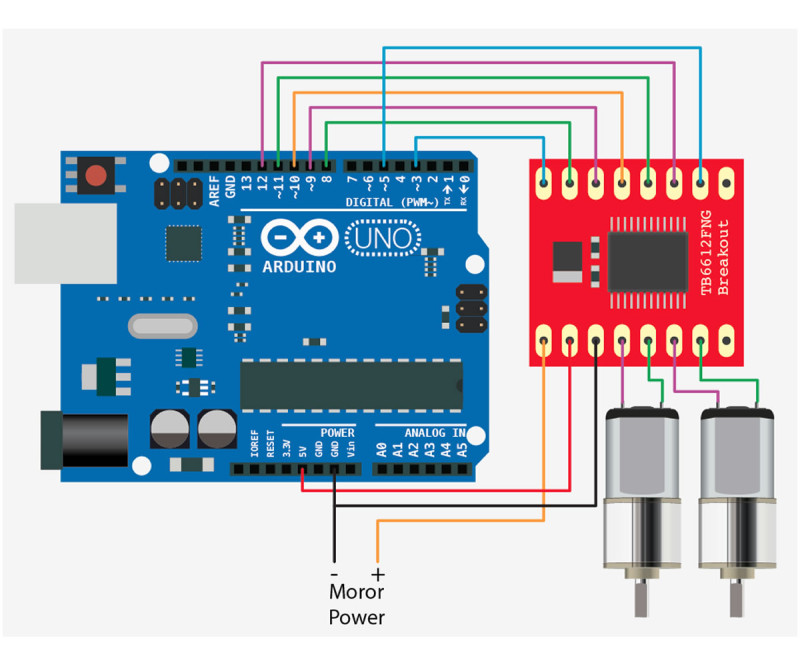

     There are 2 separate pwm channels supporting up to 100kHz frequency that control both motor channels. To bring the circuit out of standby mode, you need to pull the STBY pin to Logic 1 level.

Product Features :

•   Motor voltage: DC  4.5 / 13.5V
•   Supply voltage:  DC 2.7  /  5.5V
•   Current: 1.2A
•   Momentary maximum current: 3A
•   Operating frequency:  100kHz
•   Pwm speed control
•   Over temperature protection
•   Low voltage protection
•   Tantalum capacitor on the motor supply
•   Color: Red
•   Operating temperature:  -20C  /  85C
•   8 thousand empty connection sockets on the edges

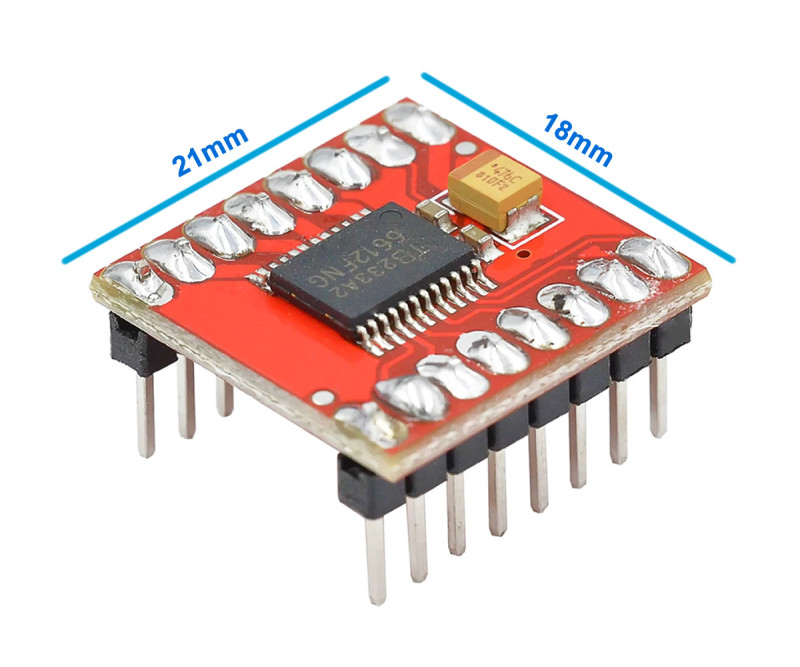

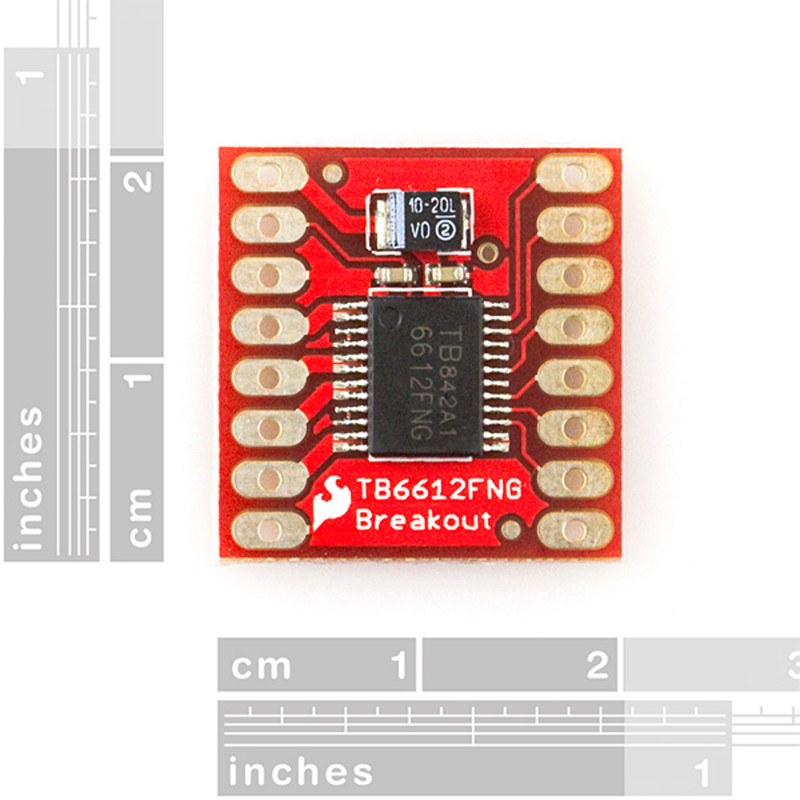

•   Dimensions:   18mm x 21mm
•   Weight:  14gr

Package contents :

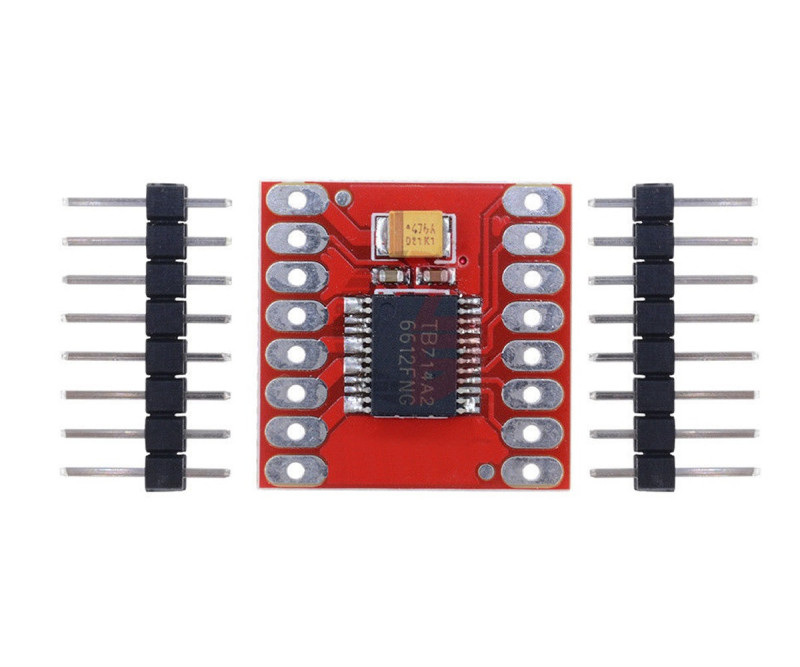

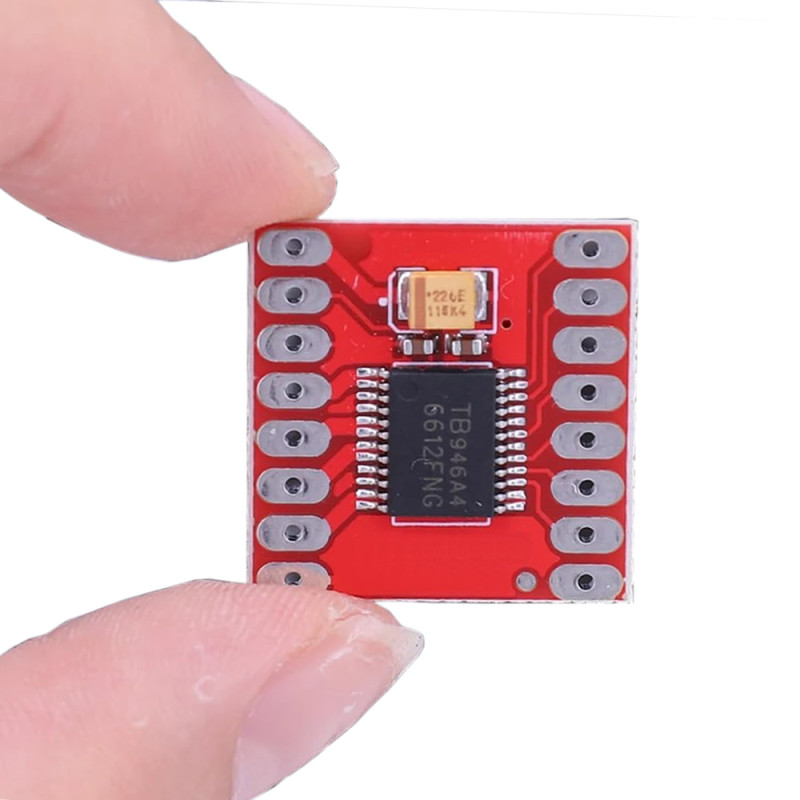

•   1 pcs TB6612FNG motor driver module

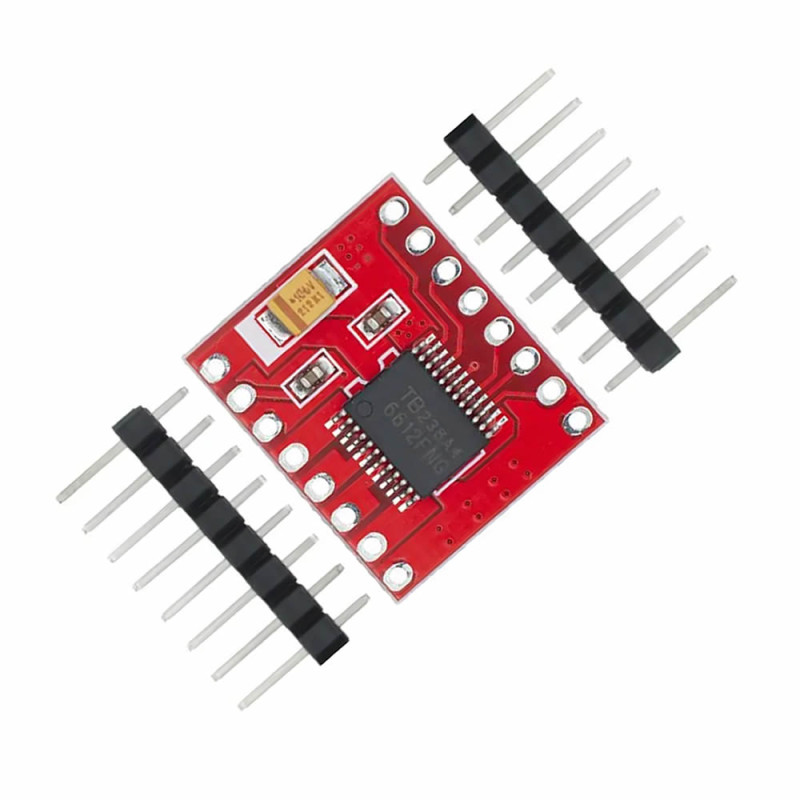

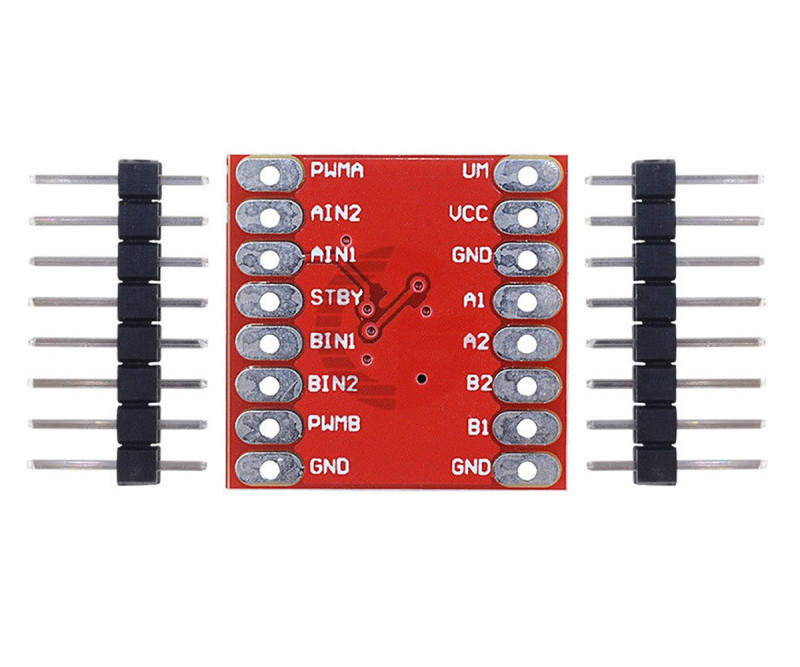

•   2 pcs 8 pin male header
