TP5000 2A Battery Charging Module

TP5000 2A 3.6V Lipo Lifepo4 Battery Charging Module

1S 4.2V Lithium Li-Ion Battery Accumulator Mp3 Mp4 Tablet Pda Phone Radio

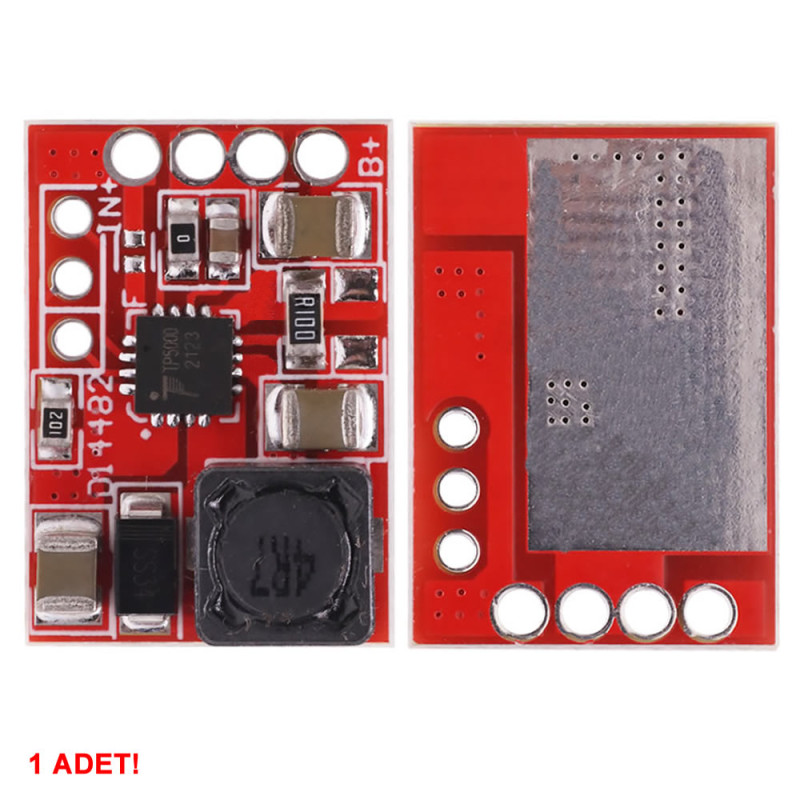

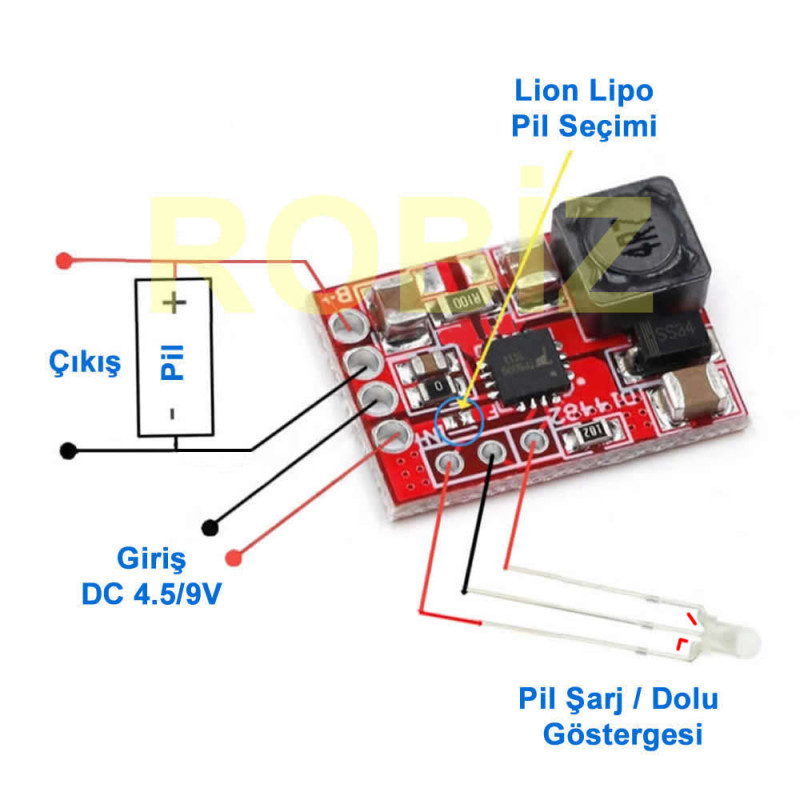

     Tp500 2A Lifepo4 battery charging module. It can charge 1S single cell batteries. The factory battery charging voltage is 3.6V. For 4.2V Lithium batteries the pads in picture number 8 must be short circuited. After short circuiting, the battery charging voltage rises to 4.2V. There are 2 color leds with the product. When soldered correctly, the red led blinking indicates that charging is continuing. The green led indicates that charging is complete.

     TP5100 has built-in input over current, low voltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.

      Warning: Starting to use the product by soldering causes a physical change in the product. Test the product with test cables before use. After determining that there is no problem with the product, continue with the soldering process. Physical change on soldered products removes the return conditions. You can see the correct color order by touching the 2 color led to the pads without soldering.

Features:

• It can charge 1S cell lithium / Lifepo4 batteries.
• Charging voltage: DC 4,2V/ 3.6V
• Factory battery charging voltage 3.6V.

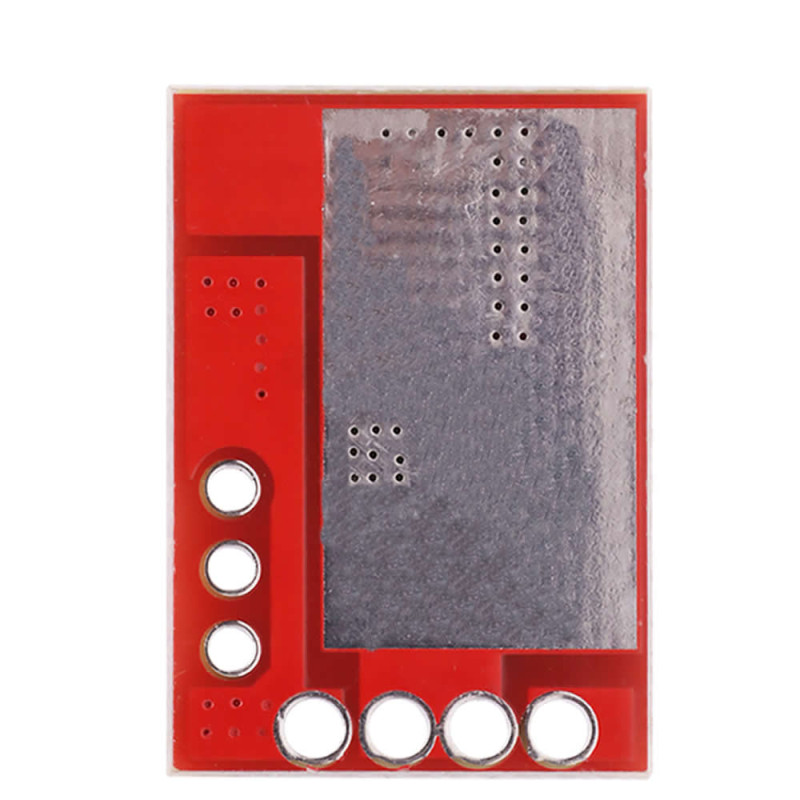

• For 4.2V Lithium batteries the short circuit in picture number 8 must be made
• Charging current: 2A
• Input voltage: DC 5V  ( Maximum 9V )
• 2 color led charging status indicator. Red charging continues, green charging complete.
• Aluminum heatsink block under the board
• Automatic recharge function
• Over current protection
• Low voltage protection
• High temperature protection
• Reverse battery connection protection
• Accuracy: 1%
• Color: Red
• Operating environment temperature range: -20C  /   +85C

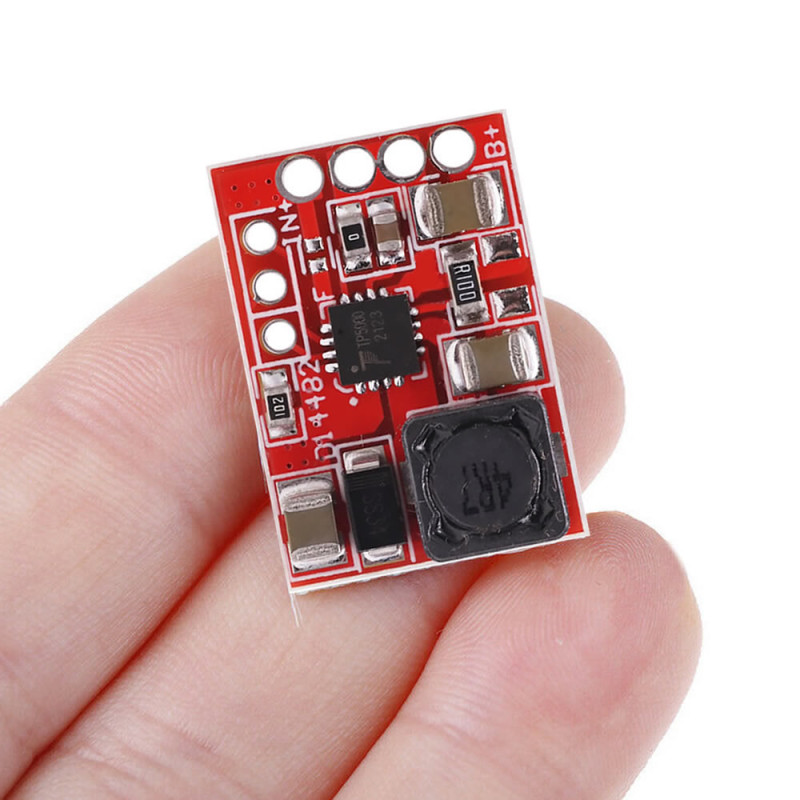

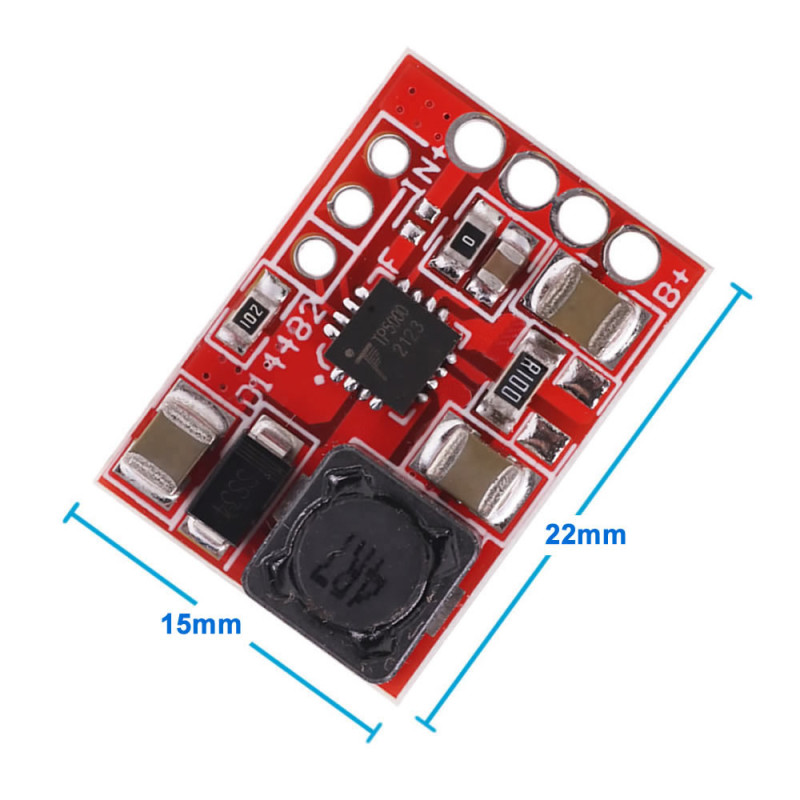

• Dimensions: 15mm x 22mm
• Weight:  3gr

Package Contents:

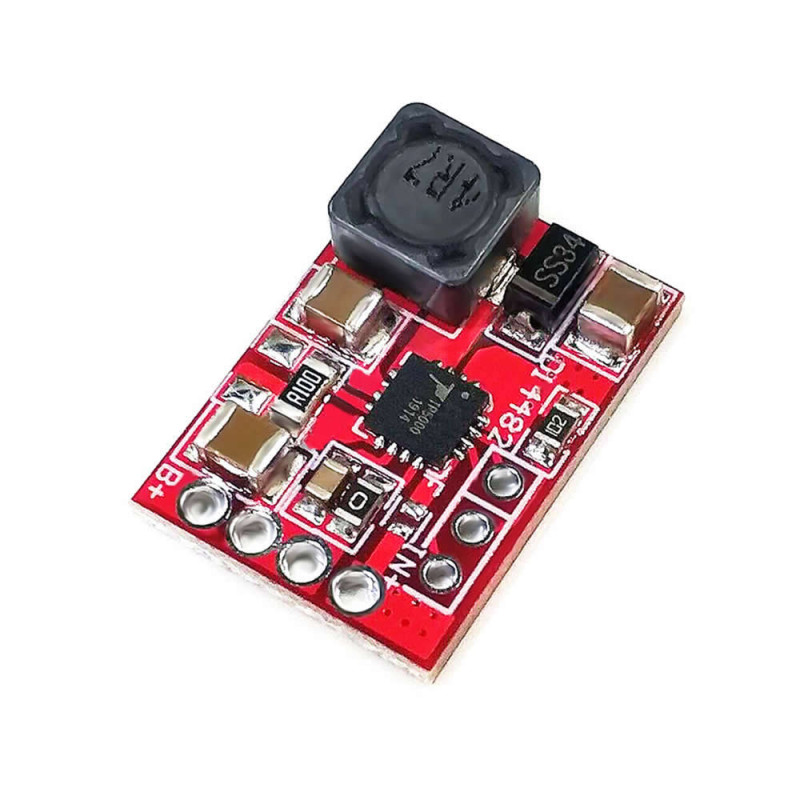

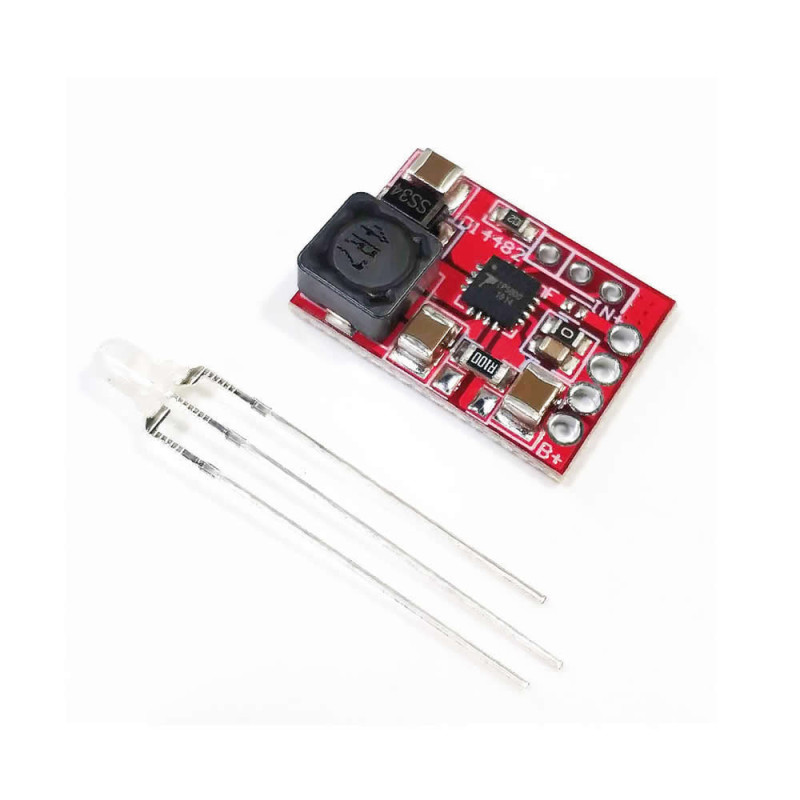

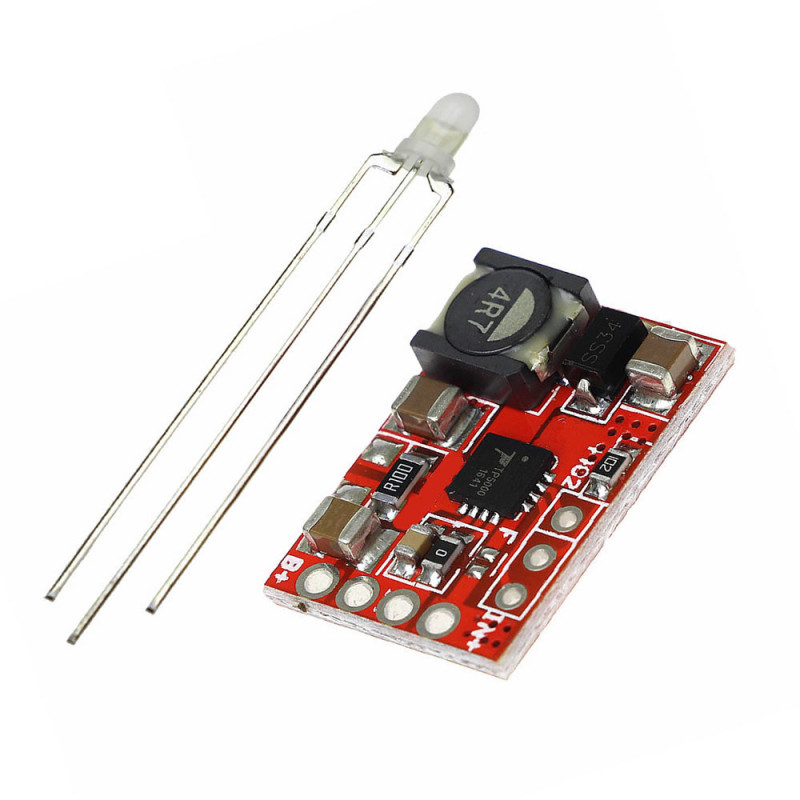

•     1 Piece TP5000 lithium battery charging module
•     1 Piece 2 color led

.
